Productivity & Automation

• Automatic button feeder: reduces labor, stabilizes placement, and boosts pieces per hour.
• Integrated direct-drive: smooth start/stop, low vibration, energy-saving performance.
• Programmable stitch counts: typical 8 / 16 / 32 with selectable patterns for clean, durable results.
• Simple operation: quick setup and easy training for operators across shifts.

Materials & Applications

1. Shirts & blouses — uniform button spacing and clean finish front/back.
2. Uniforms & workwear — durable, repeatable stitch counts under continuous runs.
3. Jackets & casualwear — consistent appearance with automatic thread trim.
4. General apparel — any line requiring efficient 2-/4-hole button sewing.

Key Features

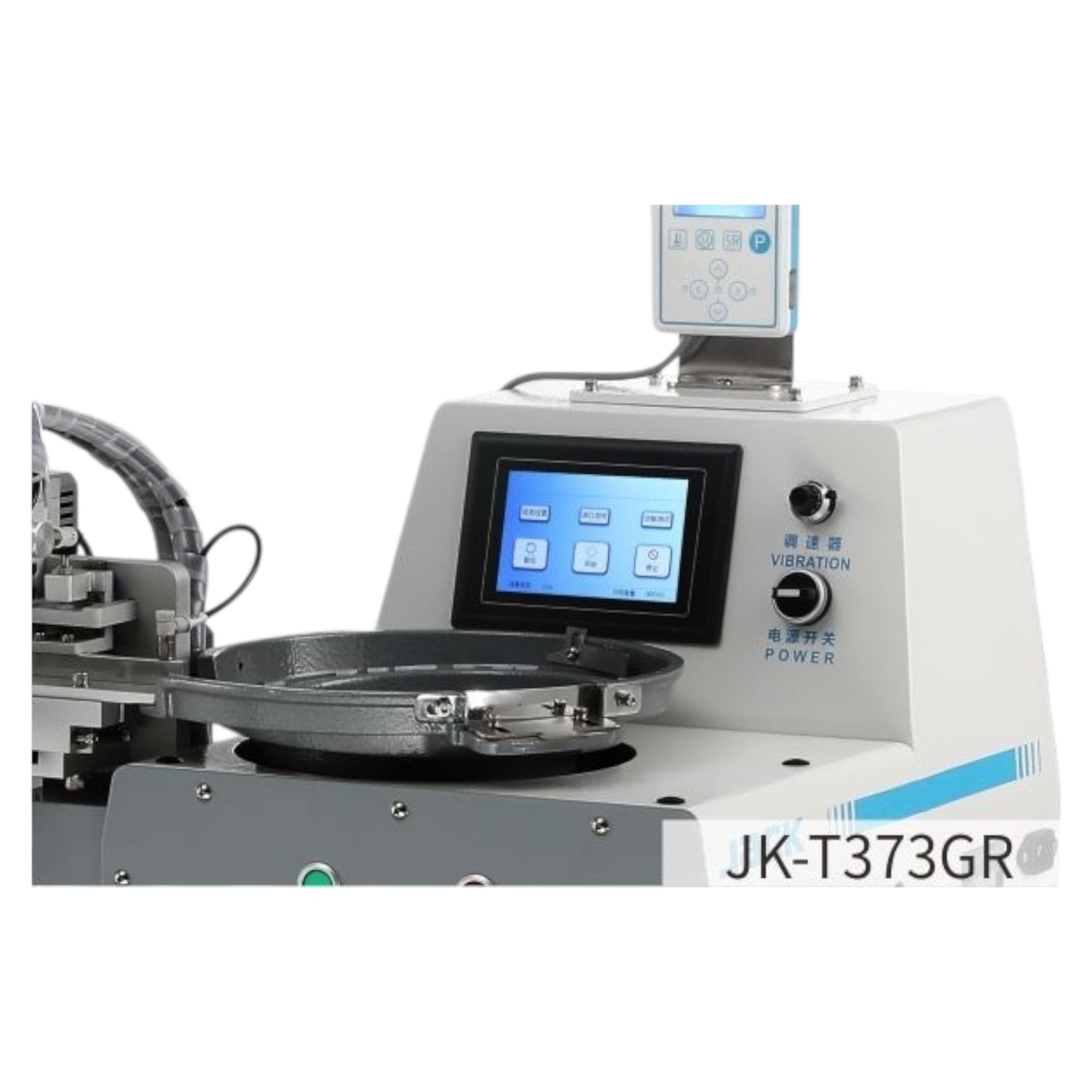

• Automatic button feeding for high-speed production
• Direct-drive integrated motor (quiet, efficient, stable)

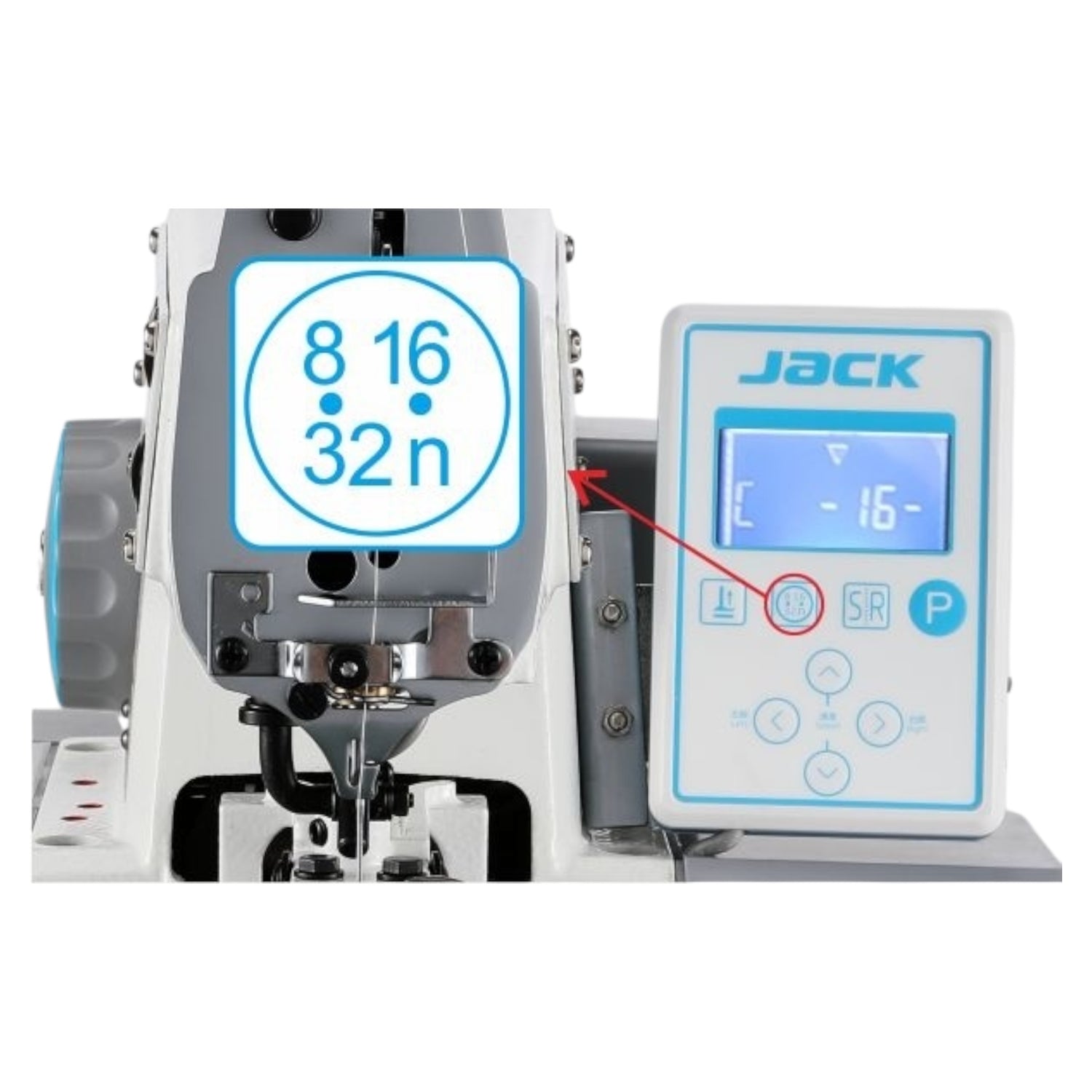

• Chainstitch button sewing with selectable stitch counts (e.g., 8/16/32)
• Thread-fray prevention function for cleaner finishes
• Parallel button sewing pattern; programmable X/Y pattern size
• Operator-friendly UI with quick parameter changes and counters

Technical Specifications

• Stitch type: Chainstitch, parallel button sewing (2- & 4-hole)
• Max sewing speed: up to 1,500 SPM (typical configuration)
• Button diameter range: approx. 8–25/28 mm (model/fixture dependent)
• Button stitch pattern (X/Y): approx. 2.5–6.5 mm each axis
• Presser foot lift: around 9 mm
• Needle system: TQ×1 (common sizes ~#14–18)
• Integrated functions: automatic thread trimming; thread-fray prevention On/Off

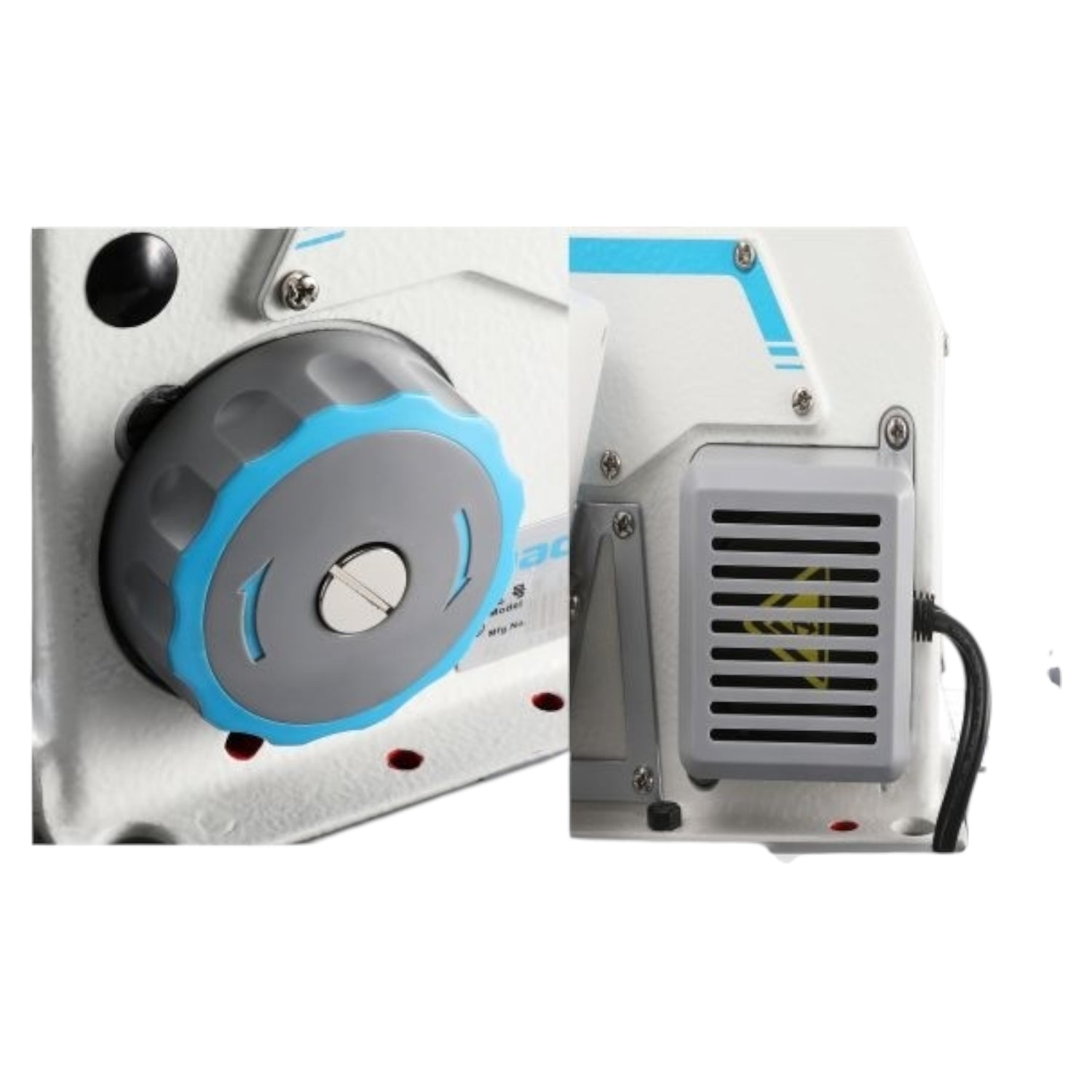

• Powertrain: integrated direct-drive motor in machine head

Note: Specs may vary slightly depending on feeder type, clamps, and regional configuration. Confirm at order.

What’s Included

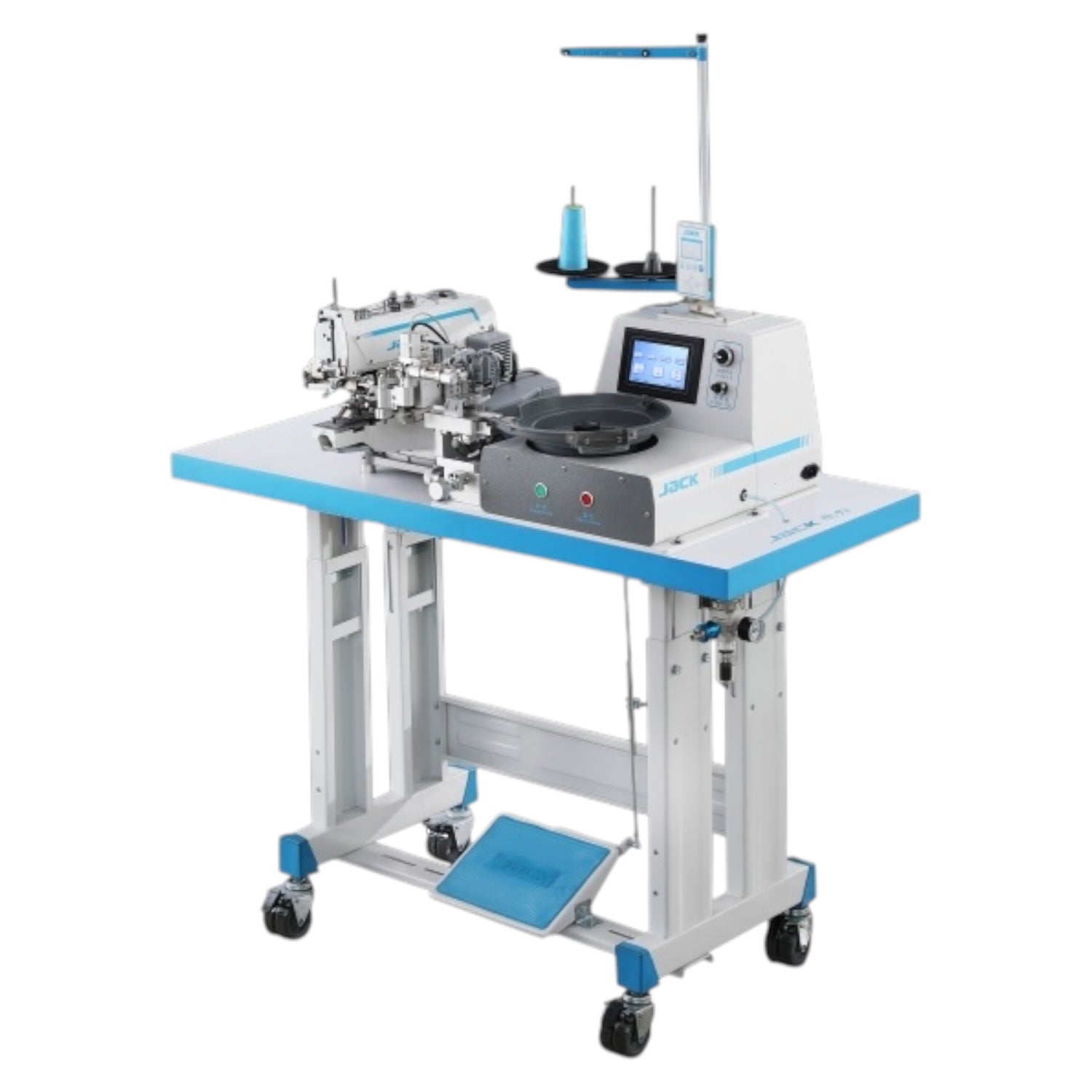

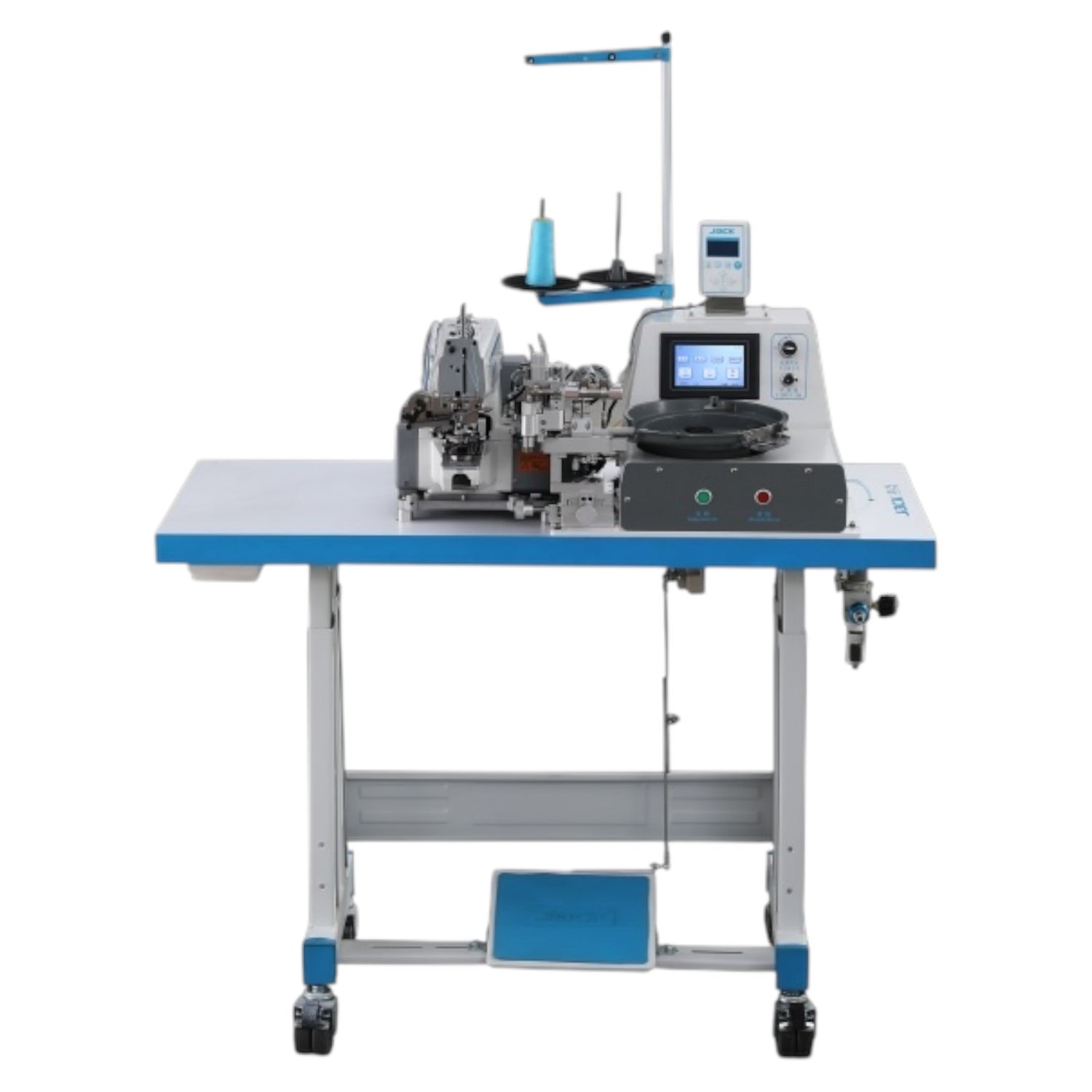

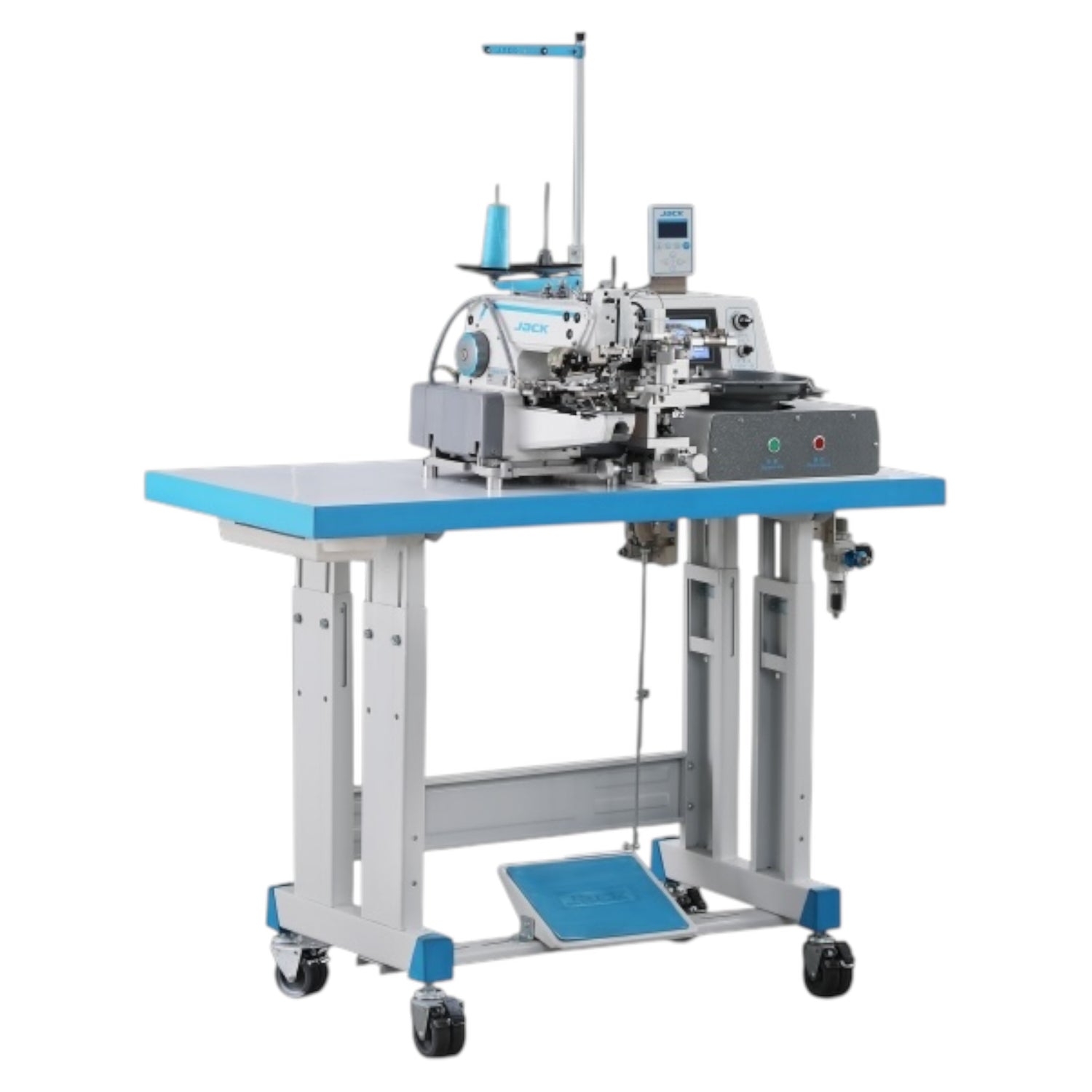

• JACK JK-T373GR-Z machine head with integrated motor
• Industrial table & stand (assembled)
• Standard button clamps/attachments and accessories (auto feeder device per order)
