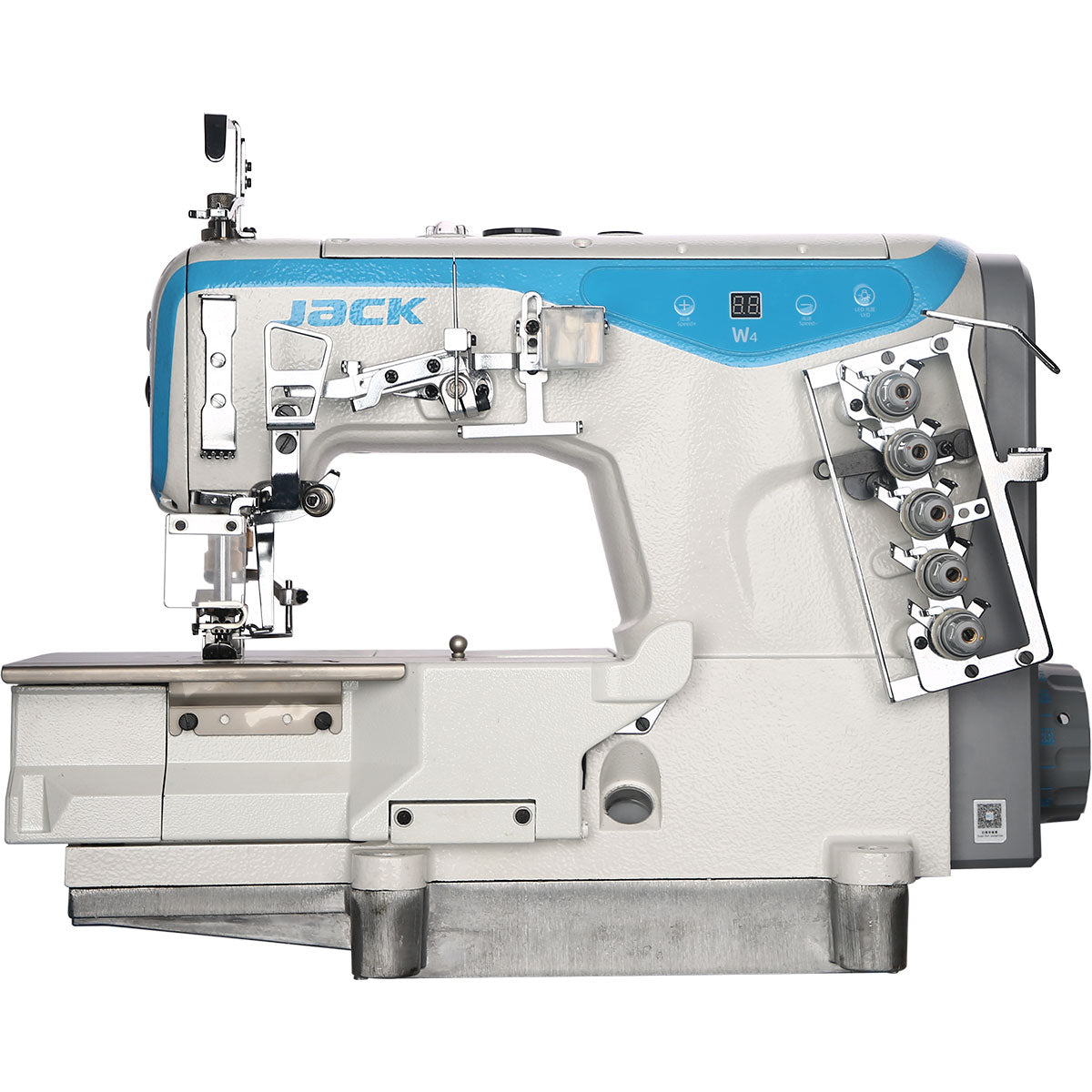

JACK® W4-D /01/02/03/08 3 Needle Flatbed Coverstitch Industrial Sewing Machine Assembled with Table and Stand Included

One Machine, Multiple Operations (Ultimate Configuration)

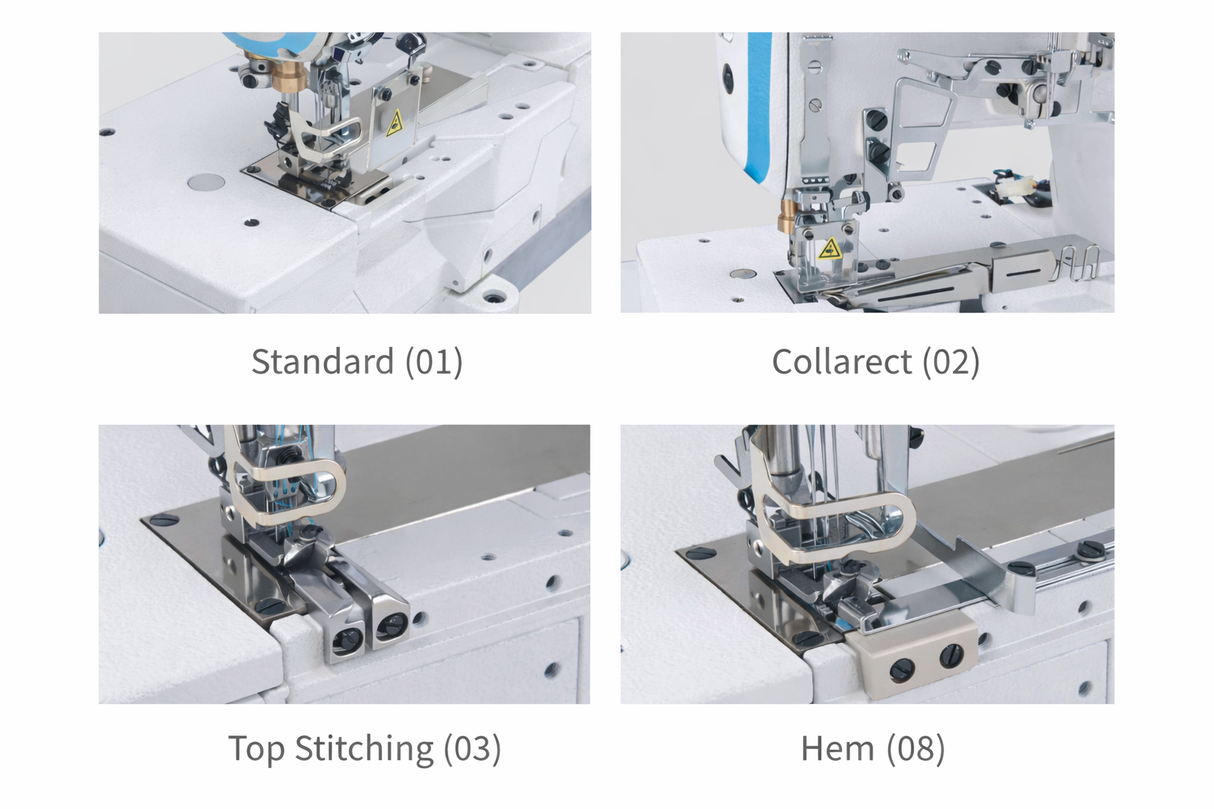

• (01) Plain Seam: Clean, stable coverstitch seams for knitwear assembly and reinforcement.
• (02) Tape Binding: Designed to apply tape/binding for stronger edges and clean finishes (great for necklines and seam reinforcement).
• (03) Covering Seams: Professional cover seams for sportswear, activewear, underwear, and decorative stitching.
• (08) Bottom Hemming: High-quality bottom hems with a clean, stretch-friendly finish—perfect for T-shirts and knit garments.

This combination makes the W4-D a true all-in-one production machine for modern apparel.

Materials & Applications

The JACK W4-D /01/02/03/08 is ideal for knit and stretch garments, including:

1. T-shirts & polos – bottom hemming, sleeve hems, and cover seams
2. Activewear & sportswear – strong, flexible seams and decorative cover stitching
3. Underwear & lingerie – smooth seams with stretch and comfort
4. Kidswear & babywear – clean hems and soft seams on knits
5. Tape/binding applications – necklines, shoulder reinforcement, and edge finishing on knit garments

If your production includes hemming, cover seams, and tape/binding, this is one of the most efficient setups you can run.

Key Features

• 3-needle flatbed coverstitch industrial machine
• ULTIMATE multi-function model: Plain Seam (01), Tape Binding (02), Covering Seams (03), Bottom Hemming (08)
• Built for stretch and knit fabrics with clean, professional finishes
• Ideal for high-volume apparel production
• Produces durable, flexible seams designed for comfort and long wear
• Assembled with industrial table and stand included

Technical Specifications (typical configuration)

• Model: JACK W4-D /01/02/03/08
• Machine Type: 3-needle flatbed coverstitch
• Needle System: UY128GAS #11–#14
• Needles: 3
• Threads: 5
• Stitch Length: 1.5–4.5 mm
• Stitch Width: 5.6 mm / 6.4 mm
• Differential Feed Ratio: 0.65–1.3
• Presser Foot Lifting Height: 7 mm
• Max Speed: 5,500 SPM
• Applications: plain seam, tape binding, covering seams, bottom hemming
• Material Range: knits and stretch fabrics (light to medium)
• Feed System: differential feed (typical for coverstitch machines to control stretching/waviness)
• Motor: industrial servo setup (included with table/stand package)

(Exact speed, stitch width, needle system, and stitch length can vary by configuration—if you share the spec sheet or key numbers, I’ll lock them in precisely.)

What’s Included

• JACK W4-D /01/02/03/08 machine head (Ultimate configuration)
• Industrial table and stand, assembled
• Thread stand and standard accessories (kit may vary by batch)
