Long-Arm Power with Twin-Needle Productivity

• 25" long arm with approx. 6.5" height clearance makes it easy to handle large cushions, seat backs, bed panels and long runs without folding or fighting the material.
• Double needle configuration for sewing two perfectly parallel rows in one pass—ideal for decorative topstitching and reinforced structural seams.
• Supplied standard with a 3/8" (9.5 mm) gauge set, and the customer can select a different gauge set (closer or wider spacing) according to their needs.
• Unison feed (triple feed)—walking foot, needle feed and bottom feed move together, keeping all layers aligned even on thick, sticky or multi-layer materials.
• 900W high-torque servo motor delivers strong needle penetration on heavy seams, while running quieter and more efficiently than a clutch motor.

Operator Convenience: Needle Positioner & Pneumatic Functions

To support high-volume production and reduce operator fatigue, the SW-4420-L25 includes:

• Needle positioner – automatically stops the needle up or down, making it easier to pivot, align corners and restart seams.
• Pneumatic presser foot lifter – lift the presser foot just by pressing the pedal backward, instead of reaching for a lever, speeding up handling of thick and bulky materials.
• Pneumatic reverse function – engage reverse with a convenient button near the needle area, so operators don’t have to reach all the way down the long arm to backtack.

These features greatly improve speed, ergonomics and control, especially on large, repetitive upholstery and automotive jobs.

Materials & Applications

The SPEEDWAY SW-4420-L25 is ideal for medium to heavy-weight materials, such as:

1. Furniture upholstery – sofas, recliners, chairs, cushions and decorative bands.
2. Automotive interiors – seats, bolsters, door panels, center consoles and armrests.
3. Marine & RV upholstery – boat seats, cockpit cushions, backs and interior panels.
4. Leather & vinyl – leather seating, bags, moto seats and heavy synthetic covers.
5. Canvas & technical fabrics – tarps, covers, industrial panels and heavy gear.

Where you need long reach, heavy feeding power and clean, parallel twin seams, this machine excels.

Key Features

• Double needle long-arm heavy-duty lockstitch machine
• 25" arm length with generous underarm clearance
• Standard 3/8" (9.5 mm) gauge set included
• Customer can choose the preferred gauge set (standard 3/8" or other available spacings) when ordering
• Unison feed (triple feed) – walking foot + needle feed + bottom feed
• 900W servo motor – powerful, quiet and energy efficient
• Rectangular feed mechanism for smooth, positive material handling
• Higher presser foot lift: approx. 8–20 mm for thick upholstery and leather assemblies
• Dual-tension system for stable sewing with heavy threads
• Safety clutch to protect the hook; easy push-button reset
• Needle positioner, pneumatic presser foot lifter and pneumatic reverse to maximize productivity and operator comfort

Technical Specifications (typical configuration)

• Model: SPEEDWAY SW-4420-L25
• Machine Type: Double needle long arm heavy-duty unison feed walking foot
• Arm Length: approx. 25"
• Underarm Height: approx. 6.5"
• Needles: 2
• Gauge Set: Standard 3/8" (9.5 mm); alternative gauge sets available by request
• Feed System: Unison feed – walking foot + needle feed + bottom feed
• Max Stitch Length: up to 9 mm
• Presser Foot Lift: approx. 8–20 mm (hand, knee and pneumatic lift)
• Motor: 900W servo motor
• Max Sewing Speed: up to approx. 1,800 SPM (depending on material and setup)
• Needle System: DPx17, typical sizes #18–#24 depending on material/thread
• Thread Range: medium to heavy threads for upholstery and leather
• Lubrication: Manual lubrication system with integrated oil pan
• Air Requirement: External air compressor for pneumatic foot lift and reverse

(Exact values may vary slightly depending on final configuration.)

What’s Included

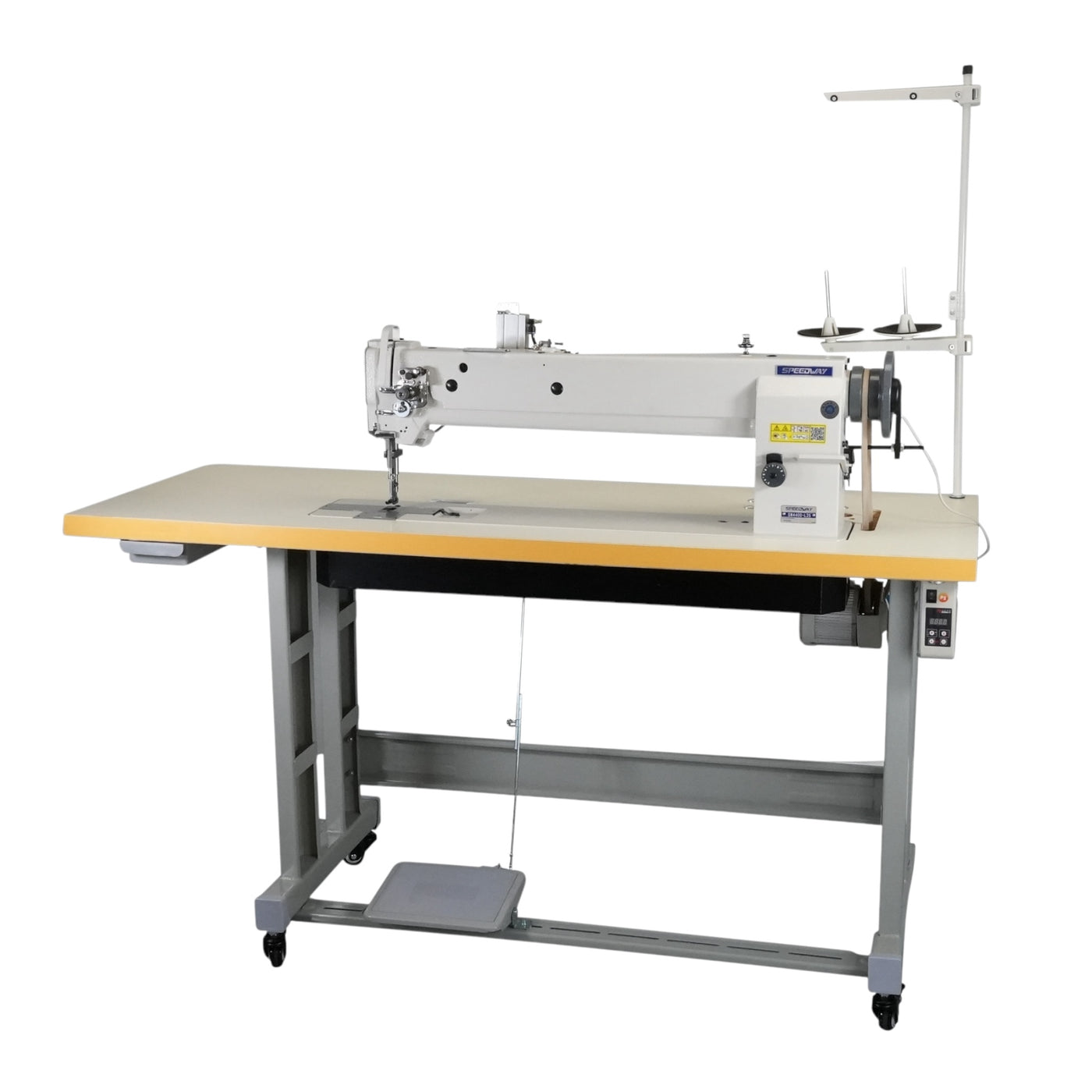

• SPEEDWAY SW-4420-L25 double needle long-arm machine head
• 900W servo motor, mounted and wired
• Industrial long-arm table & stand, typically with wheels
• Standard 3/8" gauge set (other gauges available on request), needles, bobbins and basic accessory kit
• Built-in bobbin winder and thread stand
