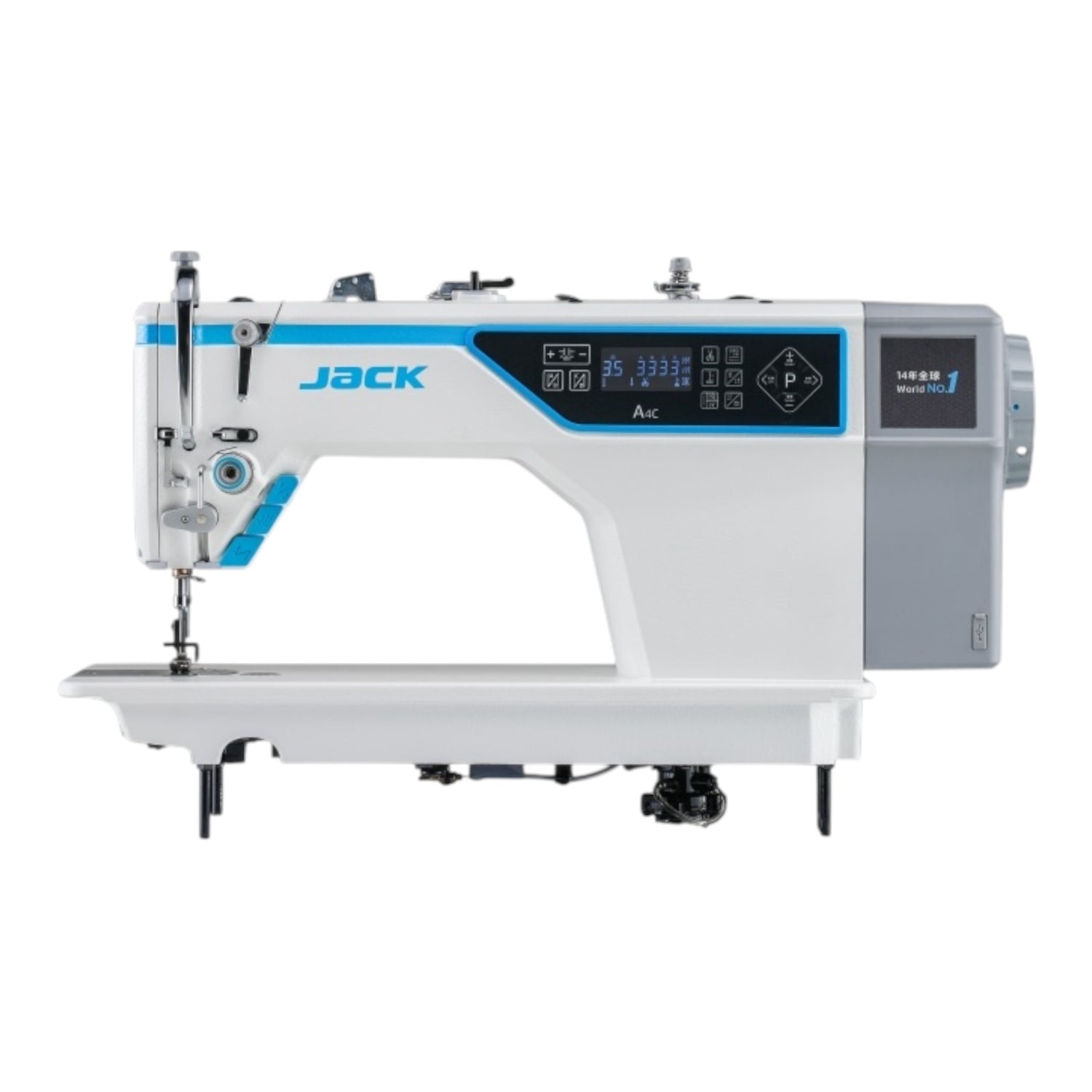

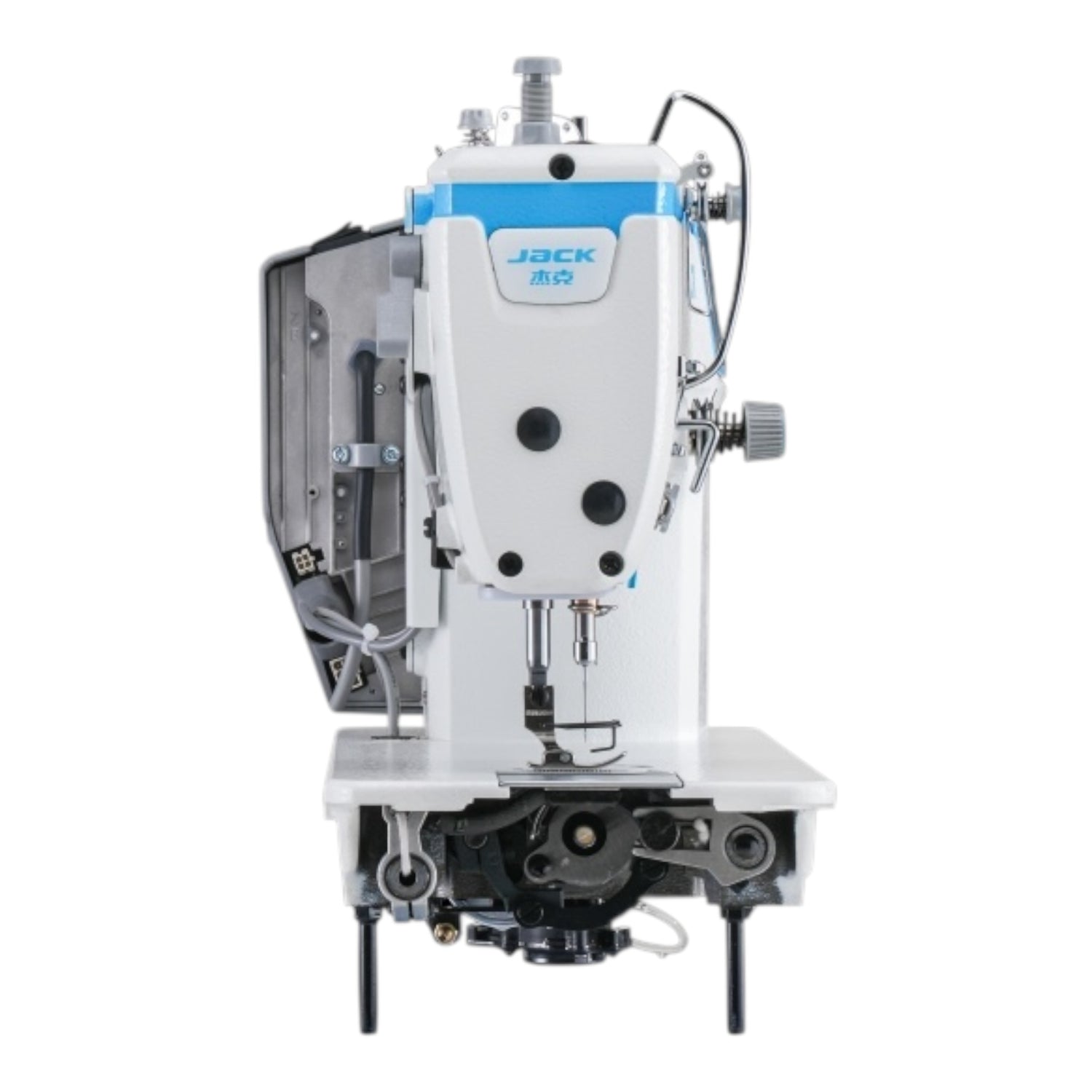

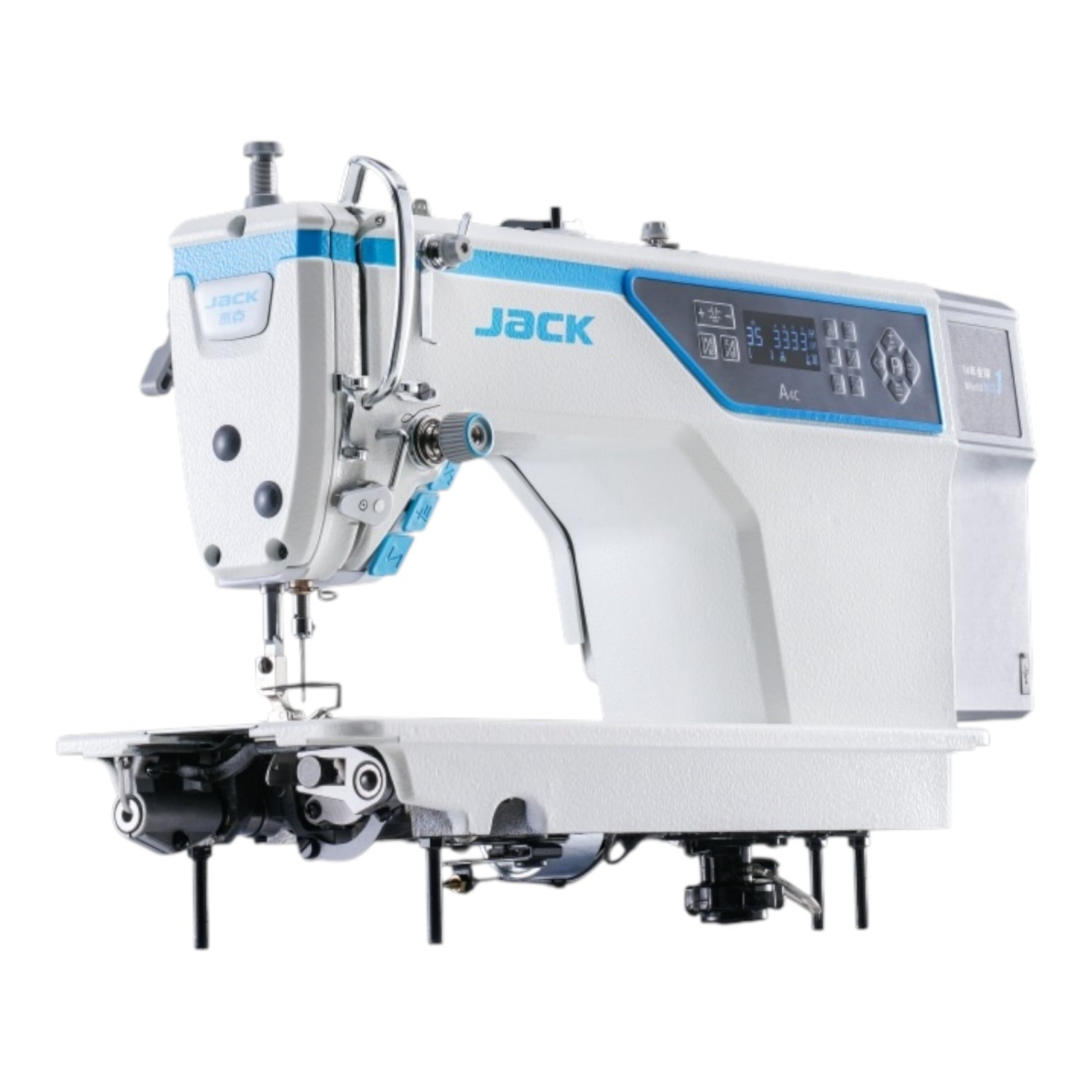

JACK A4C C Single Needle Direct Drive Fully Automatic Drop Feed Lockstitch Industrial Sewing Assembled with Table and Stand Included

Key Features

• NTB System with Octopus Nine‑Brain AI Chip: Processes over 200,000 fabric samples at 10,000 computations per second to dynamically adjust feed force and synchronize thread-taking, catching, and fabric feeding.


• 0‑Degree Thread Path Technology: Significantly reduces thread tension by up to 30%, minimizing friction and breakage.
• Stepper Motor for Presser Foot Lift and Reverse: Ensures exceptionally quiet operation and smooth control, carried over from the A4B-C design.


• Direct‑Drive, Energy‑Saving Motor: Built-in, quiet, and efficient for smooth, power-saving operation.


• Automatic Sewing Functions: Includes thread trimming, foot lift (up to 13 mm), back‑tacking, and needle up/down positioning for streamlined, operator-friendly performance.


• Enhanced Usability Features: LED lighting for better visibility and optional voice feedback to guide operation.



Technical Specifications

• Model: Jack A4C‑C (DBx1 needles, size #11–18)
• Number of threads: 2
• Max stitch length: 5 mm
• Presser foot lift: 5 – 13 mm
• Sewing speed: up to 5,000 stitches per minute
• Suitable for: thin to medium-weight materials
• Dimensions: 695 × 295 × 550 mm
• Weight: 36 kg (net) / 42 kg (gross)



Applications

The Jack A4C-C excels in:

• High-volume garment production — ideal for shirts, trousers, dresses, uniforms, and more.
• Workshops and factories that demand speed, precision, and minimal operator intervention.
• Environments handling varying fabric types, thanks to its intelligent AI-driven adaptability.
• Operations looking for energy efficiency and reduced maintenance through its direct-drive technology and automation features.

Why Choose the Jack A4C-C?

• AI-enhanced feeding ensures consistent stitch quality and dramatically reduces thread breakage.
• Simplified workflow through powerful automatic trimming, positioning, and feedback systems.
• Low noise, smooth operation, and reduced power consumption.
• Built for precision and durability, with advanced threading technology and robust construction.
