Free Shipping Assembled + Apply for Finance

JACK

JACK E4S-3-32R2/223 3 Thread Rolled Hem Overlock Industrial Sewing Machine Assembled with Fully Submerged Table Setup Included

$1,620.00 $1,988.00
Condition:
New
Shipping:
Free Shipping assembled in the USA!*

Expert Support

Have Questions?

We're Top Distributors

Best Market Prices!

In-House Experts

We know our machines!

Financing Options

Buy Now, Pay Later!

Nationwide Delivery*

Arrives in record time!

Description

The JACK E4S-3-32R2/223 is a 3-thread rolled hem overlock industrial sewing machine assembled with a fully submerged table setup, designed for narrow, clean rolled hem finishing on lightweight and delicate fabrics. This complete package includes the machine, integrated direct drive energy-saving motor, and fully submerged industrial table and stand — ready to run straight out of the box. Built for garment factories producing chiffon, silk, organza, and other fine fabrics requiring a professional narrow rolled hem finish at volume.

What's Included

  • JACK E4S-3-32R2/223 3-thread rolled hem overlock machine
  • Integrated direct drive energy-saving motor
  • Fully submerged industrial table and stand
  • Rolled hem presser foot and accessories
  • Needle set and threading guide
  • Operator's manual

Key Features

  • 3-thread rolled hem overlock for narrow, clean, professional edge finishing on lightweight fabrics
  • Direct drive motor mounted on main shaft for quiet, energy-efficient, low-maintenance operation
  • Improved motor ventilation design for faster cooling and extended machine life
  • Lower power consumption compared to traditional belt-driven overlock machines
  • Fully submerged table setup for ergonomic, professional workstation configuration
  • Simple control panel for easy daily operation

Ideal For

  • Rolled hem finishing on chiffon, silk, organza, and other lightweight fabrics
  • Evening wear, bridal, and fashion garment production
  • Scarves, handkerchiefs, and fine fabric edge finishing
  • Garment factories requiring precise narrow rolled hems at production speed

Specifications

Needle System B27 / DCx27, Size #9–#18
Motor 550W Integrated Direct Drive Motor
Drive Type Direct Drive
Stitch Type 3-thread rolled hem overlock
Table Setup Fully submerged
Machine Class Industrial rolled hem overlock / serger

Quick response

Response time is shortened by
40-50% at both start and stop, sewing is easier and sewing speed is
higher, which effectively increases productivity.

Single key restart

Through the intelligent panel it is possible to reset the machine, adjust the LED light, easily adjust the parameters and learn the main operations.

MACHINE SPECIFICATIONS:

  • Model: JK-E4S-3-32-R2/233
  • Functions: Plain Seam Overedge
  • Needle System: DCx27 Size #11
  • Number of Needles: 2
  • Number of Threads: 3
  • Spacing Between Needle and seam : 1.5mm
  • Stitch Width: 1.5mm
  • Stitch Length: 0.8mm - 4.6mm
  • Differential Ratio: 0.7mm - 2mm
  • Presser Foot Lifting Height: 5.5mm
  • Maximum Speed: 5500 SPM (Super High Speed Sewing!)
  • Free shipping assembled

    This ensures enhanced machine performance

  • Receive it fast!

    Extensive stock, usually arrives within a week

  • Financing Options

    Apply for Finance! Buy Now, Pay Later!

  • Contact us!

    Expert advice available at +1-954-681-3894

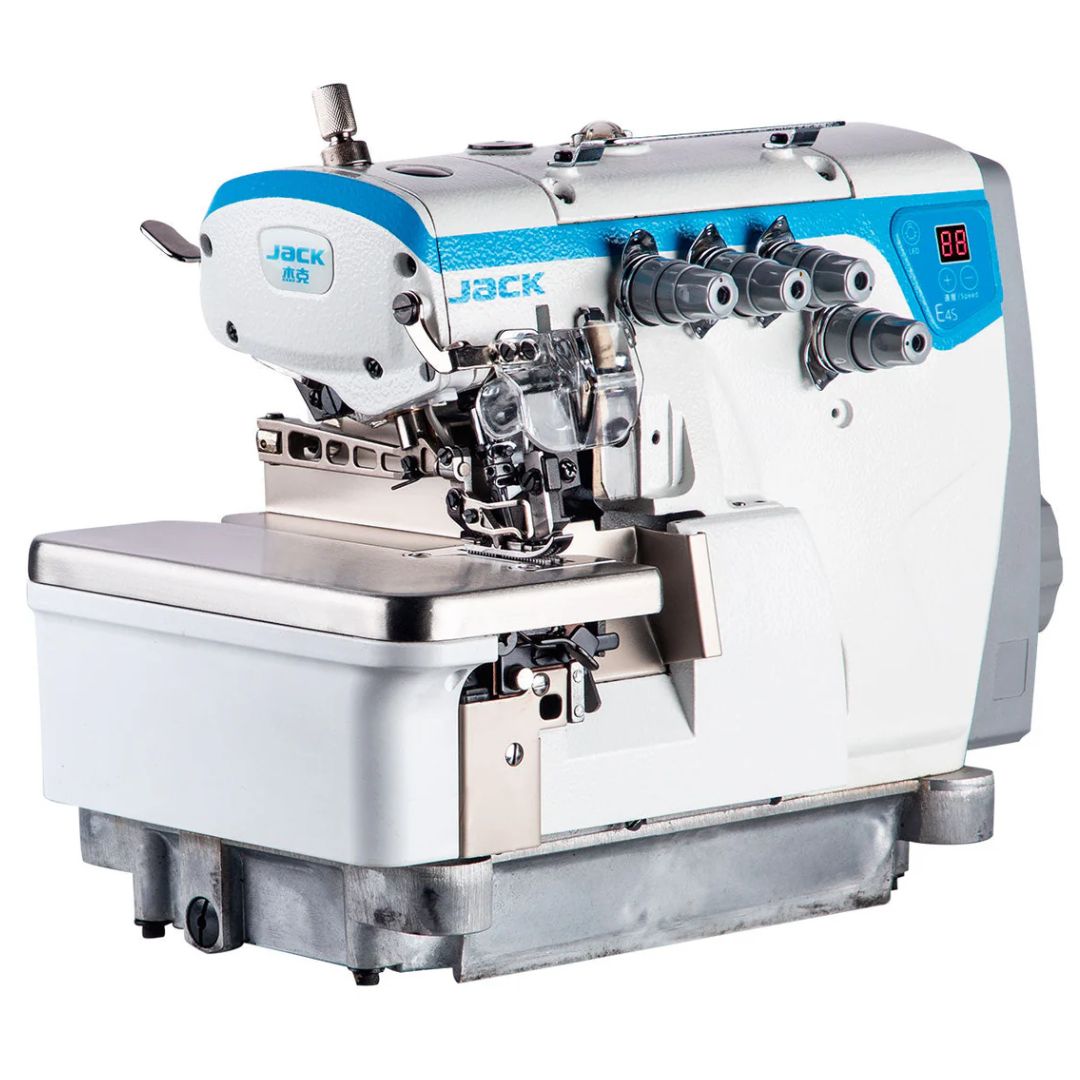

JACK E4S-3-32R2/223 3. Sewing machine on a white background
