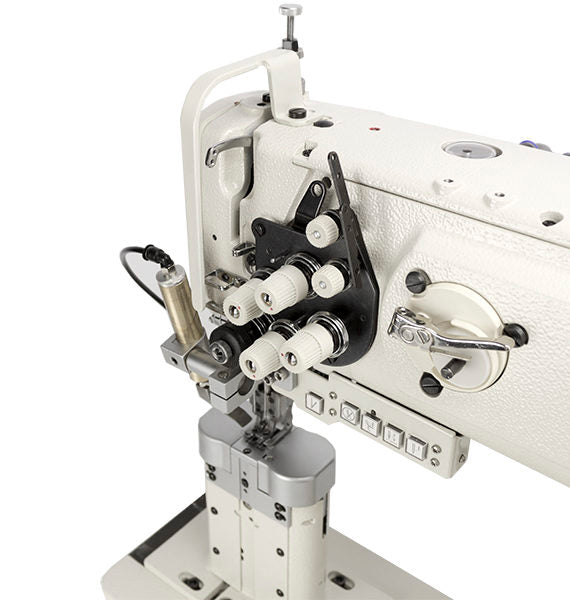

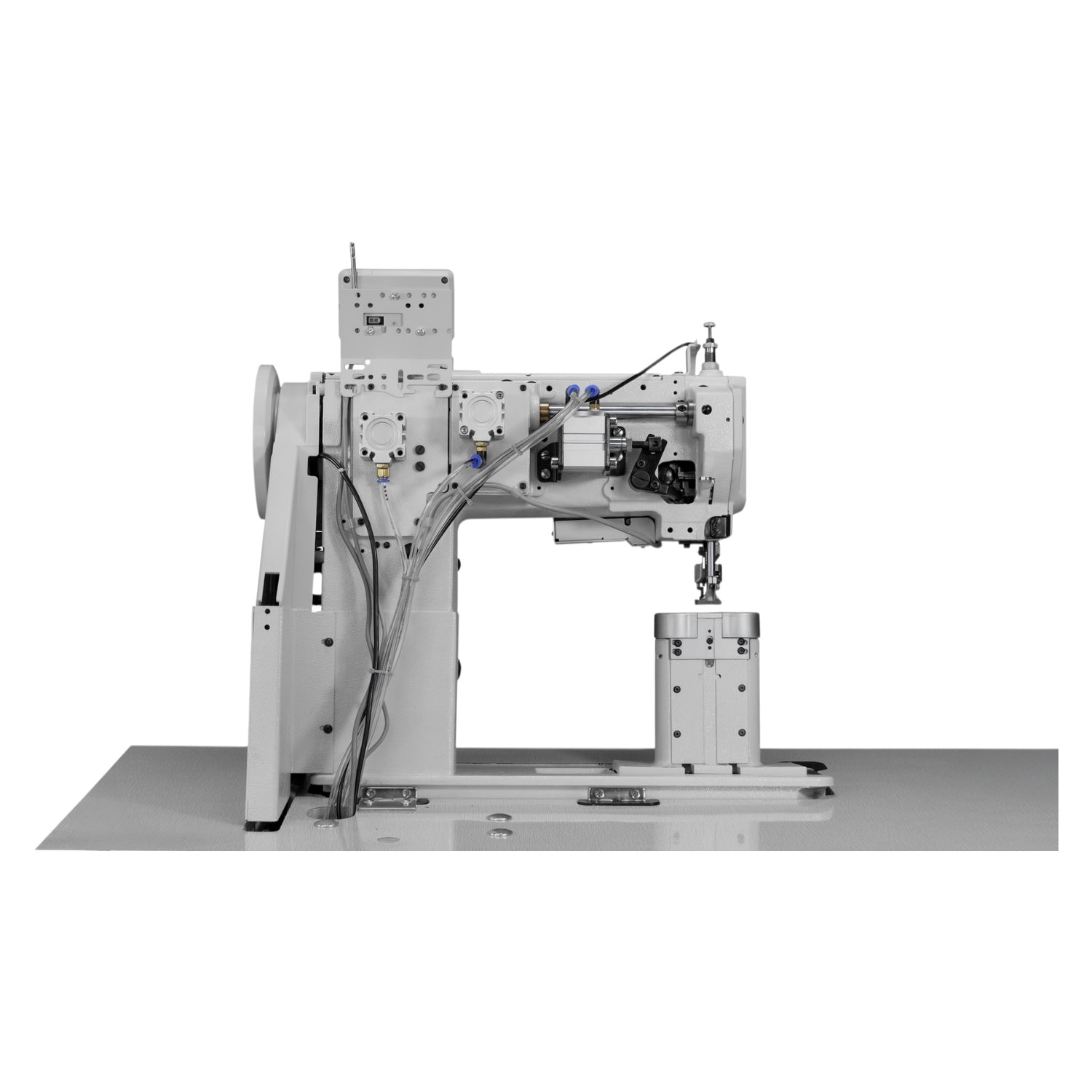

Post-Bed Power with Twin-Needle Control

• Post-bed design gives excellent access to curved, tubular and pre-assembled items such as shoe uppers, bags, corners, straps and raised panels.
• Double needle configuration lets you sew two perfectly parallel rows in a single pass—ideal for topstitching, reinforcement seams and high-end leather/ upholstery finishes.
• The elevated work area makes it much easier to maneuver bulky or shaped pieces while keeping a clean, consistent stitch.

Unison Feed + Pneumatic Comfort (VS System)

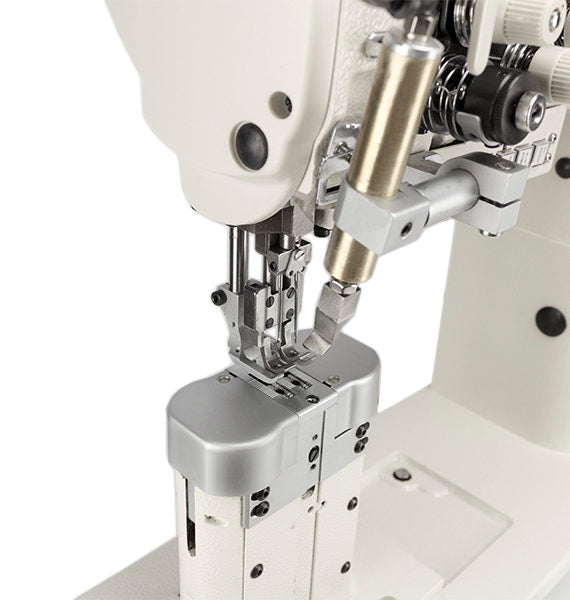

• Unison feed walking foot system (bottom feed + needle feed + walking foot) keeps all layers moving together to prevent slipping, layer shifting and uneven stitch length on heavy materials.

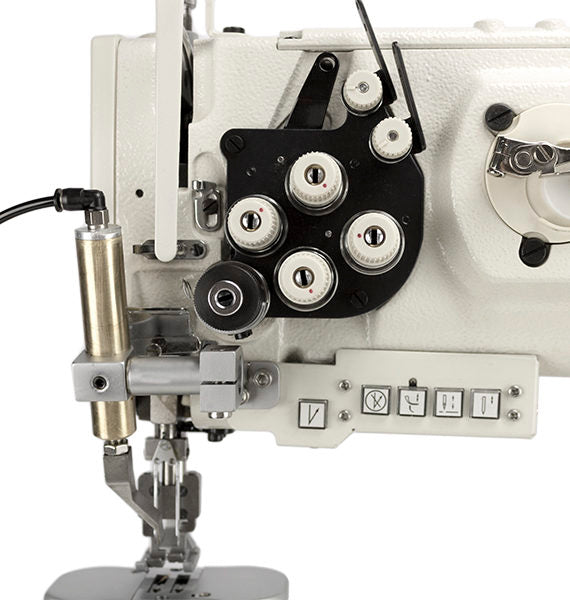

• Equipped with a pneumatic presser foot lift, so the operator can lift the foot easily using the pedal/knee system instead of fighting a manual lever—great for thick, multi-layer assemblies.
• The VS (Vertical Stroke) system is also pneumatically controlled via the knee lifter, allowing you to adjust the vertical stroke of the walking foot quickly when changing material thicknesses.
• This reduces operator fatigue and makes transitions from thin to thick sections much smoother.
• Overall, the pneumatic footlift and pneumatic VS control make the SW1760L/VS much easier and more comfortable to use in real production, especially when switching between different thicknesses all day.

(Requires an external air supply/air compressor for the pneumatic functions.)

Materials & Applications

The SPEEDWAY SW1760L/VS is ideal for:

1. Leather goods – handbags, belts, straps, gear, moto accessories and leather panels.
2. Footwear & shoe uppers – decorative seams, reinforcing stitches and detail work on uppers and collars.
3. Upholstery & seating – corners, edges, bands, armrests and raised/3D areas.
4. Bags & cases – structured bags, backpacks, travel cases, instrument and equipment cases.
5. Automotive & marine interiors – headrests, armrests, small panels and detailed trim sections.

Anywhere you need double-needle stitching on curved, vertical or difficult-to-reach surfaces, this machine shines.

Key Features

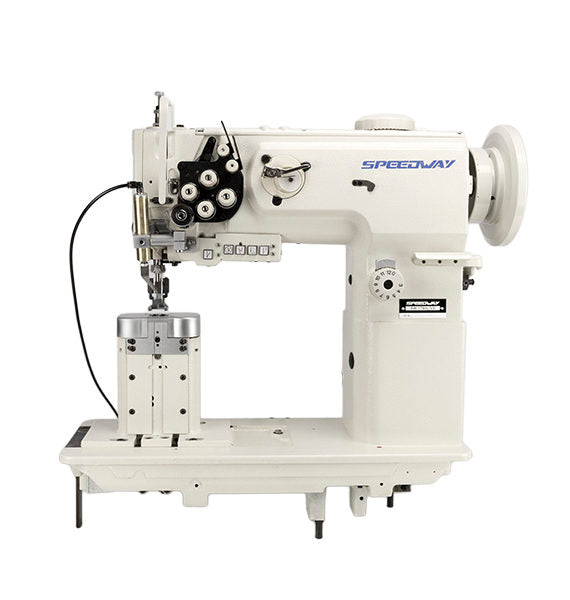

• Double needle post-bed heavy-duty lockstitch machine
• Unison feed walking foot – bottom, needle and top feed working together for stable feeding
• Pneumatic presser foot lift – easier, faster lifting of the foot for thick or multi-layer pieces
• VS (Vertical Stroke) system controlled pneumatically via knee lifter – quick adjustment of walking foot stroke when changing material thicknesses
• Designed for medium to heavy materials such as leather, vinyl, upholstery and coated fabrics
• Produces two parallel rows of stitching in a single pass for decorative and structural seams

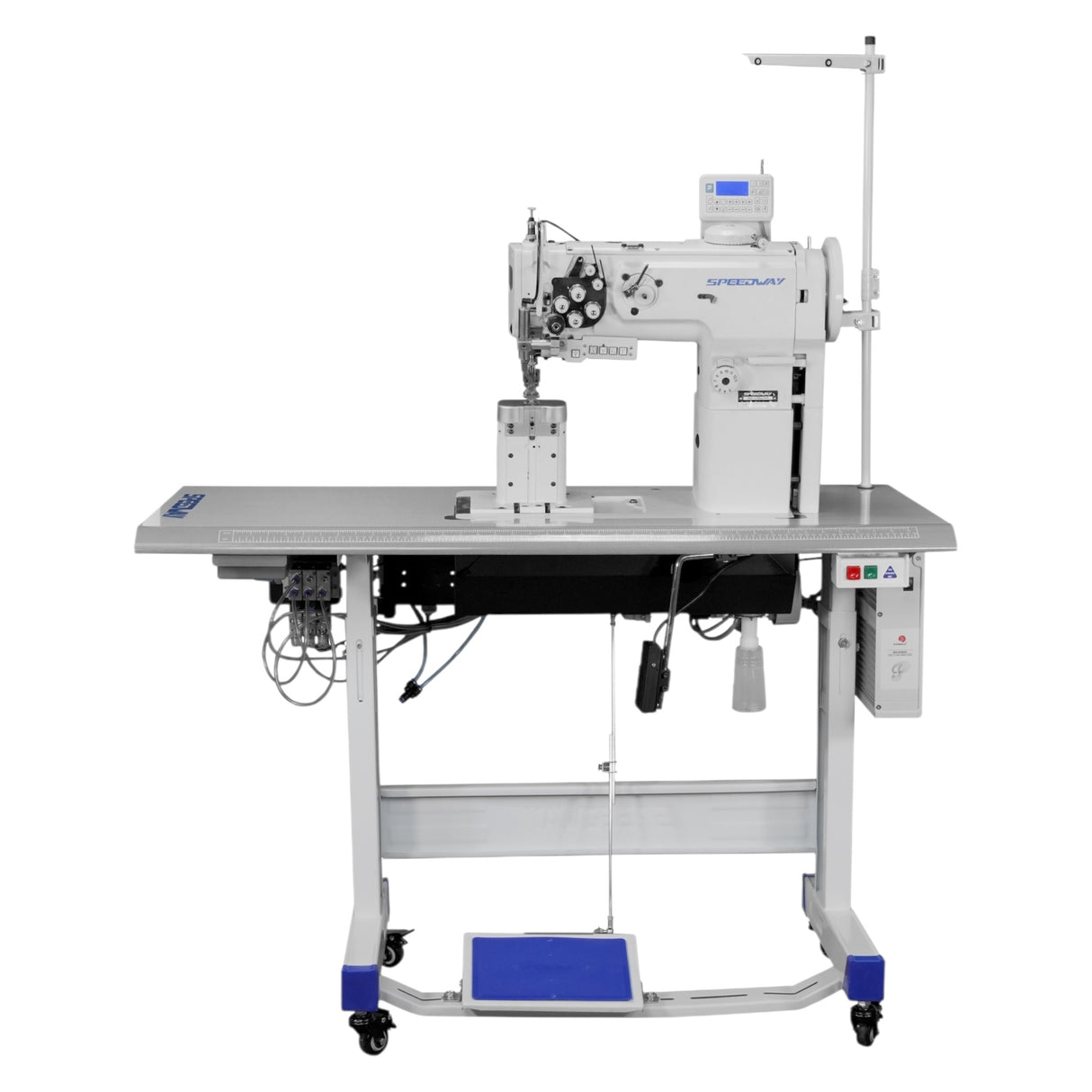

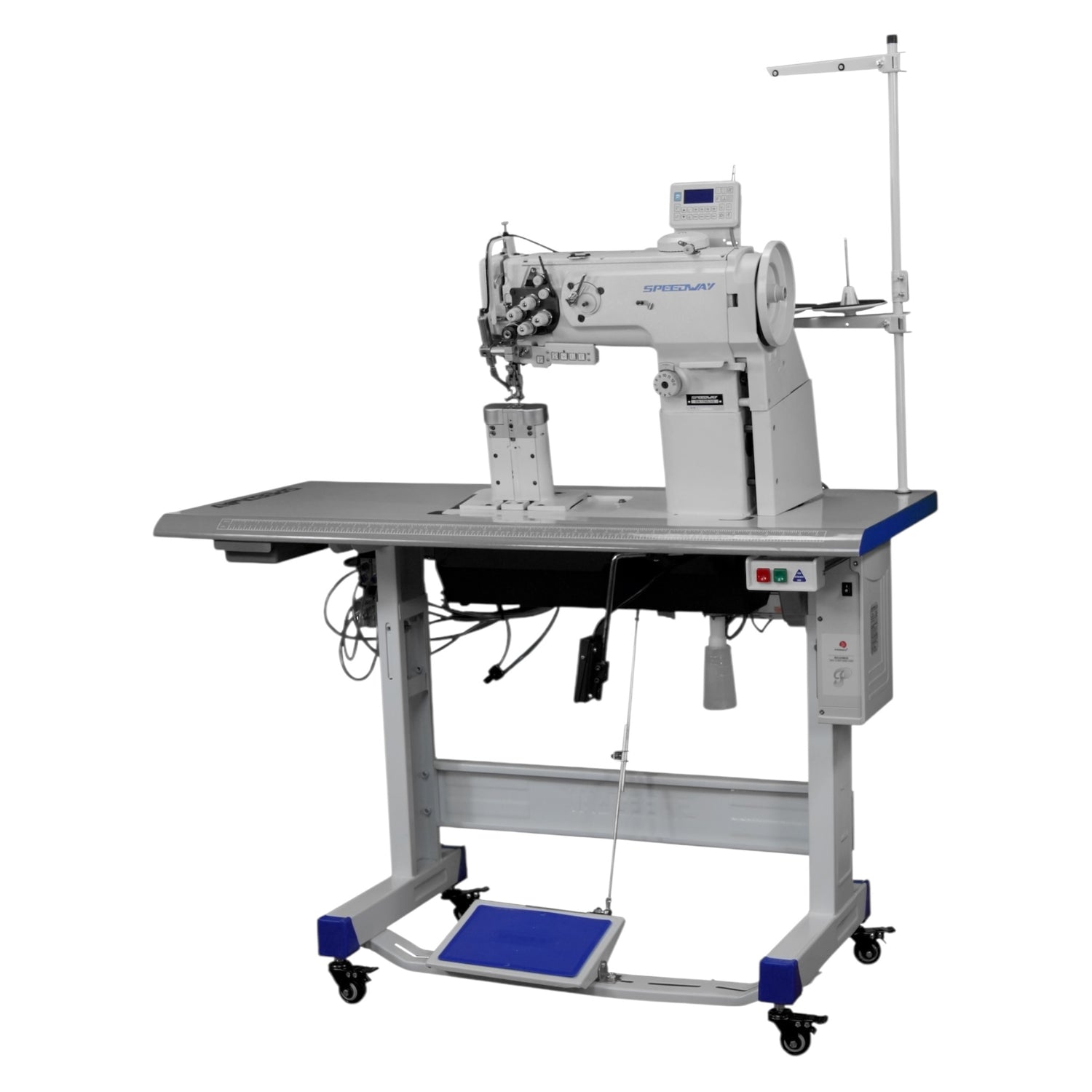

• Assembled complete with industrial table and stand, ready to sew
• Built for continuous industrial use in leather, footwear, bag and upholstery shops

Technical Specifications (typical configuration – may vary by setup)

• Model: SPEEDWAY SW1760L/VS
• Machine Type: Double needle, post-bed, heavy-duty unison feed walking foot
• Stitch Type: 2-needle lockstitch
• Feed System: Walking foot + needle feed + bottom feed (unison feed)
• Max Stitch Length: up to 9–12 mm (depending on configuration and setup)
• Presser Foot Lift: high lift range with pneumatic footlift (via pedal/knee)
• VS System: Vertical stroke (VS) adjustment controlled pneumatically via knee lifter for easy thickness changes
• Material Range: Medium to heavy materials (leather, vinyl, upholstery fabrics, coated/laminated textiles)
• Needle System: heavy-duty system such as DPx17 / 135×17 (needle size chosen according to thread and material)
• Motor: Energy-saving servo motor (110V or regional voltage, as supplied), mounted to table
• Air Requirement: External air compressor required for pneumatic footlift and VS system

(Exact gauge, speed and measurements may vary depending on the configuration you choose.)

What’s Included

• SPEEDWAY SW1760L/VS double needle post-bed machine head
• Servo motor, mounted and wired
• Industrial table & stand, fully assembled
• Thread stand and bobbin winder
• Standard double-needle gauge set, needles, bobbins and basic tool kit

  (Accessories may vary slightly by batch.)
