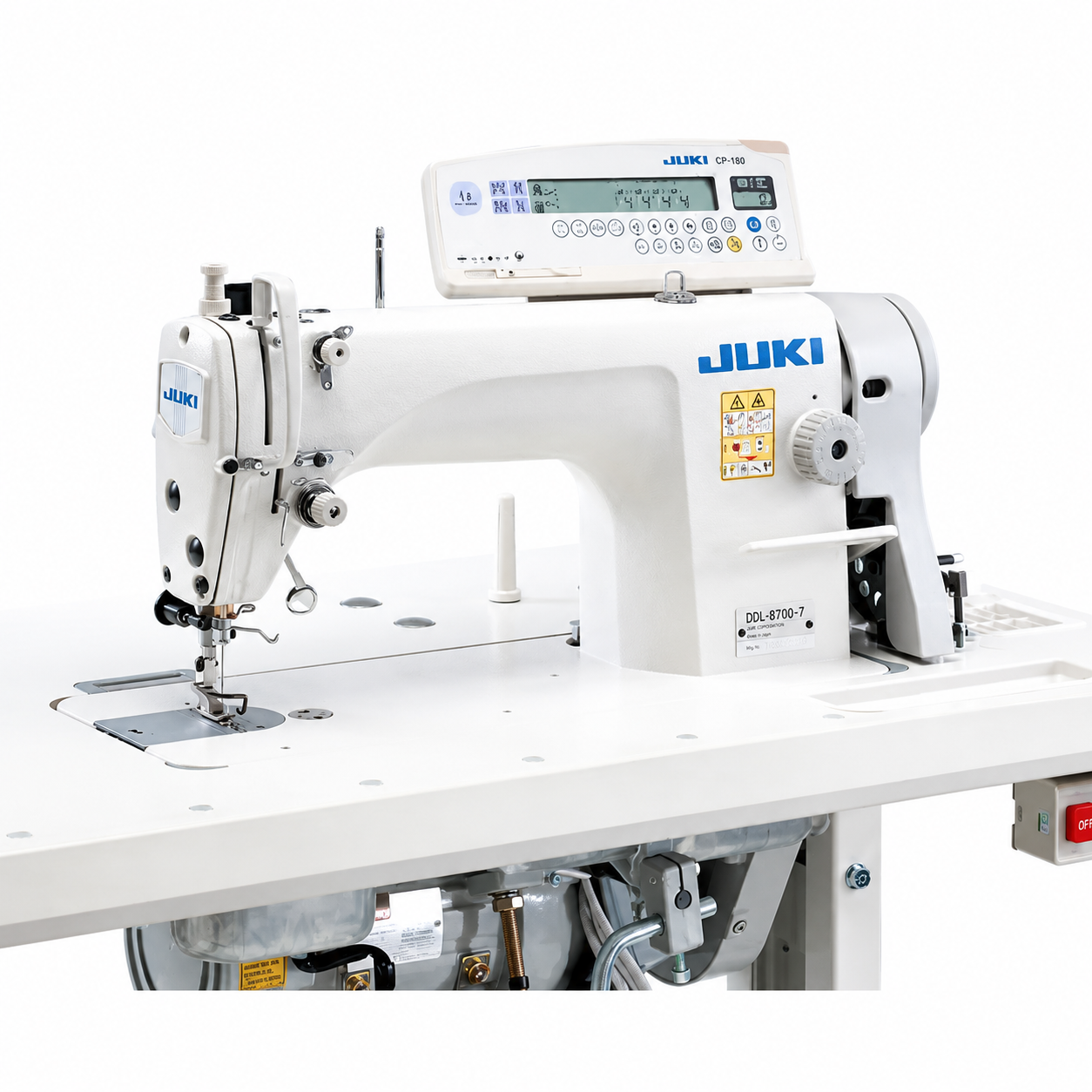

JUKI DDL-8700-7 Single Needle Lockstitch Industrial Sewing Machine with Automatic Thread Trimmer, AK-85 Automatic Foot Lifter & CP-180A Programmable Control Panel — SC-920C Control Box, Compact M92 Servo Motor — Complete Setup, Table & Stand Included

The JUKI DDL-8700-7 is the semi-automatic evolution of JUKI's global-benchmark single-needle lockstitch platform — the machine every apparel factory worldwide already knows and trusts, upgraded with a full package of production automation: automatic thread trimmer, automatic backtack, automatic reverse, needle positioner, AK-85 automatic foot lifter, and the CP-180A programmable production-support control panel. Built for medium-weight apparel — shirts, blouses, dresses, pants, uniforms, workwear, and general garment construction — the DDL-8700-7 delivers up to 5,000 sti/min with the reliability and finish quality that made the DDL-8700 the world's most-installed lockstitch platform.

This configuration ships with JUKI's latest SC-920C control box and compact M92 servo motor — an integrated drive system engineered for energy efficiency, resistance to voltage fluctuations, and reduced power consumption during standby (approximately 25% savings vs the previous SC-910N control box). The CP-180A operation panel adds production management functions directly on the machine: target vs actual output tracking, sewing machine availability metrics, pitch time, average stitching speed, and bobbin counter — all of the data a supervisor needs to run a production line, without leaving the workstation.

The AK-85 automatic foot lifter raises the presser foot automatically at end-of-seam and pedal release — removing the knee-lift step from every seam and cutting operator fatigue on high-volume runs. Combined with the automatic thread trimmer and backtack, the operator focuses only on handling the fabric while the machine takes care of every seam ending automatically. Complete with industrial table, stand, and all standard accessories.

What's Included

• JUKI DDL-8700-7 Single Needle Lockstitch Machine Head (Ships Assembled)
• SC-920C Control Box (Energy-Saving Mode)
• Compact M92 Servo Motor
• AK-85 Automatic Foot Lifter (Solenoid)
• CP-180A Programmable Operation Panel
• Industrial Sewing Table & Stand
• Standard Presser Foot Set
• DB×1 (#9-#18) Needles and Standard Bobbins
• Bobbin Winder & Thread Stand
• Standard Accessories Kit
• Operator's Manual

Key Features

• Single needle lockstitch (ISO 301) — global apparel-industry benchmark platform
• Automatic thread trimmer — reliable, high-speed thread cut at end-of-seam
• Automatic backtack — programmable start and end bartack, hands-free
• Automatic reverse — one-touch reverse feed for seam reinforcement
• Needle positioner — needle stops in up or down position on demand
• AK-85 automatic foot lifter — solenoid raises the presser foot at end-of-seam and pedal release, eliminating the knee-lift step
• CP-180A programmable operation panel — production support with target/actual counters, availability tracking, pitch time, average sewing speed, and bobbin counter
• SC-920C control box — energy-saving mode reduces standby power ~25% vs SC-910N; resistant to voltage fluctuations, noise, and vibration
• Compact M92 servo motor — latest-generation energy-saving servo
• 5,000 sti/min max sewing speed — high-throughput garment production
• DB×1 (#9-#18) needle system — industrial standard, widely available across suppliers
• Automatic-lubricating full-rotary hook — clean, uniform stitch quality at speed
• 4-row feed dog — reliable material handling on medium-weight apparel
• Automatic lubrication — JUKI Machine Oil 7 (ISO VG7 equivalent) — long service life, minimal maintenance
• Extra attachment mounting seats standard — future-proofed for auxiliary parts and folders
• Low vibration, low noise machine head — comfortable work environment

Ideal For

• Shirt and blouse manufacturing — side seams, sleeves, collar attach, cuff attach
• Dress and skirt production — construction seams on medium-weight wovens
• Pants and trouser manufacturing — inseam, outseam, pocket setting
• Uniforms and workwear — general garment construction
• Sportswear and casual apparel
• Tailoring, sample rooms, and alteration shops
• Production lines needing programmable output tracking and bobbin counter directly on the machine
• Shops upgrading from the belt-driven DDL-8700 base to a full semi-automatic package with auto foot lifter and control panel
• High-volume apparel factories requiring consistent seam quality on light-to-medium fabrics

Specifications
