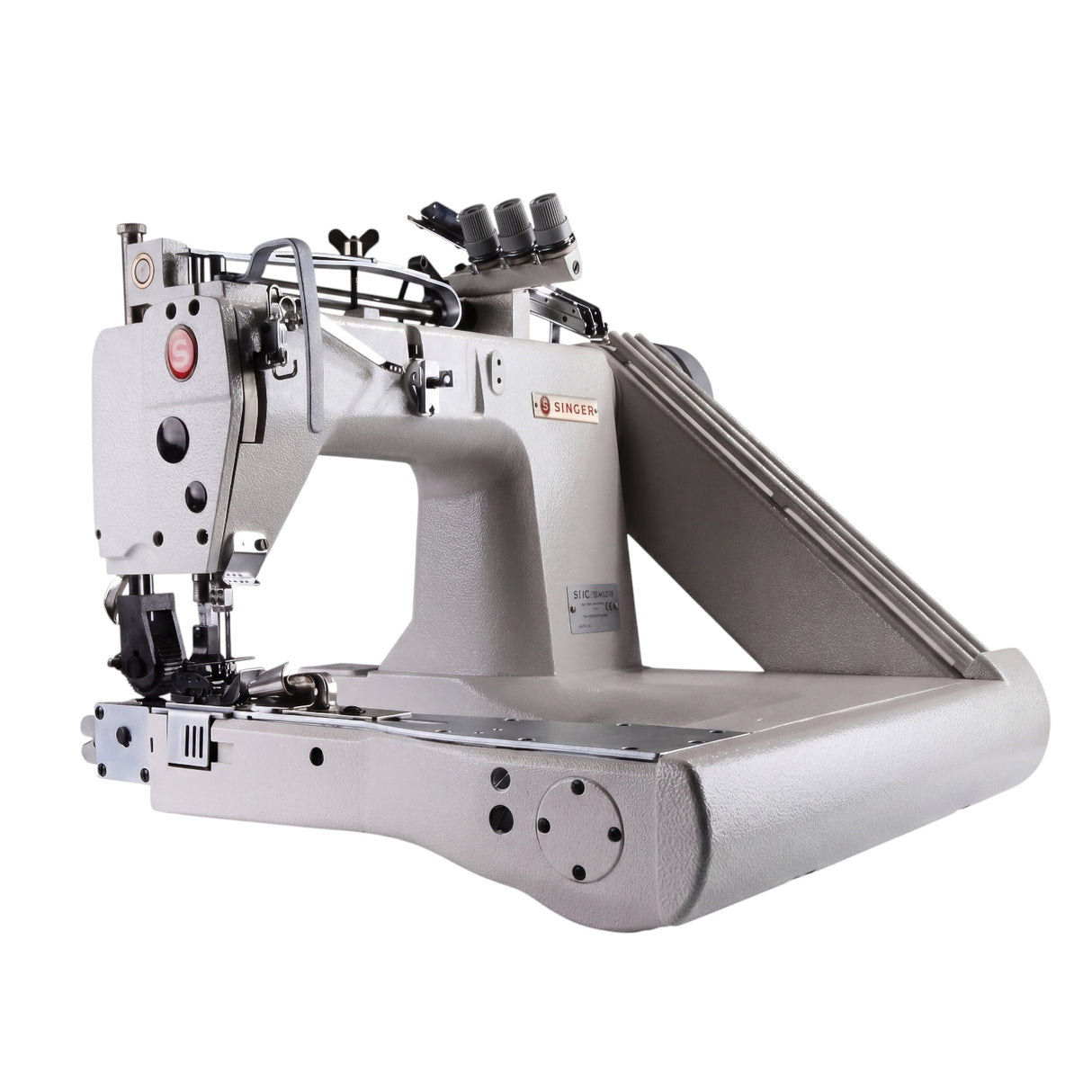

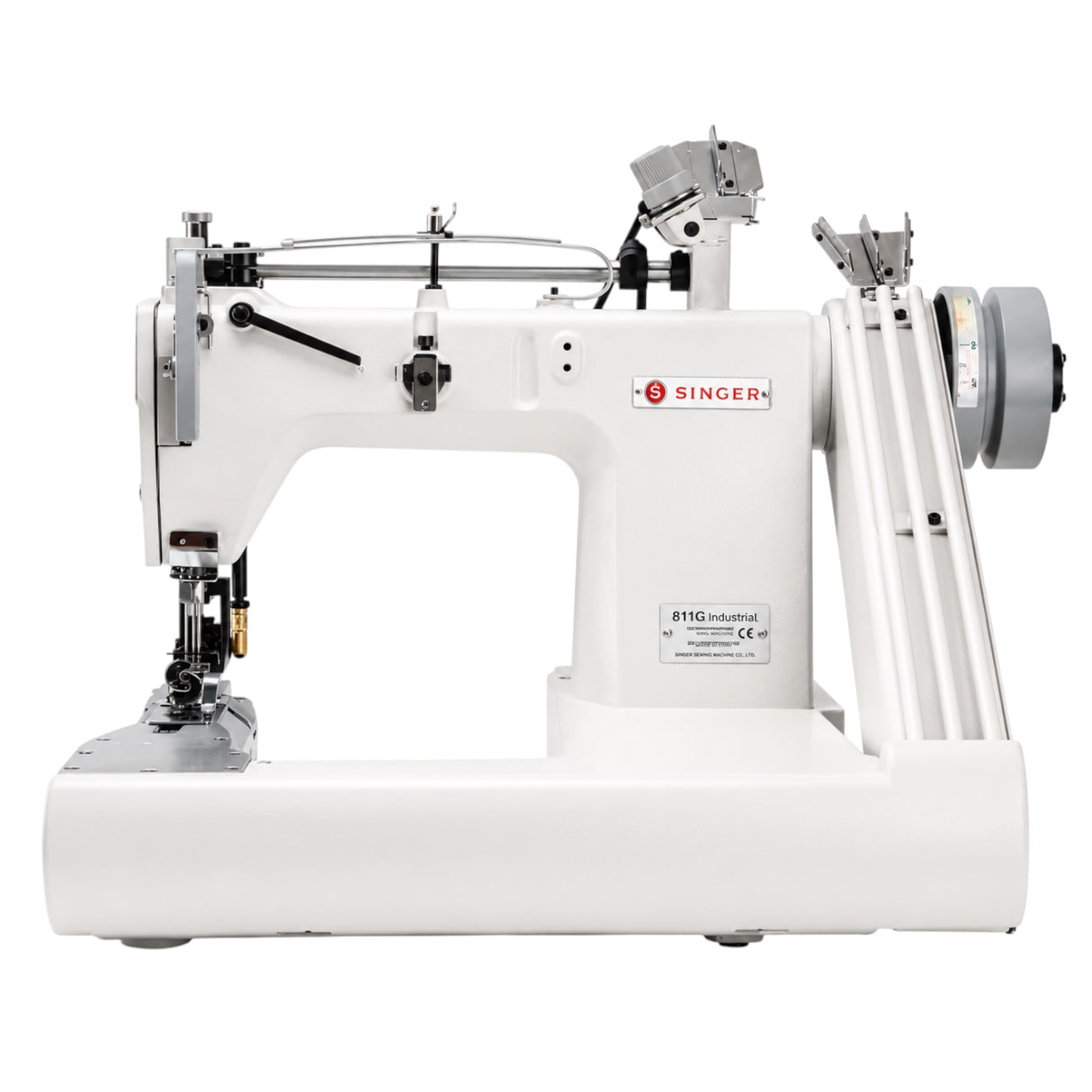

SINGER 811C-264M-2PL Two Needle Feed off the Arm Chainstitch Industrial Sewing Machine with Top & Bottom Puller (1/4" / 6.4mm Gauge) - Complete Setup, Table, Stand Included

The SINGER 811C-264M-2PL is a two-needle, four-thread feed off the arm chainstitch industrial sewing machine with an integrated top and bottom puller feed, engineered for clean, high-quality lap seams on dress shirts, t-shirt taping, sleeve closing, side seams, and any production application requiring uniform overlapping stitching on light to medium-weight fabrics.

The puller feed device keeps stitches straight and uniform while moving material smoothly through the seam, preventing uneven feed and material slippage typical of feed off the arm operations. Combined with a moveable needle guard to prevent skipped stitches and a push-button stitch length adjustment, the 811C delivers professional results at production speeds up to 4,000 rpm.

Each machine ships complete with a lap seam folder as standard equipment, industrial table, stand, and the 1/2 HP high-speed clutch motor, ready for immediate apparel production. The 1/4" (6.4 mm) needle gauge is the standard configuration for dress shirt construction and t-shirt taping operations.

What's Included

• SINGER 811C-264M-2PL Two Needle Feed off the Arm Chainstitch Machine Head (Ships Assembled)
• 1/2 HP High Speed Clutch Motor
• Industrial Table & Stand
• Lap Seam Folder (Standard Equipment)
• Top and Bottom Puller Feed Device
• 1/4" (6.4 mm) Gauge Needle Set
• Bobbins and Loopers
• Standard Accessories Kit
• Operator's Manual

Key Features

• Two-needle four-thread feed off the arm chainstitch — clean, durable lap seams
• 1/4" (6.4 mm) needle gauge — standard for dress shirt seams and t-shirt taping
• Top and bottom puller feed device — keeps stitches straight, uniform, slip-free movement
• 4,000 rpm max sewing speed — production-line throughput
• Push-button stitch length adjustment — quick fabric-specific tuning (up to 4.2 mm)
• Moveable needle guard — prevents skipped stitches on multi-layer assemblies
• 8 mm presser foot lift — handles thick lap seams and binding layers
• Lap seam folder included as standard equipment
• Manual lubrication system — straightforward maintenance, long service life
• TV×64 needle system — readily available across industrial suppliers
• 1/2 HP high speed clutch motor — proven, reliable, plug-and-run
• Compatible with collarettes, neckline tapes, sleeve binding, and side-seam closing

Ideal For

• Dress shirt manufacturing — side seams, sleeve closing, lap seam construction
• T-shirt and knitwear neckline tape / collarette application (tapa costura)
• Sleeve, cuff, and armhole tape attaching on knits and wovens
• Sportswear and casual wear seam construction
• Workwear and uniform sleeve seams
• Light to medium-weight woven and knit assemblies
• Production lines requiring clean parallel chainstitch with puller-assisted feed

Specifications
