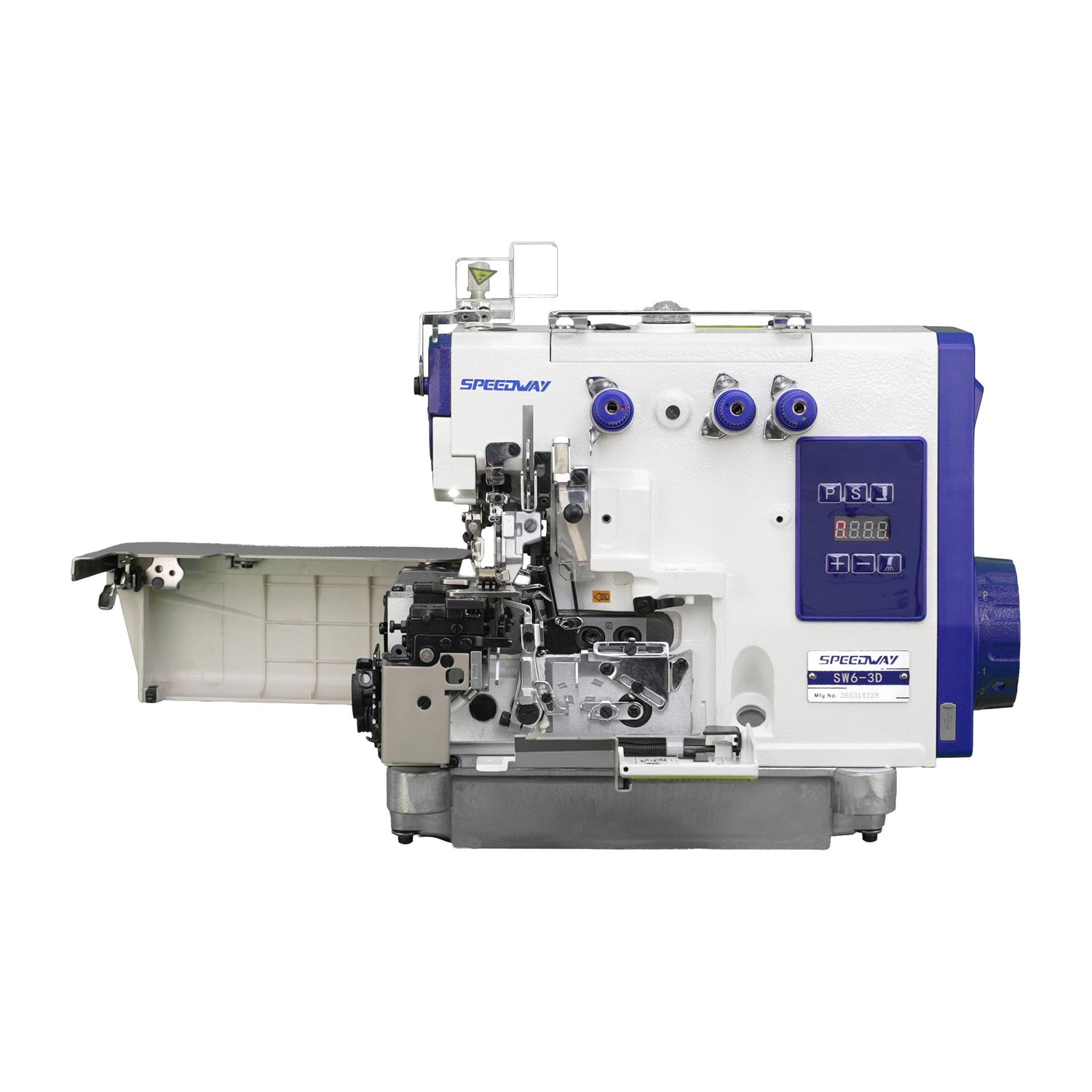

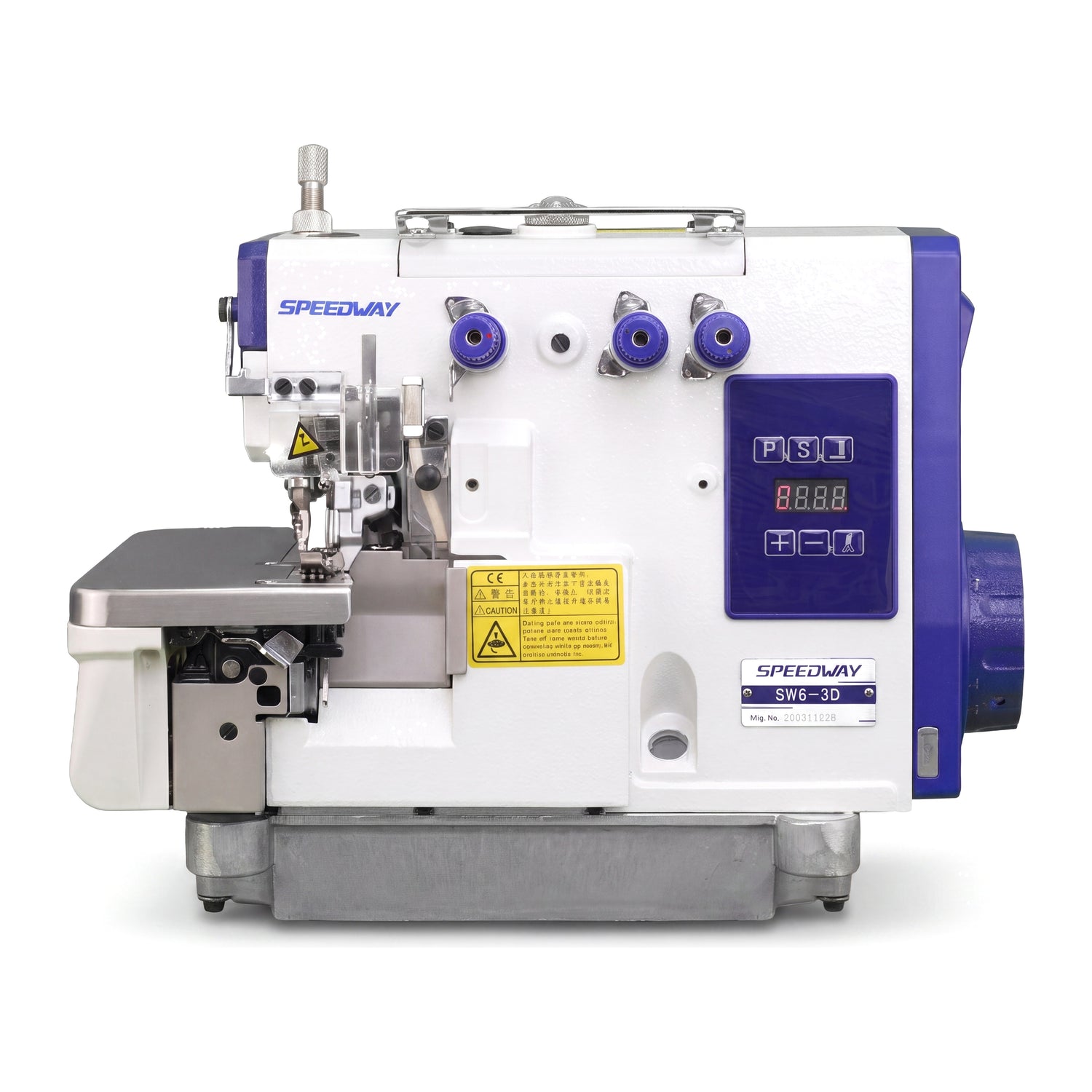

SPEEDWAY SW6-3D 1-Needle 3-Thread Direct Drive Overlock Industrial Sewing Machine with 6,500 SPM Max Speed for Edge Finishing - Complete Setup, Fully Submerged Table Included

The SPEEDWAY SW6-3D is a 1-needle 3-thread direct drive overlock industrial sewing machine engineered for edge finishing on light-to-medium apparel — T-shirts, blouses, knitwear, dresses, linings, and any application where a clean 3-thread overedge is needed without a second needle. Built around a fully integrated direct drive servo motor (no belt, no power loss, lower noise), the SW6-3D delivers a max sewing speed of 6,500 sti/min with smooth variable speed control.

This is the entry point of the Speedway SW6 Direct Drive overlock series — equivalent in configuration to the Jack E4S regular 3-thread — and pairs with the SW6-4D (2-needle 4-thread), SW6-5D (2-needle 5-thread safety) and SW6-6D (3-needle 6-thread universal) for shops that want a single platform across their overlock workstations.

The DC×27 (#11-#14) needle system handles light-to-medium fabrics, while the adjustable differential feed ratio of 0.7 - 2 prevents stretching or puckering on knits and lets the operator dial in clean gathers when needed. Complete with industrial fully submerged table and stand, ready for immediate production.

What's Included

• SPEEDWAY SW6-3D Direct Drive 1-Needle 3-Thread Overlock Machine Head (Ships Assembled)
• Integrated Direct Drive Servo Motor
• Industrial Fully Submerged Table & Stand
• Standard Overlock Presser Foot Set
• DC×27 (#11-#14) Needles and Standard Bobbins
• Standard Accessories Kit
• Operator's Manual

Key Features

• 1-needle 3-thread overedge stitch (ISO 504) — clean edge finishing on apparel seams
• Direct drive integrated servo motor — quieter, more responsive, lower energy use vs belt-driven setups
• 6,500 sti/min max sewing speed — high-throughput apparel production
• DC×27 (#11-#14) needle system — industrial standard, widely available across suppliers
• 4 mm overedging width — standard edge finishing for light to medium apparel
• Stitch length adjustable up to 4.5 mm
• Bottom differential feed ratio 0.7 - 2 — perfect stretch and gathering control on knits and stretch fabrics
• 5.5 mm max presser foot lift — accommodates multi-layer assemblies
• Automatic lubrication — long service life, minimal maintenance
• Balanced looper/needle thread take-up — uniform stitch quality
• Low vibration and operator-friendly thread path
• Ships complete with fully submerged industrial table and stand, ready to run

Ideal For

• T-shirt and knitwear edge finishing — simple 3-thread overedge
• Blouses, dresses, and shirts — overedging on side seams and sleeves
• Linings and interior seams on outerwear
• Light to medium woven apparel
• Children's wear and underwear panels
• Activewear and sportswear edge finishing
• Uniforms and workwear linings
• Shops needing a dedicated single-needle 3-thread station alongside their 4-thread or 5-thread overlock

Specifications
