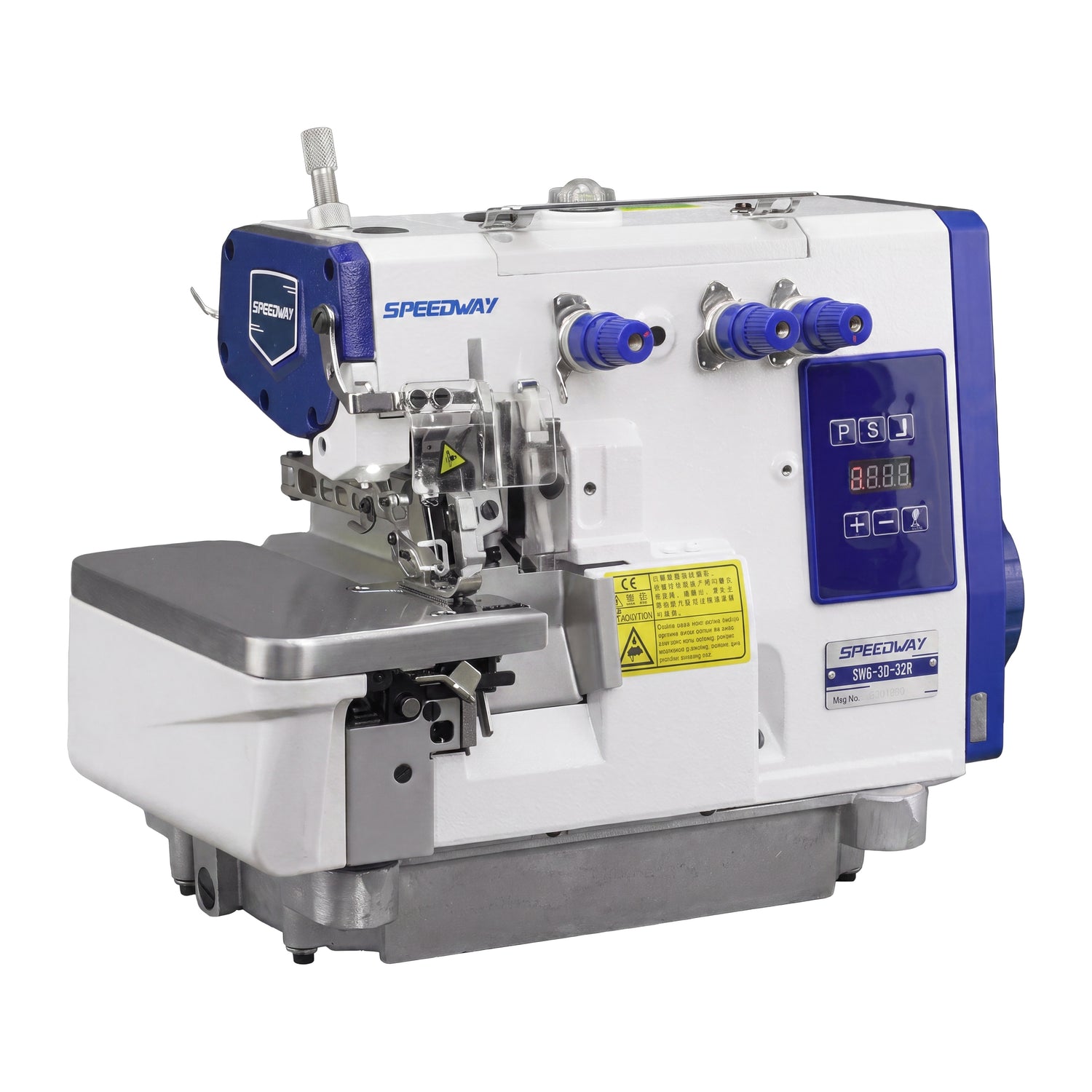

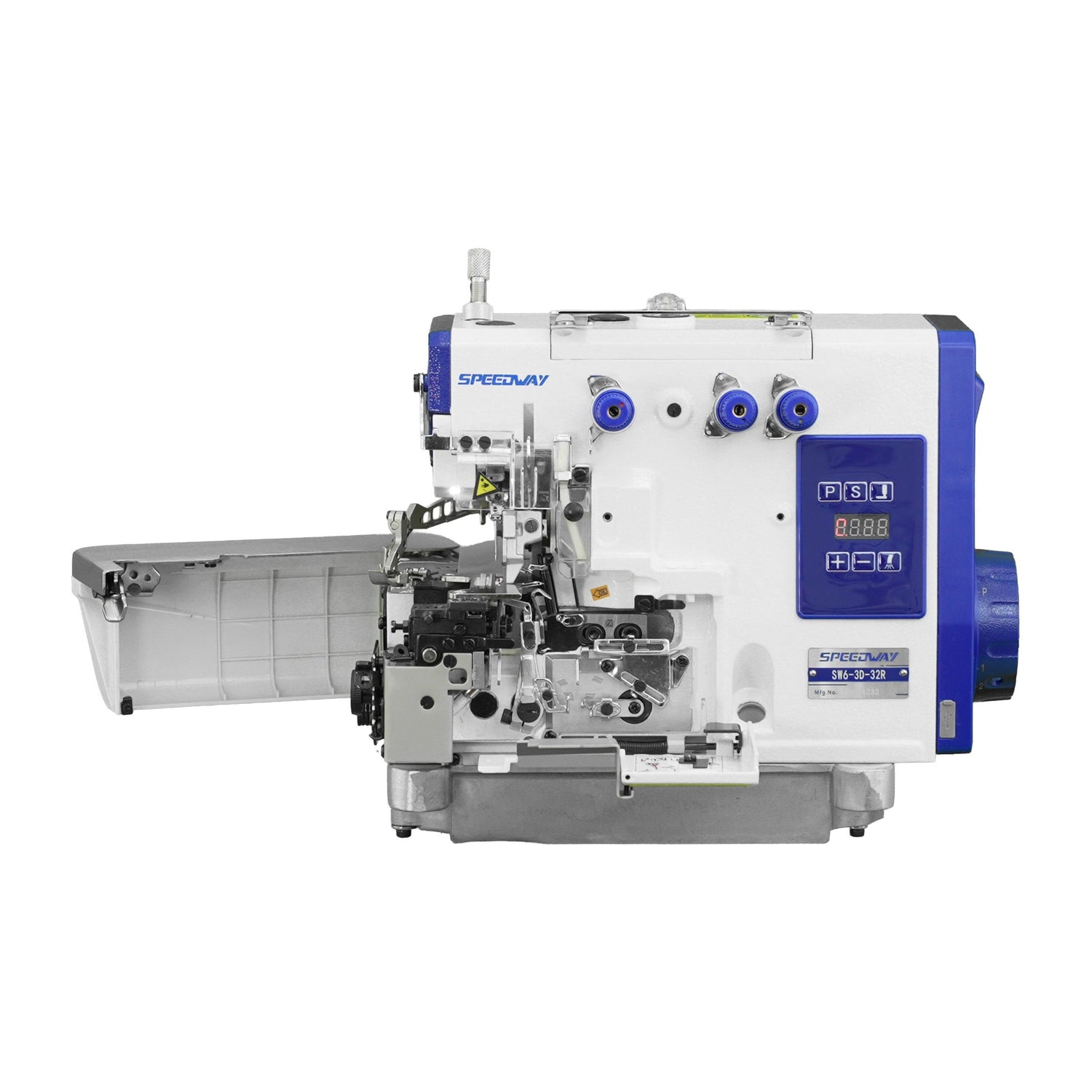

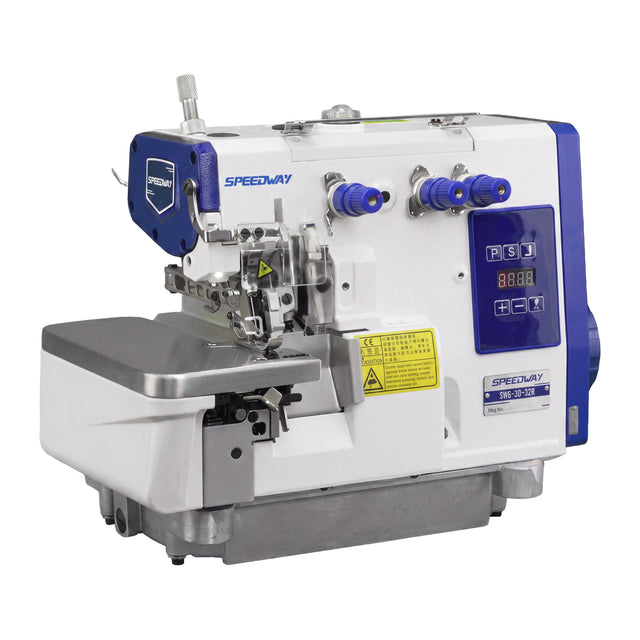

SPEEDWAY SW6-3D-32R 1-Needle 3-Thread Narrow Gauge Rolled Hem Direct Drive Overlock Industrial Sewing Machine for Lingerie, Blouses, Scarves & Light Fabrics - Complete Setup, Fully Submerged Table Included

The SPEEDWAY SW6-3D-32R is a 1-needle 3-thread narrow gauge rolled hem direct drive overlock industrial sewing machine engineered for delicate edge finishing on light fabrics — lingerie, blouses, scarves, chiffon, organza, silk, gauze, ruffles, and lightweight knit edges. Built around a fully integrated direct drive servo motor with a max sewing speed of 6,000 sti/min, calibrated lower than the standard SW6-3D to match the precision required for narrow rolled hems.

The "32R" gauge designation refers to the 1.6 mm narrow rolled hem configuration — the platform is set up with a narrow needle plate, narrow presser foot, and narrow stitch tongue so the overlocked edge rolls into a fine, professional rolled hem rather than the standard 4 mm overedge. Equivalent in configuration to the Jack E4S-32R rolled hem variant, it shares the same Speedway SW6 base platform with the SW6-3D, SW6-4D, SW6-5D and SW6-6D.

The DC×27 (#11-#14) needle system handles light fabrics with industrial-weight threads, while the adjustable differential feed ratio of 0.7 - 2 prevents puckering on slippery synthetics and lets the operator dial in clean ruffles on chiffon and organza when needed. Complete with industrial fully submerged table and stand.

What's Included

• SPEEDWAY SW6-3D-32R Direct Drive 1-Needle 3-Thread Narrow Rolled Hem Overlock Machine Head (Ships Assembled)
• Integrated Direct Drive Servo Motor
• Industrial Fully Submerged Table & Stand
• Narrow Rolled Hem Needle Plate & Presser Foot (Factory Installed)
• DC×27 (#11-#14) Needles and Standard Bobbins
• Standard Accessories Kit
• Operator's Manual

Key Features

• 1-needle 3-thread narrow rolled hem (ISO 504 narrow) — fine professional rolled hem edge on delicate fabrics
• 1.6 mm narrow gauge configuration — factory-installed narrow needle plate, narrow presser foot, narrow stitch tongue
• Direct drive integrated servo motor — quieter, more responsive, lower energy use vs belt-driven setups
• 6,000 sti/min max sewing speed — calibrated for the precision of narrow rolled hemming
• DC×27 (#11-#14) needle system — industrial standard, widely available across suppliers
• Stitch length adjustable up to 4.5 mm
• Bottom differential feed ratio 0.7 - 2 — prevents puckering on slippery synthetics, enables clean ruffles on chiffon
• 5.5 mm max presser foot lift
• Automatic lubrication — long service life, minimal maintenance
• Balanced looper/needle thread take-up — uniform rolled hem quality
• Equivalent configuration to the Jack E4S-32R rolled hem variant
• Ships complete with fully submerged industrial table and stand, ready to run

Ideal For

• Lingerie, intimate apparel, and underwear edge finishing
• Scarves, pañuelos, and accessories — fine rolled hem
• Blouses and dresses on lightweight wovens — silk, chiffon, organza, georgette
• Ruffles, flounces, and decorative edges
• Veils, bridal accessories, and trim work
• Lightweight scarves, gauze, voile, and sheer fabrics
• Hemming on chiffon, organza, silk, and similar delicate fabrics
• Children's wear with fine rolled edges
• Shops needing a dedicated rolled-hem station alongside their standard overlocks

Specifications
