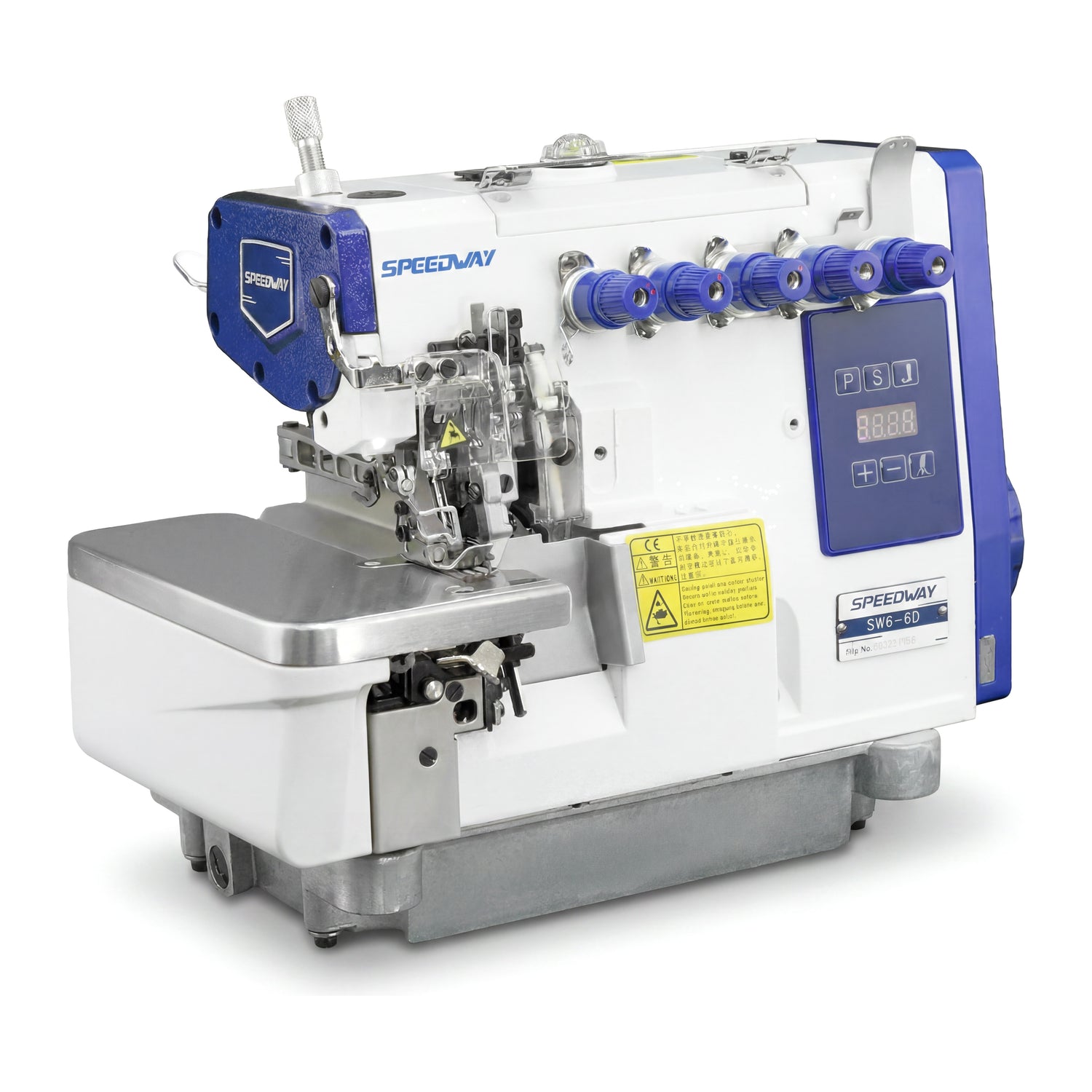

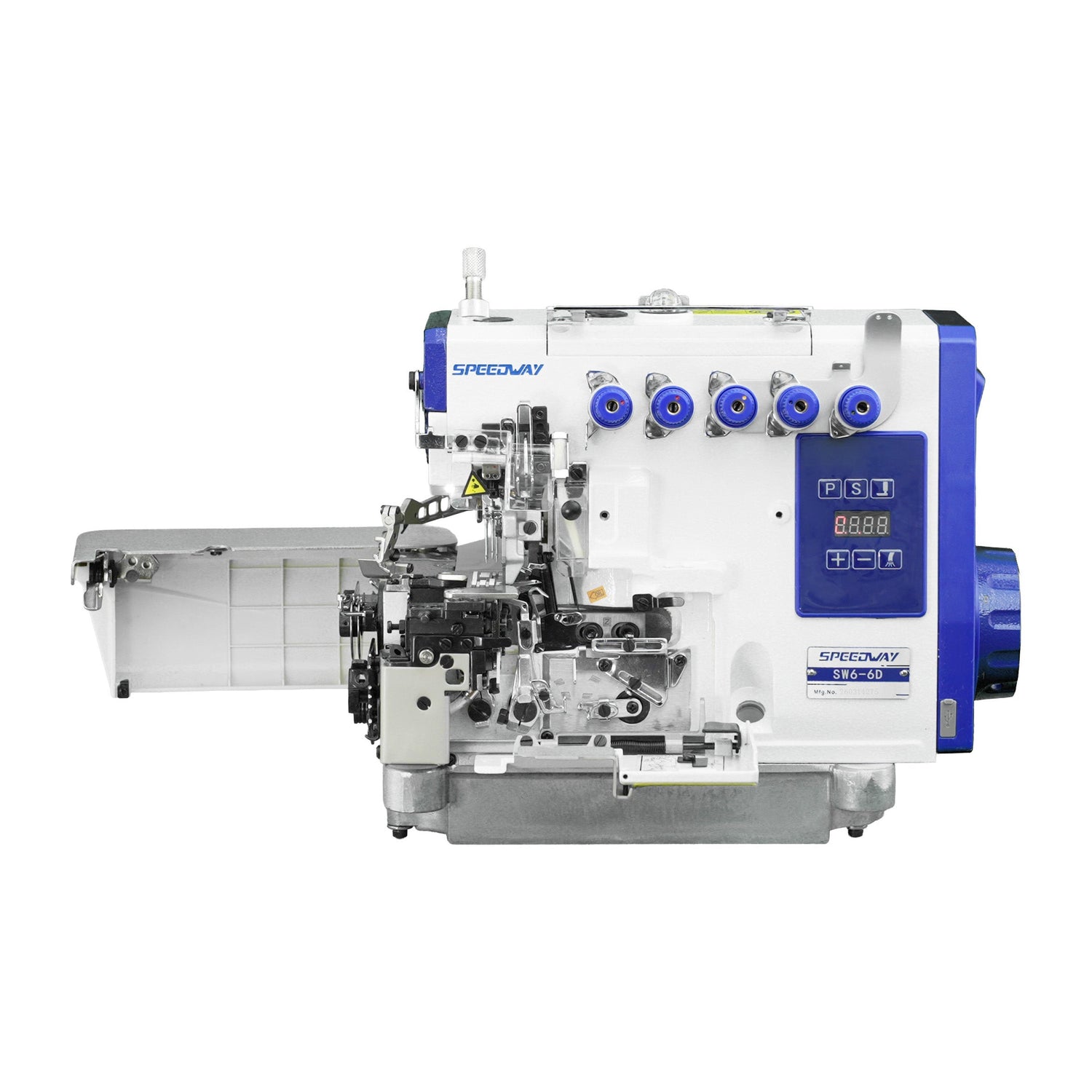

SPEEDWAY SW6-6D 3-Needle 6-Thread Universal Direct Drive Overlock Industrial Sewing Machine - Convertible 516 / 514 / 504 for Sample Rooms, Alterations & Mixed Production - Complete Setup, Fully Submerged Table Included

The SPEEDWAY SW6-6D is a 3-needle 6-thread universal direct drive overlock industrial sewing machine — the most versatile machine in the Speedway SW6 series. By selectively engaging or disengaging needles and loopers, a single SW6-6D converts between three different stitch configurations: ISO 516 (5-thread true safety stitch), ISO 514 (4-thread mock safety stitch), and ISO 504 (3-thread overedge) — covering virtually every overlock requirement in a single workstation.

This makes the SW6-6D the ideal machine for sample rooms, alteration shops, custom workshops, design ateliers, small-batch production lines, and multi-product factories where switching between knit edge finishing, mock safety for apparel, and true safety stitch for denim/wovens needs to happen rapidly without dedicating a separate machine to each stitch type. Equivalent in configuration to the Jack E4S-6 universal, it shares the same Speedway SW6 Direct Drive platform with the SW6-3D, SW6-3D-32R, SW6-4D and SW6-5D.

Built around a fully integrated direct drive servo motor with a max sewing speed of 6,500 sti/min, the SW6-6D delivers smooth variable speed control across all three stitch configurations. The DC×27 (#11-#14) needle system handles light through heavy fabrics with industrial-weight threads. Complete with industrial fully submerged table and stand.

What's Included

• SPEEDWAY SW6-6D Direct Drive 3-Needle 6-Thread Universal Overlock Machine Head (Ships Assembled)
• Integrated Direct Drive Servo Motor
• Industrial Fully Submerged Table & Stand
• Universal Multi-Stitch Presser Foot Set
• DC×27 (#11-#14) Needles and Standard Bobbins
• Stitch Conversion Components for 516 / 514 / 504
• Standard Accessories Kit
• Operator's Manual

Key Features

• Universal 3-needle 6-thread platform — converts between three industrial stitch types in a single machine
• ISO 516 — 5-thread true safety stitch for denim, jeans, wovens, workwear
• ISO 514 — 4-thread mock safety stitch for general apparel, knits, T-shirts
• ISO 504 — 3-thread overedge for light apparel edge finishing
• One machine replaces three dedicated stations — ideal where floor space, capital investment, or sample volume make dedicated machines impractical
• Direct drive integrated servo motor — quieter, more responsive, lower energy use vs belt-driven setups
• 6,500 sti/min max sewing speed across all stitch configurations
• DC×27 (#11-#14) needle system — industrial standard, widely available across suppliers
• Stitch length adjustable up to 4.5 mm
• Bottom differential feed ratio 0.7 - 2 — clean control across the full range of fabrics this machine sews
• 5.5 mm max presser foot lift — accommodates multi-layer denim and apparel assemblies
• Automatic lubrication — long service life, minimal maintenance
• Ships complete with fully submerged industrial table and stand, ready to run

Ideal For

• Sample rooms — switching between knit, apparel, and woven configurations on demand during development
• Alteration shops — handling varied customer garments (T-shirts, blouses, jeans) on one machine
• Design ateliers and fashion studios — pattern testing across diverse fabric types
• Custom workshops, tailors, and made-to-measure operations
• Small-batch production lines without dedicated stations per stitch type
• Multi-product factories that produce both knits and wovens
• Bridal and special-occasion garment construction
• Educational settings — fashion schools, technical institutes, training facilities
• Repair shops and tailoring services handling diverse incoming work

Specifications
