Industrial sewing machines outlast most shop equipment when they're maintained. The ones we see come back broken share a pattern: manual-lube machines that got oiled once a week instead of once a shift, dirty hooks, lint-packed feed dogs, and dull needles run far too long. None of it is hard. Here's the schedule that keeps a JACK, Speedway or JUKI running cleanly for ten years — and the short list of things you should hand to a technician instead.
Before any of this: switch the machine off at the power switch and disconnect it. A direct-drive head starts from a brush against the pedal, and every task below puts your fingers next to the needle or the hook. On pneumatic machines (auto foot lift, auto trimmer), shut the air off too and bleed the line.
The schedule
Four habits, from five minutes to sixty
| Frequency | What to do |
|---|---|
|
Daily 5–10 min |
Oil, and this is the one people get wrong. On a manual-lube machine — most walking foot, unison feed and cylinder-bed heads — oil the marked points once at the start of the shift, and twice a day in continuous production. On an auto-lube machine, don't oil the head: check the level in the sight glass and top up with the specified oil. Brush the bobbin area and feed dogs. Check the needle — replace it if it's bent, blunted, or it hit a pin; a bad needle wears the hook and the feed dog. Wipe the head clean. |
|
Weekly 15 min |
Open the bobbin area and clean it properly — brush the lint out first, then blow outward with low-pressure air. Aiming air straight at the hook drives lint into the bearings, which is the opposite of what you wanted. Clean the tension discs and thread guides. Check tension on a scrap before it costs you a batch of garments. Wipe the table and the thread stand — lint that lives there ends up in the machine. |
|
Monthly 30 min |
Belt and motor. On a belt-drive machine, check belt tension and wear and replace it if it's frayed or glazed; carbon brushes and a clutch shoe only exist on an old clutch motor — a modern servo is brushless and has nothing to service. On any machine, make sure the motor and control box vents aren't packed with lint. Check thread guides and the take-up for grooves; a worn guide cuts thread. Check the needle plate and feed dog for burrs and worn slots. Restock needles, bobbins and a spare bobbin case. |
|
Quarterly 60 min |
Deep clean under the machine bed — lift the head on its hinges and clear the lint out of the bed casting and the area under the needle plate. Bobbin case condition — a worn one ruins tension and costs little to replace. Oil change on auto-lube machines — drain, wipe the filter screen and refill (first change after the break-in month, then on the manufacturer's interval). Air line on pneumatic machines: drain the filter bowl and check the regulator. Inspect the hook point for nicks — but see below before you touch the timing. |
Hook timing is not a calendar job
Timing doesn't drift on its own. It changes when the needle strikes something, after a jam, or when the hook and driver wear. So it isn't a quarterly ritual — it's a response to a symptom: skipped stitches on heavy fabric that a fresh needle and correct threading don't fix, a visible nick on the hook point, or a new ticking sound. When you see those, stop and call a technician. Opening the timing on a machine that was fine is one of the most common ways a good head ends up on a repair bench.
Needles: replace, don't recycle
Set a needle-change interval and stick to it. The industry rule of thumb for a standard needle is 4 to 8 hours of actual sewing, and several times that for titanium-nitride coated (GEBEDUR). Put a discard tin next to each machine — the old needle should never make it back into the drawer, because a blunted point is what chews up the hook and the feed dog you just spent an hour cleaning.
Not every machine gets the same calendar
- Auto-lube heads (high-speed lockstitch, and machines like the Speedway SW 8B-2A with automatic lubrication): daily level check, no manual oiling, periodic oil change. Less daily work, more attention to the oil itself.
- Manual-lube heads (most walking foot, unison feed and cylinder-bed machines): oil once or twice a day, every day it runs, at every marked point. This is where neglected machines die.
- Direct drive: no belt to tension, but keep the motor and controller vents clear and never work on the head without disconnecting power.
- Pneumatic machines (auto foot lift, UT trimmers, knife and suction): add the air filter bowl drain to the routine, and shut the air off before servicing.
What to keep on the shop floor
- Sewing machine oil — a light, clear spindle oil (typically ISO VG 7–22 depending on the machine; high-speed lockstitch heads want the light end). It's the only fluid that goes in the head — don't substitute motor oil, penetrating oil or WD-40. Silicone thread lubricant is a separate product with its own reservoir; it doesn't replace machine oil.

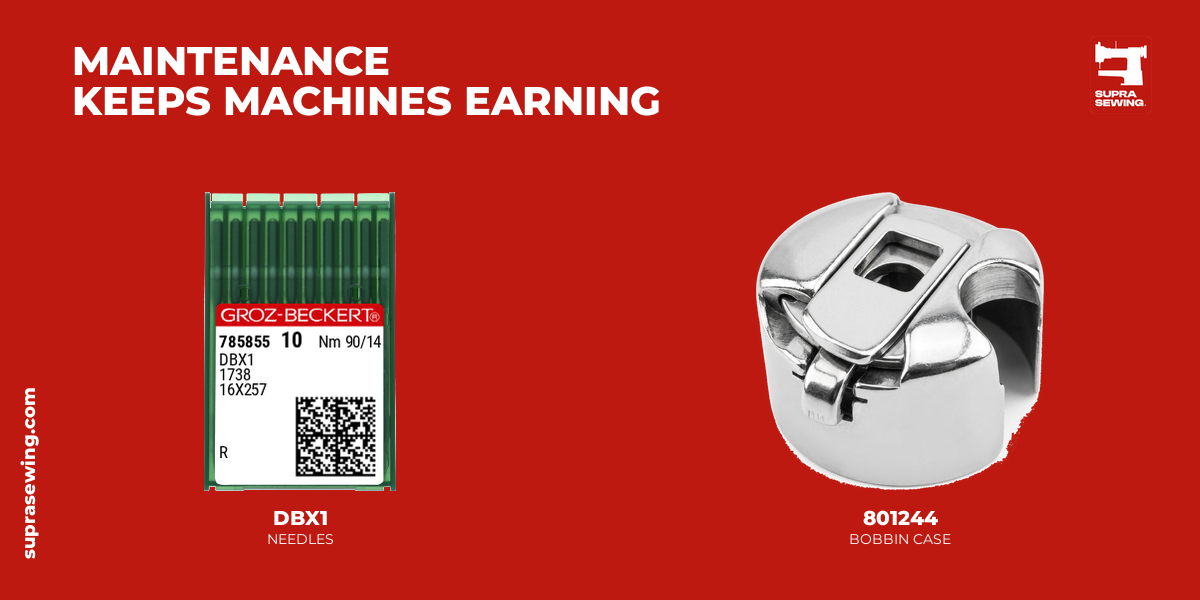

- Fresh needles. Keep a pack of each system you run: DBx1 for lockstitch, DPx5 for zigzag and pattern sewers, 135x17 for walking foot and unison feed, UY128GAS for coverstitch. Not sure which is which? See our needle systems guide.
- Spare bobbin cases and bobbins. Drop-in replacements for JACK A4, A5, A5e, JK-5550, Speedway Ai4 and JUKI DDL-8700-7: JACK 801244 bobbin case. Current pricing is on the product page.
- Brush, tweezers, screwdriver set and low-pressure air. Small items that prevent expensive problems.
- A card taped to each machine with the date of the last oil change, needle change and service. Thirty seconds of writing that settles every argument later.
If you want a lighter starting point, our earlier post on daily maintenance tips covers the everyday habits; this schedule is the full-shop version.
Talk to a specialist
Tell us what you run — auto-lube or manual, drop feed or walking foot, pneumatic or not — and we'll send back a calendar sized to your floor, plus the consumables list to keep on the shelf.
