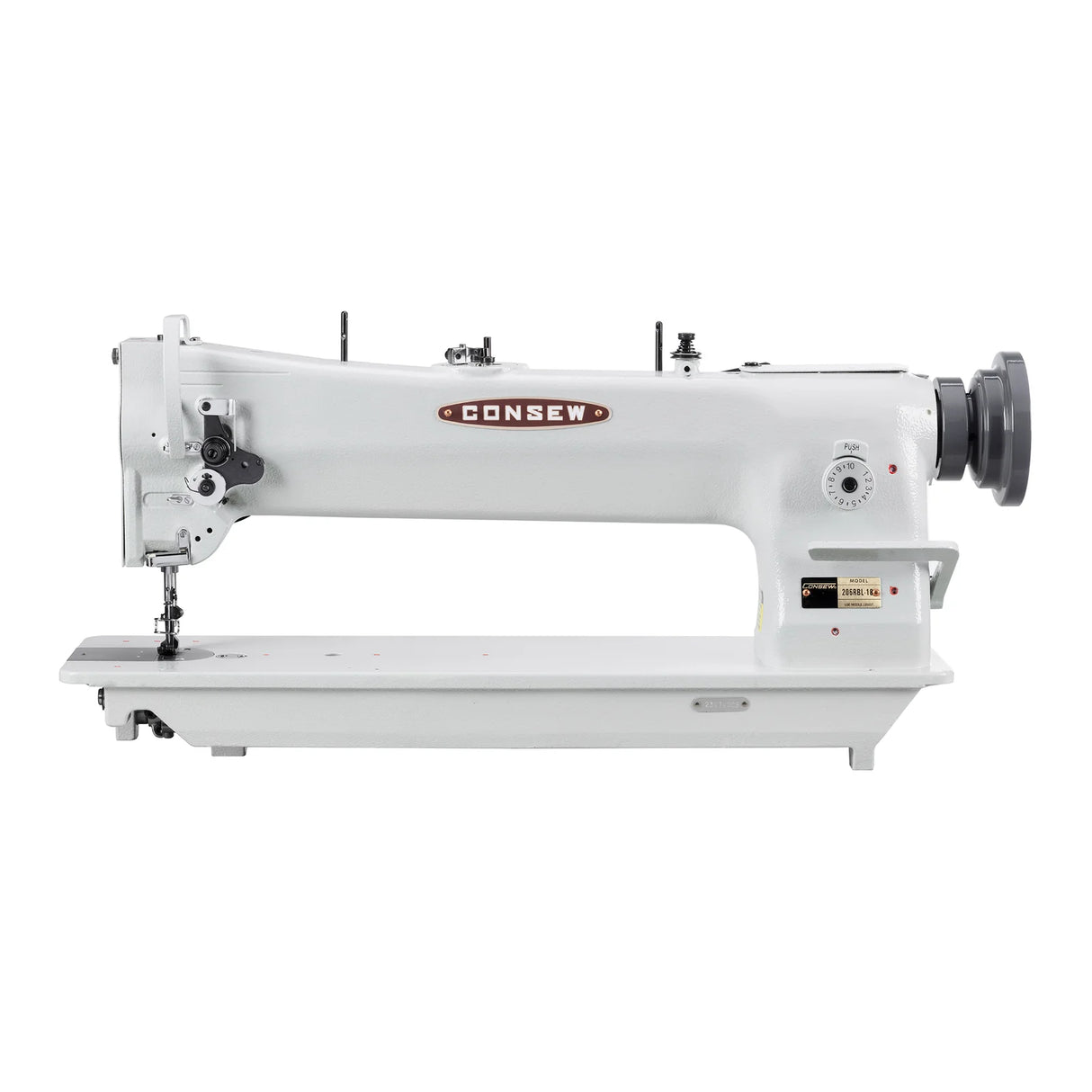

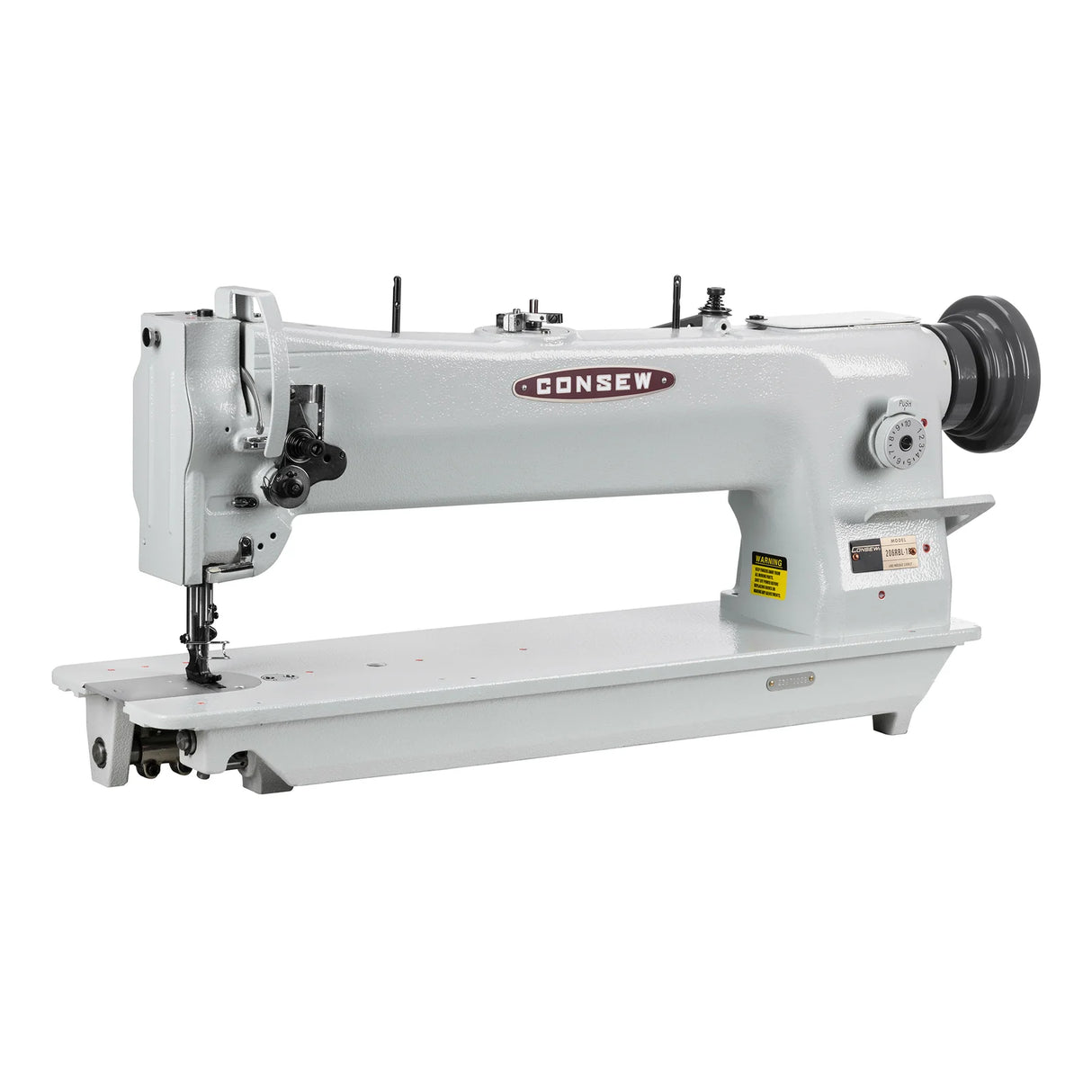

CONSEW 206RBL-18 Single Needle Long Arm 18" Heavy Duty Walking Foot Compound Feed Lockstitch Industrial Sewing Machine - Complete Setup, Table, Stand Included

The CONSEW 206RBL-18 is a single-needle long arm walking foot industrial sewing machine built on the proven 206RB platform — the gold standard for upholstery and leather workshops — and extended with a generous 18" (460 mm) cylinder-to-needle workspace. The long arm clearance handles oversized projects that won't fit through a standard flatbed: sails, boat covers, tarpaulins, large tarps, sofa upholstery, and tent panels.

The compound walking foot feed system — synchronized drop feed + needle feed + alternating walking foot — pulls thick multi-layer assemblies through the seam without slippage, while the extra-long 10 mm (2.5 SPI) stitch capability is ideal for heavy thread topstitching on leather, canvas, and webbing. The large horizontal-axis hook (Hook 18033) supports thick threads with extended bobbin runtime, and the safety clutch with push-button re-engagement protects the machine from damage during thread jams or material binding.

Generous 9/16" (14 mm) presser foot clearance, 33 mm needle bar stroke, and centralized arm lubrication with reservoir-oiled hook keep the SW-class workflow smooth and low-maintenance. Walking feet, needles, and attachments are interchangeable with Consew 226R-2 and 255RB-2, so shops already running those platforms can share inventory across machines. Ideal for marine, automotive, and furniture upholstery; outdoor goods; sports and camping equipment; and any heavy-duty workshop with large-format projects.

What's Included

• CONSEW 206RBL-18 Long Arm Walking Foot Machine Head (Ships Assembled)
• Servo Motor (Table-Mounted)
• Industrial Heavy-Duty Table & Stand
• Standard Walking Foot Set
• Needles (135×17) and Large Bobbins
• Locking Stitch Regulator
• Safety Clutch Mechanism
• Standard Accessories Kit
• Operator's Manual

Key Features

• 18" (460 mm) long arm workspace — clearance for sails, tarps, sofas, and large upholstery projects

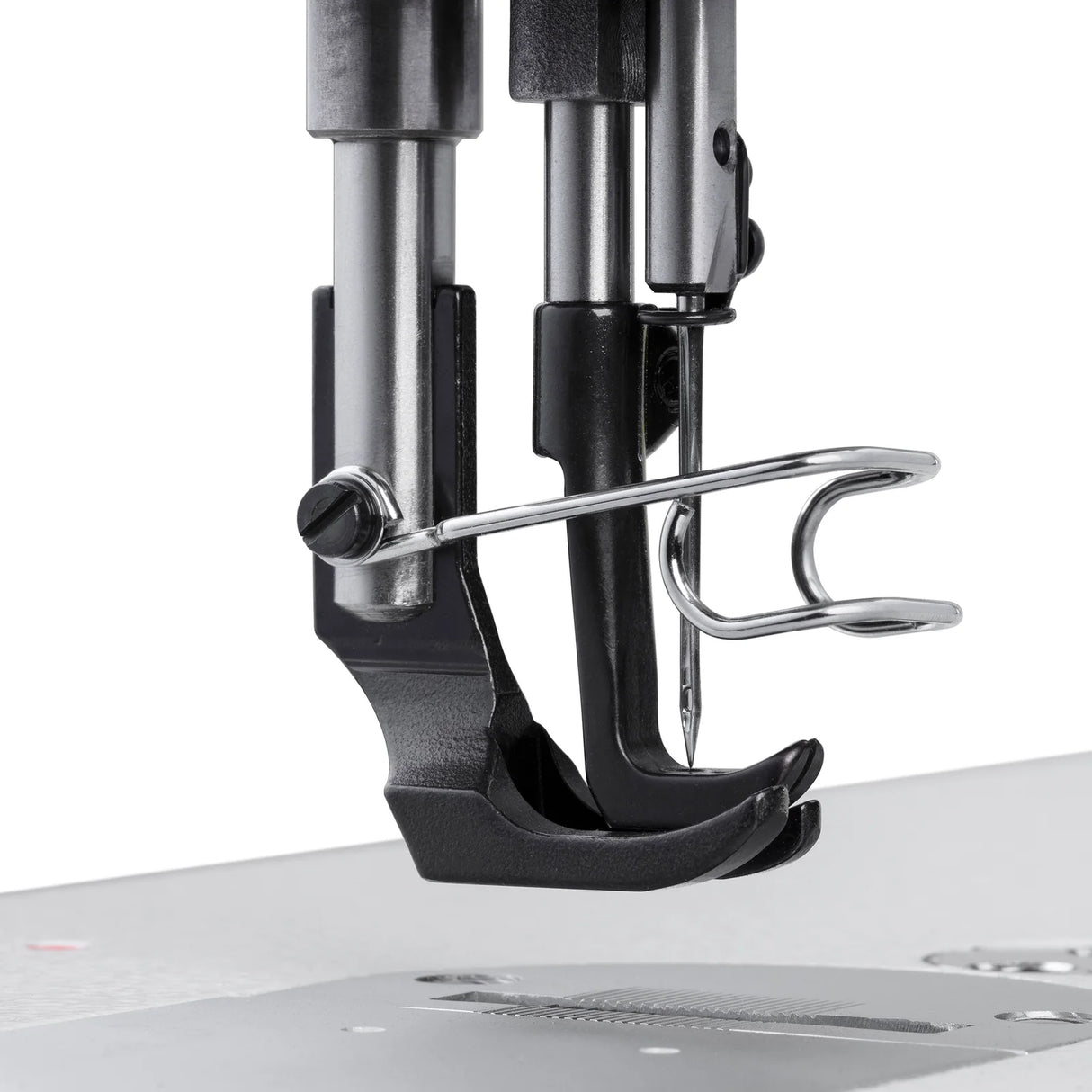

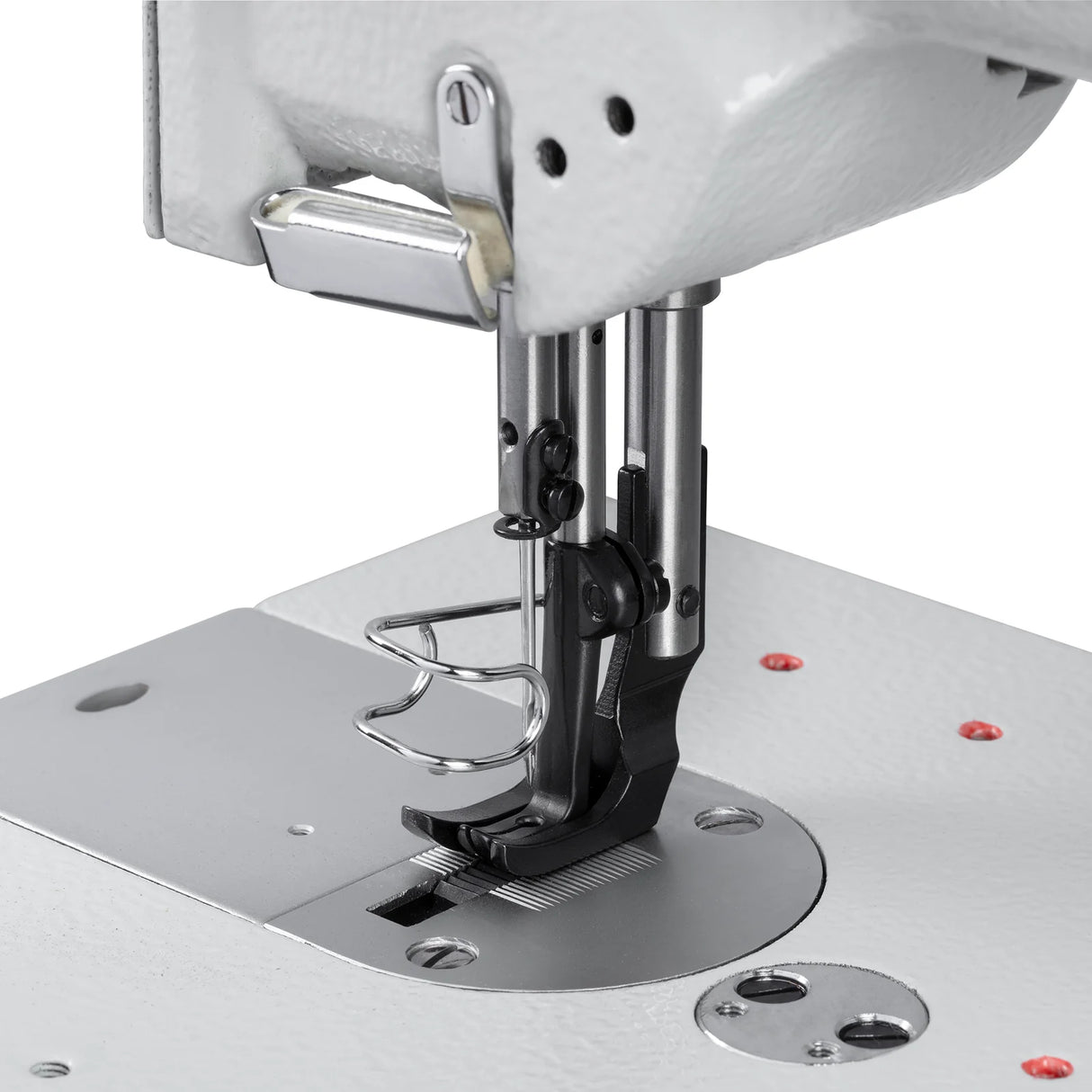

• Compound feed walking foot mechanism — synchronized drop + needle + walking foot for slip-free heavy material handling
• Extra-long stitch: 10 mm (2.5 SPI) — heavy thread topstitching and decorative seams
• 9/16" (14 mm) presser foot clearance — handles thick multi-layer assemblies
• Large horizontal-axis rotary hook (18033) — supports thick threads, extended bobbin runtime

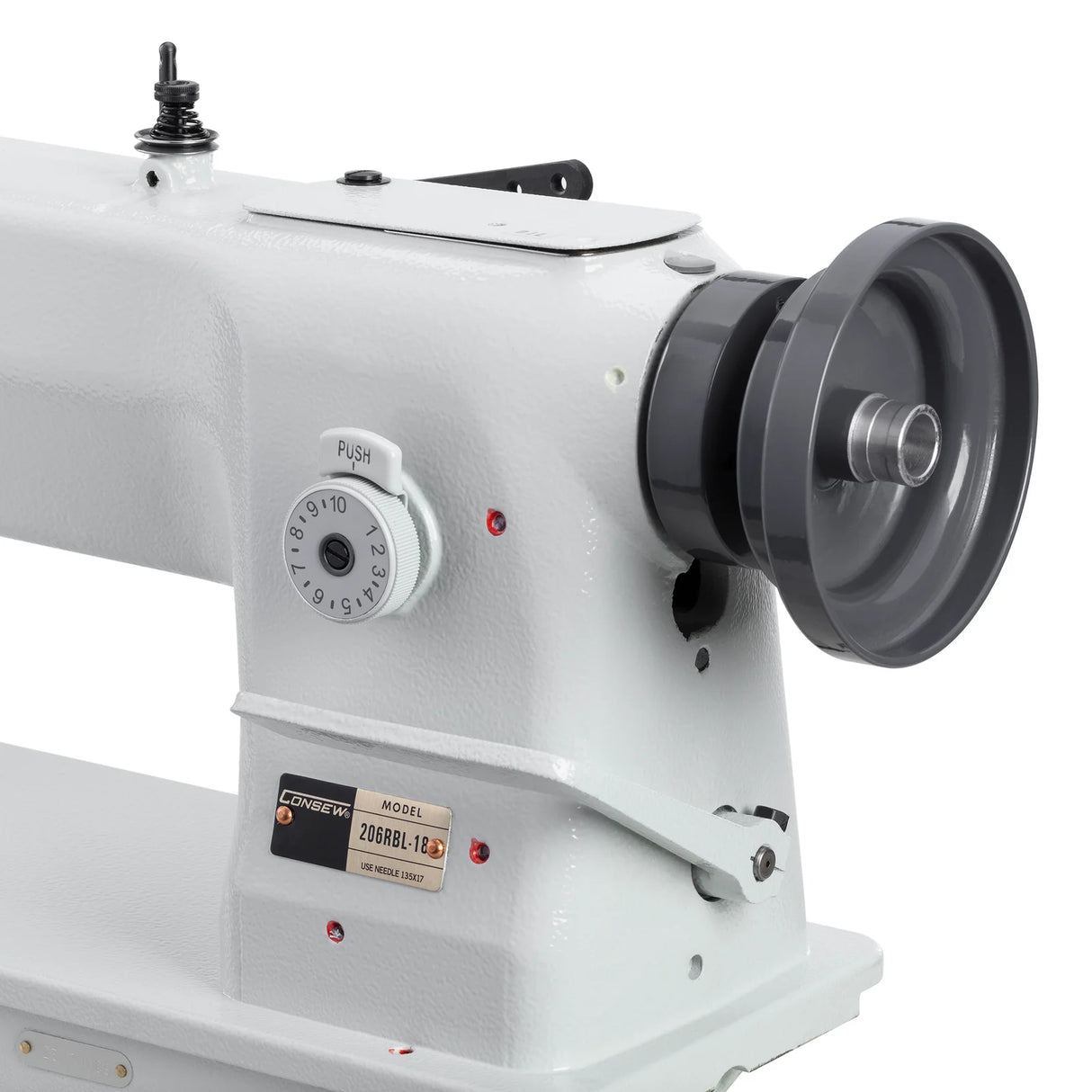

• Safety clutch with push-button re-engagement — protects against thread jam damage
• Centralized arm lubrication + reservoir-oiled hook with micrometric control valve
• All gear-driven hook mechanism — reliable, low-maintenance operation
• Thread release finger for heavy thread feeding
• Large bobbin — can be changed without removing the workpiece
• 33 mm needle bar stroke — drives through thick layered material with authority
• Adjustable reverse stitching — same length as forward stitch
• Locking stitch regulator — prevents stitch length changes from vibration
• Center foot height adjustable for different material thicknesses
• Interchangeable walking feet, needles, and attachments with Consew 226R-2 and 255RB-2
• Ships complete with heavy-duty industrial table and stand, ready to run

Ideal For

• Marine upholstery — boat covers, biminis, cushions, sails
• Automotive upholstery — seats, headliners, convertible tops, custom interiors
• Furniture upholstery — sofas, large chairs, sectionals, ottomans
• Tarpaulins, covers, tents, awnings, umbrellas
• Camping trailer covers and outdoor equipment covers
• Bags, luggage, handbags, and travel accessories
• Sports and camping equipment, climbing harnesses, tactical gear
• Outdoor clothing, canvas shoes, slippers
• Orthopedic appliances and medical assemblies
• Production shops requiring long-arm clearance for large-format projects

Specifications
