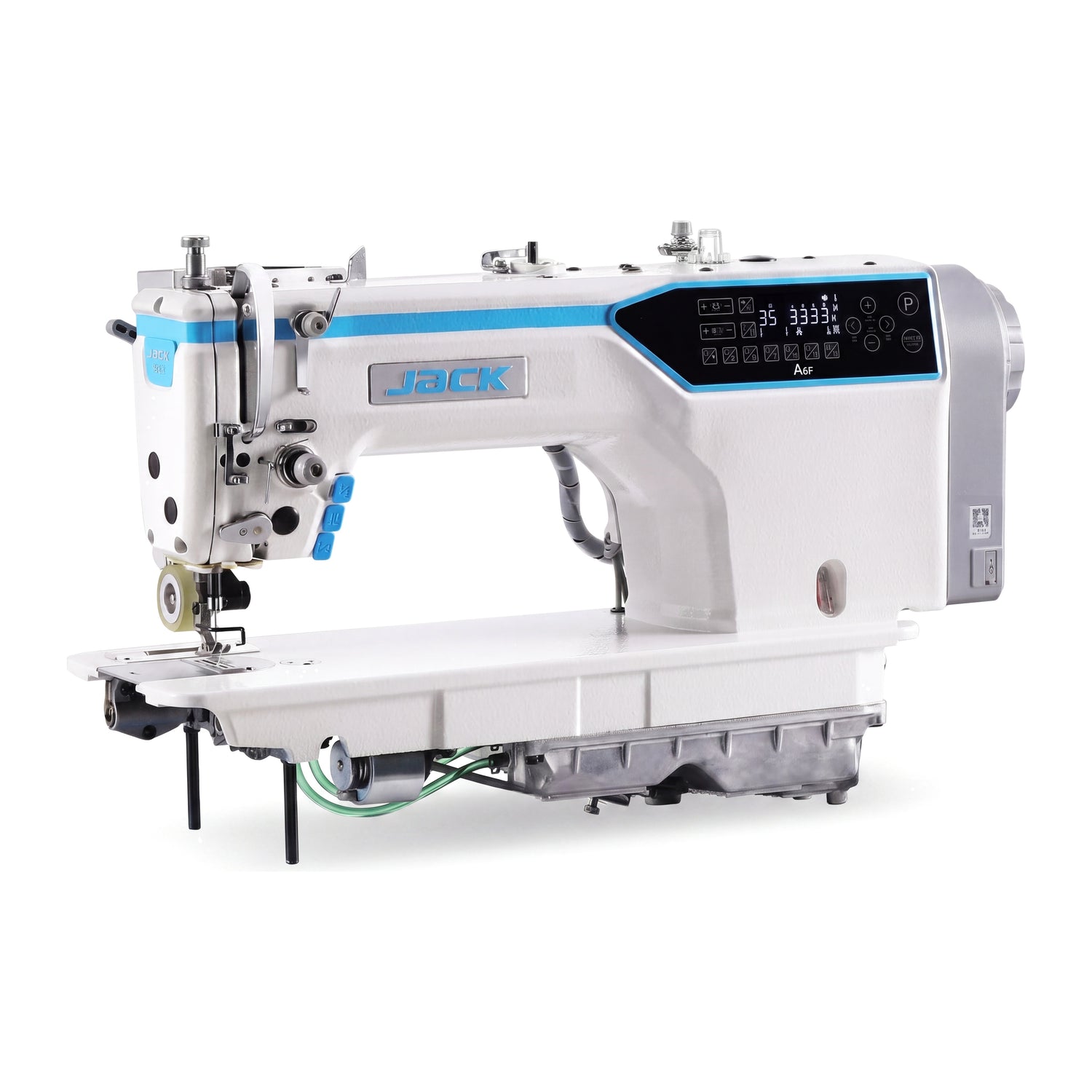

JACK A6F-E-Q-PK Single Needle Direct Drive Fully Automatic Needle Feed Lockstitch WITH PULLERIndustrial Sewing Assembled with Table and Stand Included

Sewing Machine Features and Applications

Needle Feed The Needle Feed system enhances fabric handling by moving the needle bar in sync with the material, improving feed for light to medium fabrics like sheets and curtains. This contrasts with conventional feed systems that rely solely on the feed dog movement.

Digital Stitch Length Featuring a stepper motor, this machine allows for precise stitch length adjustments down to 0.1mm. Additionally, it includes a stitch length adjustment lock function for consistent performance.

Silent Bartack The electronic bartack system, powered by a stepper motor, significantly reduces noise, providing a quieter and more comfortable working environment.

Sewing Motifs Create beautiful ornamental stitches with adjustable alternating stitch lengths. These motifs can be customized to meet various design needs.

Voice Guide The Voice Guide feature assists users by explaining machine functions and troubleshooting errors. By pressing the VOICE button, users receive guidance on resolving issues.

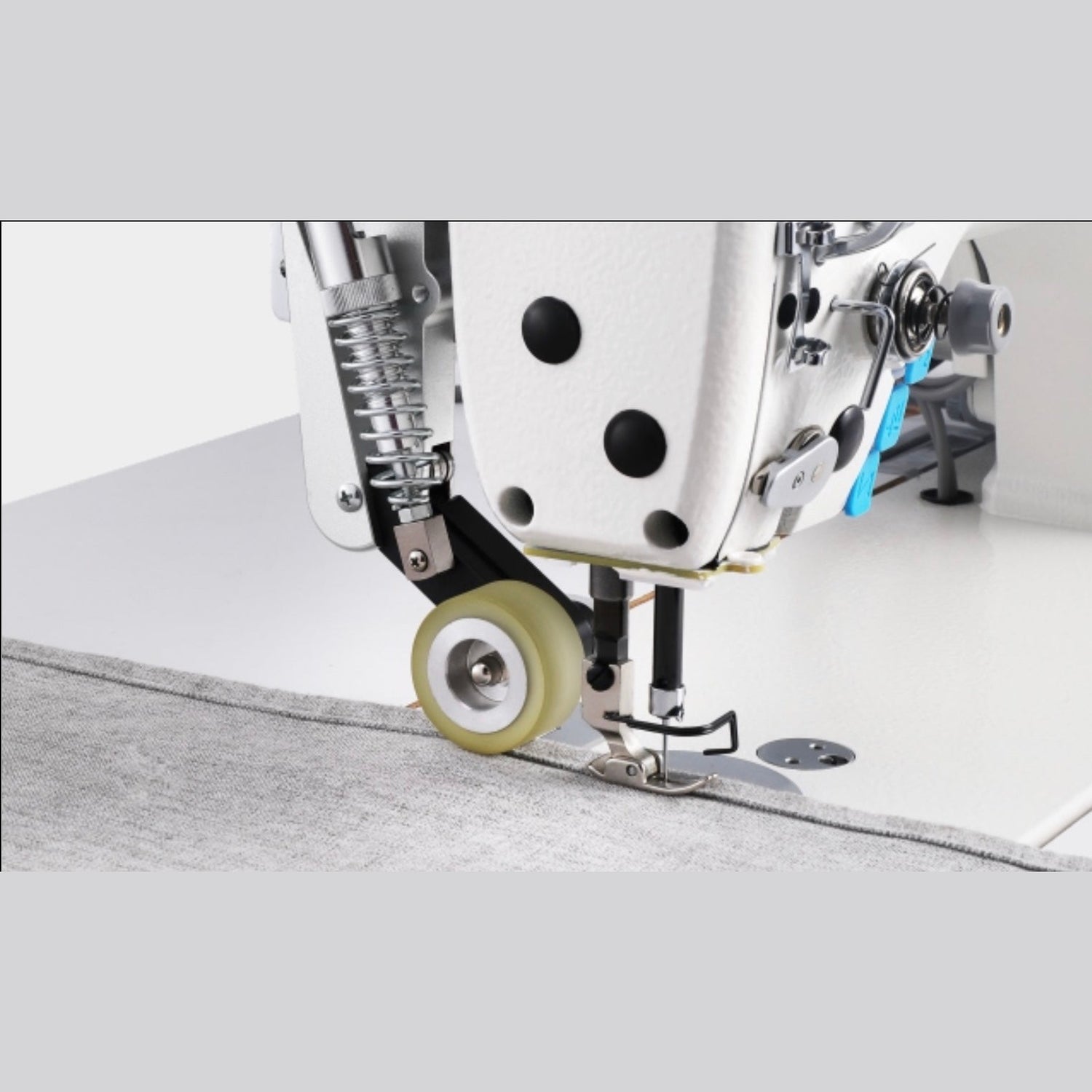

Integrated Puller (PK) The machine includes a new digital puller integrated into the control box, with digital controls conveniently located on the machine's display.

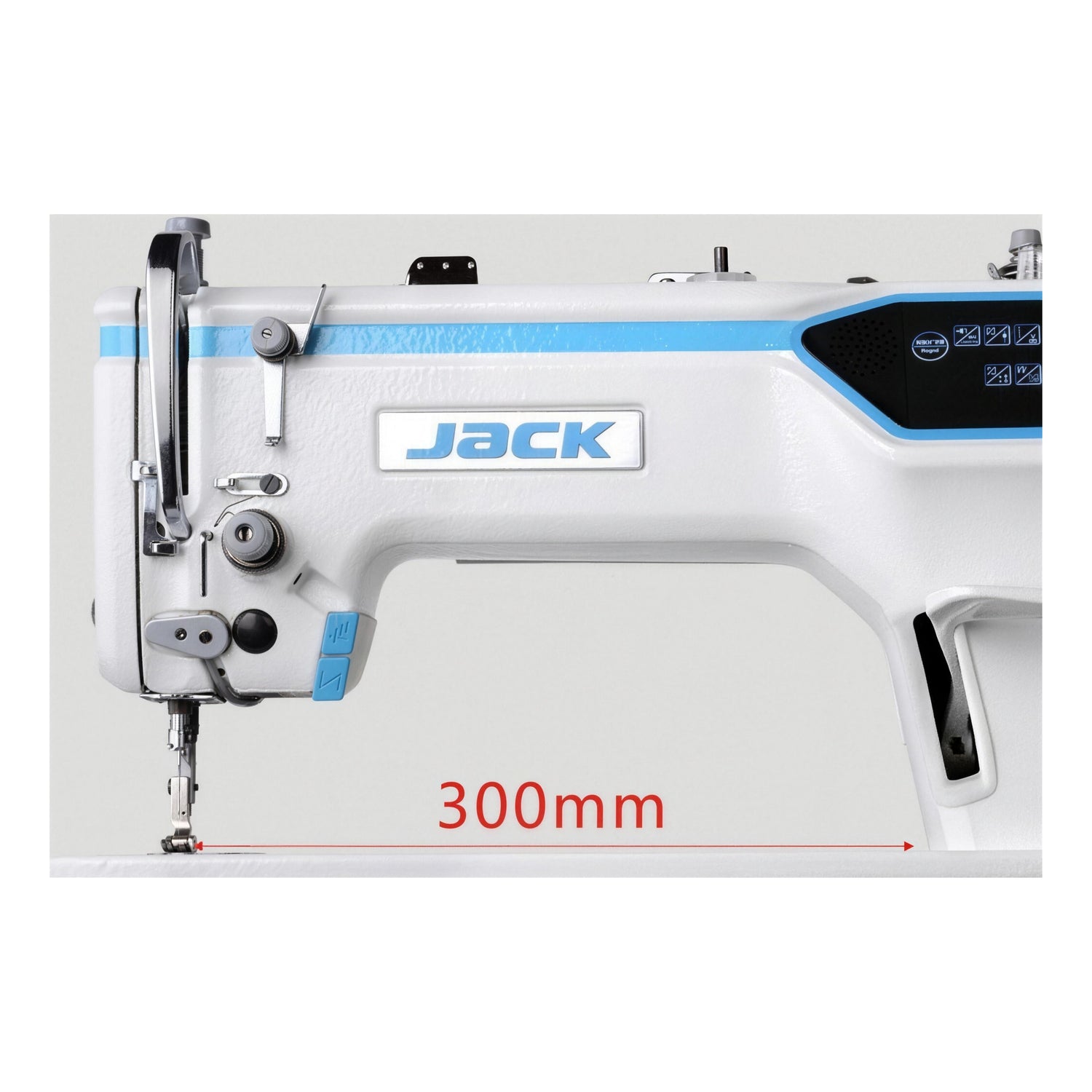

Oversized Arm With a generous 300mm × 130mm workspace, the oversized arm facilitates easy insertion and handling of large projects, such as quilts and quilted jackets.

Double Short Thread Knives The double knife thread trimmer cuts threads down to 3mm, minimizing the need for finishing with scissors.

Sealed Oil Pan The sealed oil pan prevents dust entry, maintaining machine cleanliness and durability. An oil indicator allows for easy monitoring of the oil level.

Semi-Dry Head The semi-dry head is lubricated with grease and features a black needle bar coated in Diamond-Like Carbon (DLC) for increased hardness and wear resistance.

Topstitching Trousers Waistband (PK-F) Designed for blind seams, the topstitching trousers waistband includes an integrated puller, double compensated foot with a spring-loaded bow, and a column stand for enhanced control.

Machine Applications

• Materials: Suitable for light to heavyweight materials including cottons, knits, polyester, nylon, sheer fabrics, and denim.
• Products: Ideal for sewing blouses, shirts, apparel for men, women, and children, uniforms, overalls, lingerie, and more.
• Heavyweight Fabrics: Capable of sewing heavy fabrics like jeans by adjusting the needle plate, feed dog, foot, stitch regulator, hook, and needle bar.

MACHINE SPECIFICATIONS:

• Model: A6F-E-Q-PK
• Needle System: DB×1 11-18#
• Applications: Suitable for sewing all kinds of small orders and quick reorders fabrics
• Use for: Heavy, Light, Elastic
• Maximum Stitch Length: 5mm
• Presser Foot Height: 1mm to 13mm
• Operating Space: 12"
• Maximum Speed: 4000 Stitches Per Minute (SPM/RPM)
