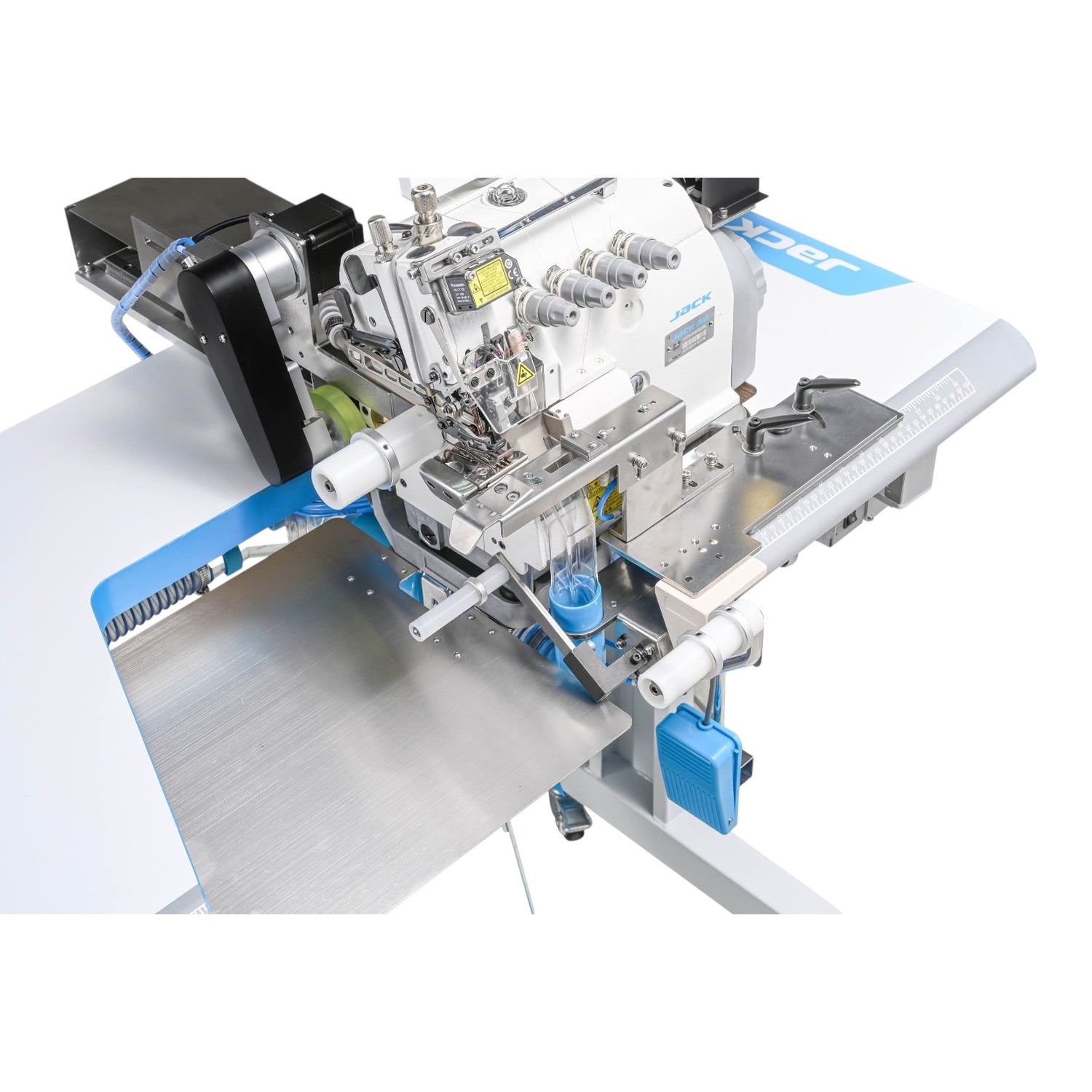

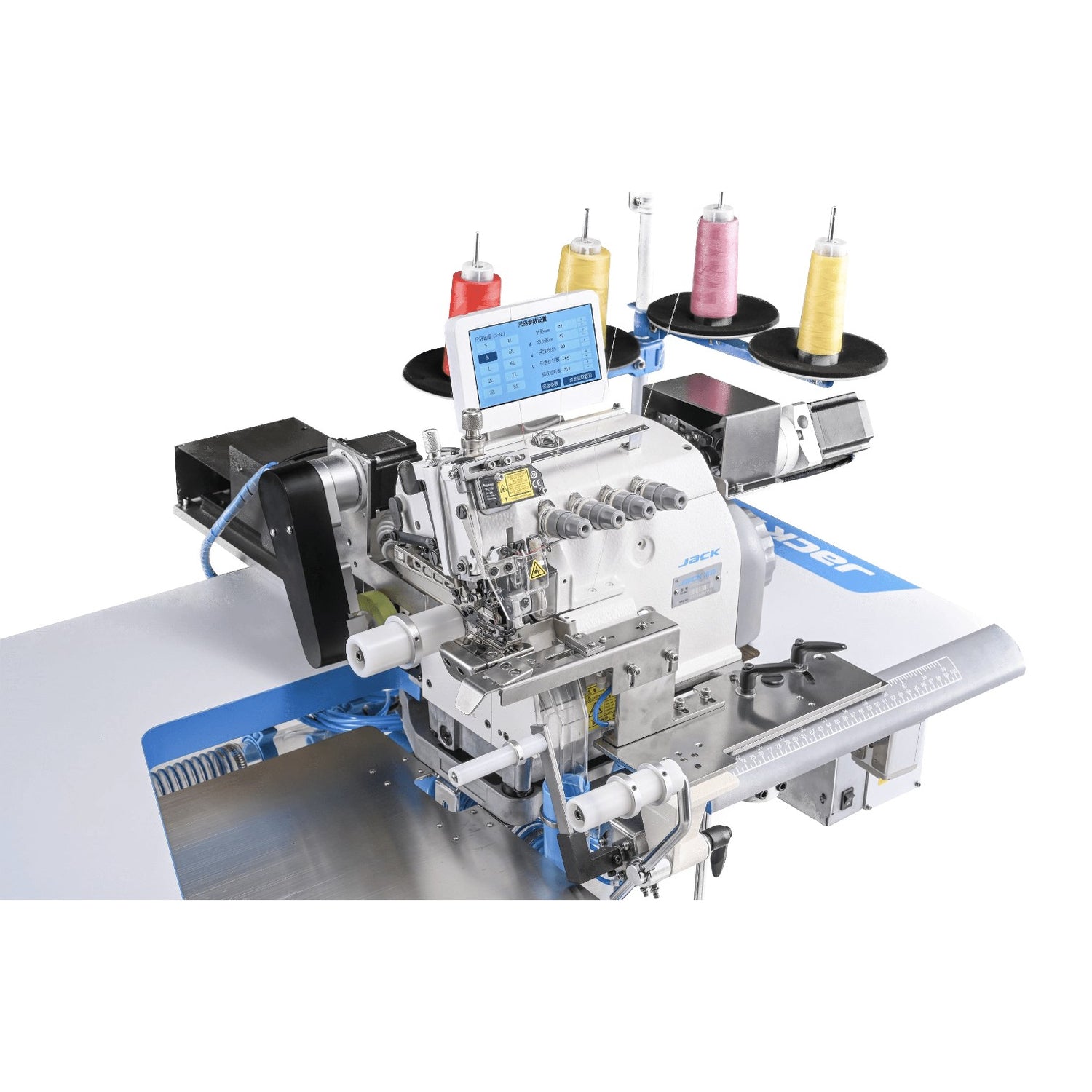

JACK JK-797TDI-4-514-M03/333/KS/FR09E Fully Automatic T-Shirt Neck & Collar Attaching Overlock System with Photocell Alignment, Touch Screen Controls, and Vacuum Waste Management - Complete Setup, Ships Assembled

The Jack JK-797TDI-4-514-M03/333/KS/FR09E is Jack's most automated T-shirt neck and collar attaching system — a specialized small cylinder bed 4-thread overlock engineered specifically to eliminate the most labor-intensive operation in T-shirt production: collar attachment. Where traditional overlocks require skilled operators to align, gather, tension, and feed each collar by hand, the FR09E automatic platform handles all of it electronically — delivering perfect, consistent collars at production speeds with minimal operator intervention.

The integrated photocell automatically aligns each collar the moment it's loaded onto the cylinder arm and tensions it, while the touch screen control panel lets the operator save custom sizes for every garment style — recall any T-shirt size with a single button press. A dedicated motor on the upper feed allows programmable gathering that can be adjusted on the fly during sewing, eliminating the manual technique that historically separated good neck-attaching operators from great ones. Front and rear vacuum suction systems automatically remove fabric scraps and cut thread waste, keeping the work area clean and the operator focused.

Built on Jack's proven 797 small cylinder bed platform — 148mm cylinder bed head with 47mm arm diameter for tight tubular work — the JK-797TDI-FR09E delivers professional 4-thread mock safety stitch (Class 514) finish with the speed and consistency that high-volume T-shirt factories require.

Ideal for T-shirt neck and collar attaching at production scale, polo shirts, sweatshirts, hoodies with banded collars, baby clothing, and any tubular knit garment requiring automated collar/neck band attachment with consistent gathering and tension control.

What's Included

• Jack JK-797TDI-FR09E Fully Automatic Neck Attaching Overlock System (Ships Assembled)
• Built-in Direct Drive AC Servo Motor
• Photocell Auto-Alignment System
• Touch Screen Control Panel
• Automatic Electronic Tensioner
• Programmable Upper Feed Gathering Motor
• Top Feed Mechanism
• Front Vacuum Suction (Material Scrap Removal)
• Rear Vacuum Suction (Cut Thread Removal)
• Industrial Table and Stand
• Standard Needle Set
• Accessories and Tooling Kit
• Operator's Manual

Key Features

• Fully automatic T-shirt neck/collar attaching system — Jack's most automated solution for this operation

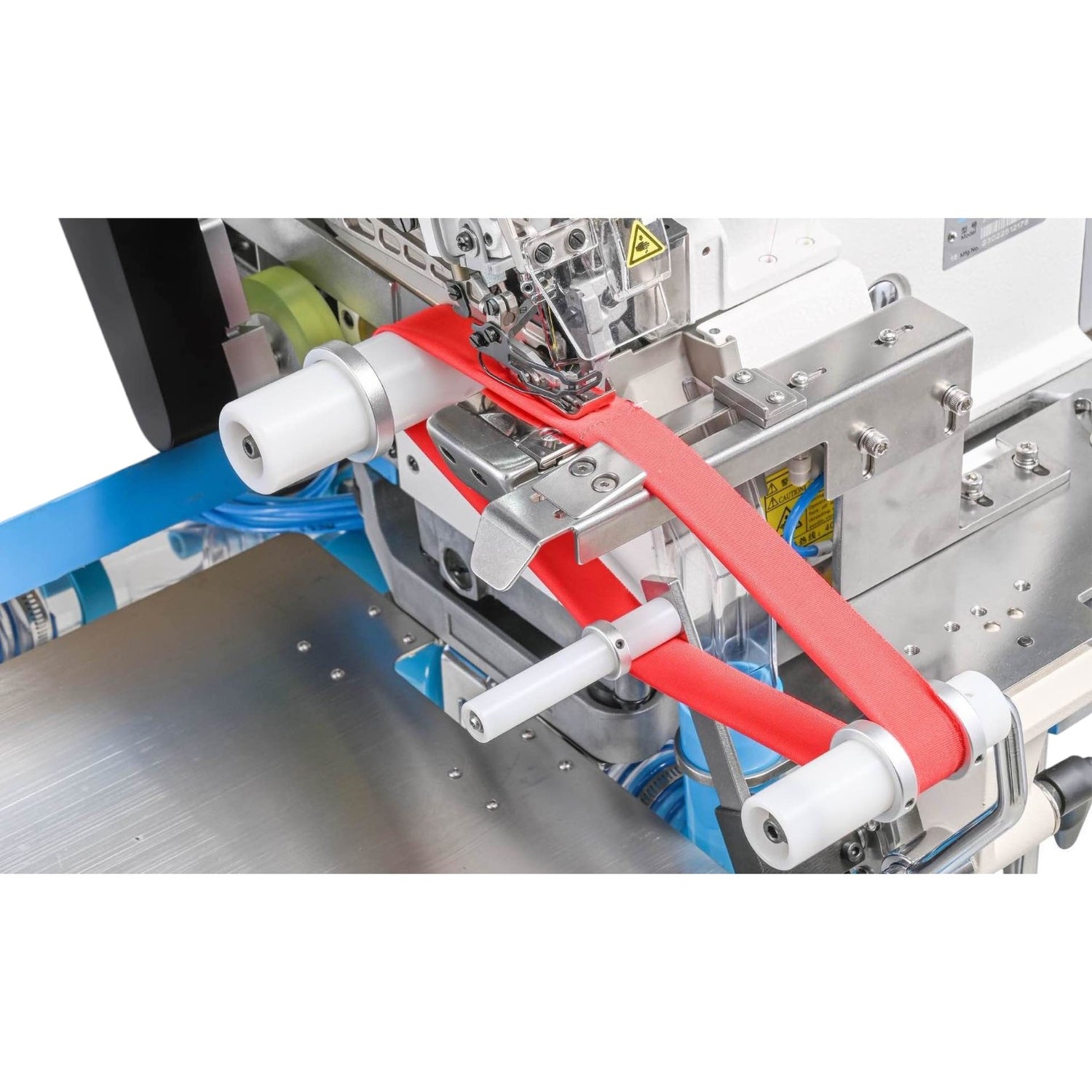

• Photocell auto-alignment — automatically positions and tensions the collar the moment it's loaded

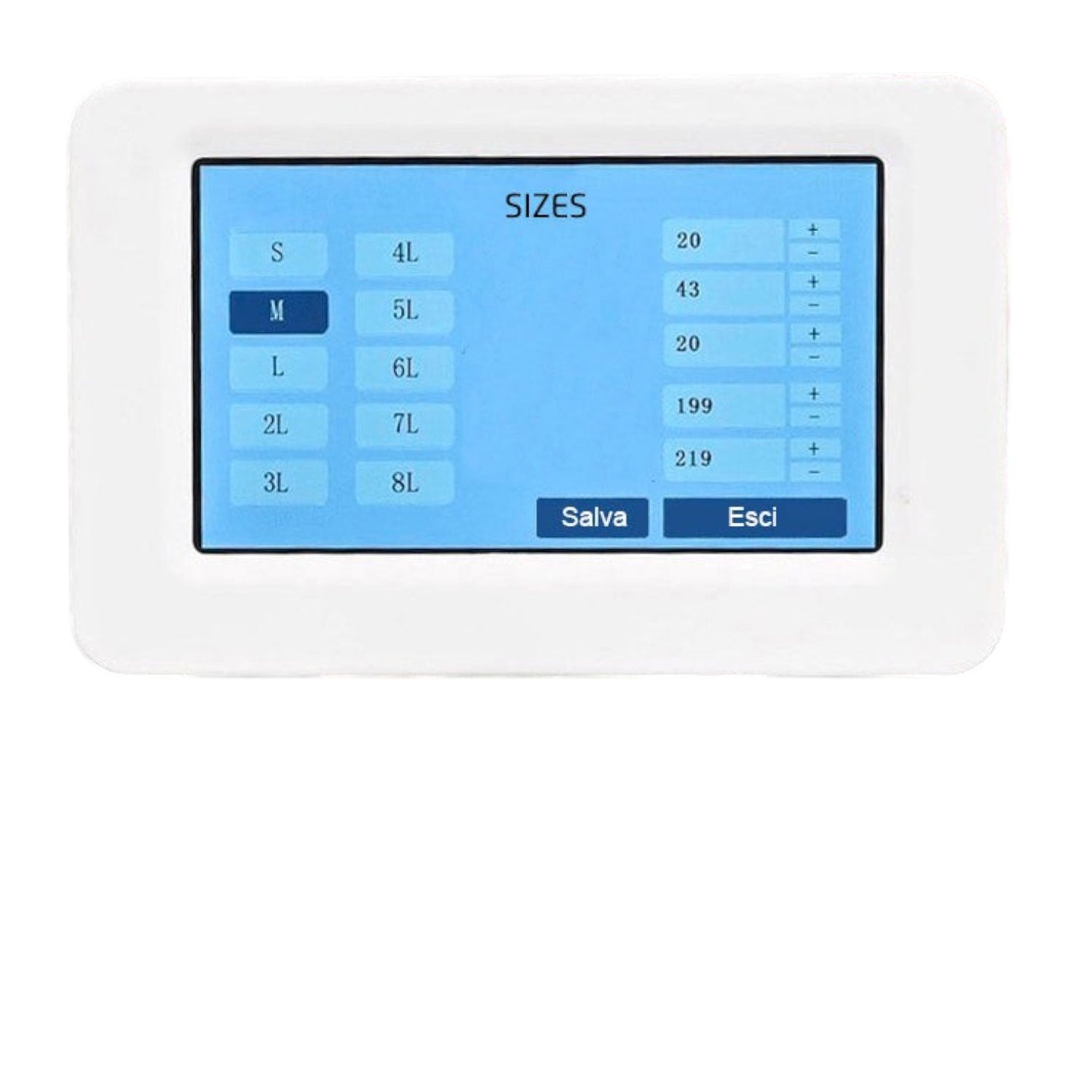

• Touch screen control panel with programmable size memory — one-click recall of any saved T-shirt size
• Programmable upper feed gathering motor — change gather ratio on the fly during sewing
• Automatic electronic tensioner controlled by the photocell — perfect tension on every collar
• 148mm small cylinder bed with 47mm arm diameter for tubular neck access
• 4-thread mock safety stitch (Class 514) — clean, professional overlock seam with edge finish
• Top feed mechanism prevents fabric layer shift on stretchy knits
• Front + rear vacuum suction — automatic removal of fabric scraps and cut threads
• Direct drive integrated AC servo motor — silent operation, energy savings up to 70%
• Automatic needle positioning (top/bottom)
• Central lubrication system with fully enclosed needle bar (oil return) — low maintenance, no leaks
• Eliminates operator skill variability — every collar attached identically

Ideal For

• T-shirt neck and collar attachment (primary application)
• Polo shirt collar bands
• Sweatshirt and hoodie neck banding
• Baby clothing collar/neck attachment
• Children's apparel necklines
• Underwear and undershirt neck binding
• Pajama and loungewear collar work
• Activewear and athletic shirt necks
• Tubular knit garment neck finishing
• High-volume T-shirt factory production lines
• Operations that need to eliminate the skill bottleneck of manual collar attaching
