JACK JK-T2284B Single Needle Drop Feed Standard & 3-Step Zig-Zag Direct Drive Industrial Sewing Machine — 8mm Zig-Zag Width for Lingerie, Swimwear & Elastic Attaching — Complete Setup, Table & Stand Included

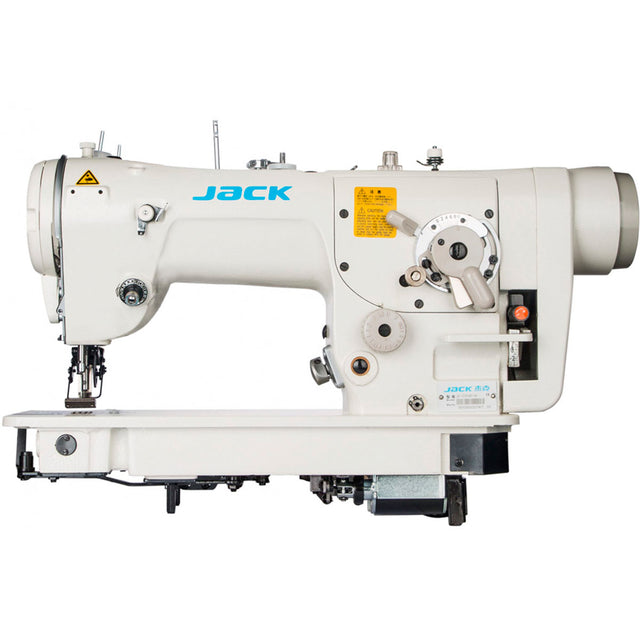

The JACK JK-T2284B is a single needle, drop feed zig-zag industrial sewing machine with both standard (1-step) and 3-step zig-zag capability — built for lingerie, swimwear, elastic attaching, and any application where a stretch seam has to move with the fabric instead of fighting it. The zig-zag width adjusts up to 8 mm, and a single knob sets the needle bar oscillation, so switching between a tight functional stitch and a wide decorative one takes seconds.

The 3-step zig-zag is what makes it a genuine elastic machine: instead of one long diagonal throw, the stitch is broken into three smaller steps per zag, spreading tension across more points. That keeps the elastic flat and the seam soft — no tunneling, no ridge, no snapped thread when the garment stretches. It is the stitch lingerie and swimwear production is built on.

Power comes from an energy-saving direct drive motor mounted on the head and coupled straight to the main shaft — no belt, less noise, less vibration, and instant response at low speed for controlled work on fine fabric. It runs up to 4,500 stitches per minute in zig-zag and 3,200 in straight stitch, with a closed lubrication system that keeps oil off delicate material. Ships complete with industrial table and stand.

What's Included

• JACK JK-T2284B Zig-Zag Industrial Sewing Machine Head (Ships Assembled)
• Integrated Direct Drive Servo Motor
• Industrial Sewing Table & Stand
• Elastic Presser Foot
• DP×5 (#10–14) Needles and Standard Bobbins
• Standard Accessories Kit
• Operator's Manual

Key Features

• Standard (1-step) and 3-step zig-zag — one machine covers functional elastic seams and decorative stitching
• 3-step zig-zag spreads tension across three points per zag — keeps elastic flat and the seam soft, no tunneling or thread breakage when the garment stretches
• Zig-zag width adjustable up to 8 mm — from tight reinforcement stitches to wide decorative work
• Knob-adjustable needle bar oscillation — change the zig-zag throw in seconds without tools
• Energy-saving direct drive motor — mounted on the head, coupled directly to the main shaft; no belt, quieter, lower vibration, instant low-speed response
• Up to 4,500 sti/min in zig-zag (3,200 sti/min straight stitch) — production speed on fine goods
• Elastic presser foot — stable, consistent seams on spandex, jersey, lace, and swimwear fabric
• Drop feed system — smooth, even advancement on delicate and medium-weight material
• Closed lubrication system — keeps oil away from delicate fabric and reduces oil consumption
• 10 mm presser foot clearance — handles layered elastic and multi-ply assemblies
• 5 mm maximum stitch length
• DP×5 (#10–14) needle system — industrial standard, widely available across suppliers
• Seams stay particularly stable on thin and stretch fabrics
• Ships complete with industrial table and stand, ready to run

Ideal For

• Lingerie, underwear, and intimate apparel production
• Swimwear and activewear manufacturing — spandex, lycra, and stretch fabrics
• Elastic attaching, elastic band insertion, and stretch reinforcement seams
• Decorative zig-zag stitching — hems, appliqué, and trim work
• Gloves, jackets, and garments requiring reinforced zig-zag seams
• Jersey, lace, and lightweight stretch textiles
• Medium-weight garments with elastic details — blouses, dresses, uniforms
• Shops that need genuine 3-step zig-zag without paying for a fully automatic package

Specifications
