JACK  |  SKU: Z7-181000

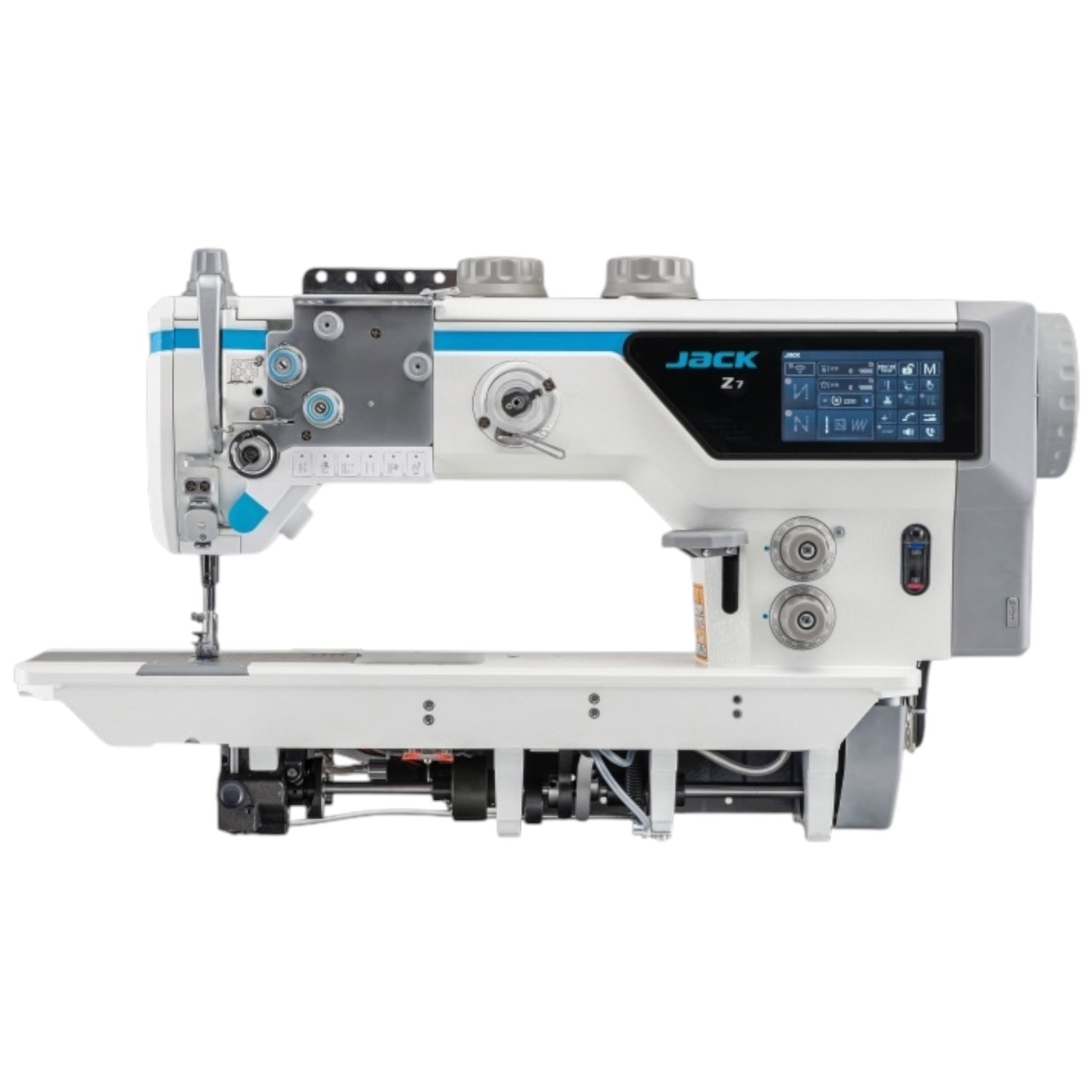

JACK® Z7-181000 – Single Needle AI Walking Foot Machine – Complete Setup, Table & Stand Included

$5,499.00
Condition:
New
Shipping:
Free Shipping assembled in the USA!*
Expert Support

Have Questions?

We're Top Distributors

Best Market Prices!

In-House Experts

We know our machines!

Financing Options

Buy Now, Pay Later!

Nationwide Delivery*

Arrives in record time!

Description

JACK Z7-181000 — AI Triple Feed Walking Foot Industrial Sewing Machine for Leather & Upholstery

Single Needle Heavy Duty Lockstitch • Compound Feed • Complete with Table & Stand

The first walking foot sewing machine that thinks while it sews.

850W High Torque Motor
13% More Power vs. Competing Models
3,500 SPM Max Sewing Speed
73% More Bobbin Capacity (XXL Hook)

The JACK Z7-181000 is a heavy duty walking foot industrial sewing machine built for professionals who sew leather, upholstery, automotive interiors, and marine canvas. It uses the same triple feed compound system (feed dog + needle + walking feet) found on established machines like the Juki LU-2810 and Dürkopp Adler 867 — but adds something none of them offer: a built-in AI chip with a real-time material thickness sensor that automatically adjusts motor torque, needle penetration force, and thread tension when the material changes mid-seam.

That means your operator doesn't have to stop, adjust, and restart every time the seam goes from 2 layers to 6 layers. The JACK Z7 handles it automatically — delivering consistent stitch quality with less training time and fewer defects. It ships fully assembled with the industrial sewing table and stand included, ready to sew out of the box.

See the JACK Z7-181000 in Action

Why the JACK Z7 Walking Foot Machine Is Different

AI Chip + Material Thickness Sensor

An integrated AI chip detects changes in material thickness and resistance in real time. It automatically increases needle penetration force and motor torque — so this industrial sewing machine adapts mid-seam without the operator touching anything. No other walking foot machine in this class offers this.

Double Alternating Walking Feet

Two adjustable walking feet (set via two knobs) alternate automatically or manually based on detected overlap or thickness. This compound feed system gives superior feeding on uneven layers of leather, vinyl, and upholstery fabric that single walking foot machines struggle with.

Secondary Thread Tension Device

A second thread tension system activates automatically when the sensor detects fabric overlap or thickness change — or can be triggered manually. This keeps stitch formation consistent across the entire seam, even on heavy multi-layer assemblies.

One-Button Stitch Length Switch

Corners and tight seams in upholstery and automotive work require shorter stitches. The Z7 switches stitch length with a single button press — no stopping to turn a knob. Saves time and improves consistency on complex sewing patterns.

Most Powerful Motor in Its Class

The 850W direct drive servo motor delivers 13% more power than competing triple feed lockstitch machines. It provides strong, low-speed pulling force for dense multi-layer leather and upholstery assemblies without skipped stitches.

XXL 32mm Heavy Duty Hook

73% more bobbin capacity than the standard 2X hook type. Handles thick thread without jams and dramatically reduces bobbin changes on long production runs — essential for upholstery shops and leather goods production.

Watch the AI Self-Adaptive Sewing System

This is the Z7's signature feature: the machine detects thickness changes in real time and automatically adjusts torque, tension, and needle force — no operator input needed:

JACK Z7-181000 key features overview — AI thickness sensor, double alternating walking feet, XXL 32mm hook, touchscreen panel, 850W motor

Built for the Toughest Seams in Leather, Upholstery & Marine Fabrication

Automotive upholstery: You're sewing a car seat cover and the seam goes from 2 layers of leather to 6 layers at the junction. On a conventional walking foot sewing machine, you'd stop and adjust the tension and foot pressure. On the Jack Z7, the AI sensor detects the change, the motor increases torque, the second tension engages, and the alternating feet kick in — all in real time, mid-seam, with zero operator intervention.

Furniture upholstery: Sewing a sofa cushion means tight corners that need shorter stitches. Instead of stopping to turn the stitch length knob, press one button and the Z7 switches automatically. Press again to go back. No interruption, no inconsistent stitches at the corner.

Marine canvas & awnings: Multiple layers of Sunbrella or marine vinyl with binding tape create sudden thickness jumps. The Jack Z7 AI compensates instantly, keeping your stitch line straight and your tension even — without the operator needing years of experience to "feel" the change. This is what makes it the ideal heavy duty sewing machine for marine fabrication shops.

Leather goods & bags: When you're sewing a leather bag and transition from a single layer body panel to the multi-layer strap attachment point, the Z7's thickness sensor detects the jump and adjusts needle force and tension before you even feel the difference. Cleaner stitches, less thread breakage, fewer rejects.

850W Power Test — Sewing Through an Automobile Tire

If the Z7 can sew through a tire, it can handle any leather, canvas, or upholstery assembly in your shop:

Smart Controls & Operator-Friendly Design

The JACK Z7 is designed to reduce the learning curve for new operators while giving experienced sewers faster, more precise control:

  • Touch screen panel with voice guidance — clear icons and voice prompts make it easy to activate backtack, thread trimmer, presser foot lifter, and programmable functions. Long-press any button to access advanced settings.
  • Electronic digital handwheel — micrometric adjustments by rotation; single click enables half-stitch operation for precise stitch placement on detailed leather and upholstery work.
  • Programmable function keys on the machine head — quick access to your most-used operations. One key is fully customizable from the touch screen panel to match your workflow.
  • Pneumatic presser foot lifter — smooth, consistent double-alternating lift reduces operator fatigue on bulky or heavy workpieces. Requires external air compressor (minimum 70 PSI).
  • Automatic thread trimming & back-tacking — integrated automation speeds up cycle time and ensures clean seam starts and ends on every piece.
  • Smart bobbin thread warning — the machine alerts you when bobbin thread is running low, so you never sew empty and ruin a workpiece.
  • Integrated bobbin winder with auto-cut — wind and cut bobbin thread without leaving your sewing position.
  • Automatic lubrication system — keeps the machine running smoothly with minimal maintenance downtime.

Electronic Handwheel & Half-Stitch

One-Button Dual Stitch Length

Smart Bobbin Thread Warning

Seam Reversal Application

JACK Z7 vs Juki LU-2810 vs Dürkopp Adler 867 — Walking Foot Machine Comparison

The JACK Z7-181000 is engineered to compete directly with the most established heavy duty walking foot industrial sewing machines on the market — at a fraction of the price, with AI technology they don't offer. If you're considering a Juki LU-2810 or Dürkopp Adler 867 for your upholstery or leather shop, compare the features side by side:

Feature JACK Z7-181000 Juki LU-2810 Dürkopp Adler 867
AI Thickness Sensor ✔ Auto-adjusts in real time ✘ No ✘ No
Auto Torque & Penetration Adjustment ✔ Yes ✘ Manual ✘ Manual
Double Alternating Walking Feet ✔ Auto or manual activation ✘ No ✘ No
Secondary Thread Tension ✔ Auto-activating ✘ No ✘ No
Touch Screen + Voice Guide ✔ Yes ✘ No ✘ No
Digital Handwheel (half-stitch) ✔ Yes ✘ Mechanical ✘ Mechanical
Smart Bobbin Thread Warning ✔ Yes ✘ No ✘ No
Motor Power 850W Direct Drive Servo (varies by setup) Servo (varies by setup)
Hook Size XXL 32mm (+73% capacity) Standard Standard
One-Button Stitch Length Switch ✔ Yes ✘ Manual knob ✘ Manual knob
Feed System Triple Transport (Unison Feed) Triple Transport Triple Transport
Table & Stand Included ✔ Yes — ships assembled Varies by dealer Varies by dealer

Ideal Applications for the JACK Z7 Industrial Sewing Machine

  • Upholstery & furniture manufacturing — sofas, cushions, recliners, headboards, ottomans, and reupholstery work
  • Automotive interior sewing — car seats, headliners, steering wheel covers, door panels, dashboards, and convertible tops
  • Leather goods production — bags, belts, holsters, harnesses, saddlery, wallets, and heavy leather accessories
  • Marine & outdoor fabrication — boat covers, bimini tops, awnings, canvas enclosures, outdoor cushions, and sail repairs
  • Mattress manufacturing — border stitching, quilted panel assembly, and heavy-gauge mattress tape binding
  • Aviation upholstery — aircraft seats, interior panels, and certified material assemblies

What's Included with the JACK Z7-181000

JACK Z7-181000 AI Walking Foot Lockstitch Machine (ships fully assembled)
850W High Torque Direct Drive Servo Motor
Industrial Sewing Table
Machine Stand
Standard Accessories Kit (bobbins, needles, tools, oil)
User Manual

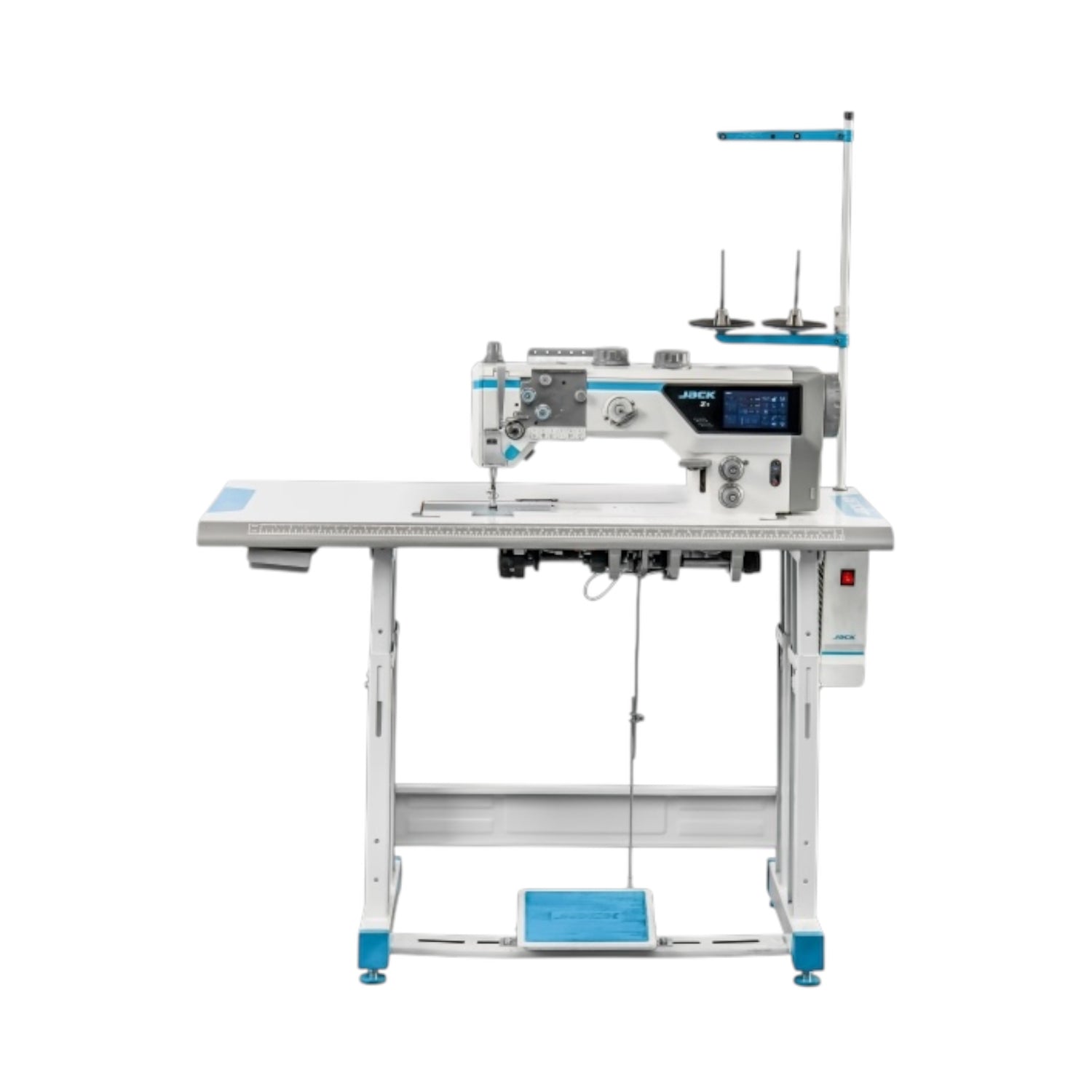

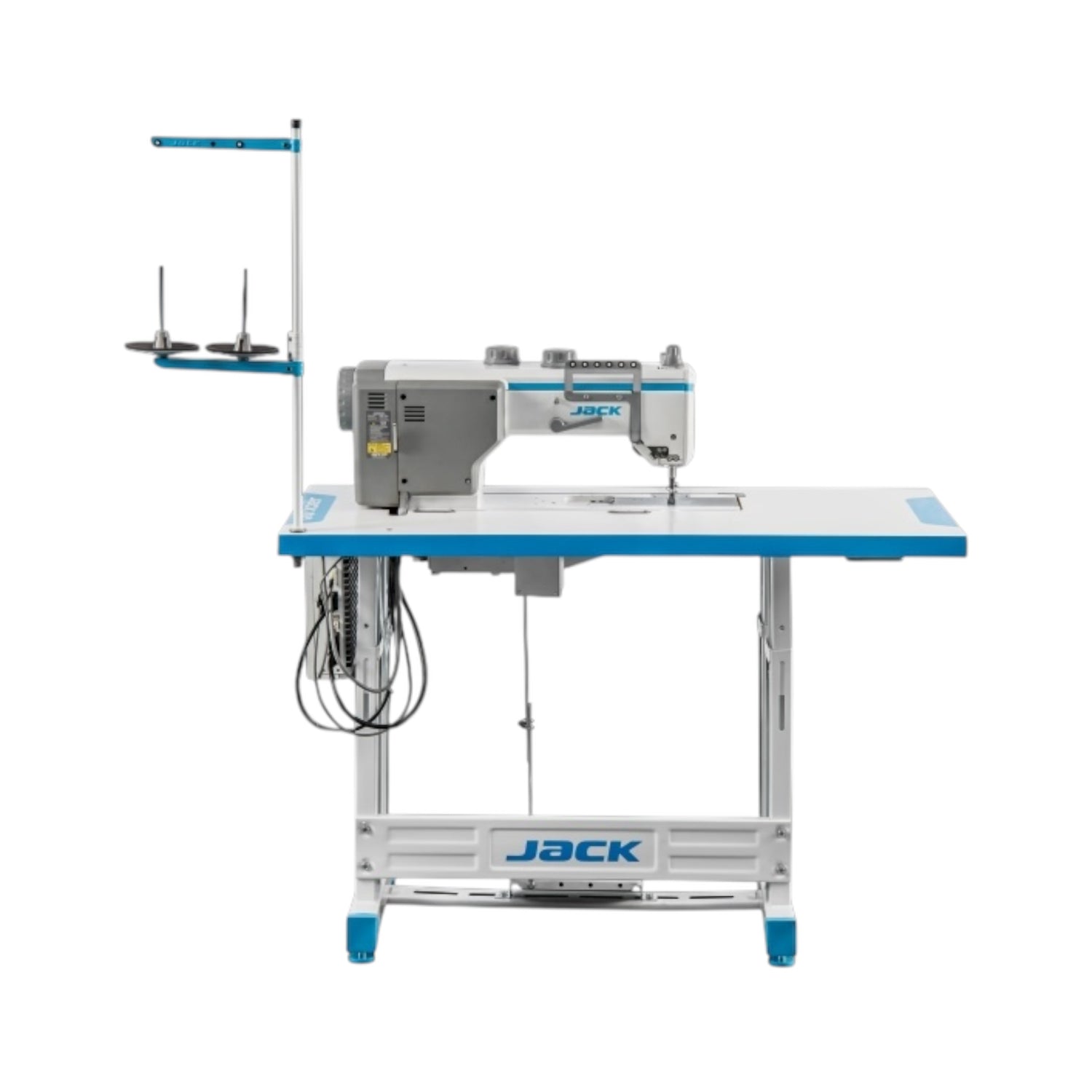

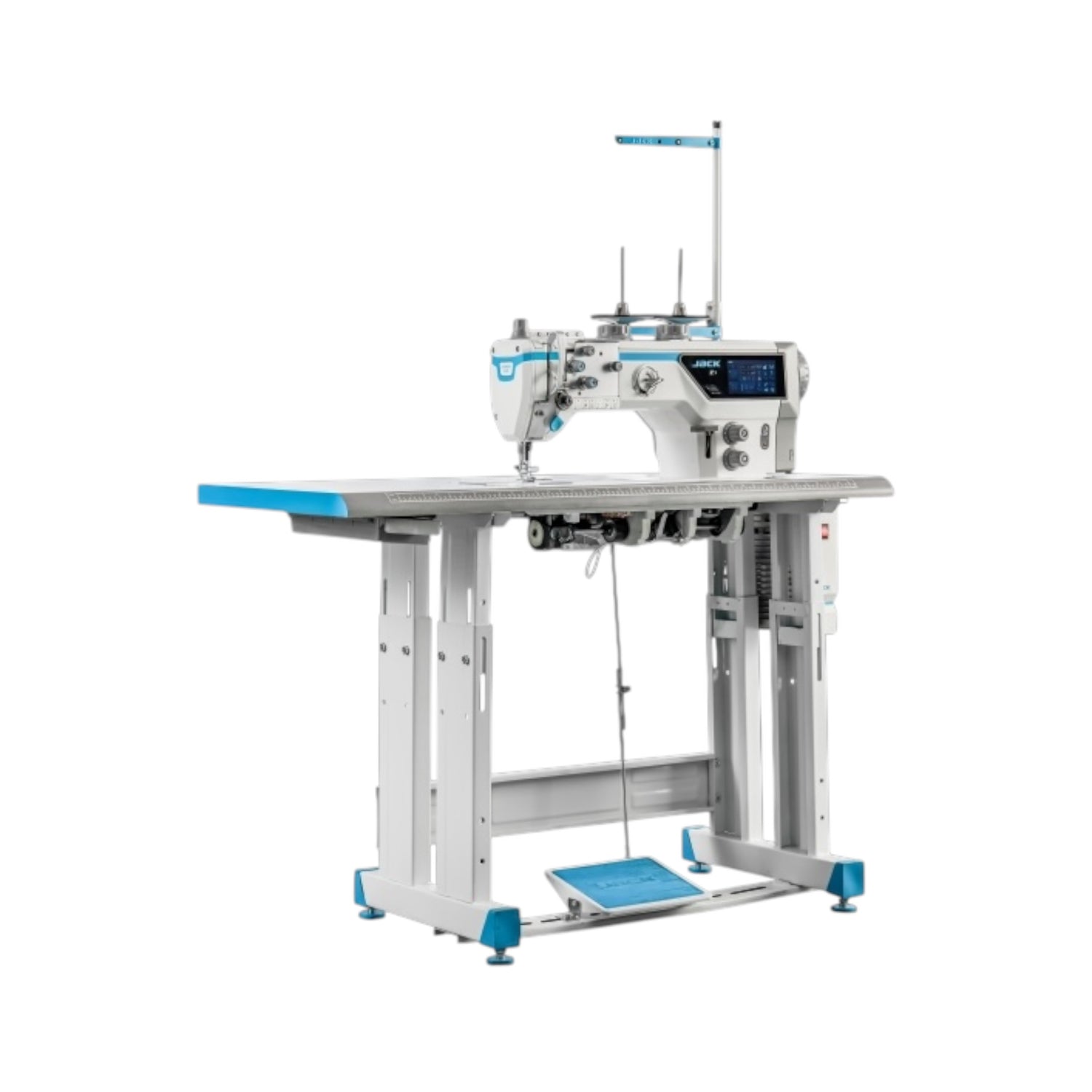

How It Looks Fully Assembled & Ready to Sew

JACK Z7-181000 Specifications

Machine Type Single Needle AI Walking Foot Lockstitch Industrial Sewing Machine
Feed System Triple Transport / Unison Feed / Compound Feed (feed dog + needle + walking feet)
AI System Integrated AI chip with real-time material thickness sensor — auto-adjusts torque, penetration, and tension
Motor 850W High Torque Direct Drive Servo Motor (13% more powerful than competing models)
Drive Type Direct Drive
Max Sewing Speed 3,500 stitches per minute (SPM)
Stitch Length 0–9 mm (adjustable, with one-button quick switch)
Needle System DPx35R / DPx35LR / DPx35D, sizes #18–#24 (rated for leather and heavy fabrics)
Max Presser Foot Lift 20 mm
Hook Type XXL 32mm Heavy-Duty Hook (73% more bobbin capacity than standard 2X type)
Walking Feet Double Alternating (auto/manual activation via 2 adjustment knobs)
Thread Tension Primary + Secondary auto-activating tension device
Control Panel Touch Screen with Voice Guidance + Electronic Digital Handwheel (half-stitch capable)
Function Keys On machine head — 1 fully programmable via touch screen
Presser Foot Lifter Double-alternating pneumatic (requires external air compressor, min. 70 PSI)
Automatic Functions Thread Trimming, Back-Tacking, Stitch Length Switch, Bobbin Warning, Programmable Operations
Lubrication Automatic
Table & Stand Included — ships fully assembled and ready to sew
Brand JACK — World's #1 industrial sewing machine manufacturer by volume

Frequently Asked Questions about the JACK Z7-181000

What is the difference between the JACK Z7 and the JACK 2060GHC walking foot machine?
The JACK 2060GHC is a solid compound walking foot sewing machine, but it uses a conventional design — the operator manually controls tension, foot pressure, and speed when material thickness changes. The JACK Z7-181000 adds an AI chip with a real-time thickness sensor that automatically adjusts motor torque, needle penetration force, and thread tension (via a secondary tension device), and activates double alternating walking feet — all without the operator doing anything. The Z7 also features a touch screen with voice guidance, a digital handwheel with half-stitch capability, one-button stitch length switching, and a smart bobbin thread warning system. If you frequently sew materials that change thickness mid-seam — like upholstery, automotive interiors, or layered leather — the Z7 will deliver more consistent results with less operator skill required.
Can the JACK Z7 sew leather?
Yes. The JACK Z7-181000 is specifically built for heavy materials including leather, bonded leather, vinyl, and multilayer leather assemblies. The DPx35 needle system (sizes #18–#24) is designed for leather work. The 850W motor provides strong penetration force even through thick stacks, and the AI sensor automatically increases torque when it detects denser material — so you get clean, consistent stitches through multiple leather layers without manual adjustment. It is widely used in leather goods production for bags, belts, holsters, harnesses, and saddlery.
Is the JACK Z7 easy to use for a new operator?
The Z7 is one of the most operator-friendly heavy duty industrial sewing machines available. The touch screen panel uses voice guidance and clear icons, so operators can activate functions without memorizing complex procedures. More importantly, the AI system reduces the skill gap — instead of relying on an experienced operator to "feel" thickness changes and adjust on the fly, the machine handles it automatically. The digital handwheel gives precise control when needed, and the programmable function keys let you save your most-used settings for one-touch access. This makes the Z7 an excellent choice for shops that need to train new operators quickly.
Do I need an air compressor for the JACK Z7 pneumatic foot lifter?
Yes. The pneumatic presser foot lifter requires an external air compressor capable of sustaining at least 70 PSI. The compressor is not included with the machine. If you already have shop air, you're all set — just connect the air line. If not, a standard portable compressor that can sustain 70 PSI continuously will work fine.
What thread works best with the JACK Z7-181000?
The JACK Z7 works well with the standard heavy duty threads used for leather and upholstery applications. The XXL 32mm hook is specifically designed to handle thick thread without jamming, and its 73% extra bobbin capacity means fewer bobbin changes on long runs. The DPx35 needle system supports sizes #18 through #24, allowing you to match needle and thread weight to your specific material. The machine arrives with the standard thread setup ready to sew.
Does the JACK Z7 ship assembled and ready to sew?
Yes. The JACK Z7-181000 ships fully assembled with the industrial sewing table and stand included. When it arrives, you connect the power, connect your air line for the pneumatic foot lifter, and you're sewing. No complex assembly, no calibration required. We ship from Miami, Florida with free shipping to the lower 36 contiguous U.S. states.
How does the JACK Z7 compare to the Juki LU-2810?
Both are triple feed (unison feed) walking foot lockstitch machines built for heavy duty work. The Juki LU-2810 is a well-established machine with a strong reputation. However, the JACK Z7-181000 offers several features the Juki does not: an AI chip with material thickness sensor for automatic adjustments, double alternating walking feet, a secondary auto-activating thread tension device, a touch screen with voice guidance, a digital handwheel with half-stitch capability, one-button stitch length switching, smart bobbin thread warning, and a 32mm XXL hook with 73% more bobbin capacity. The Z7 also has the most powerful motor in its class at 850W. For shops that sew materials with frequent thickness changes — upholstery, automotive, leather goods — the Z7's automatic adjustments can significantly improve consistency and reduce operator dependence.
Is the JACK Z7 a good sewing machine for automotive upholstery?
The JACK Z7-181000 is one of the best walking foot sewing machines for automotive upholstery work. Car seat covers, door panels, headliners, and steering wheel covers constantly change in thickness as layers overlap at seam junctions. The Z7's AI sensor detects these changes in real time and automatically adjusts torque, needle force, and tension — eliminating the most common source of inconsistent stitching in automotive sewing. The 850W motor handles multi-layer leather and vinyl assemblies with ease, and the 20mm presser foot lift accommodates bulky layered materials.
Can I use the JACK Z7 for sewing marine canvas and boat covers?
Yes. The Z7 handles marine canvas, Sunbrella, vinyl, and layered outdoor fabrics with ease. Marine fabrication often involves sudden thickness changes where binding tape, webbing, or multiple fabric layers overlap. The AI thickness sensor compensates automatically, and the triple feed system keeps heavy canvas moving evenly through the machine without shifting or bunching. The pneumatic foot lifter makes it easy to handle bulky folded canvas edges.
What warranty and support does Supra Sewing offer on the JACK Z7?
We provide a 2-year warranty covering all electrical and electronic components. Our technical support team is available by phone, WhatsApp, email, and video call. We're based in Miami, Florida and we stand behind every machine we sell. If you have any issues, our team can walk you through troubleshooting live — and in most cases, resolve the problem remotely.

Shipping & Delivery

FREE shipping to the lower 36 contiguous U.S. states.

Shipping to remaining contiguous states and Puerto Rico: $150 flat rate.

Ships fully assembled and ready to sew. Available from USA stock — ships fast!.

2-Year Electrical & Electronic Warranty

Full coverage on all electrical and electronic components. Based in Miami, FL — we stand behind every machine we sell.
