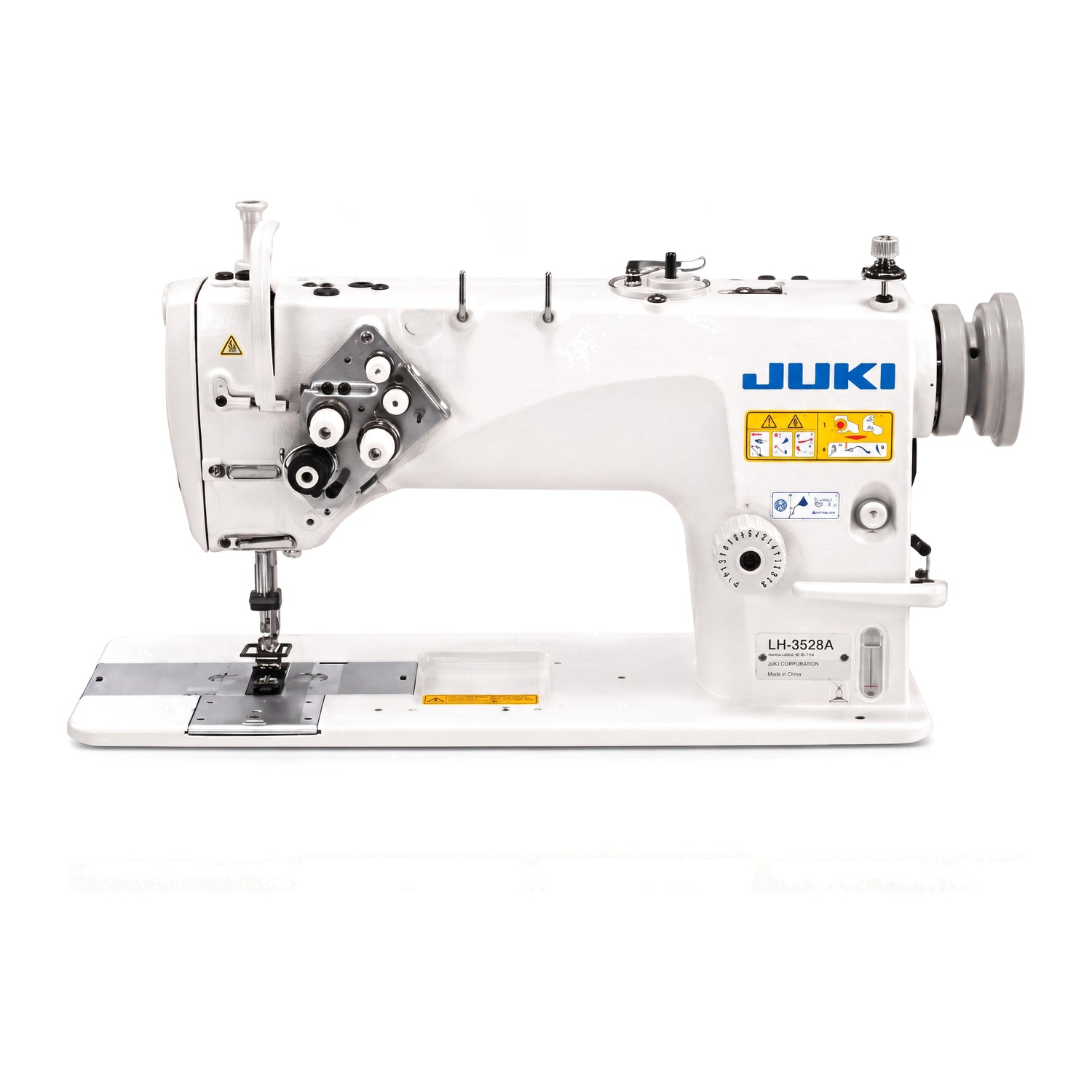

JUKI LH-3528-FS Double Needle Needle Feed Lockstitch Industrial Sewing Machine with Vertical Hook (1/4" / 6.4mm Gauge) - Complete Setup, Table, Stand Included
- Condition:
- New
- Shipping:
- Free Shipping assembled in the USA!*
JUKI LH-3528-FS Double Needle Needle Feed Lockstitch Industrial Sewing Machine with Vertical Hook (1/4" / 6.4mm Gauge) - Complete Setup, Table, Stand Included is backordered and will ship as soon as it is back in stock.
JUKI LH-3528-FS Double Needle Needle Feed Lockstitch Industrial Sew...
Have Questions?
We're Top Distributors
Best Market Prices!
In-House Experts
We know our machines!
Financing Options
Buy Now, Pay Later!
Nationwide Delivery*
Arrives in record time!
Description
Description
The JUKI LH-3528-FS is a double-needle needle-feed lockstitch industrial sewing machine built on JUKI's legendary LH-3500 platform — the gold standard for parallel twin-needle seaming in apparel manufacturing. This 1/4" (6.4 mm) gauge configuration is optimized for medium-weight materials, delivering clean, consistent parallel topstitching on denim, jeans, workwear, uniforms, and structured garment details.
Featuring needle feed with a vertical-axis large hook, the LH-3528-FS pulls multi-layer assemblies evenly without skipping or ply shift. The semi-dry head design eliminates oil contamination on light fabrics, while automatic lubrication of the lower mechanism extends service life with minimal maintenance.
Complete with industrial table, stand, servo motor, and an LED work light, the LH-3528-FS is ready for immediate high-volume production. The needle positioner and reverse feed lever speed up sewing cycles, while balanced thread take-up keeps stitch quality uniform throughout long shifts.
What's Included
- JUKI LH-3528-FS Double Needle Lockstitch Machine Head (Ships Assembled)
- Servo Motor (Energy-Efficient)
- Industrial Table & Stand
- 1/4" (6.4mm) Gauge Needle Bar Set
- LED Work Light
- Standard Presser Foot Set
- Needles, Bobbins, and Bobbin Cases
- Standard Accessories Kit
- Operator's Manual
Key Features
- Double needle needle-feed lockstitch — clean, consistent parallel seams
- 1/4" (6.4 mm) needle gauge — standard spacing for medium-weight parallel topstitching
- Semi-dry head — no oil contamination on upper feed mechanism, ideal for light-colored fabrics
- Vertical-axis large hook — supports thicker threads, longer bobbin runtime
- Automatic lubrication — long service life, minimal maintenance
- Needle positioner — auto needle up/down for faster sewing cycles
- Servo motor with reverse feed lever — variable speed, quiet operation
- Built-in LED work light — bright illumination, low heat
- Balanced thread take-up for uniform stitch quality
- Includes complete industrial table and stand, ready to run
Ideal For
- Jeans and denim manufacturing — parallel topstitching, hems, pockets, yokes
- Uniform and workwear production
- Sportswear, casual pants, and trouser seams
- Shirt and blouse parallel detailing
- Medium-weight woven garment assembly
- Decorative topstitching and parallel seam reinforcement
Specifications
| Brand | JUKI |
| Model | LH-3528-FS |
| Machine Type | Double Needle Needle-Feed Lockstitch, Semi-Dry Head |
| Stitch Type | 301 Lockstitch |
| Number of Needles | 2 |
| Number of Threads | 4 (2 per needle) |
| Needle Gauge | 1/4" (6.4 mm) |
| Needle System | 134 (DPx5) |
| Max Sewing Speed | 3,000 SPM |
| Max Stitch Length | 5 mm |
| Presser Foot Lift | Up to 13 mm (by knee lever) |
| Feed Type | Needle Feed |
| Hook Type | Vertical-Axis Large Hook |
| Head Design | Semi-Dry (No Oil on Upper Feed Mechanism) |
| Lubrication | Automatic (Lower Mechanism) |
| Needle Positioner | Yes — Auto Up/Down |
| Reverse Feed | Lever-Operated |
| Motor | External Servo Motor |
| Voltage | 110V |
| Work Light | LED Built-In |
| Material Weight Range | Light to Medium-Heavy |
| Machine Head Weight | ~37 kg |
| Includes | Complete Setup with Table and Stand |
| Assembly | Ships Assembled |
-
