Versatile Straight & Zig-Zag in One Machine

The 20U-105C is designed to do much more than a simple straight stitch:

• Straight stitch & zig-zag in a single machine.
• Perfect for appliqué, satin stitch, decorative stitching, free-motion embroidery, and buttonholes.
• Three needle positions (left, center, right) make it ideal for zippers, cording, and topstitching.
• Knee-operated zig-zag width control allows you to taper or vary the zig-zag while sewing, great for appliqué and decorative work.

Industrial Speed with Servo Control

• High speed up to 2,500 stitches per minute (straight stitch) to boost productivity.
• Zig-zag sewing at up to 2,000 stitches per minute.
• Servo motor provides quieter operation, lower energy consumption, and excellent control at low speeds—perfect for precise work, corners, and curves.
• Knee lifter gives up to 9 mm of presser foot lift for multiple layers; hand lifter gives approx. 6.35 mm.

Materials & Applications

The SINGER 20U-105C is ideal for medium to heavy-weight fabrics, such as:

1. Garments – blouses, shirts, uniforms, dresses, children’s wear.
2. Stretch & knits – T-shirts, etc.
3. Denim & canvas – hems, decorative seams, patches (within medium range).
4. Home décor – curtains, cushions, light upholstery, drapery.
5. Decorative & appliqué work – satin stitching, embroidery-style designs, monograms.

Key Features

• Single needle lockstitch with straight & zig-zag capability
• Max speed: up to 2,500 SPM (straight) / approx. 2,000 SPM (zig-zag)
• Max stitch length: up to 5 mm
• Max zig-zag width: up to 9 mm
• Three needle positions: left, center, right
• Knee lifter for presser foot and zig-zag width control
• Built-in bobbin winder
• Adjustable presser foot pressure for different fabric thicknesses
• Adjustable thread tension for stable stitch quality
• Needle bar frame clamp to lock for straight stitching and release for zig-zag
• Reverse lever for backtacking and seam reinforcement

Technical Specifications

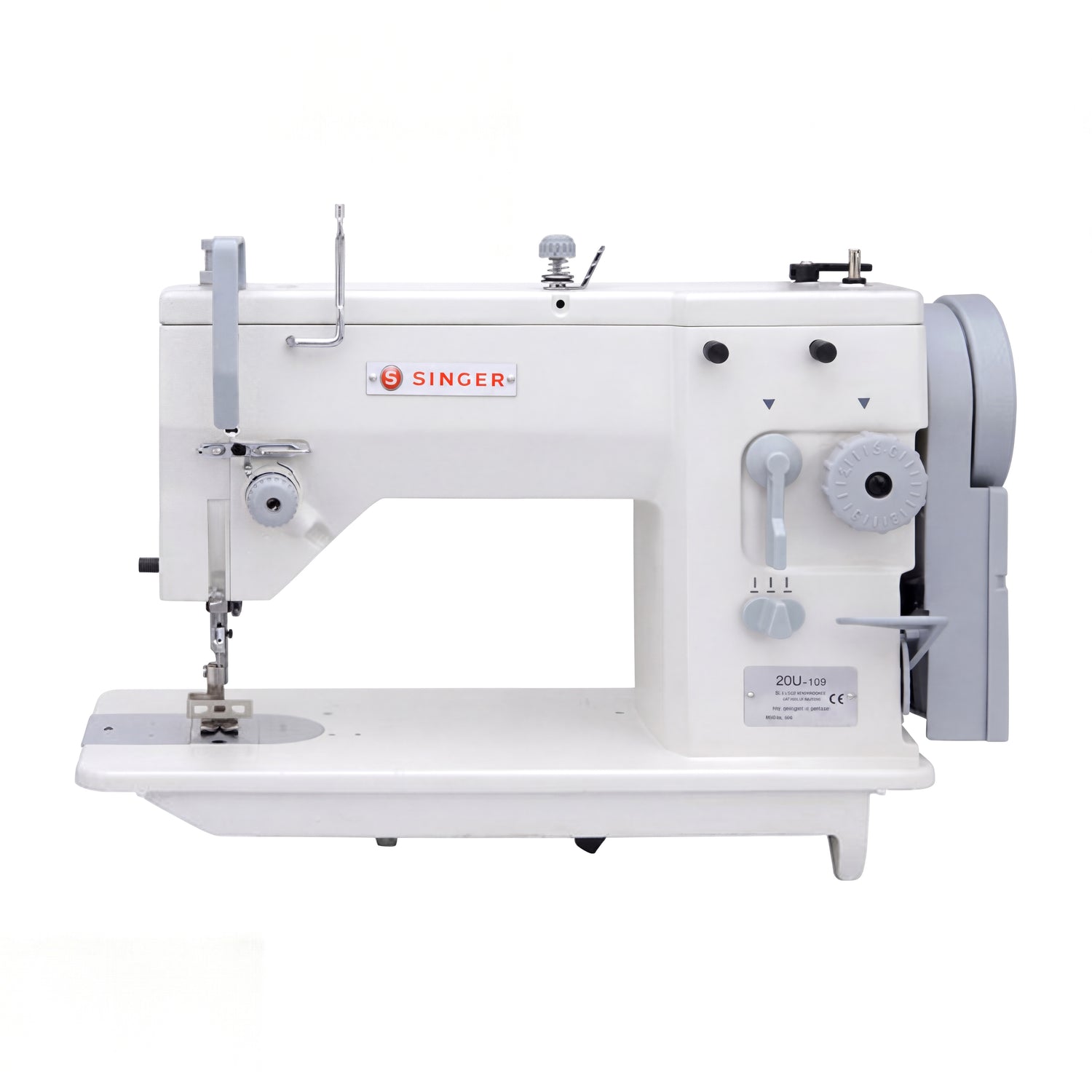

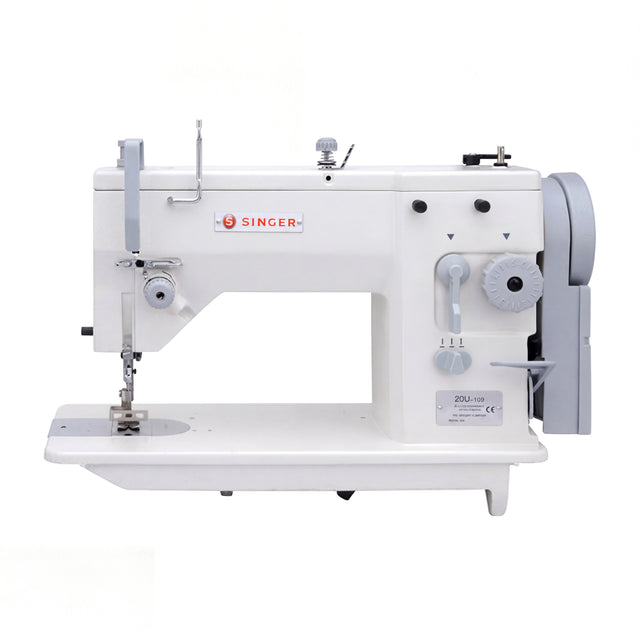

• Model: SINGER 20U-105C
• Stitch Type: Single-needle lockstitch, straight & zig-zag
• Max Speed: 2,500 stitches per minute (straight)
• Max Stitch Length: 5 mm
• Max Zig-Zag Width: 9 mm
• Presser Foot Lift:
• By hand: approx. 6.35 mm
• By knee: up to 9 mm
• Needle System: 135×7 or 135×5 (135×8 TRI for leather applications)
• Feed Type: Drop feed with reverse
• Hook Type: Rotary hook
• Bed Size: approx. 7" × 15.75"
• Workspace (right of needle): approx. 8.25"
• Motor Type: Industrial servo motor, 110V (energy-saving)

(Speed and performance can vary depending on thread, material, and operation.)

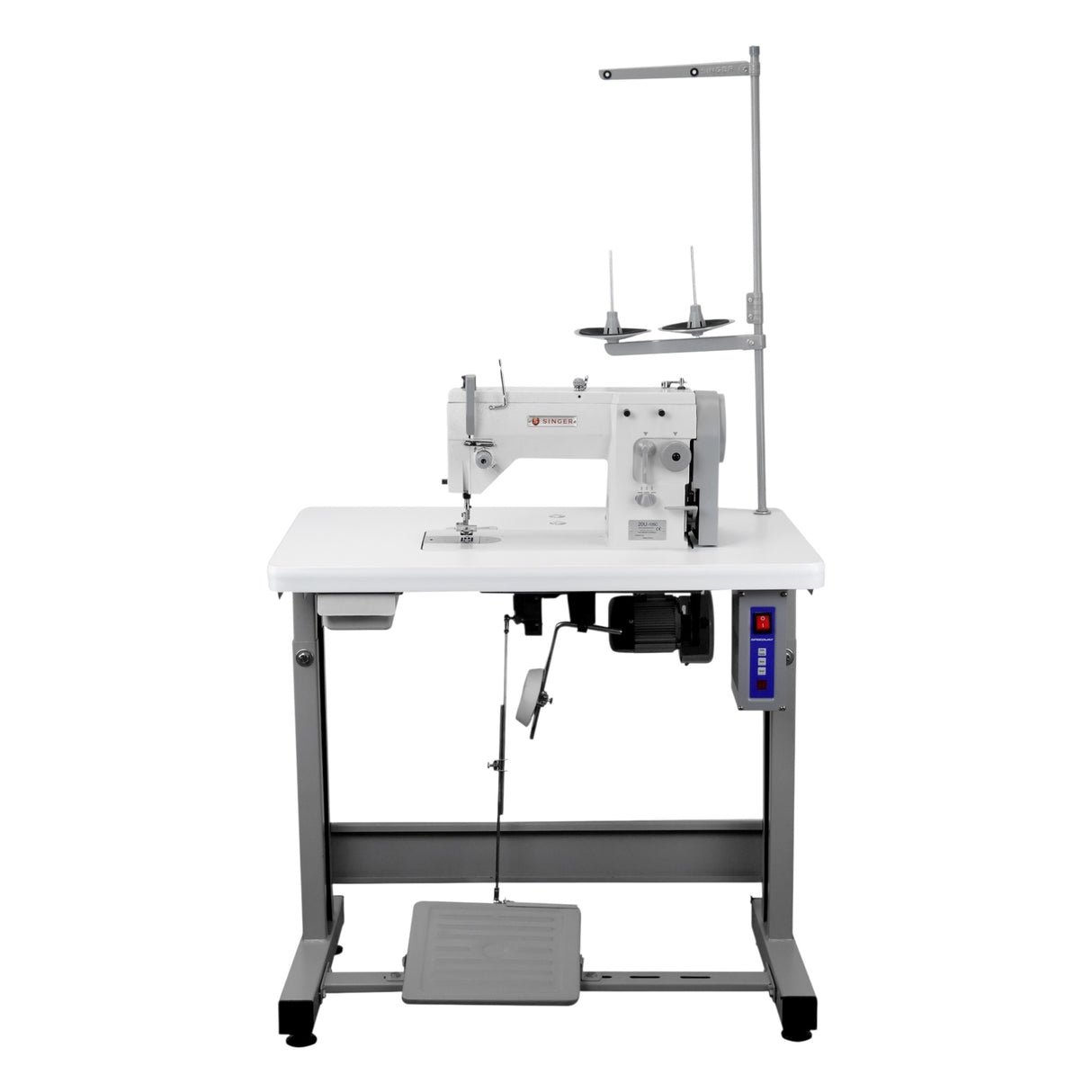

What’s Included

• SINGER 20U-105C machine head
• Servo motor (installed)
• Industrial Singer table T-leg stand, assembled
• Knee lifter
• Built-in bobbin winder and thread stand
• Basic accessory kit (typical setup):
• Zig-zag foot
• Straight-stitch foot, plate & feed dog
• Zipper foot
• Hemmer foot
• Buttonhole foot
• Embroidery/darning plate
• Bobbins
• Needles
• Screwdrivers, oil, small tools
