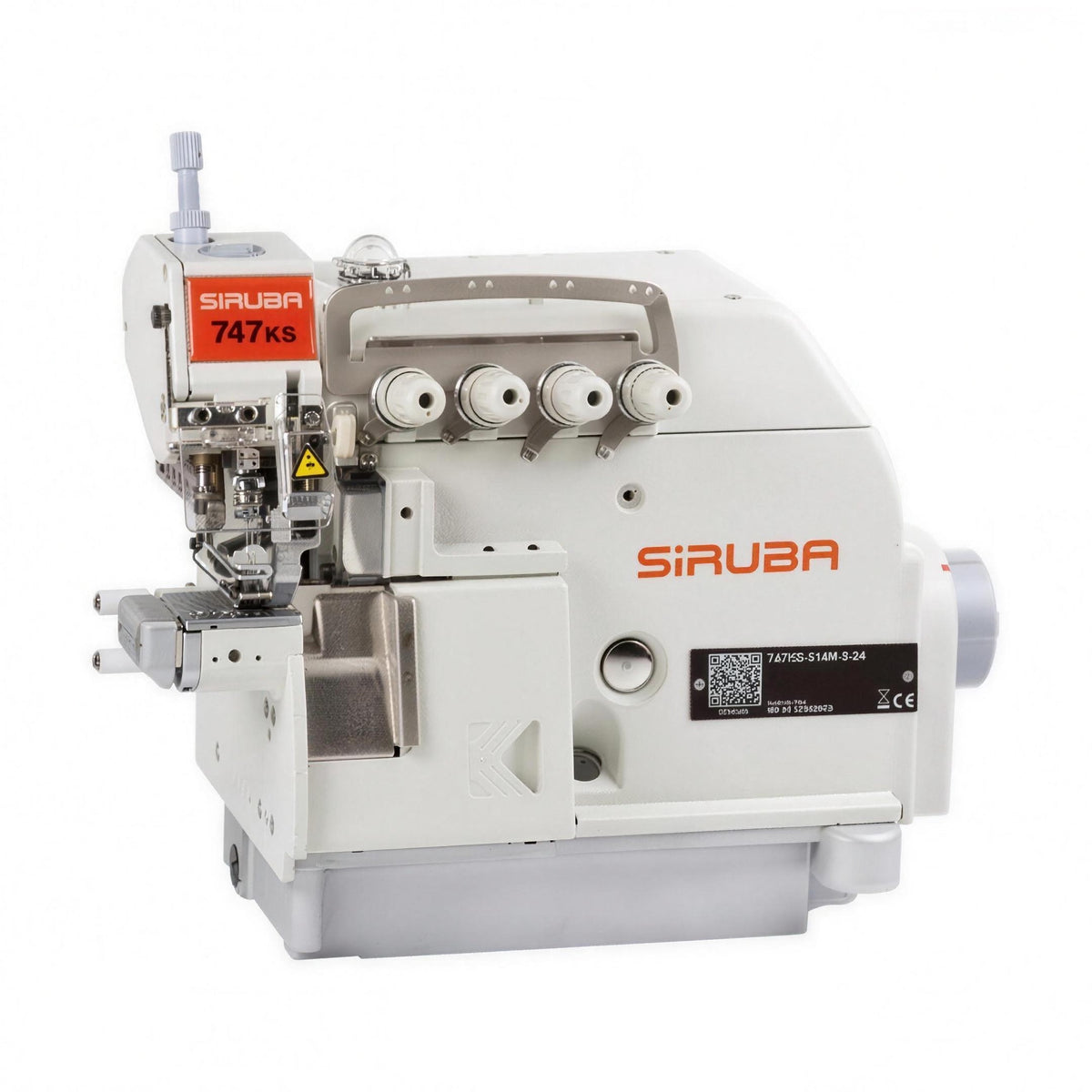

SIRUBA 747KS-514M-3-24 2-Needle 4-Thread Cylinder Bed Overlock Industrial Sewing Machine – Complete Setup, Table & Stand Included

The SIRUBA 747KS-514M-3-24 is a high-speed 2-needle 4-thread cylinder bed overlock from SIRUBA's 700KS series. It takes the proven 700K overlock mechanism and puts it on a 148 mm cylinder arm, so tubular work that is awkward on a flatbed overlock — sleeve hems, cuffs, pant legs, children's garments and small openings — slides over the arm and feeds cleanly all the way around.

The 514M-3-24 subclass is the general-sewing configuration for medium-weight fabrics: 2 mm needle gauge, 4 mm overedge width, 3-row feed dog and a differential feed ratio of 1:0.7 to 1:2 adjusted by lever, which lets the operator stretch or gather knits on the fly. Stitch length is set by push-button, lubrication is fully automatic, and the head runs up to 6,500 stitches per minute.

It ships as a complete production station: head assembled on a fully submerged industrial table with stand and a 550W energy-saving servo motor. The optional VT side-suction thread chain cutter and RLK devices from the 700KS catalog can be added later.

What's Included

• SIRUBA 747KS-514M-3-24 2-needle 4-thread cylinder bed overlock machine head (Ships Assembled)
• 550W energy-saving servo motor
• Fully submerged industrial sewing table
• Industrial stand with motor mount
• Presser foot and standard accessories kit (tools, oil can, thread stand)
• DC×27 needles and thread guides
• Instruction manual

Key Features

• 148 mm cylinder bed — tubular sections feed around the arm instead of being fought flat, for cleaner sleeve, cuff and leg hems
• 2-needle 4-thread overlock (sewing type 514) — strong, elastic seam with safety overedge on knits and light wovens
• 6,500 SPM maximum speed — production output on the same footprint as a flatbed overlock
• Differential feed 1:0.7 – 1:2, lever adjusted — stretch or gather on demand without stopping the machine
• Push-button stitch length adjustment — 0.6 to 3.8 mm, set without tools
• Fully automatic lubrication with silicone needle cooling — sustained high-speed running on synthetics
• 3-row feed dog, 2 mm gauge, 4 mm overedge — the standard medium-weight setup for general seaming
• DC×27 #11 needles — the widely stocked industrial overlock needle system
• 5 mm presser foot lift for medium-weight plies
• Ready for SIRUBA 700KS devices — VT side-suction chain cutter, RLK and LFD6-K1 elastic attaching kits available as options

Ideal For

• Sleeve hems, cuffs and pant legs on T-shirts, polos and knitwear
• Children's garments and small tubular openings
• Underwear, lingerie and lightweight stretch garments
• Knit and woven seam finishing in garment factories
• Sportswear and activewear tubular seaming
• Factories that run flatbed 700K overlocks and want the same head on a cylinder arm

Optional Devices Available at Supra Sewing

SIRUBA RLK1 Tubular Extending Roller set — Siruba's roller kit for the 700KS and 700KST cylinder bed overlocks. The rollers mount in front of and below the cylinder arm and stretch a tubular knit piece forward and to the sides, so neckbands, waistbands and other tubular work feed evenly around the arm while the operator concentrates on guiding the fabric. RLK1 is the base version for the standard closed table and is part of Siruba's RSK circular collar and waistband attaching system. Sold separately and in stock at Supra Sewing.

Specifications
