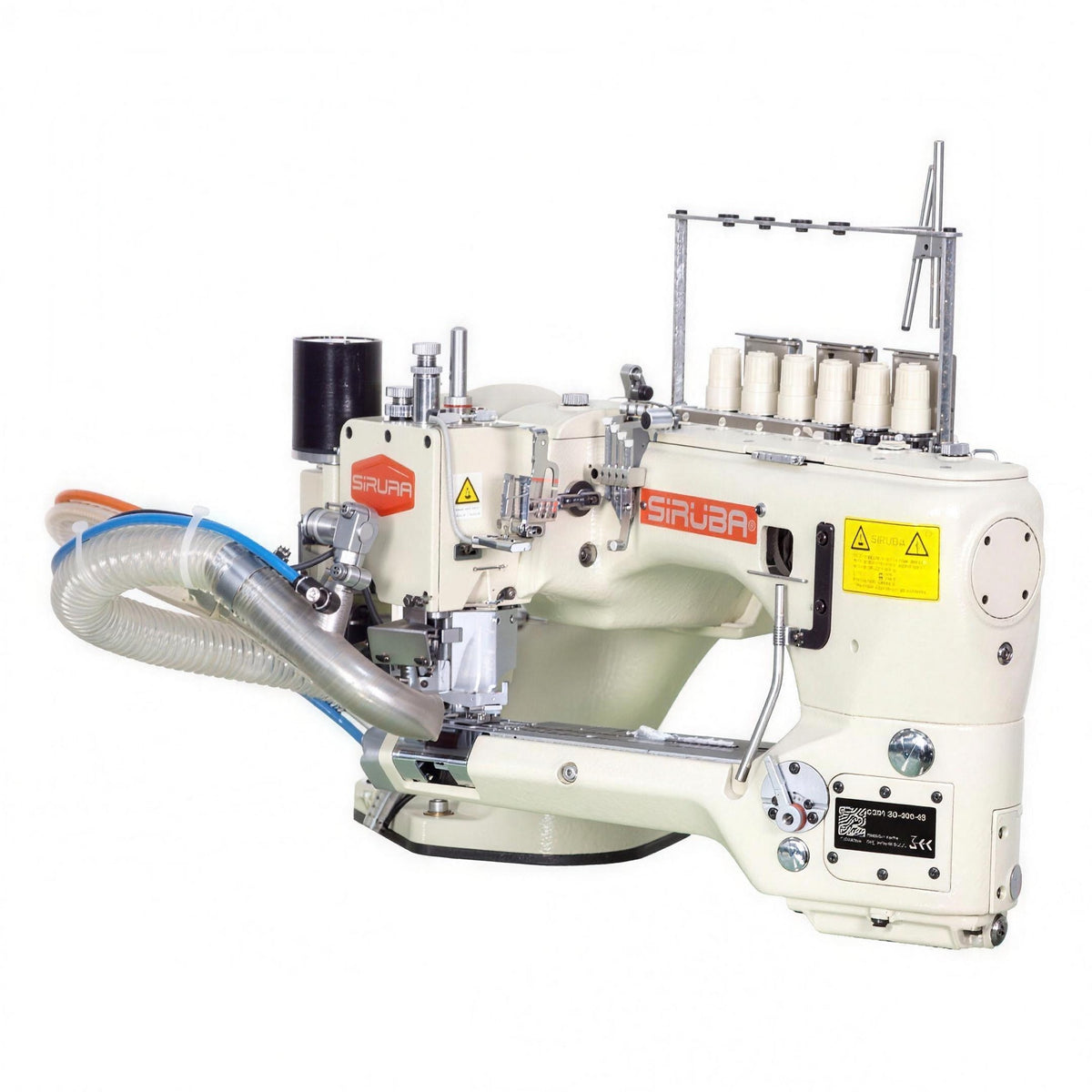

SIRUBA D007RB-460-02/AK9 4-Needle 6-Thread Feed-off-the-Arm Flatseamer Industrial Sewing Machine – Complete Setup, Table & Stand Included

The SIRUBA D007RB-460-02/AK9 is a 4-needle 6-thread feed-off-the-arm flatseamer: the machine that joins two plies edge to edge in a flat, bulk-free seam covered on both sides — the seam you see on athletic base layers, compression wear, seamless-look underwear and fleece. SIRUBA's minimum cylinder design puts the arm circumference at 150 mm at the needles, so small tubular work such as children's sleeves, leggings and underwear legs turns around the arm with room to spare.

The 460-02 subclass runs 4 needles at a 6.0 mm needle gauge with a 1.6–2.5 mm stitch length and a 1:0.7 to 1:1.5 differential feed, rated at 4,200 stitches per minute. The RB generation moves the drive inside the head: a built-in direct drive mini servo motor with the rotor fixed on the main shaft, no coupling and no belt, which SIRUBA pairs with patented dual needle guards for stable high-speed sewing and fewer needle or thread breaks. The presser foot mechanism is sealed with active oil supply and return for zero oil leakage onto the fabric, and the electric solenoid presser foot lifter and 5-level LED light are standard.

This unit is supplied with the AK9 device: a sensor-type electronic thread cutter that trims the chain automatically, plus an external-compressor waste suction set that pulls trimmings and chain away from the seam (an air compressor is required and not included). It ships assembled on an industrial table with stand.

What's Included

• SIRUBA D007RB-460-02/AK9 4-needle 6-thread feed-off-the-arm flatseamer machine head with built-in direct drive servo motor and control box (Ships Assembled)
• AK9 device: sensor-type electronic thread cutter and external-compressor waste suction set (air compressor not included)
• Electric (solenoid) presser foot lifter and LED work light
• Industrial sewing table
• Industrial stand
• Presser foot and standard accessories kit (tools, oil can, thread stand)

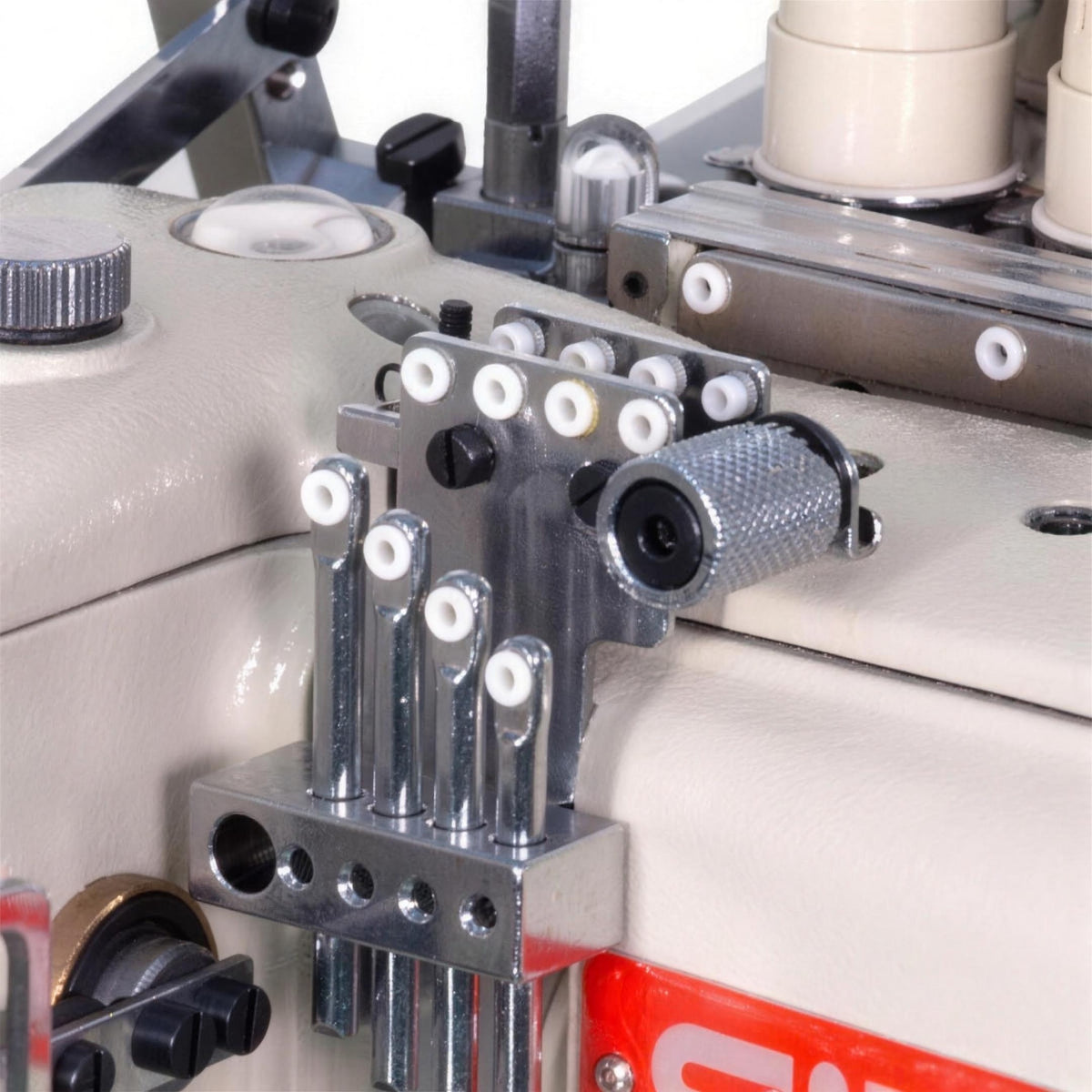

• FL×118GCS needles and thread guides
• Instruction manual

Key Features

• 4-needle 6-thread flatseam — edge-to-edge butt seam covered top and bottom: flat, elastic and chafe-free

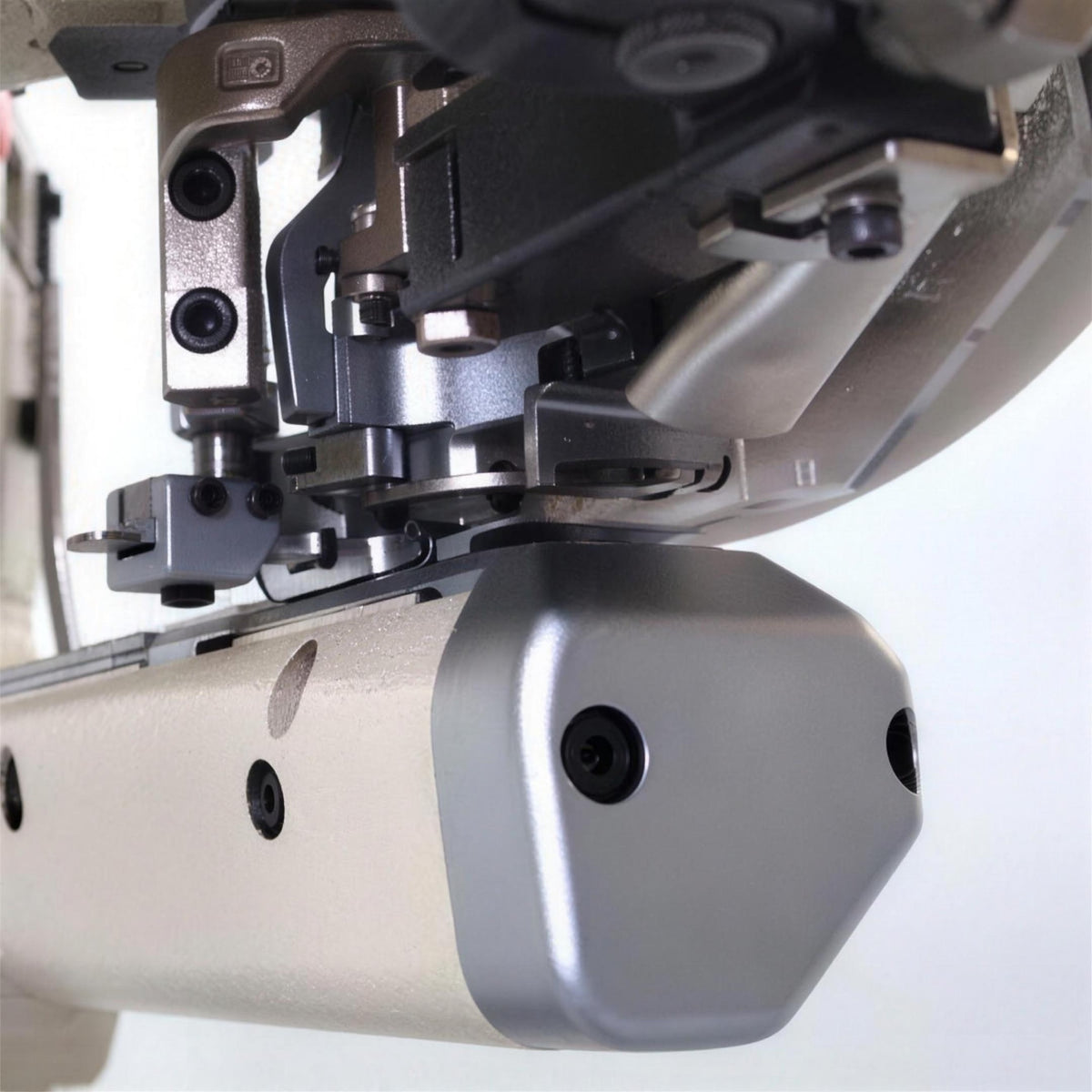

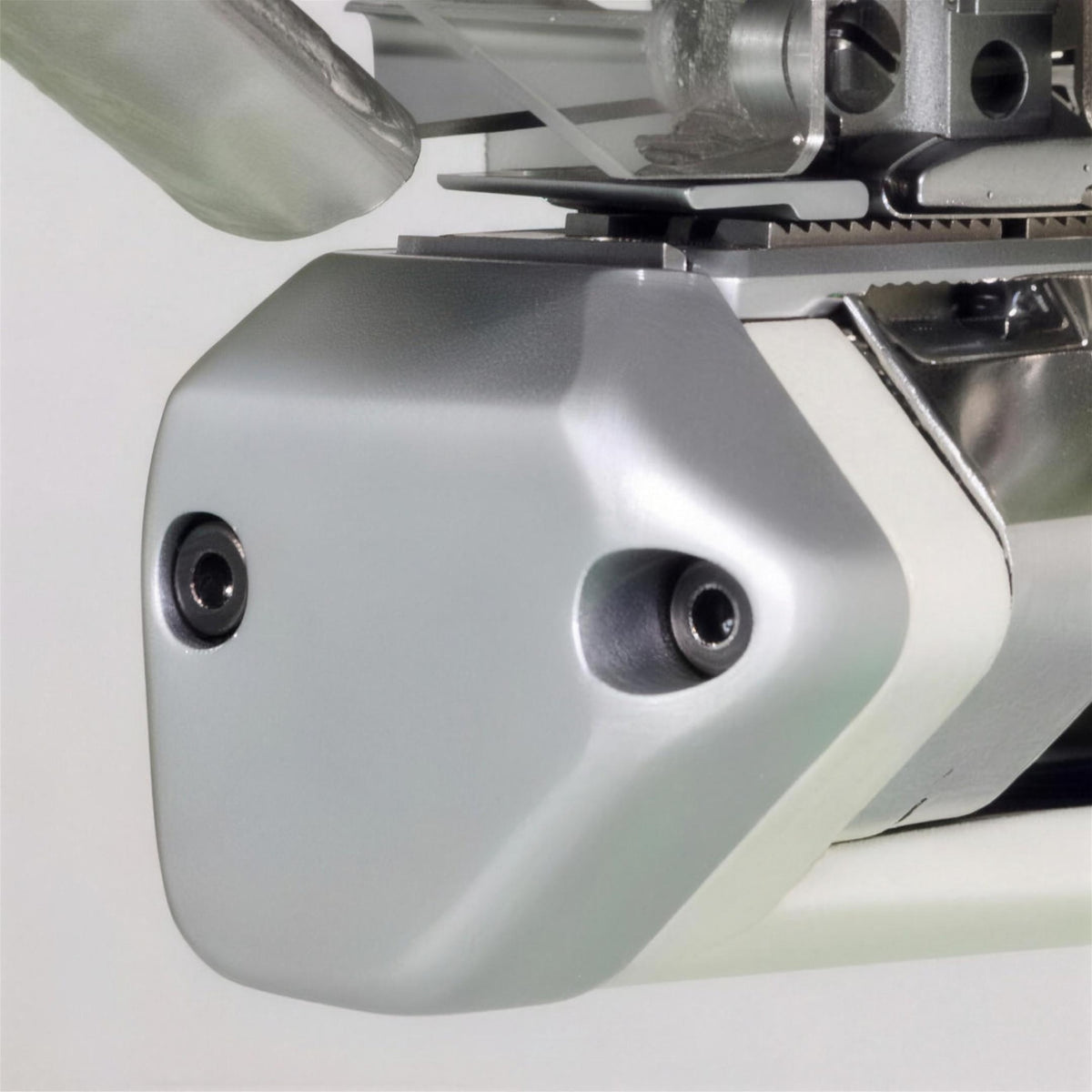

• 150 mm arm circumference at the needles — SIRUBA's minimum cylinder design for children's sleeves, leggings and small tubular openings

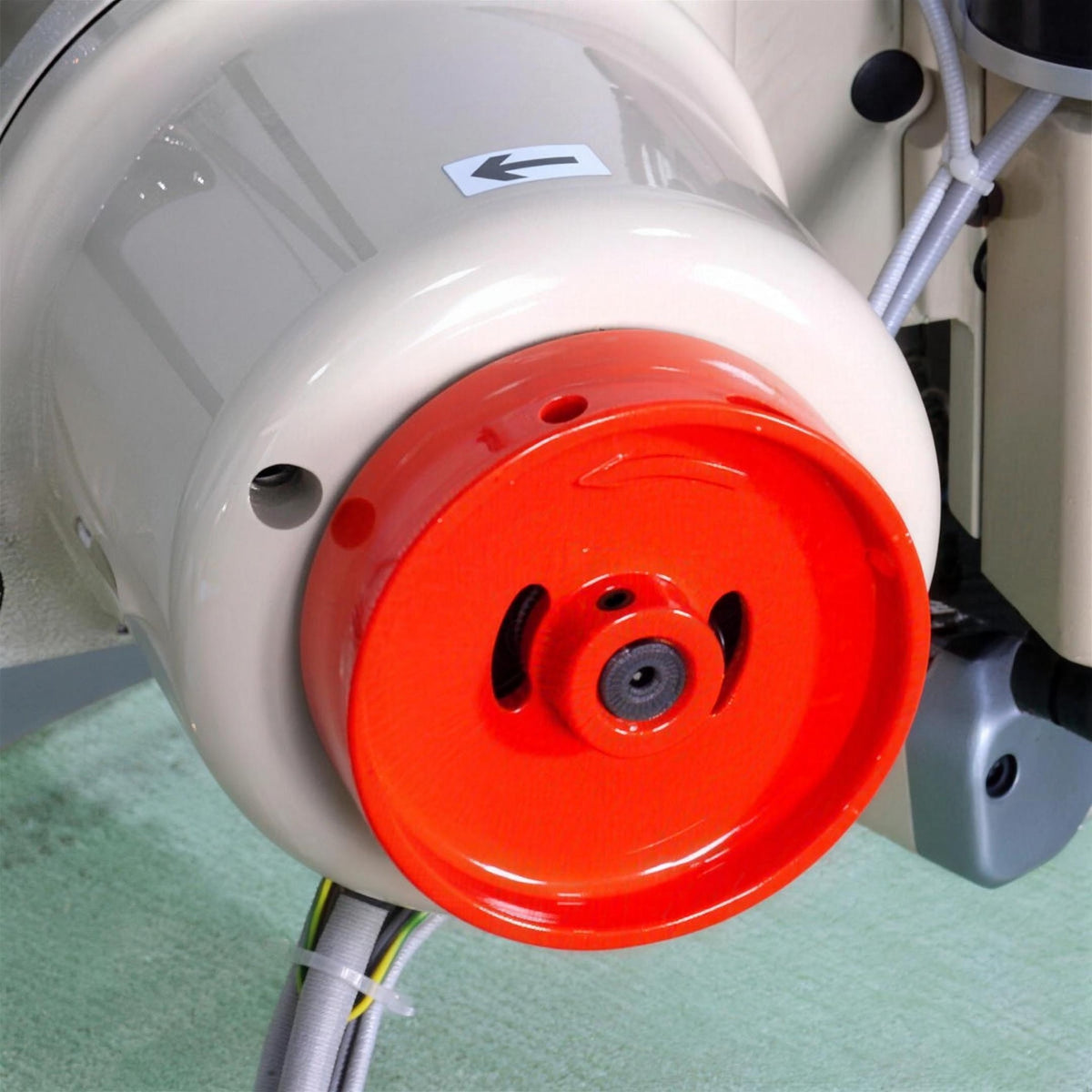

• Built-in direct drive mini servo motor — rotor fixed on the main shaft, no coupling, no belt: direct power delivery and stable high-speed sewing
• AK9 sensor electronic thread cutter — cuts the thread chain automatically at seam end

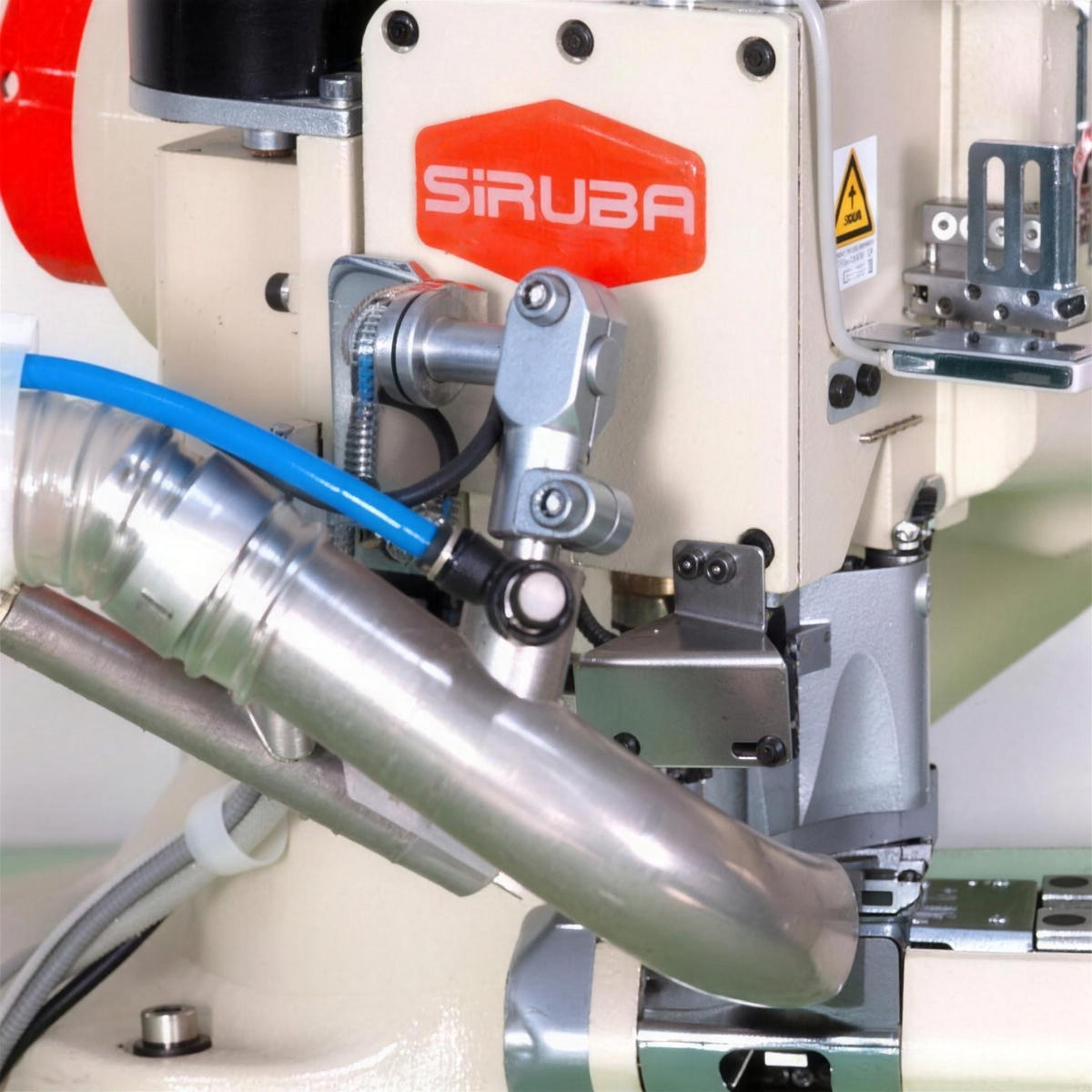

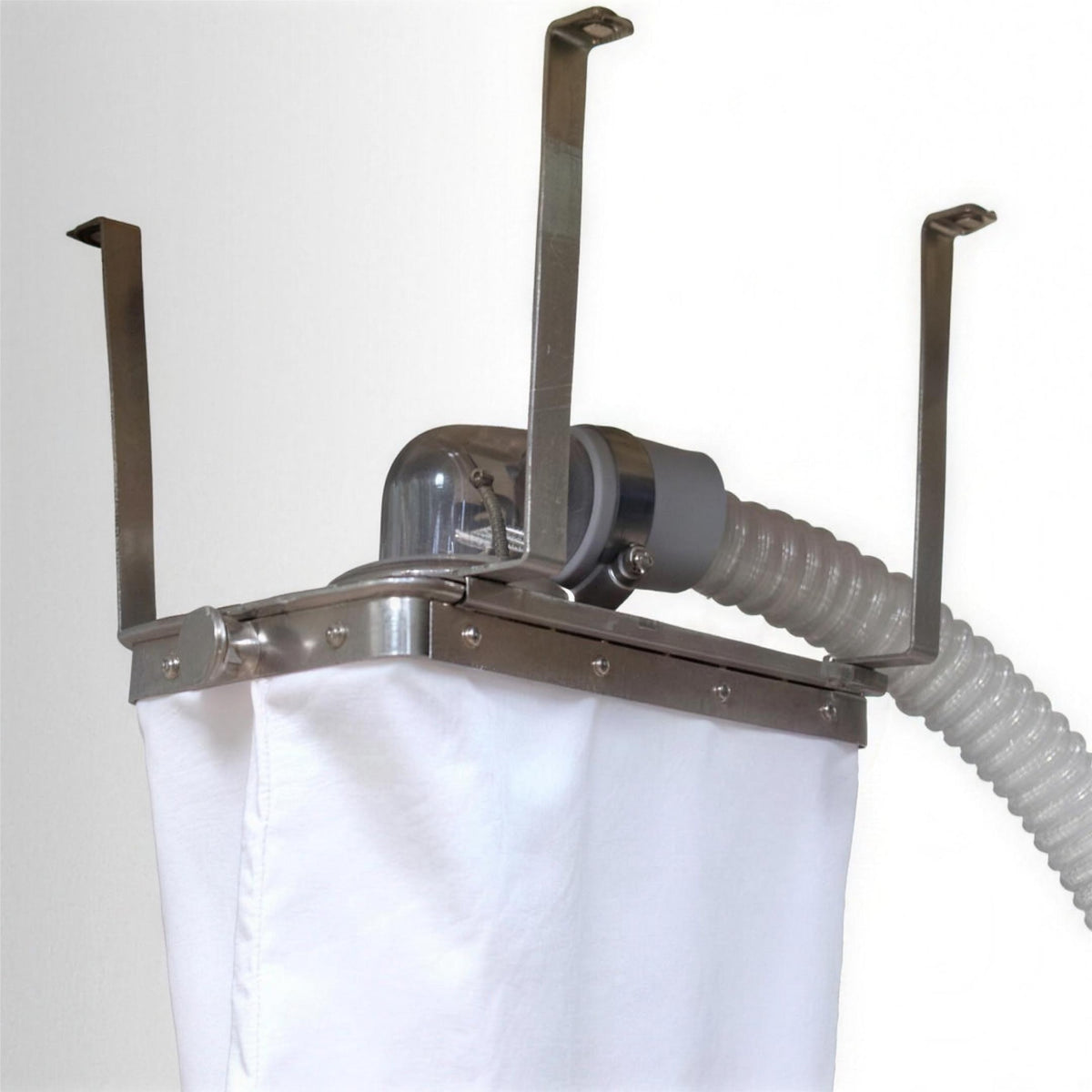

• External-compressor waste suction set (AK9) — clears trimmings and chain from the sewing area

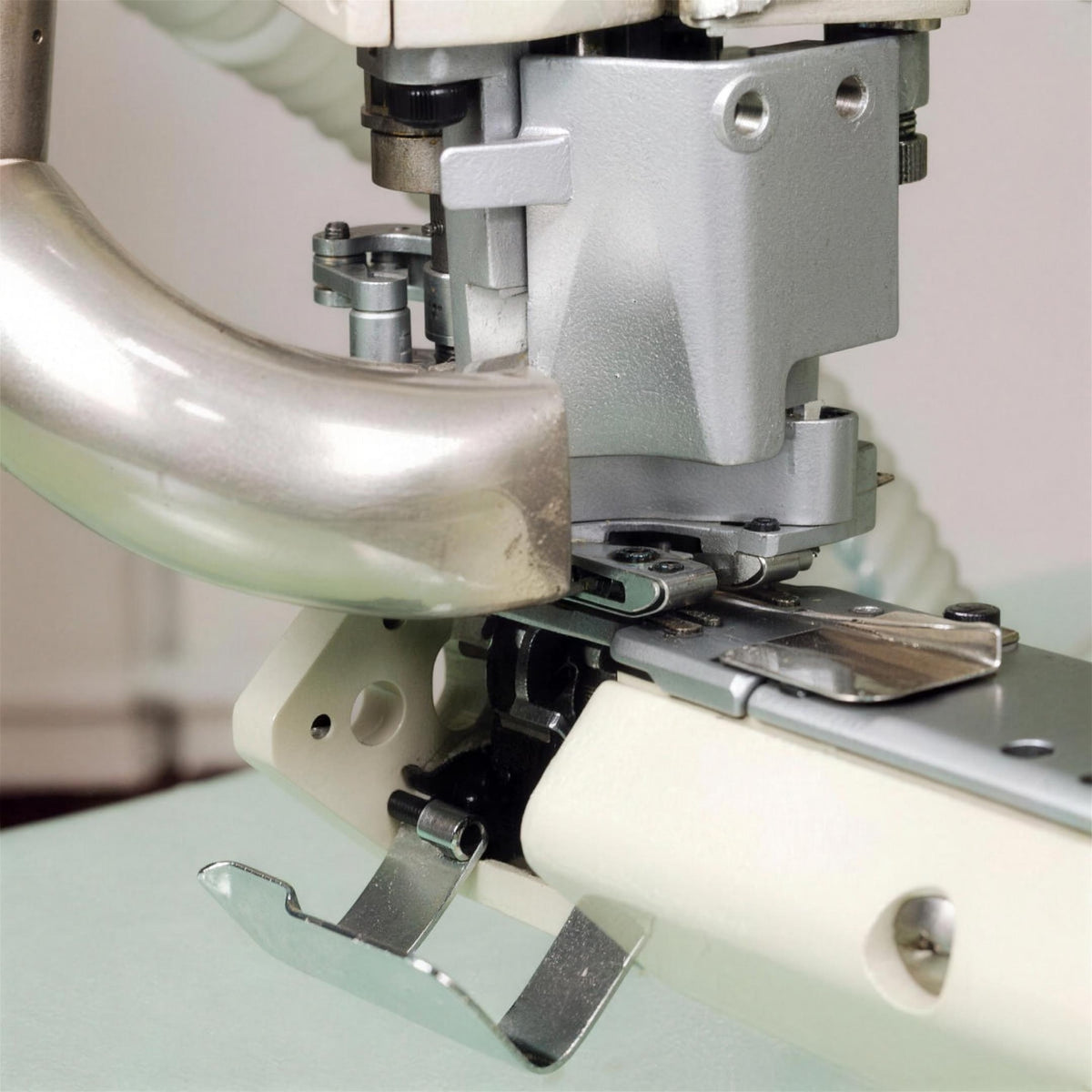

• Electric solenoid presser foot lifter — hands-free lifting for fast loading of tubular parts

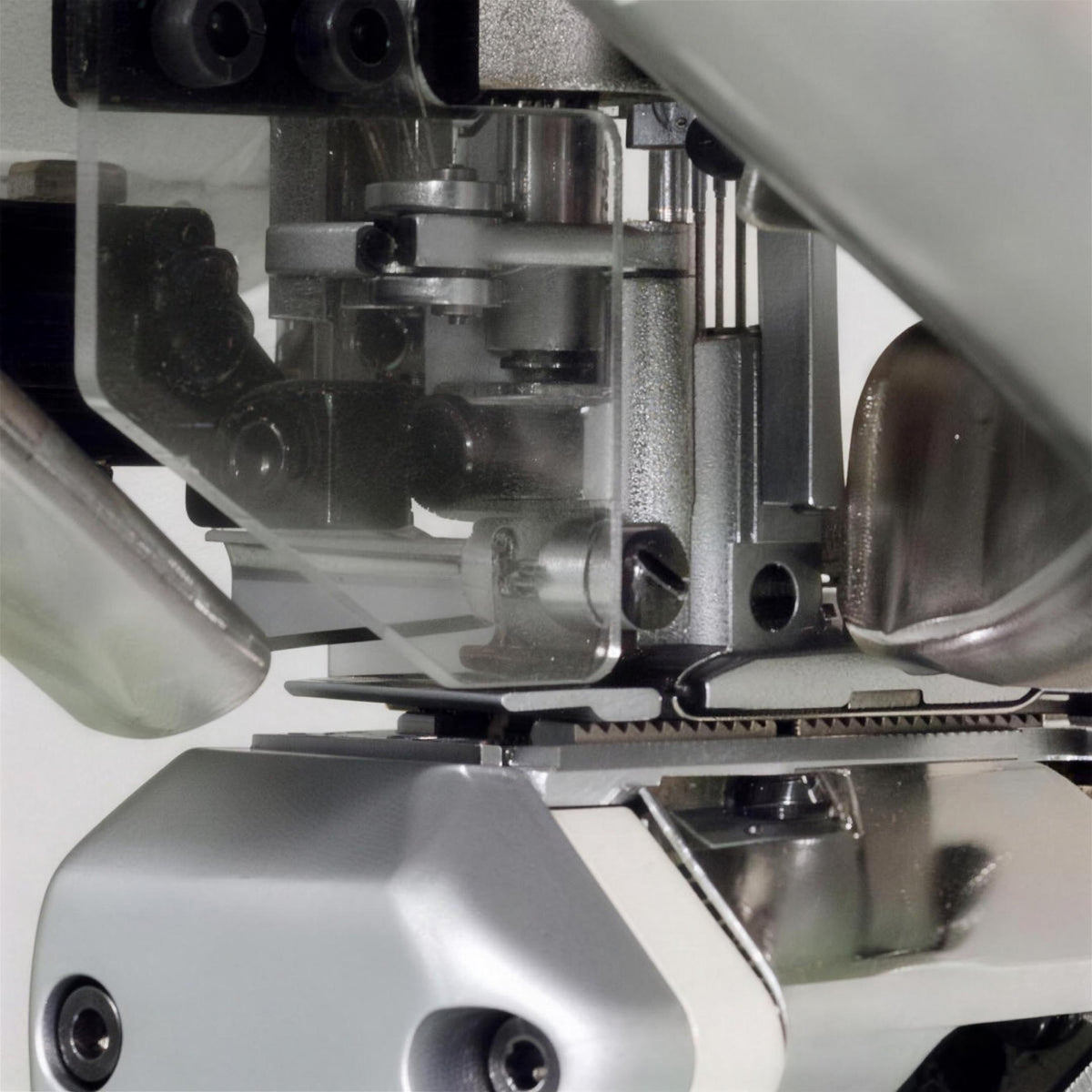

• Patented dual needle guards — stable stitch formation at speed, fewer needle and thread breaks
• Sealed presser foot mechanism with active oil supply and return — zero oil leakage onto light-colored knits
• Differential feed 1:0.7 – 1:1.5 and 1.6–2.5 mm stitch length for stretch fabrics

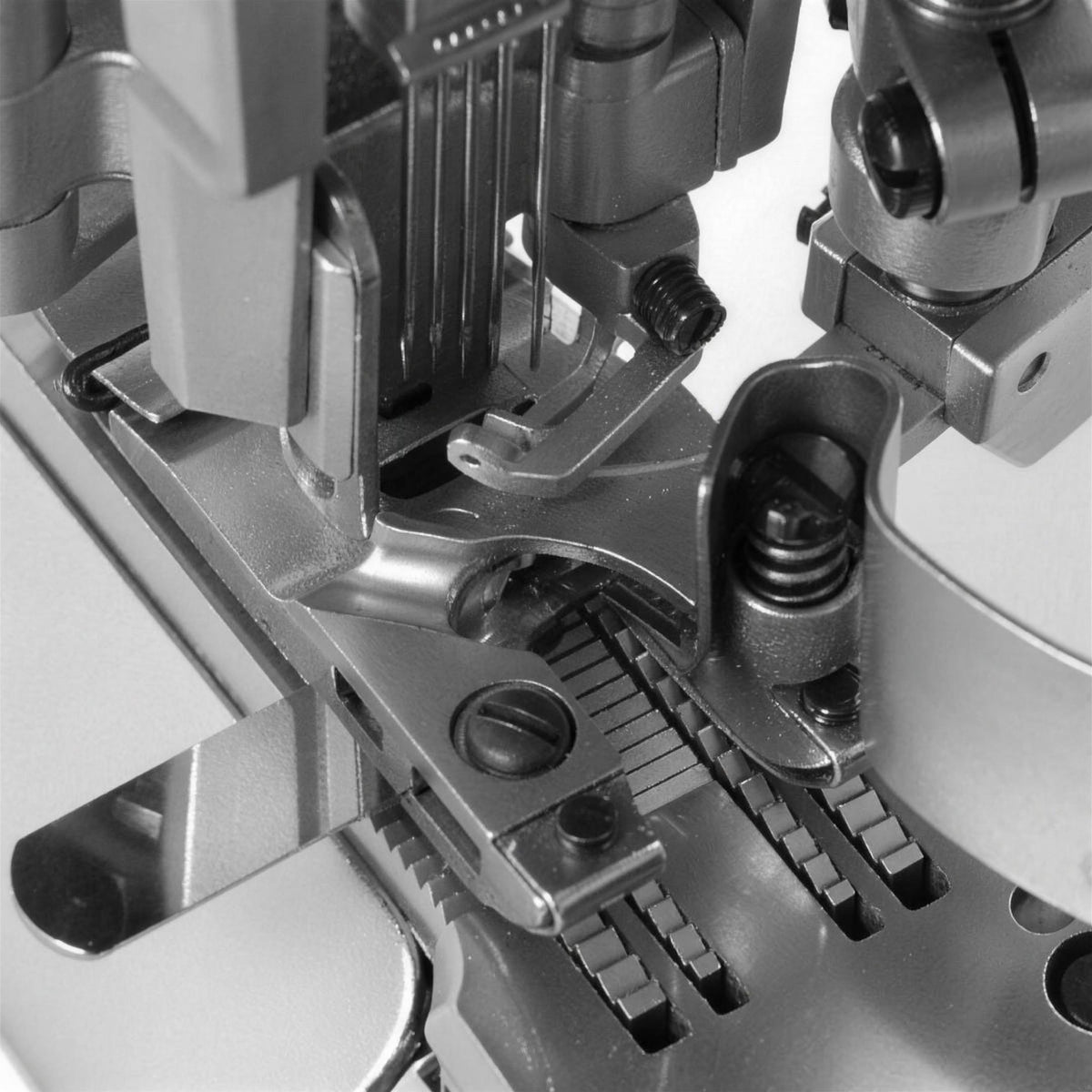

• 6.0 mm needle gauge, FL×118GCS needles — the 460 configuration for light-to-medium knits; 4.8, 5.2 and 6.4 mm gauges exist in the series

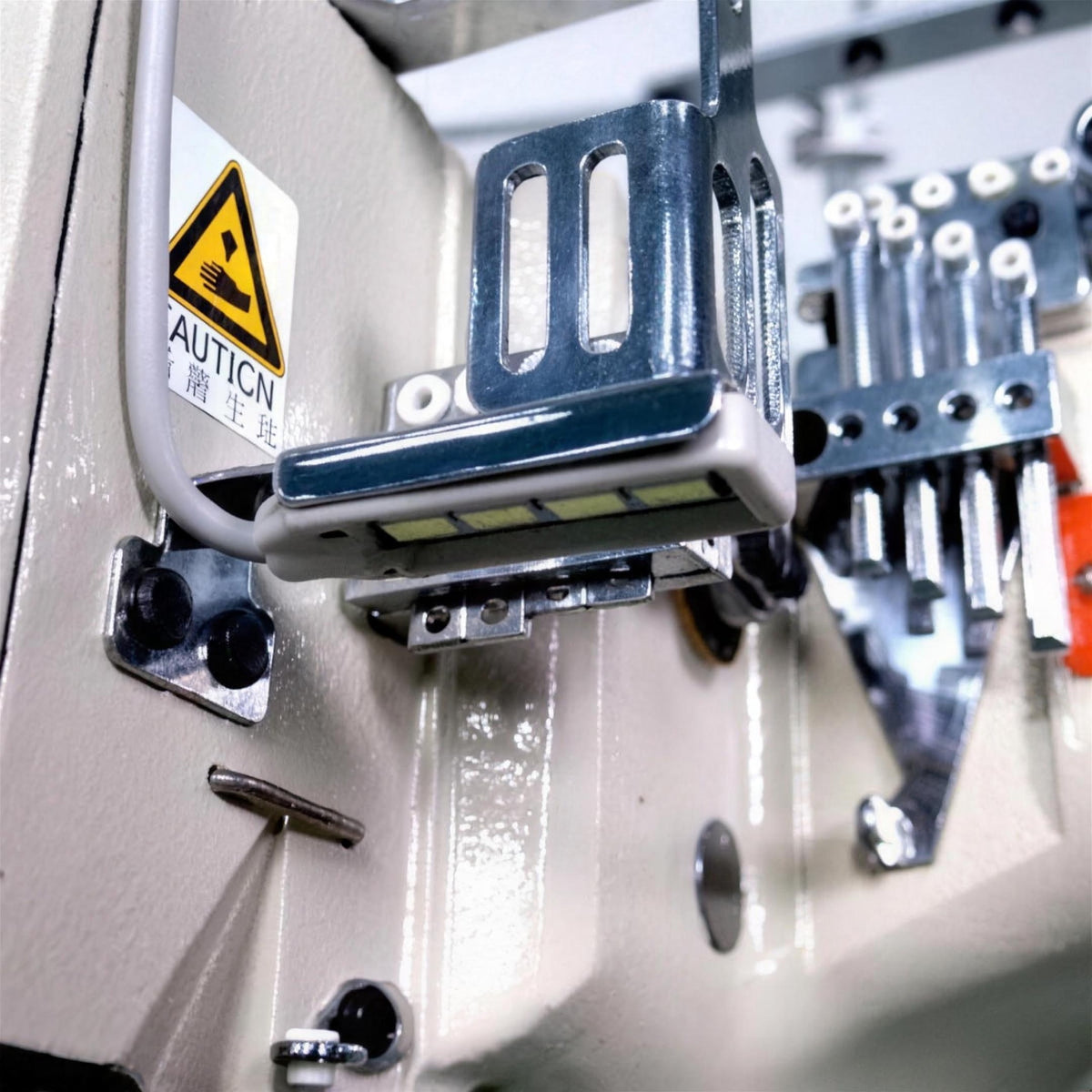

• 5-level LED work light standard

Ideal For

• Athletic base layers, compression wear and cycling apparel
• Seamless-look underwear, briefs and thermal wear
• Leggings, tights and children's knitwear on the 150 mm arm
• Fleece and polar garments with flat, bulk-free joins
• Sportswear factories replacing lap seams with flatseams
• Medical and technical knit garments where seam comfort matters

Specifications
