SPEEDWAY SW-28BL-20 2-Needle 20" Long Arm Extra Heavy Duty Walking Foot Compound Feed Industrial Sewing Machine with Japanese Hook & 900W Servo Motor for Sails, Tarps, Leather & Upholstery - Complete Setup, Table & Stand Included

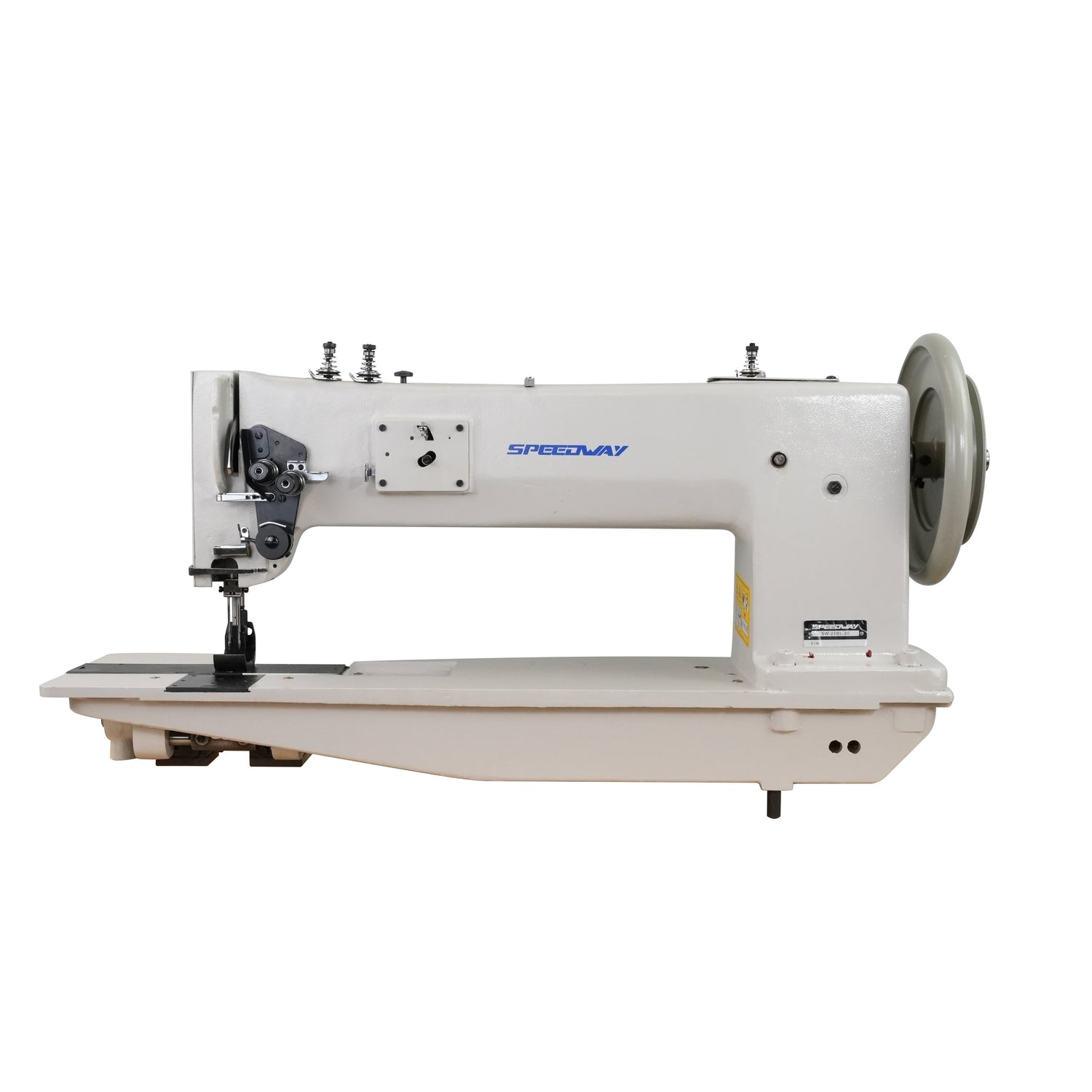

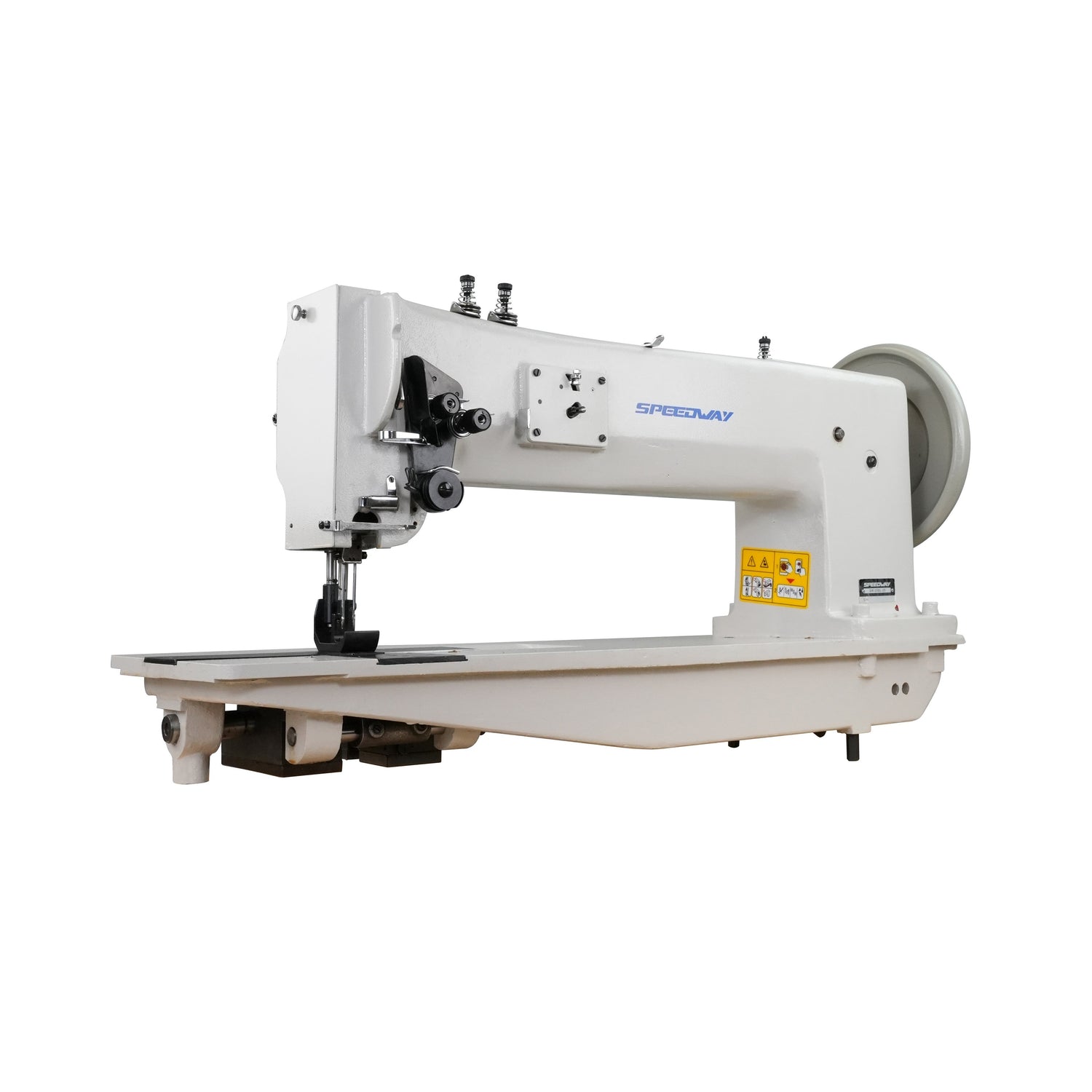

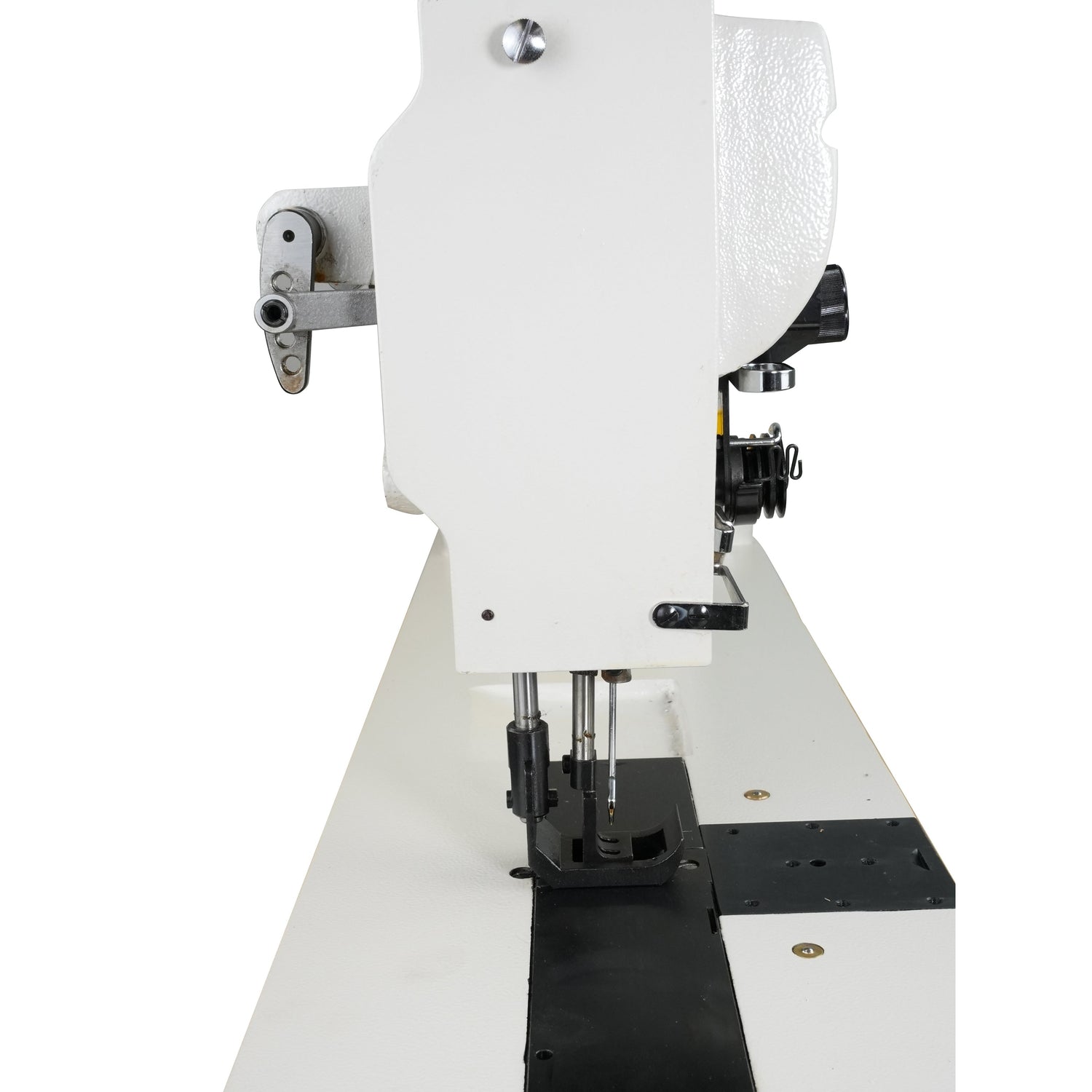

The SPEEDWAY SW-28BL-20 is a 2-needle, extra-heavy-duty long arm walking foot industrial lockstitch machine built for the heaviest work in the shop — sails, tarpaulins, truck covers, tents, awnings, thick leather, and multi-layer upholstery. Two parallel needles lay down two locked seams in a single pass, and the 20-inch (508 mm) long arm opens up enough throat space to feed bulky, pre-assembled, and rolled material that simply won't fit through a standard machine.

This machine is built around a Japanese hook and Japanese sewing components — the parts that take the punishment on extra-heavy work. Each needle runs its own extra-large vertical-axis hook with reservoir oiling, so the machine holds timing and stitch quality through #8 thread and dense, layered seams. The compound triple-feed system (bottom feed, needle feed, and walking foot top feed all moving in unison) drives thick, slippery, and coated materials through without shifting the layers — the difference between a clean double topstitch and a walked, puckered seam on tough goods.

Driven by a 900W servo motor for high torque at low speed, the SW-28BL-20 punches through 20 mm of material under the foot at up to 1,500 stitches per minute. It ships complete with industrial table and stand, ready to run. The standard needle gauge is 3/8", and it can be changed to another gauge at no additional cost — this adds one to two weeks to the order.

What's Included

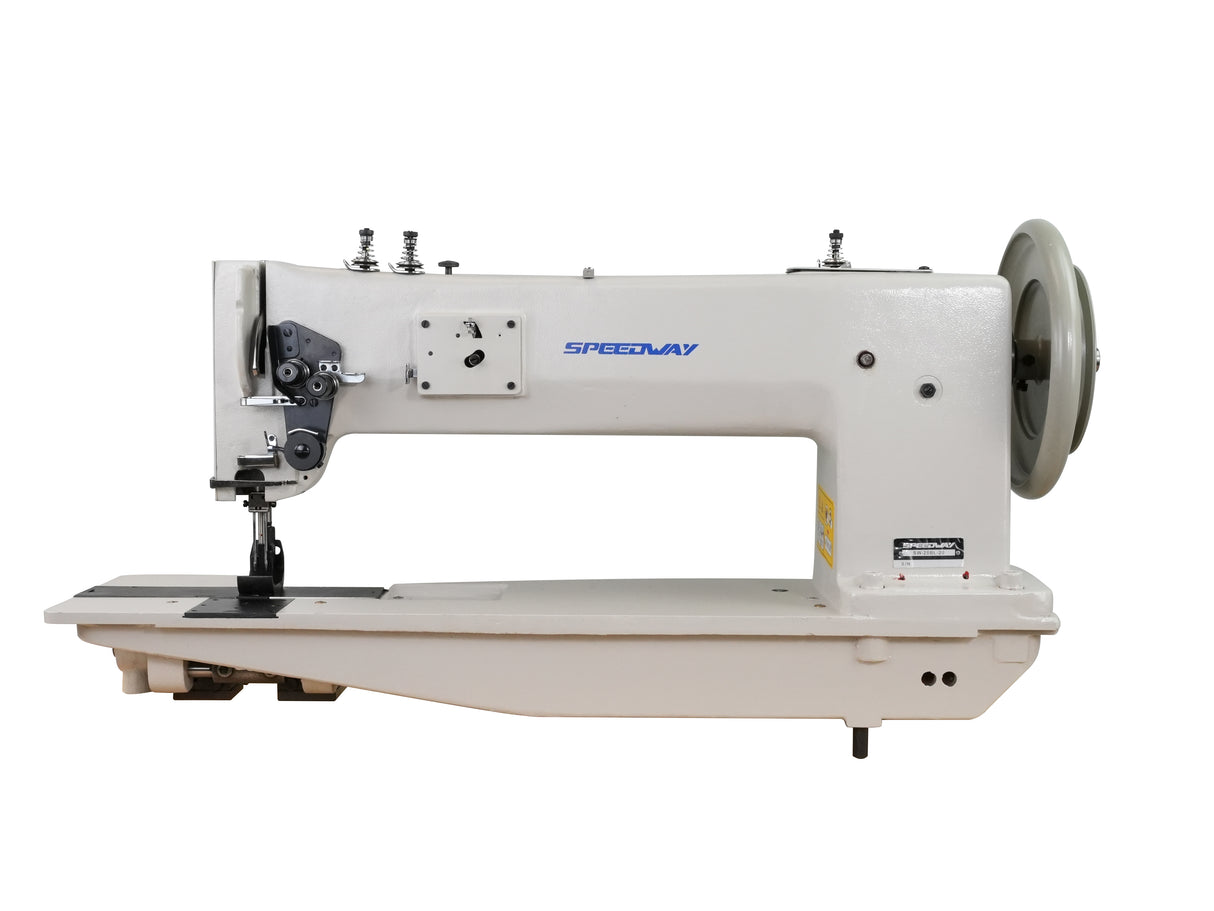

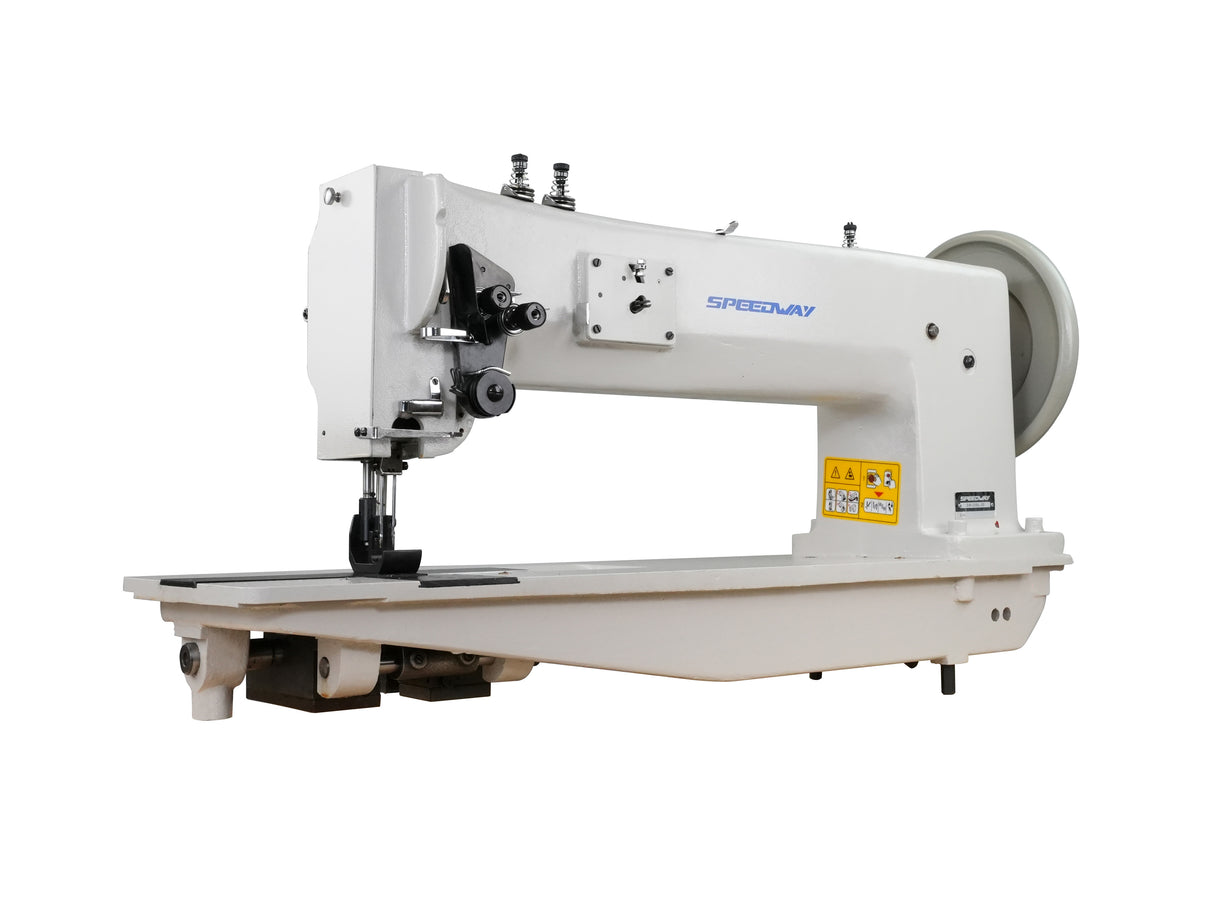

• SPEEDWAY SW-28BL-20 2-Needle Long Arm Walking Foot Machine Head (Ships Assembled)
• 900W Servo Motor
• Industrial Table & Stand
• Japanese Vertical-Axis Hooks (×2) and Extra-Large Bobbins
• Built-in Bobbin Winder

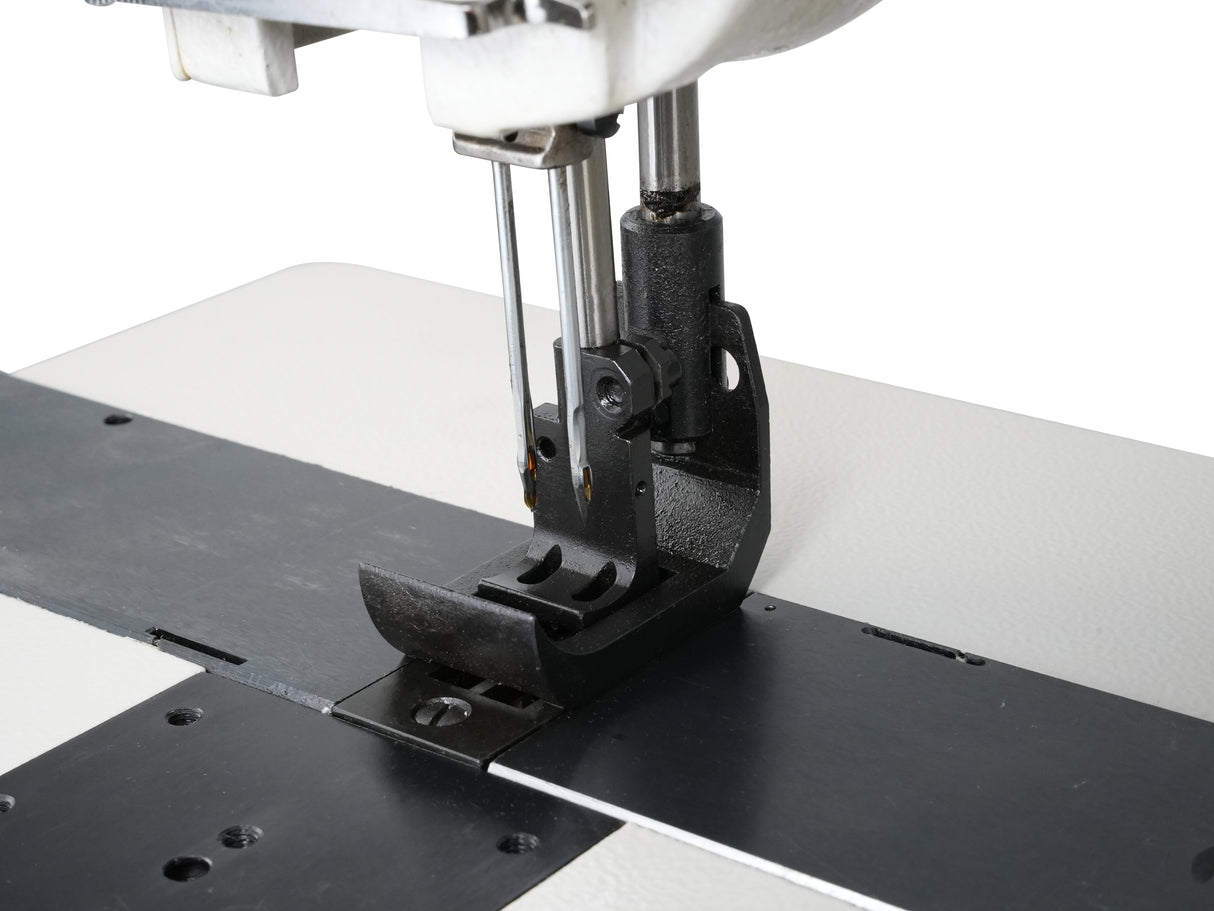

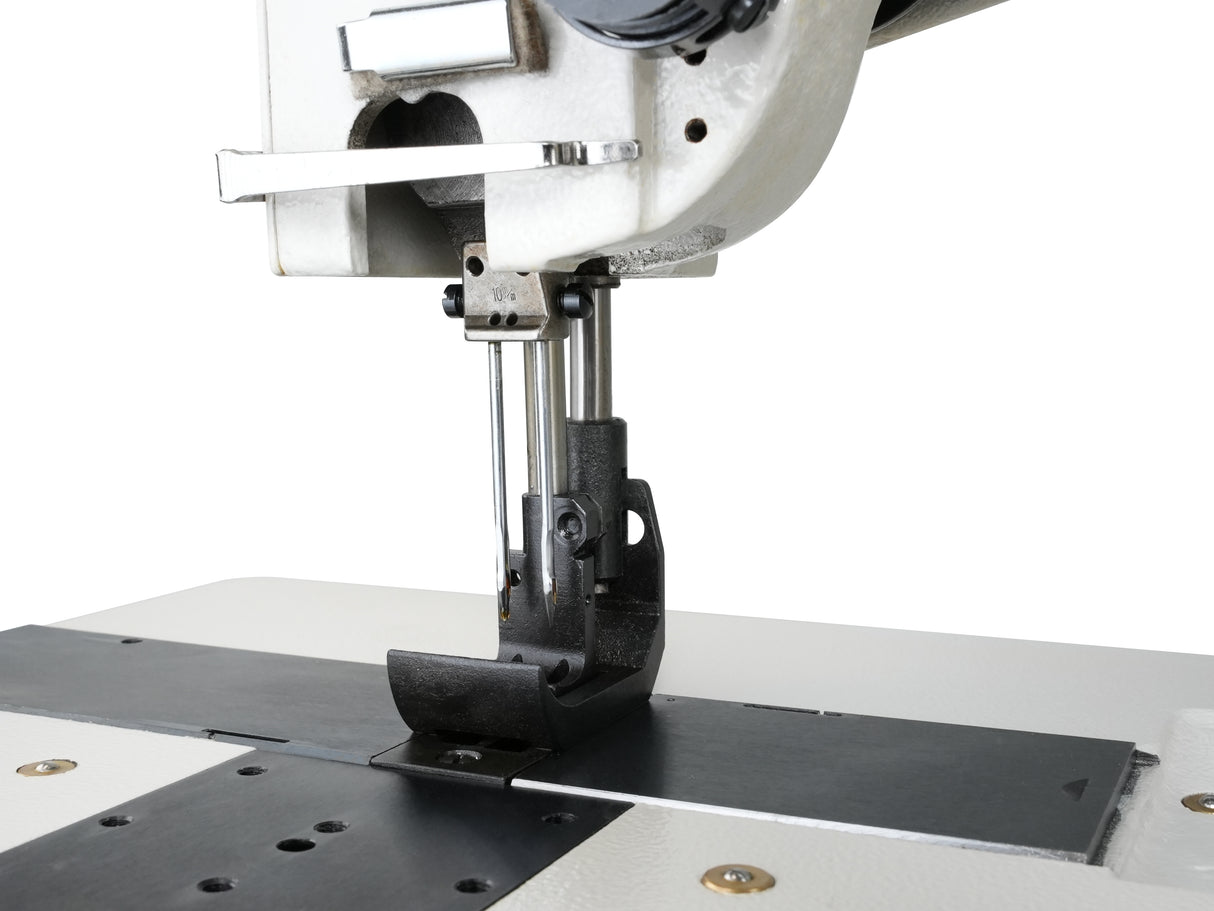

• Standard Walking Foot Set
• DY×3 (7×3) Needles and Standard Accessories Kit
• Operator's Manual

Key Features

• 2-needle lockstitch (ISO 301) — two locked parallel seams in a single pass for double-topstitched and lap-seamed heavy goods
• 20" (508 mm) long arm — large throat clearance for bulky, rolled, and pre-assembled material a standard machine can't take
• Japanese hook and Japanese sewing components — built to hold timing and stitch quality under extra-heavy, high-thread-tension work
• Extra-large vertical-axis hook per needle with reservoir oiling — reliable thread pickup and extended bobbin run on long seams

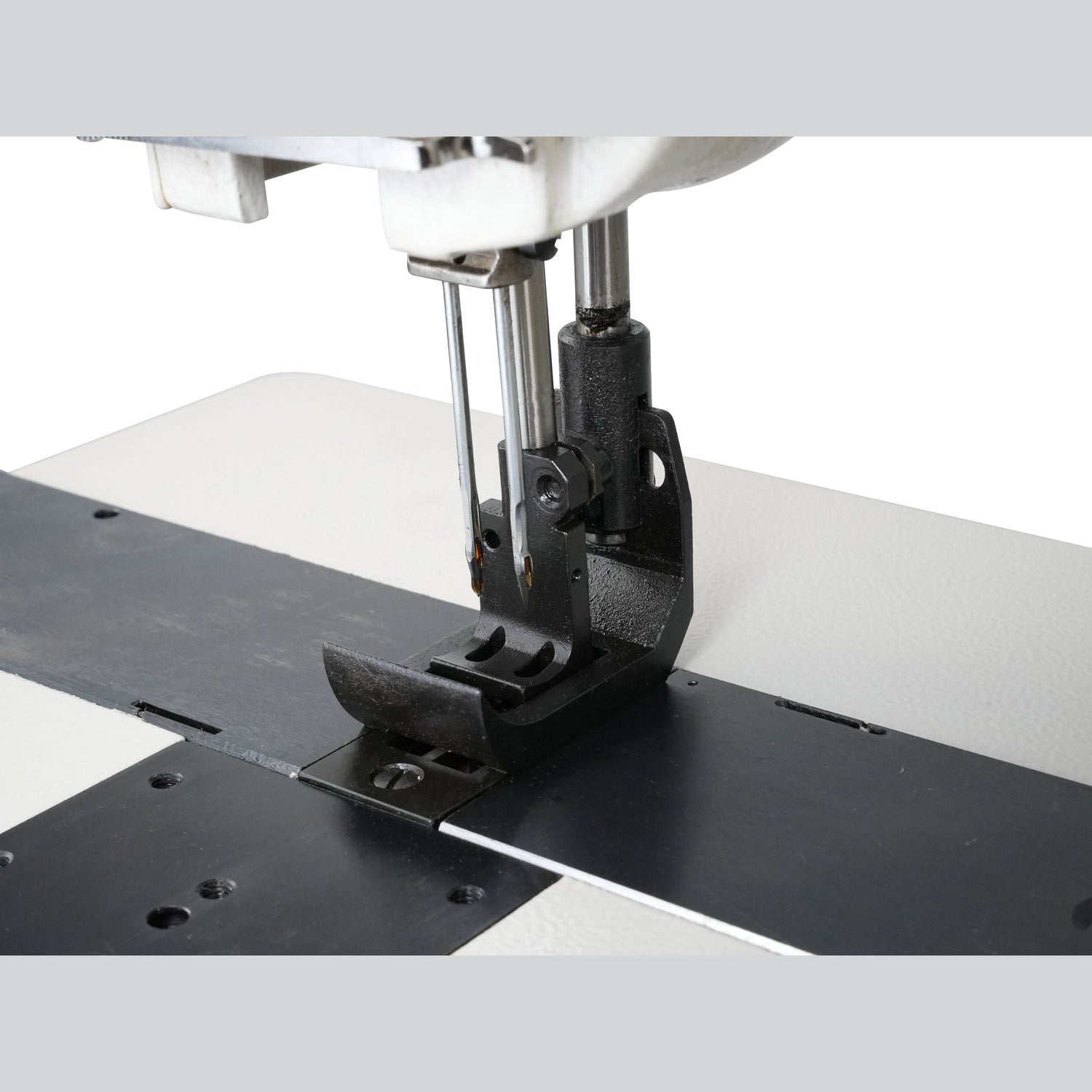

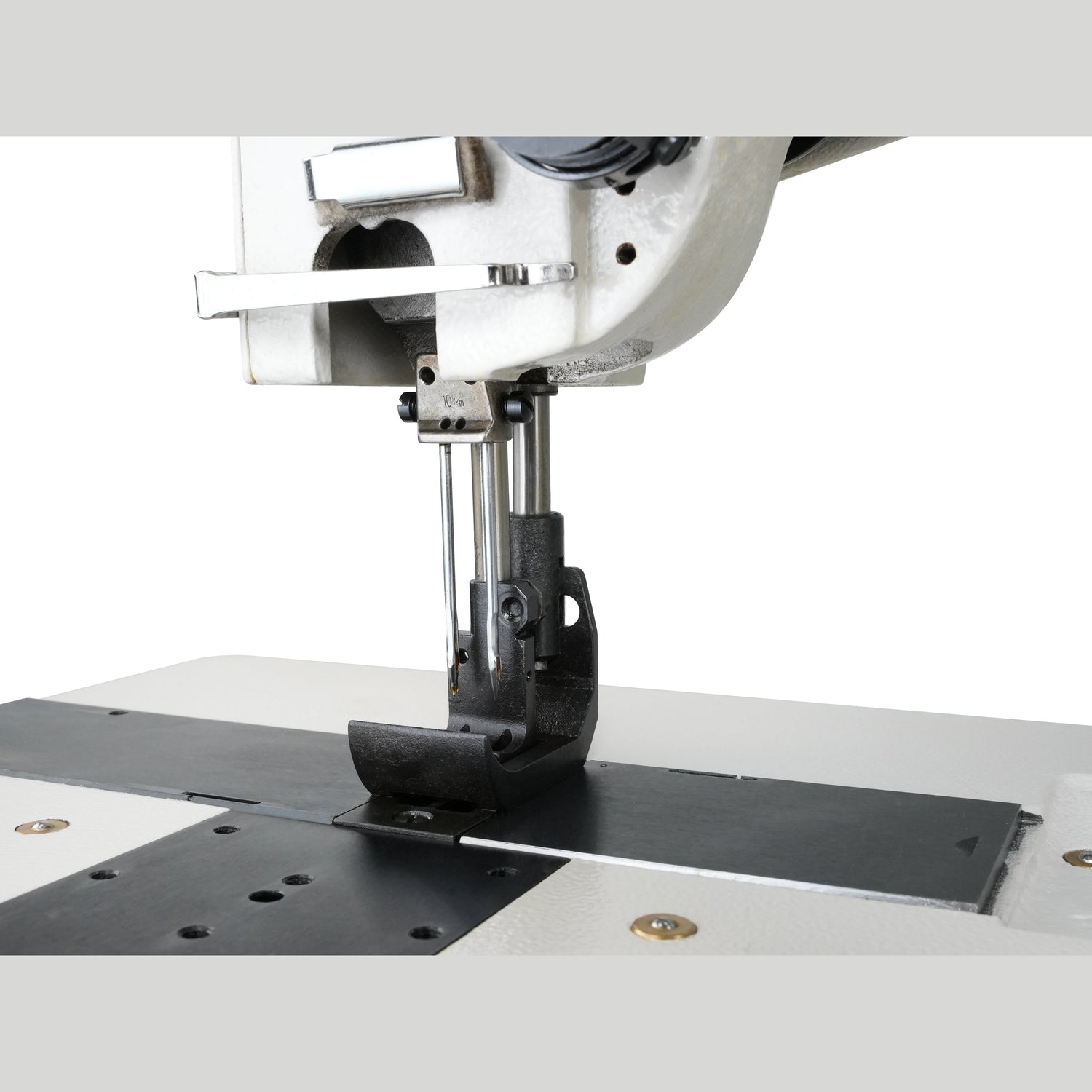

• Compound triple feed (bottom + needle + walking foot) — slip-free feeding of thick, coated, and multi-layer materials
• 900W servo motor — high torque at low speed to power through dense seams, with quiet, energy-efficient operation
• Up to 1,500 stitches per minute
• 10 mm max stitch length — long stitches for heavy-duty and decorative topstitching
• 20 mm presser foot lift by hand, 24 mm by knee — clears very thick multi-layer assemblies
• Handles up to #8 thread — bonded heavy thread for maximum seam strength
• Centralized arm lubrication — consistent oiling for long service life under heavy load
• Safety clutch protection — protects the hook drive from thread jams on tough material
• Pedal-operated reverse feed and push-button stitch regulator
• Built-in bobbin winder
• 3/8" standard needle gauge, changeable at no additional cost (adds 1–2 weeks to the order)
• Optional factory-installed synchronized puller available for heavy long-seam work
• Ships complete with industrial table and stand, ready to run

Ideal For

• Sails, marine canvas, biminis, and boat covers
• Tents, tarpaulins, truck covers, and camping gear
• Awnings, umbrellas, and outdoor shade structures
• Heavy leather goods, saddlery, and harness work
• Upholstery — furniture, automotive, and marine
• Vinyl, coated, laminated, and rubberized fabrics
• Luggage, heavy bags, and industrial totes
• Carpet binding and heavy floor coverings
• Construction barriers, safety fencing, and geotextiles
• Any extra-heavy double-seam or lap-seam work requiring long-arm clearance
