SPEEDWAY

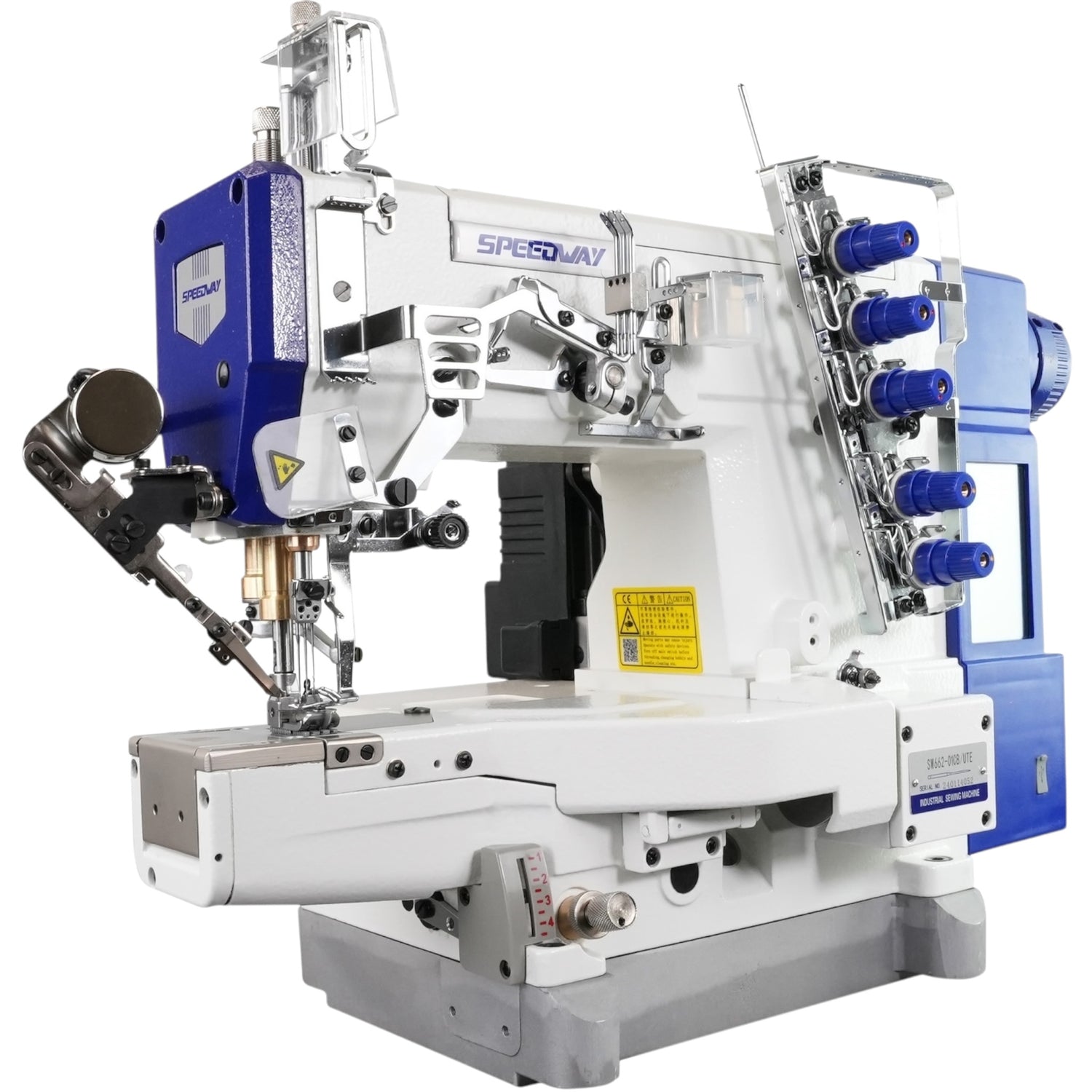

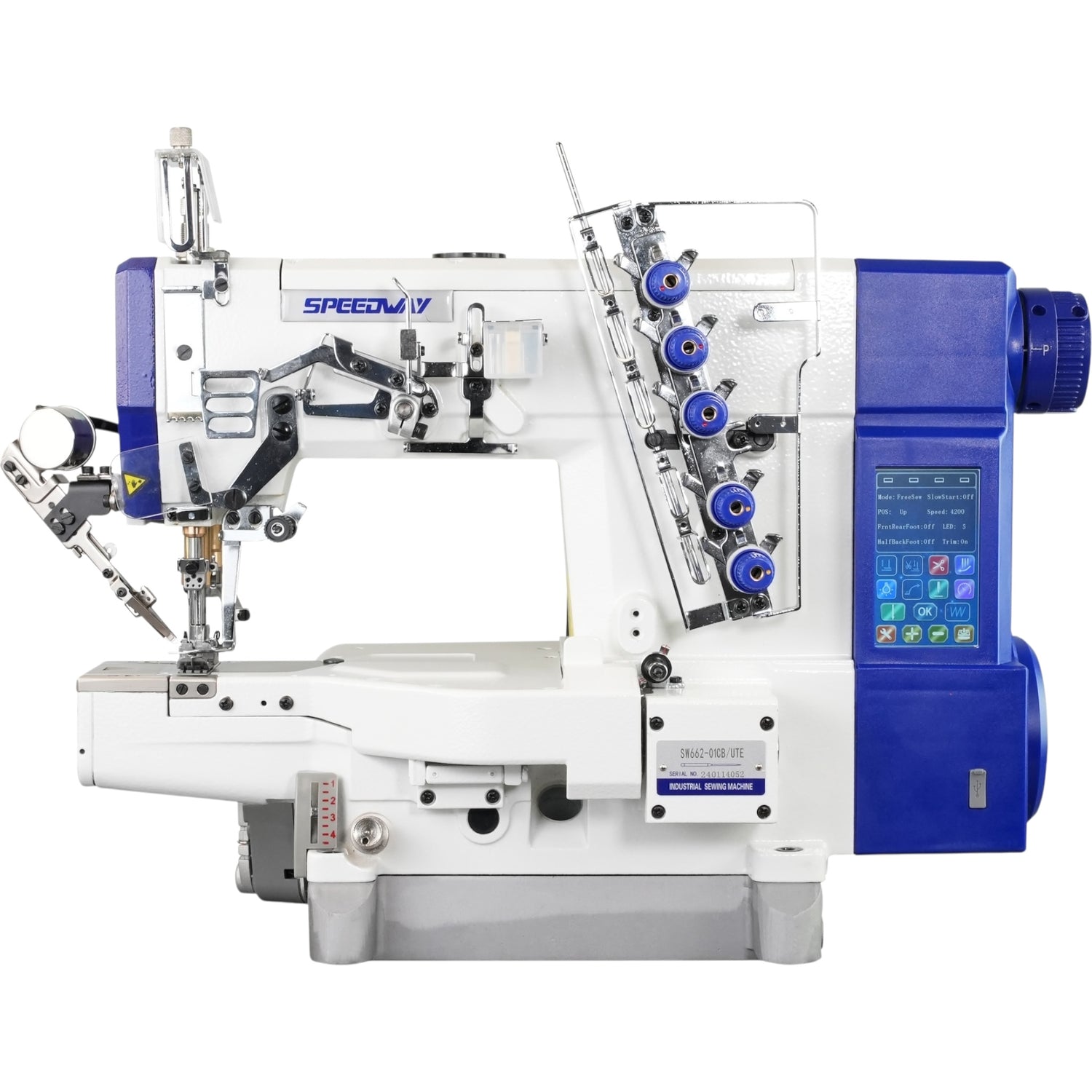

SPEEDWAY SW 662-01/CB UTE 3 Needle Cylinder Arm Coverstitch Full Function Industrial Sewing Machine Assembled with Table and Stand Included With Wheels

$2,715.00 $3,017.00

FREE SHIPPING ASSEMBLED!

Description

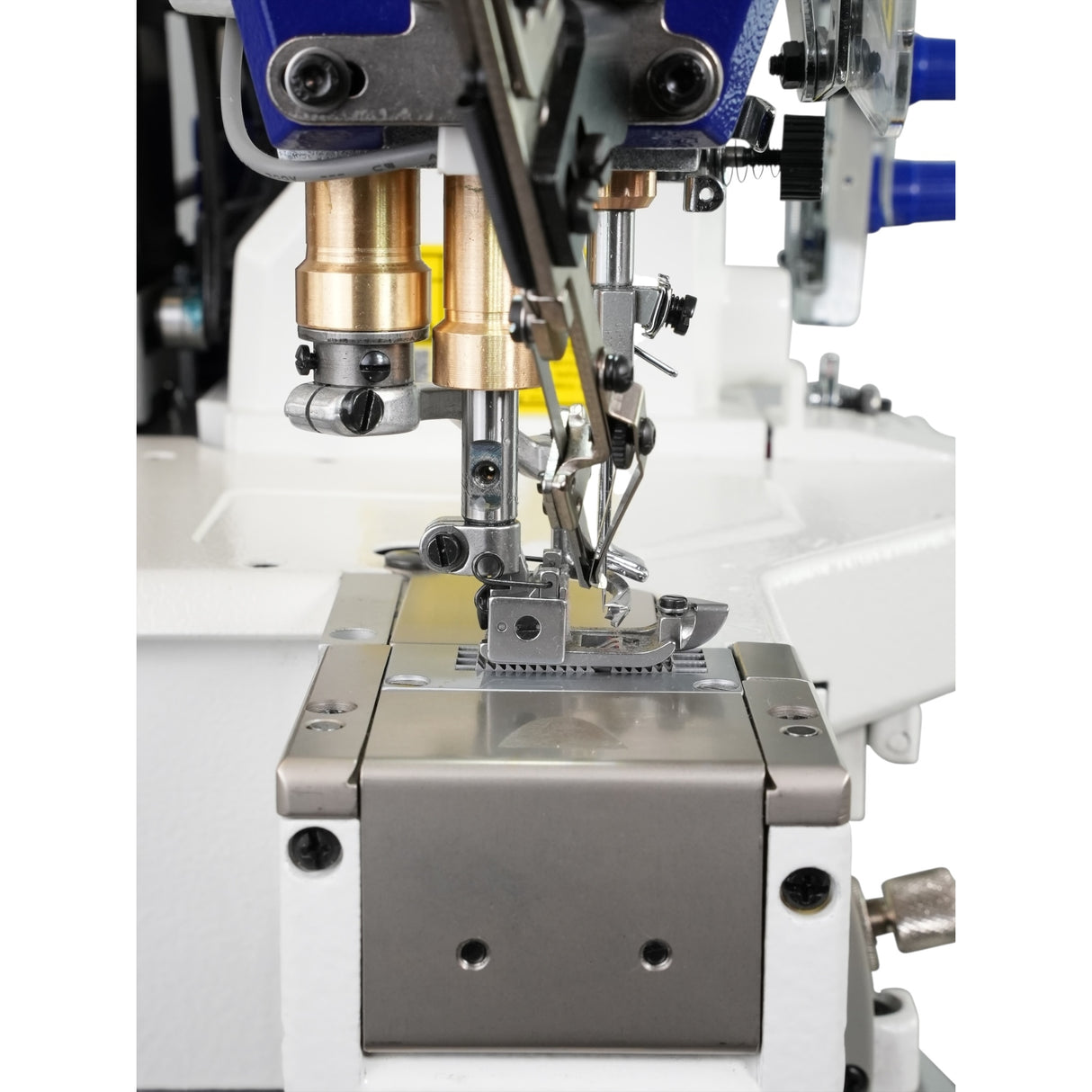

The SPEEDWAY SW-662/01CB UTE (Cylinder-Bed) is a professional coverstitch (interlock) machine designed for tubular and curved applications such as sleeves, cuffs, waistbands, sportswear, and underwear.

This model integrates automatic upper and lower thread trimming with an automatic presser foot lift, all operating without the need for compressed air. Its cylinder-bed construction provides superior maneuverability in hard-to-reach areas, while automation increases productivity and ensures consistent seam quality.

Engineered for durability and speed, the SW-662/01CB UTE delivers clean, precise stitches and reduced operator workload — the ideal solution for modern garment production.


KEY FEATURES

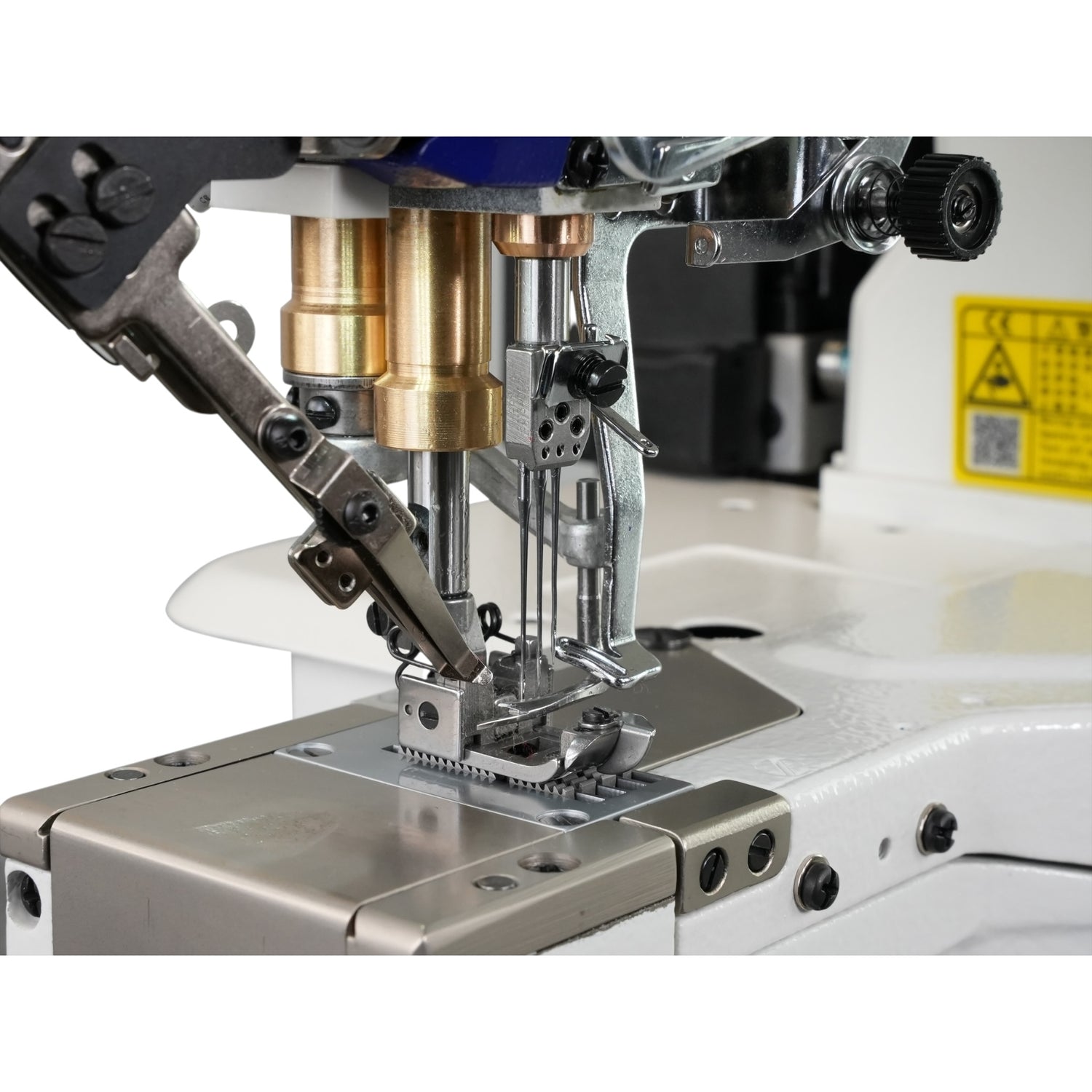

  • Cylinder-bed coverstitch (interlock) machine
  • Automatic upper & lower thread trimming system
  • Automatic presser foot lift (no air compressor required)
  • Needle gauge 1/4" (6.4 mm)
  • Perfect for cuffs, sleeves, waistbands, necklines, and sportswear
  • Clean seam finish and stable fabric feeding
  • Complete with table, stand, and energy-efficient direct drive servo motor

TECHNICAL SPECIFICATIONS

  • Max. Sewing Speed: 5,500 stitches per minute

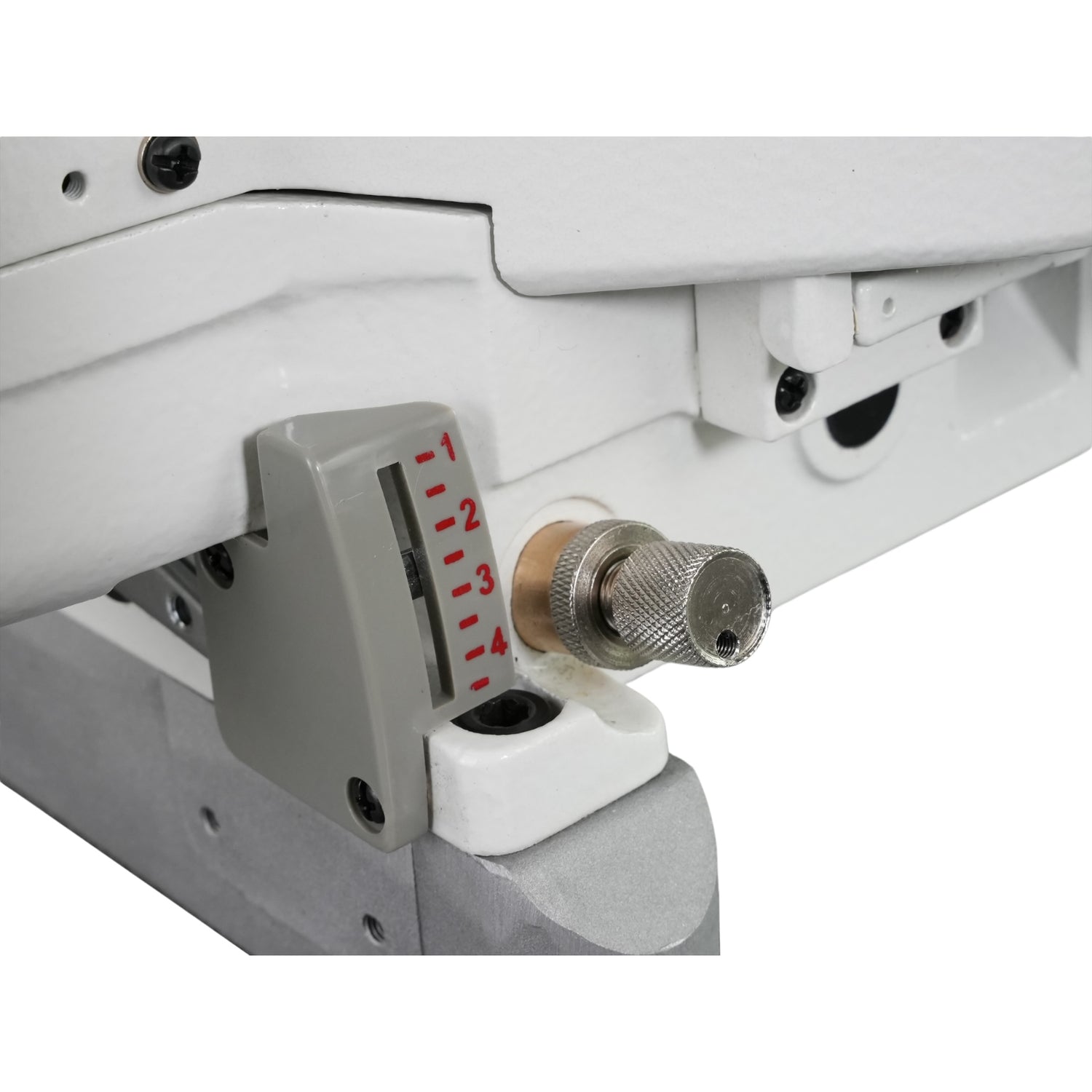

  • Stitch Length: 1.4 – 3.6 mm
  • Needle Type: UOX113GS (#11–#14)
  • Needle Gauge: 6.4 mm (1/4")
  • Presser Foot Lift: 5 mm by hand, 8 mm automatic
  • Thread Trimmer: Automatic, upper & lower
  • Looper Stroke: 33.4 mm
  • Feed Type: Differential feed (ratio 1:0.5 – 1:1.3)
  • Needle Bar Stroke: 34 mm
  • Lubrication: Automatic oiling system

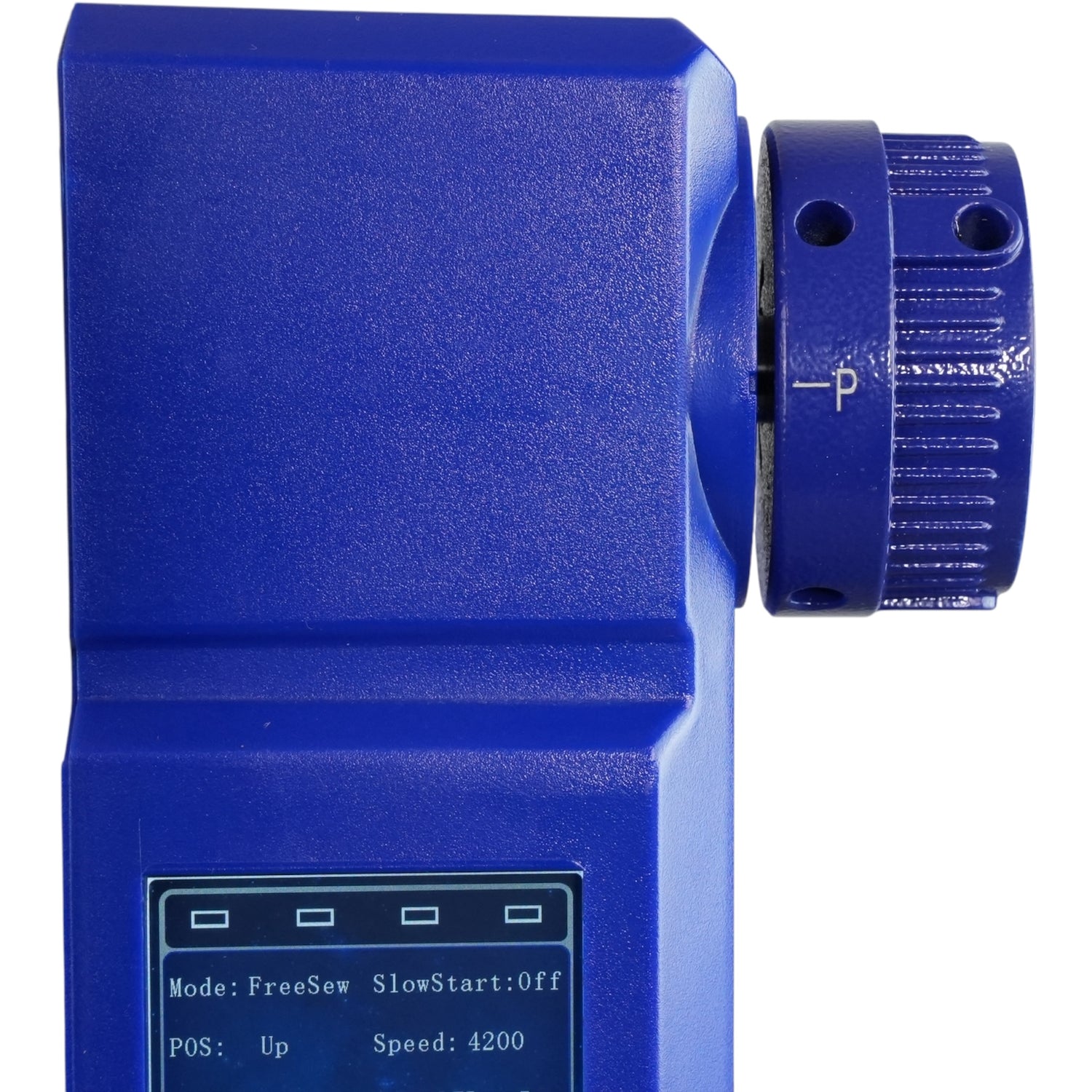

  • Motor: Direct Drive Servo Motor, 750W

CONCLUSION

The SPEEDWAY SW-662/01CB UTE (Cylinder-Bed) combines the flexibility of a cylinder-bed design with advanced automation. With upper and lower thread trimming and automatic presser foot lift — all without air — it delivers efficiency, precision, and versatility for high-volume apparel manufacturers.
