Extra-Tall 45 cm (17.7") Post for 3D & Bulky Work

• Post-bed height: 17.7" (45 cm) offers far more vertical clearance than standard post-bed machines.
• Easily handle tall boots, high-walled bags, rigid cases, padded panels and bulky 3D items.
• The elevated post lets you rotate and angle the work freely, making it possible to stitch in hard-to-reach areas that flat-bed or low-post machines simply can’t reach.

Heavy-Duty Unison Feed & SmartServo Power

• Unison feed walking foot system – bottom feed, needle feed and walking foot move the material together for:
• Strong, even feeding on leather, vinyl and multi-layer assemblies
• Reduced slipping, puckering and uneven stitch length
• Sewing capacity up to 3/8" (20 oz), ideal for stacked and padded materials.
• Equipped with a Servo Motor (110V, 900W):
• High torque at low speeds for precise, controlled stitching
• Bright digital LED display for easy speed adjustment
• Smooth, quiet operation and excellent energy efficiency

Materials & Applications

The SW-82440-45-R1 is ideal for medium to heavy-weight materials, including:

• Leather & synthetic leather – boots, bags, moto gear, cases, straps.
• Upholstery – armrests, corners, raised details and shaped components in furniture and automotive interiors.
• Bags & luggage – structured backpacks, travel bags, gear bags and protective cases.
• Outdoor & technical fabrics – heavy canvas, coated textiles and laminated materials needing strong, precise seams.

Any product that is bulky, tubular or tall, and requires clean, strong topstitching, is a great fit for this machine.

Key Features

• Single-needle heavy-duty post bed lockstitch machine
• Extra-tall 17.7" (45 cm) post for tall and 3D items
• Unison feed walking foot (bottom + needle + walking foot) for stable feeding on heavy materials
• Sewing capacity: 3/8" (20 oz)
• Presser foot clearance: 1/2" for thick, multi-layer assemblies
• Excellent visibility around the needle for precise topstitching and detail work
• Built for continuous industrial use in leather, footwear, bags and upholstery production

Technical Specifications

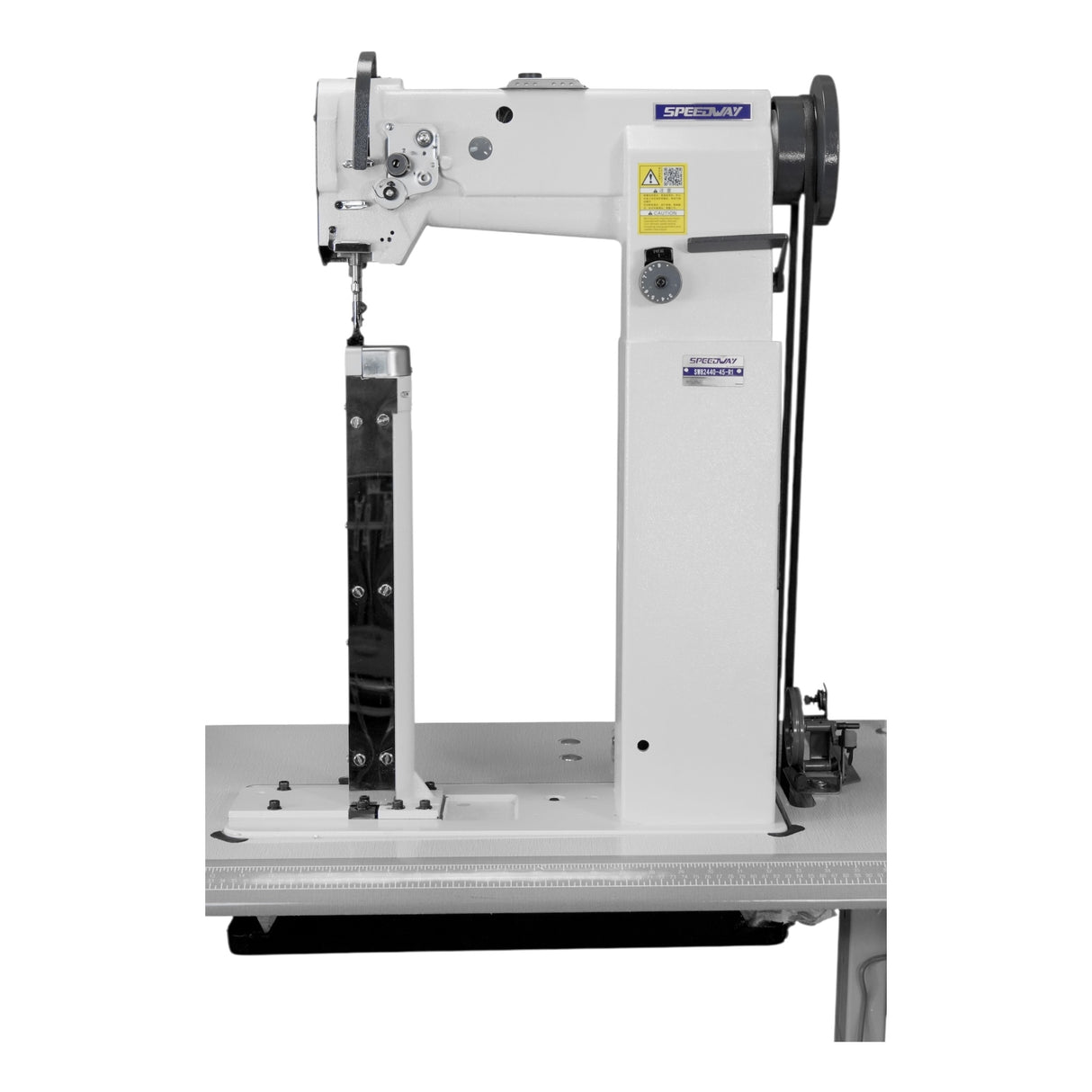

• Model: SPEEDWAY SW-82440-45-R1
• Machine Type: Single-needle heavy-duty post bed unison feed walking foot
• Stitch Type: Lockstitch
• Speed: up to 1,800spm
• Sewing Capacity: 3/8" (20 oz)
• Presser Foot Clearance: 1/2"
• Post-bed Height: 17.7" (45 cm)
• Stitch Length Adjustment: up to 3/8" (10 mm)
• Needles: DPx17 #18 to #24
• Thread Sizes: #45 to 138 (typical bonded threads for leather and upholstery)
• Feed System: Unison feed (walking foot + needle feed + bottom feed)
• Motor: Servo Motor, 110V, 900W
• Material Range: Medium to heavy leather, vinyl, canvas, upholstery and technical fabrics

(Other numeric details like max speed may vary slightly depending on setup.)

What’s Included

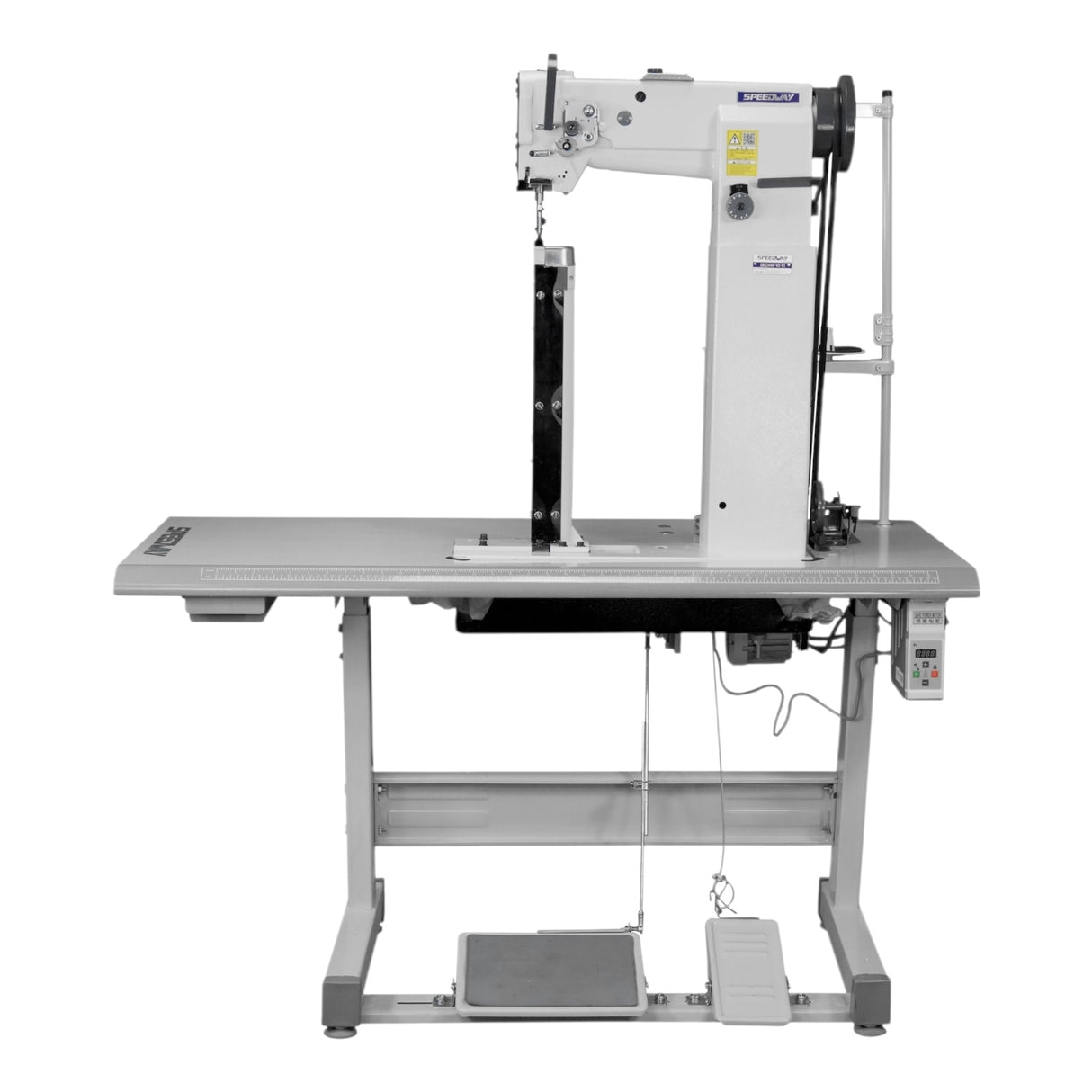

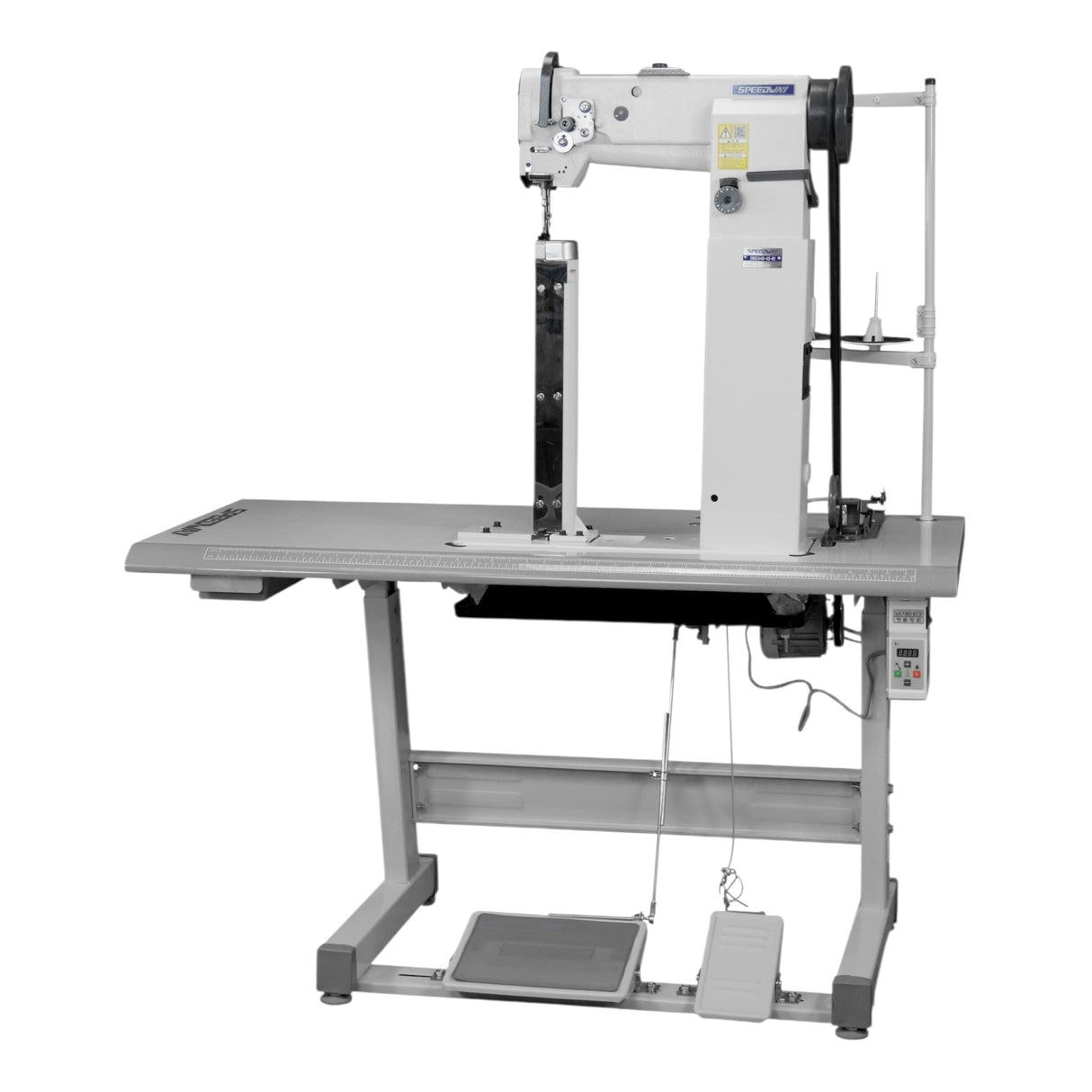

• SPEEDWAY SW-82440-45-R1 extra-tall post-bed machine head
• Servo 900W motor, mounted and wired
• Industrial table & stand, fully assembled
• Thread stand and built-in bobbin winder
• Standard presser feet, needles, bobbins and basic tool kit (may vary slightly by batch)
