Power, Feeding & Stitch Quality

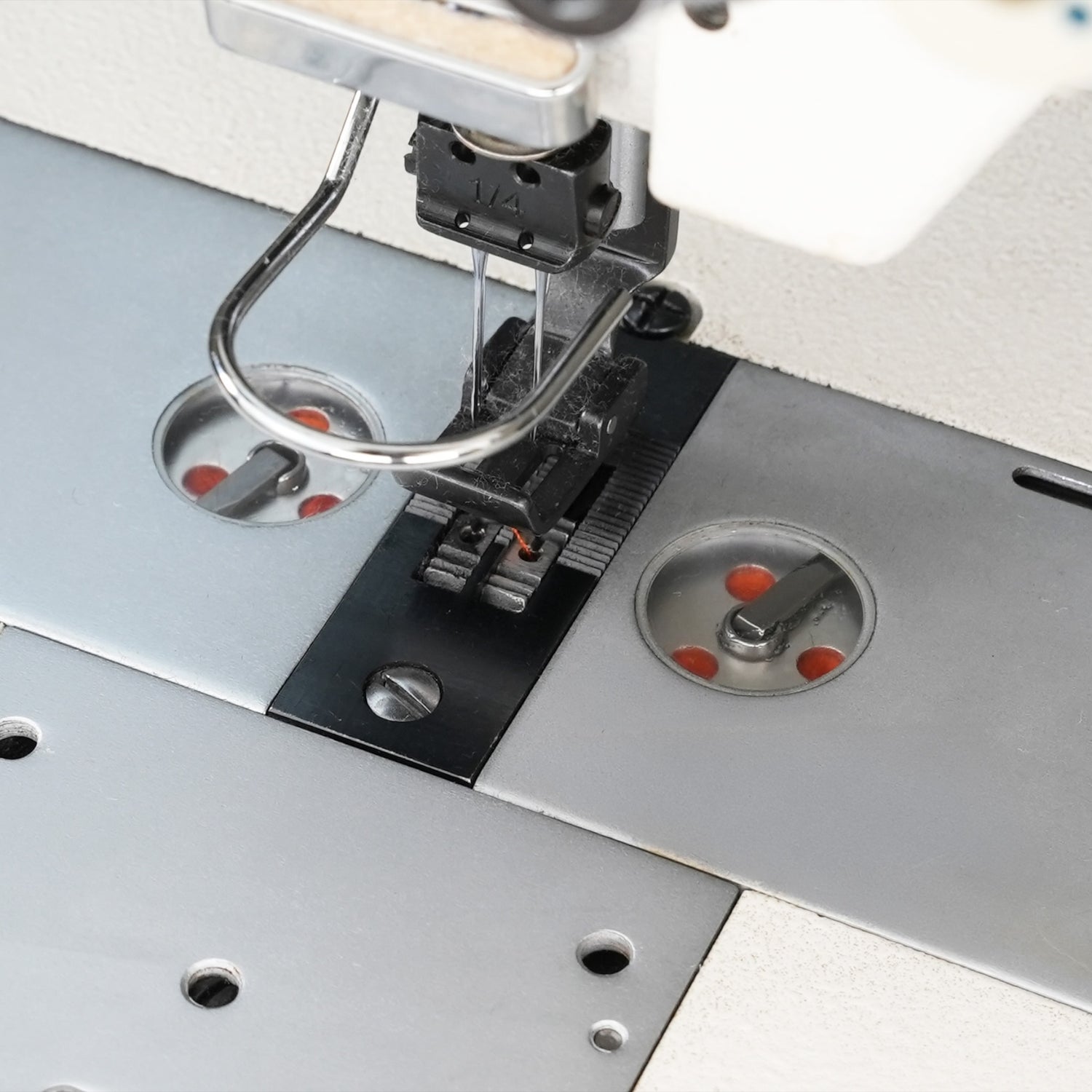

• Twin-needle needle feed: the needle helps pull the fabric together with the feed dogs, reducing layer shifting and puckering—especially important on slippery or multi-layer materials.

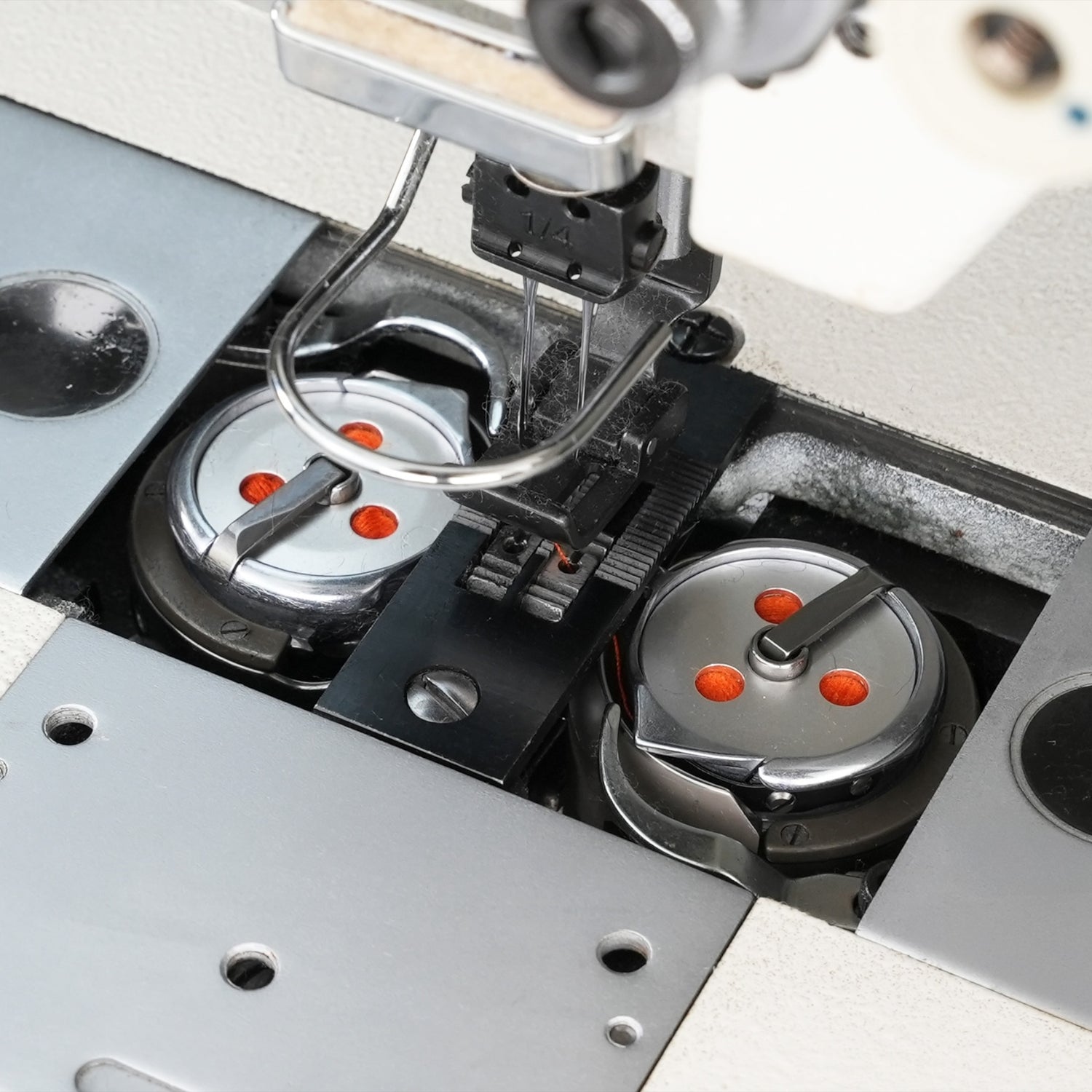

• Large-capacity bobbins: double large Japanese hooks increase under-thread capacity, so operators spend less time stopping to change bobbins.
• Servo motor included: quiet, energy-saving motor with excellent low-speed control for precise cornering and topstitching.
• Consistent stitch formation at production speeds, ideal for long straight runs and visible seams.

Materials & Applications

The SPEEDWAY SW-872 is designed for medium-weight materials and a wide variety of industrial applications, including:

1. Garments & workwear – parallel topstitching on seams, yokes, waistbands, plackets and pockets.
2. Denim & casualwear – twin-needle decorative seams on jeans, jackets and skirts (within medium-weight range).
3. Uniforms & corporate wear – strong, clean, symmetrical stitch lines on trousers, shirts and jackets.
4. Light upholstery & automotive trim – panels, covers and decorative twin seams on medium fabrics.
5. Bags & accessories – straps, handles, edges and visible topstitching on canvas, twill and similar materials.

Wherever you need two parallel rows of lockstitch that look straight, strong and professional, the SW-872 is the right tool.

Key Features

• Double-needle lockstitch industrial machine
• Needle feed system for smooth, even material feeding
• Large bobbin hooks for longer sewing runs between bobbin changes
• Ideal for medium-weight woven fabrics, denim panels, twill, canvas and workwear fabrics
• Produces two perfectly parallel rows of stitching in a single pass
• Adjustable stitch length for functional or decorative seams

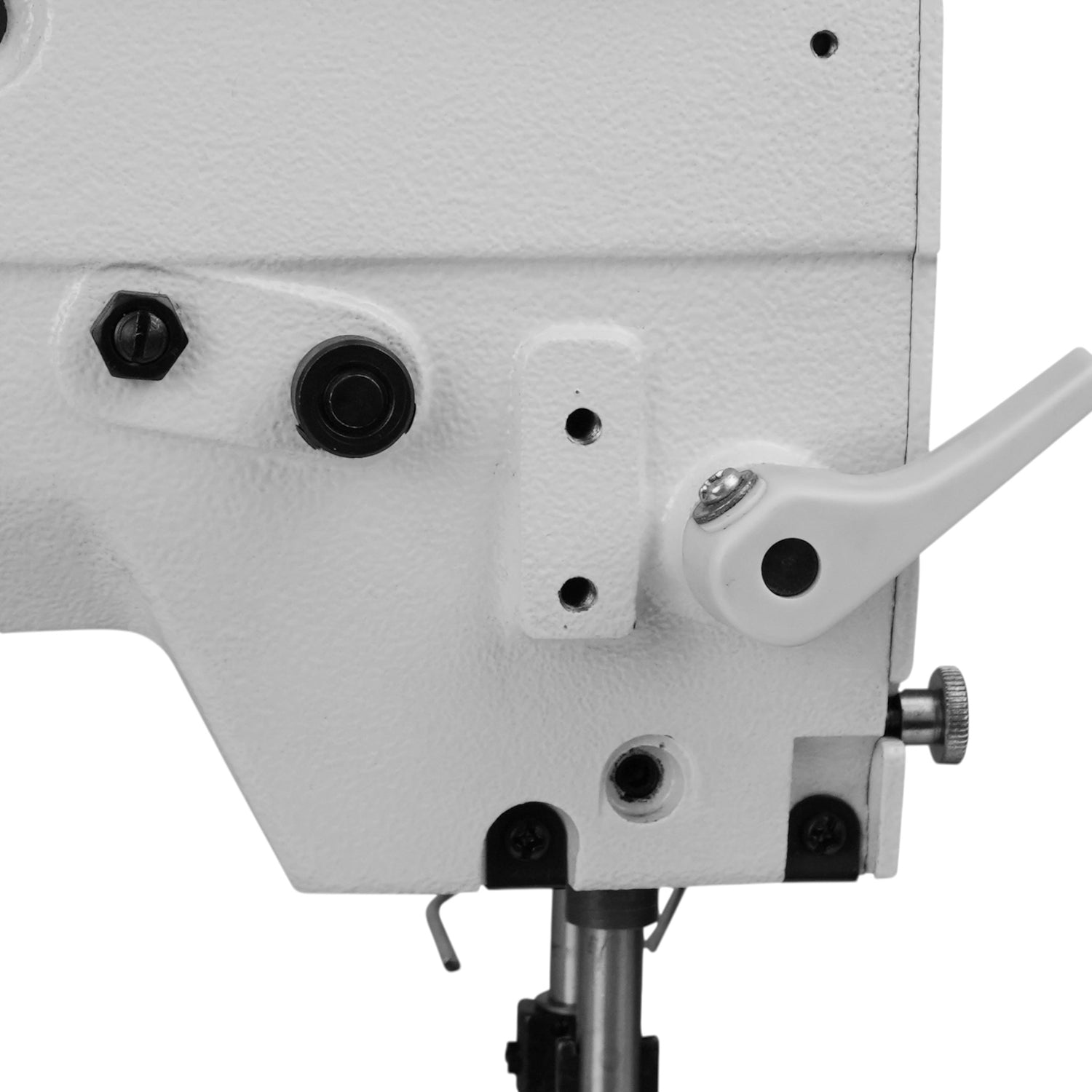

• Reverse lever for backtacking and seam reinforcement
• Servo motor included for quiet, energy-efficient, precise control
• Complete industrial setup, ready to sew upon delivery

Technical Specifications (typical configuration)

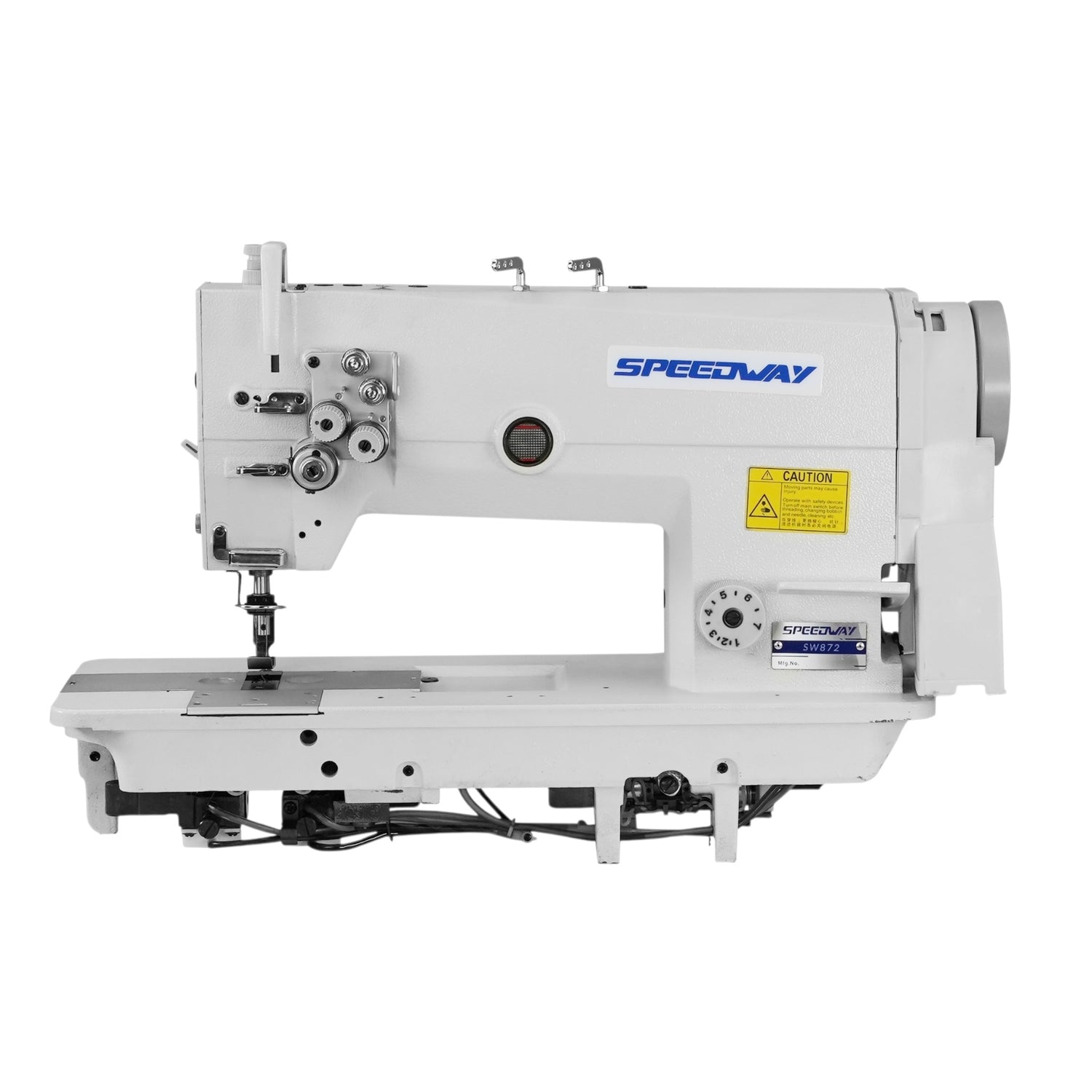

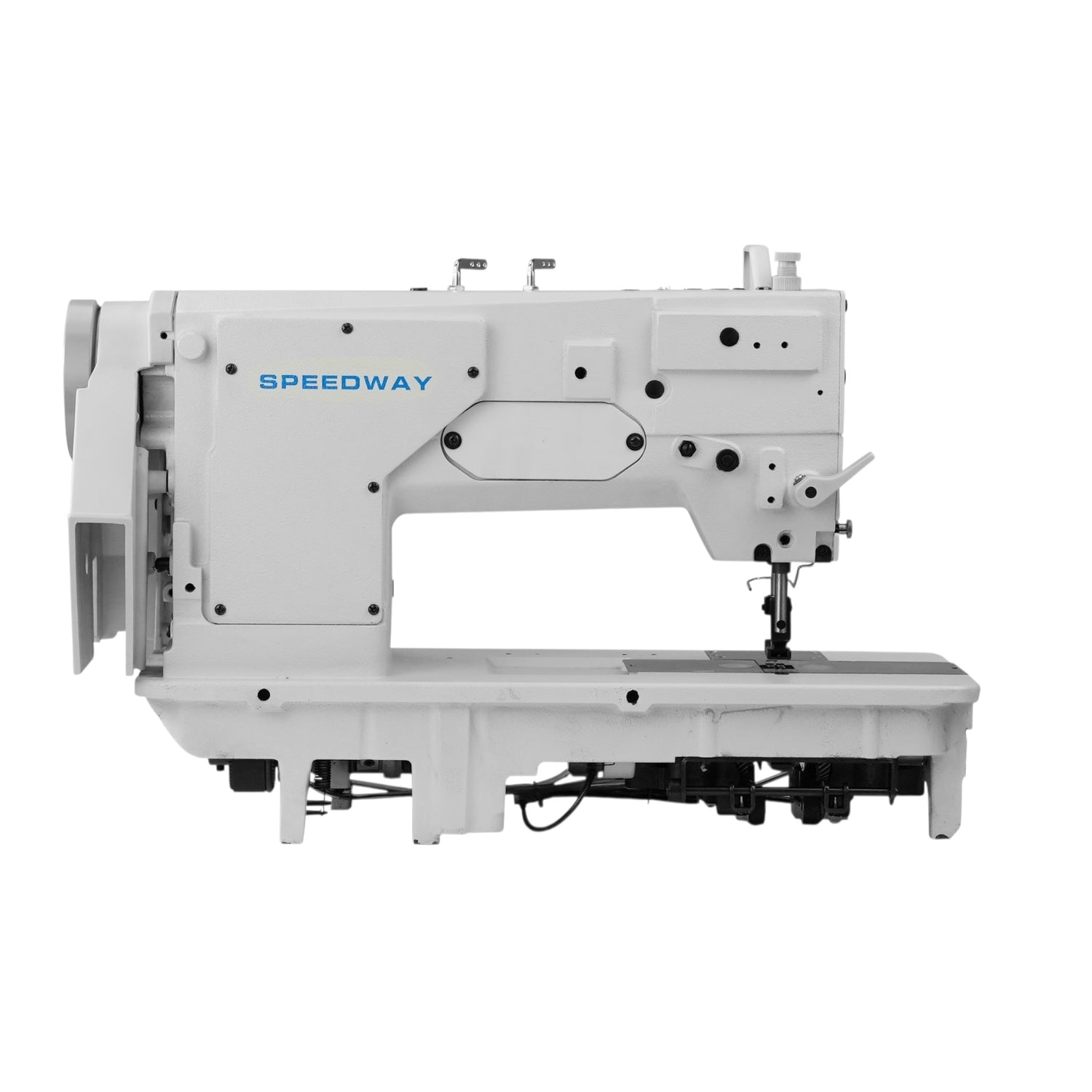

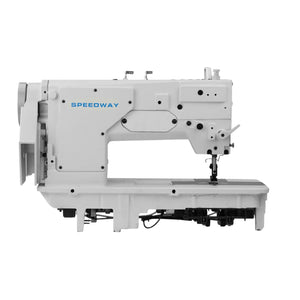

• Model: SPEEDWAY SW-872
• Stitch Type: Double-needle lockstitch
• Feed System: Needle feed with lower feed
• Bobbin Type: Large-capacity rotary hooks (twin large bobbins)
• Material Class: Medium-weight fabrics
• Max Sewing Speed: up to approx. 3,500–4,000 stitches per minute (depending on material and setup)
• Max Stitch Length: up to approx. 4 mm
• Needle Gauge: various twin-needle gauges available (e.g. 3.2 mm, 4.8 mm, 6.4 mm… depending on setup)
• Needle System: typically DPx5 (sizes approx. #14–#22 depending on material)
• Presser Foot Lift: up to approx. 7–13 mm (by hand / knee)
• Lubrication: Automatic central lubrication
