SPEEDWAY SW-XYP-4 Leather Skiver with Servo Motor, Table and Stand Included

Power, Control & Clean Edges

• Fortuna-type bell knife, shoe and plate for professional, repeatable skiving quality.
• Skiving width up to 2" (50 mm) for both edge skiving and full-surface skiving.
• Waste removing device helps extract scrap as you work, keeping the work area cleaner and the skive line visible.
• Separate clutch for the built-in knife sharpener lets you engage the sharpening stone only when needed, prolonging both knife and stone life.
• Servo motor drive (110V) gives excellent low-speed control, quieter operation and lower energy consumption compared to clutch motors—ideal for precision leather work.

Materials & Applications

The SPEEDWAY SW-XYP-4 is widely used for:

1. Leather – cowhide, goat, calf, vegetable-tanned leather, chrome-tanned leather.
2. Artificial leather & vinyl – PU, PVC and coated synthetics.
3. Similar flexible materials – some rubbers, synthetic laminates and specialty materials (within skiver range).

Typical end products include:

• Shoe uppers and leather components
• Leather bags and handbags
• Belts & straps
• Watch straps & small leather goods
• Leather upholstery buttons & panels
• Edges that must be folded, turned, overlapped or glued without bulk

If your leather needs to be thinned, beveled, feathered, or prepared for folding and stitching, the SW-XYP-4 is the tool for the job.

Key Features

• Professional bell-knife leather skiving machine (Fortuna-type geometry)
• Working width up to 2" (50 mm) for edge and full-surface skiving
• Waste removing device for continuous scrap extraction
• Separate clutch-operated sharpener to extend knife and stone life
• Designed for leather, artificial leather, vinyl and similar materials
• Perfect for shoe uppers, bags, belts, watch straps, upholstery parts and more
• Supplied complete with servo motor, table, stand, belt, drawer, tools and manual
• Brand new, factory-packed, assembled and ready to skive

Technical Specifications (typical configuration)

• Model: SPEEDWAY SW-XYP-4
• Machine Type: Bell-knife leather skiver (scarfing machine)
• Working Width: up to 2" (50 mm)
• Cutting Speed: approx. 1,100 r.p.m. (bell knife)
• Motor: 550W servo motor, speed range approx. 100–4,000 rpm
• Voltage: typically 110V (other voltages by request)
• Machine Dimensions: approx. 580 × 390 × 410 mm
• Machine Weight: approx. 48 kg (head)
• Desk Weight: approx. 20 kg (table & stand)
• Knife & Presser Feet: compatible/interchangeable with common Fortuna-type parts on the market

(Exact specifications may vary slightly depending on batch and regional configuration.)

What’s Included

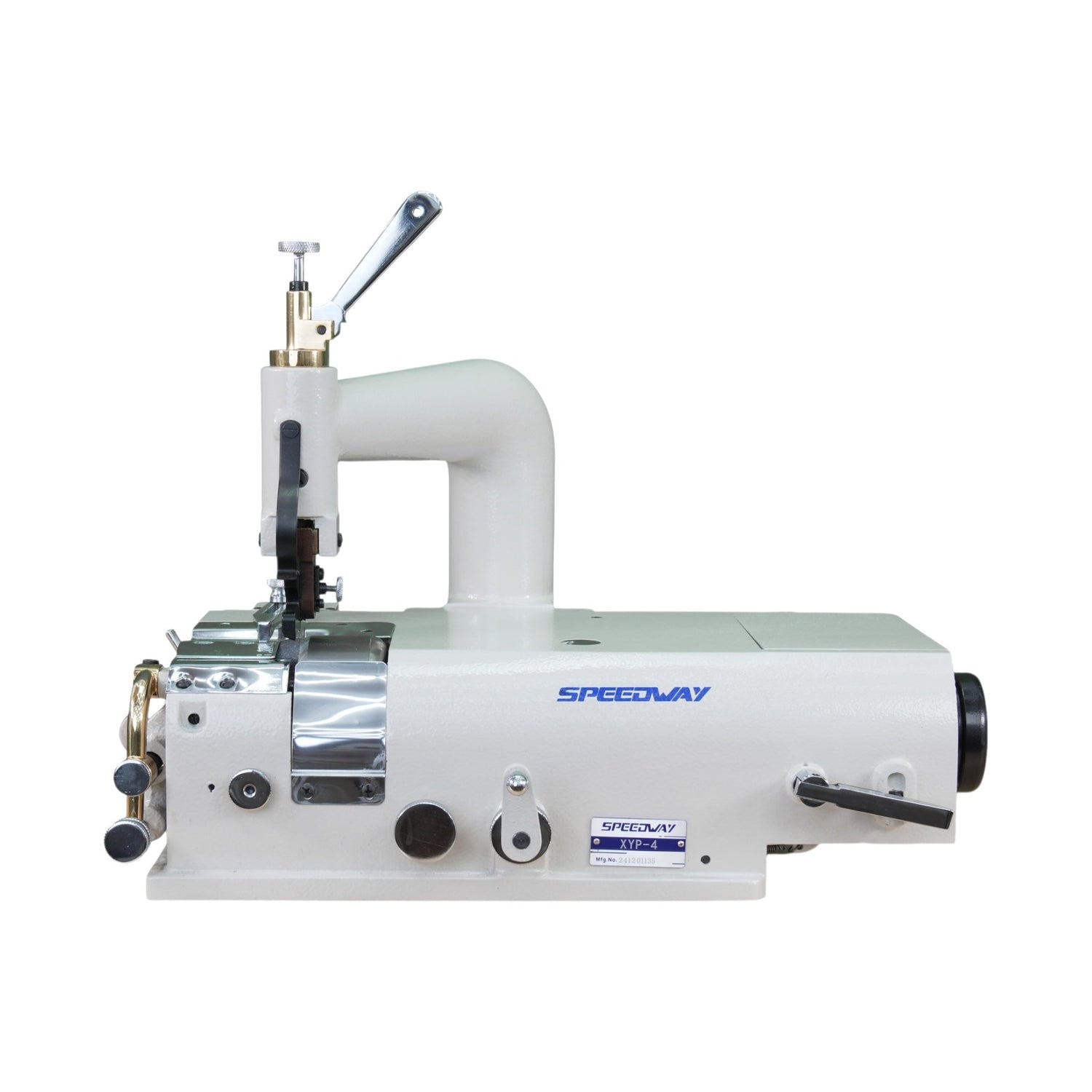

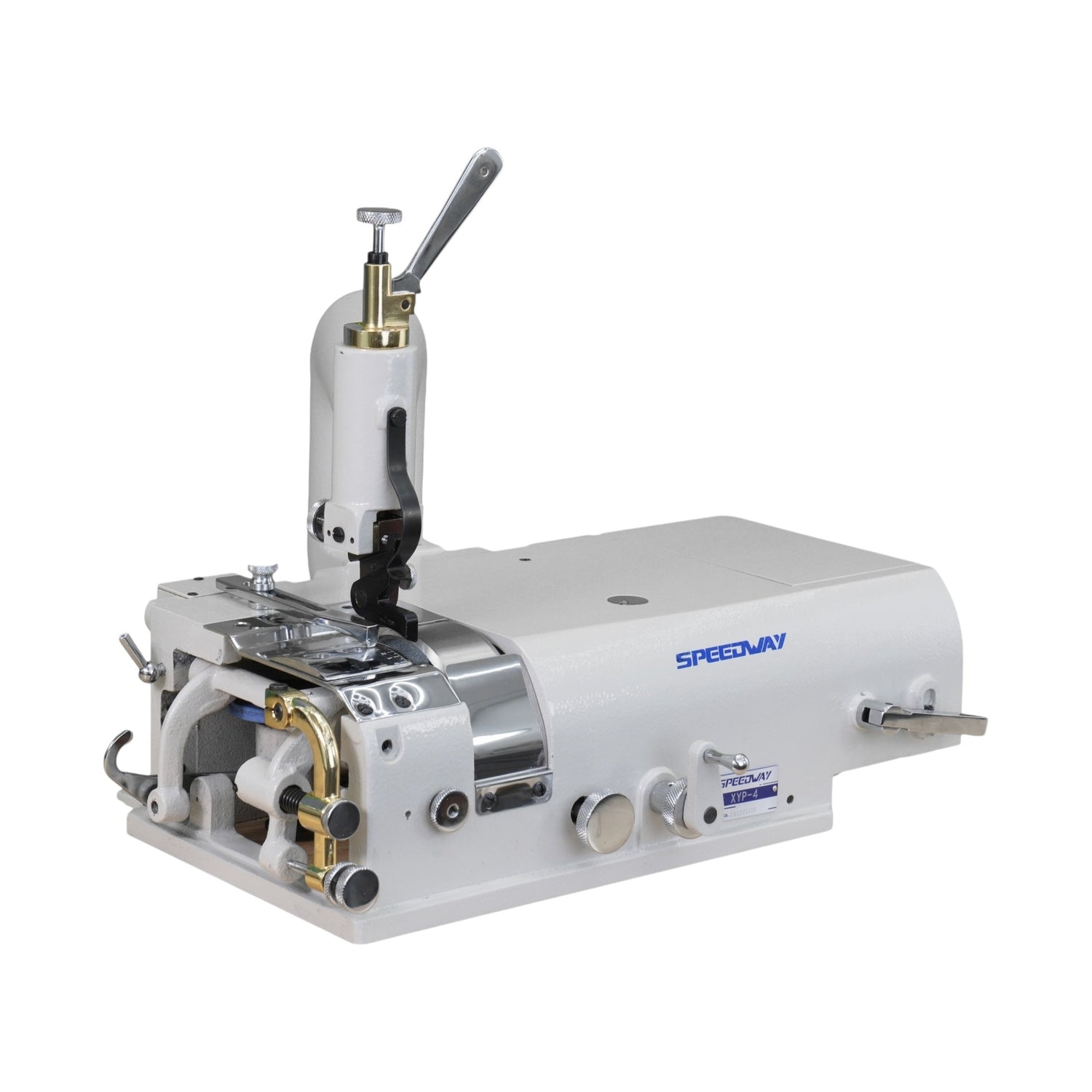

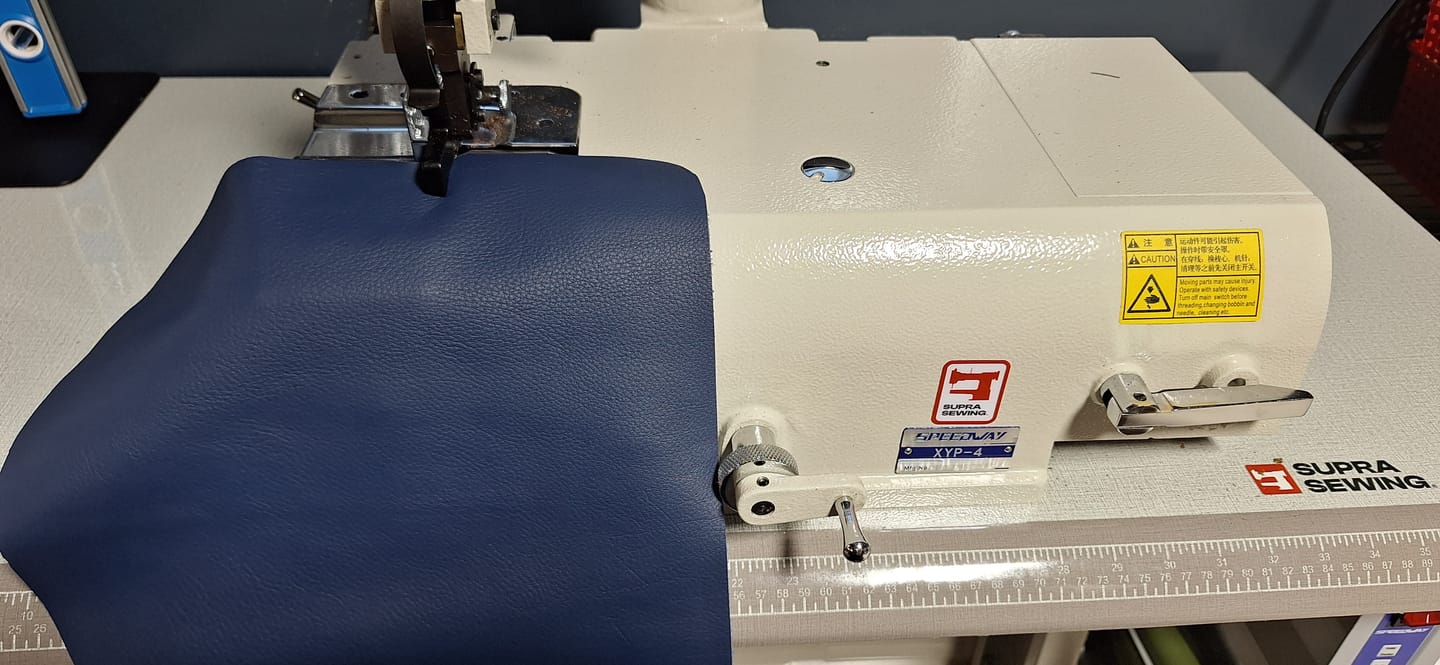

• SPEEDWAY SW-XYP-4 leather skiving machine head

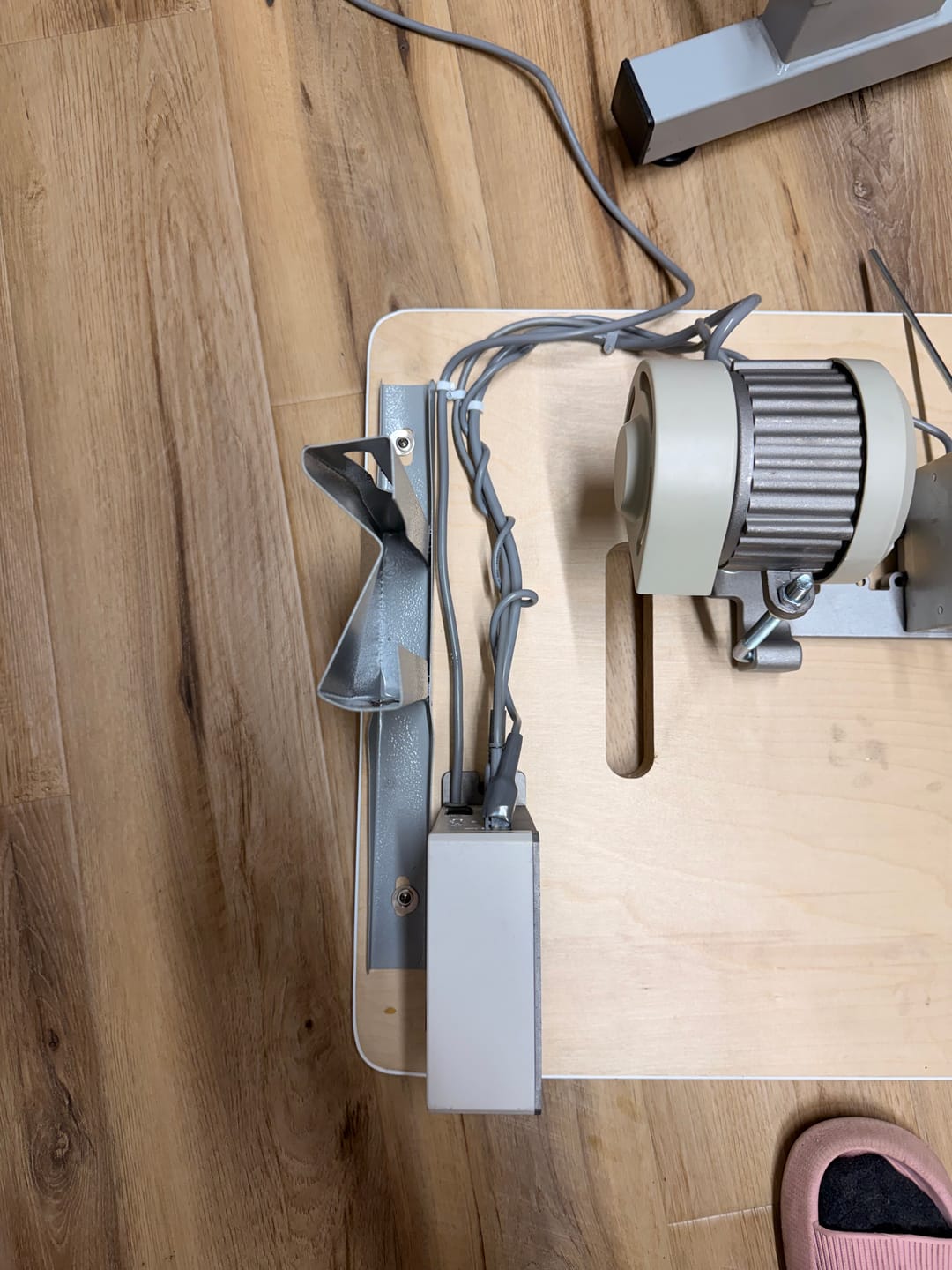

• Servo motor (brushless, 110V, mounted)

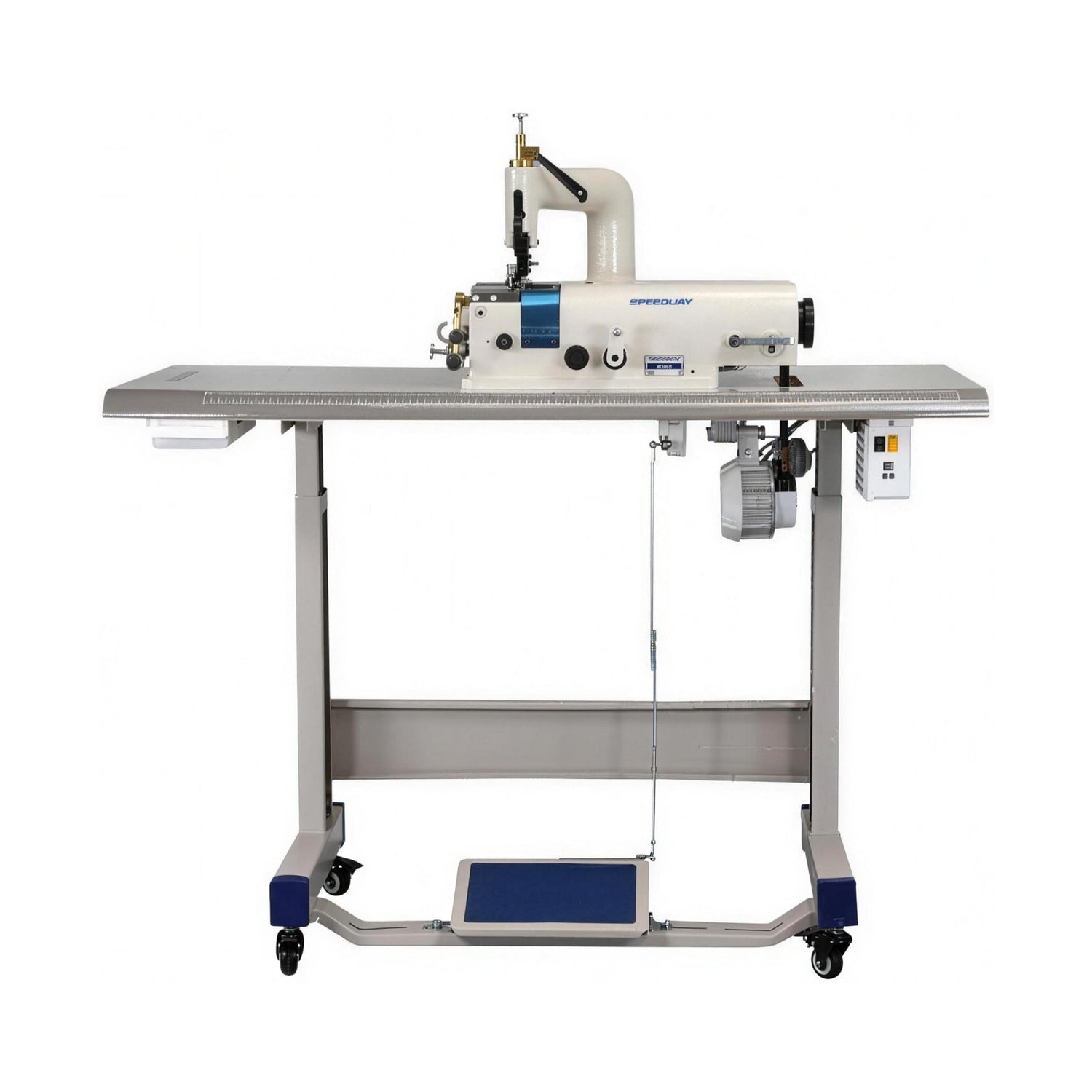

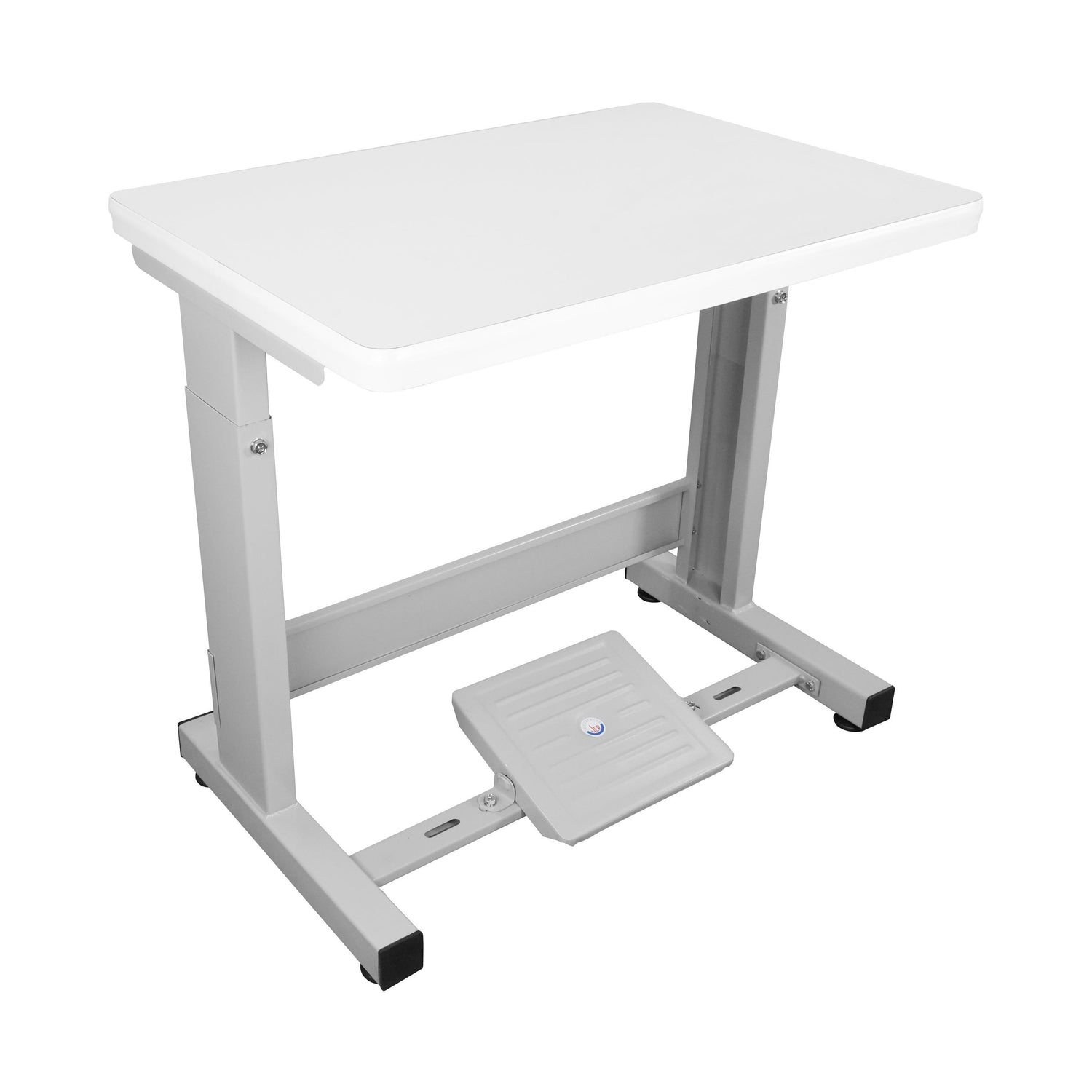

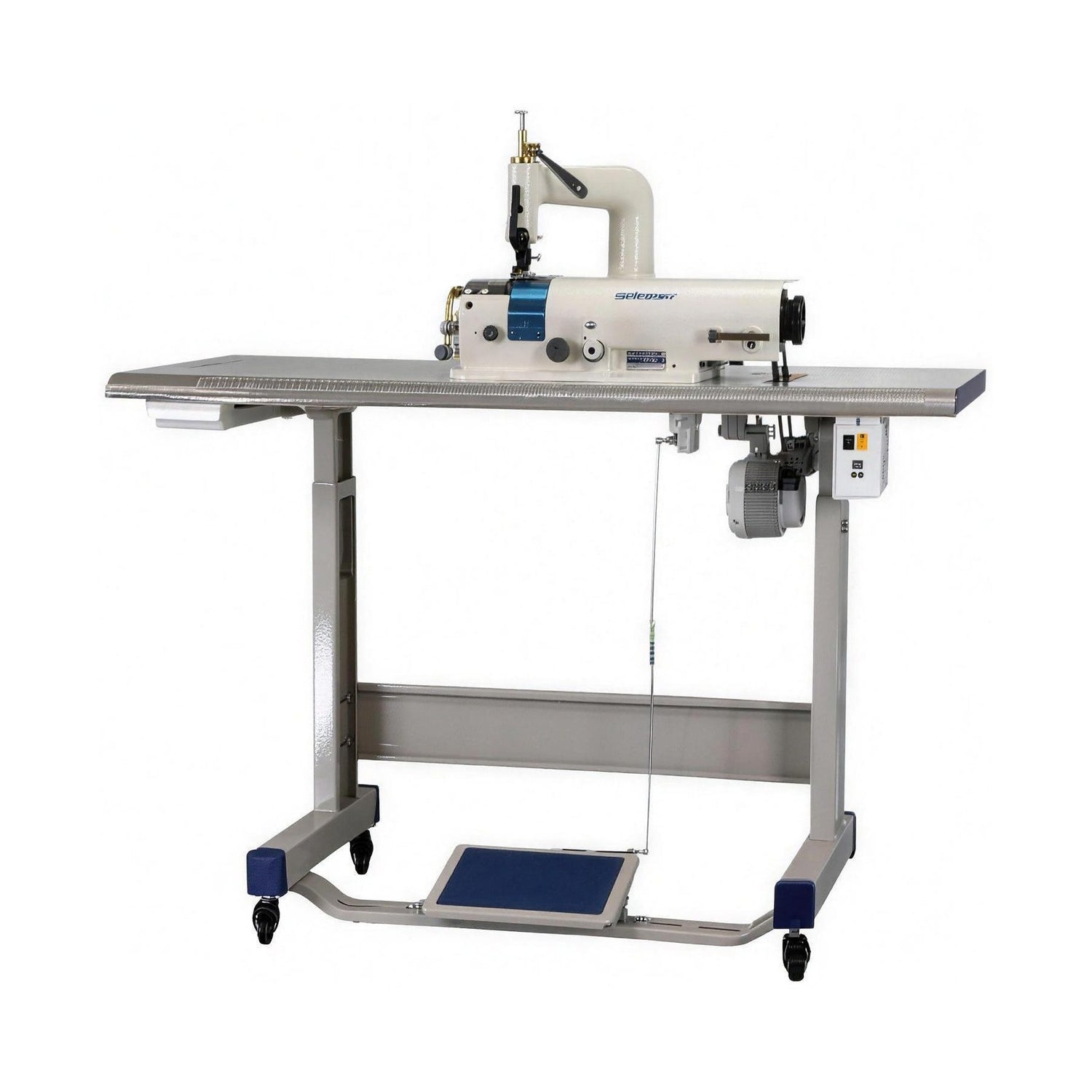

• Industrial table & stand, assembled
• Waste removal system

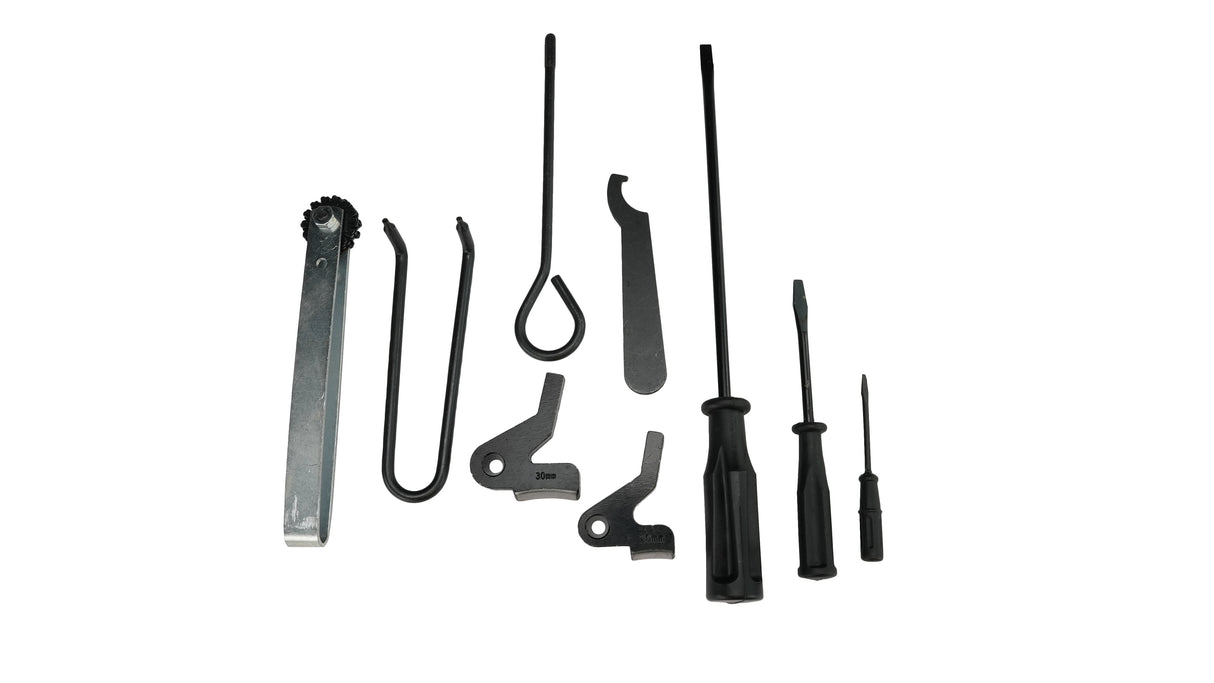

• Belt, drawer, basic tool kit and instruction manual
