Cylinder-Bed Power for 3D & Tubular Work

• Cylinder-bed design makes it easy to sew small, tubular and pre-assembled items such as bag bodies, straps, corners, gussets, and shoe components.
• Unison feed walking foot moves the material from the top and bottom together with the needle, preventing slipping and layer shifting on leather, vinyl, canvas, and other heavy materials.
• High fabric clearance (approx. 15 mm) allows you to easily load and maneuver bulky or multi-layer projects.
• Top feed lift around 7 mm helps climb thick seams and crossovers without losing stitch quality.

Materials & Applications

The SPEEDWAY SW-335L is ideal for medium to heavy-weight materials, including:

1. Leathercraft – handbags, wallets, straps, cases, small leather goods.
2. Bags & backpacks – side seams, bottoms, gussets, straps, reinforcements.
3. Footwear & accessories – shoe uppers, components, and leather accessories.
4. Upholstery & seating – edges, corners and curved areas on cushions and seats.
5. Canvas & technical textiles – tool rolls, covers, pouches, outdoor gear components.

Anytime you need precise stitching on tight curves or tubular shapes, the SW-335L shines.

Key Features

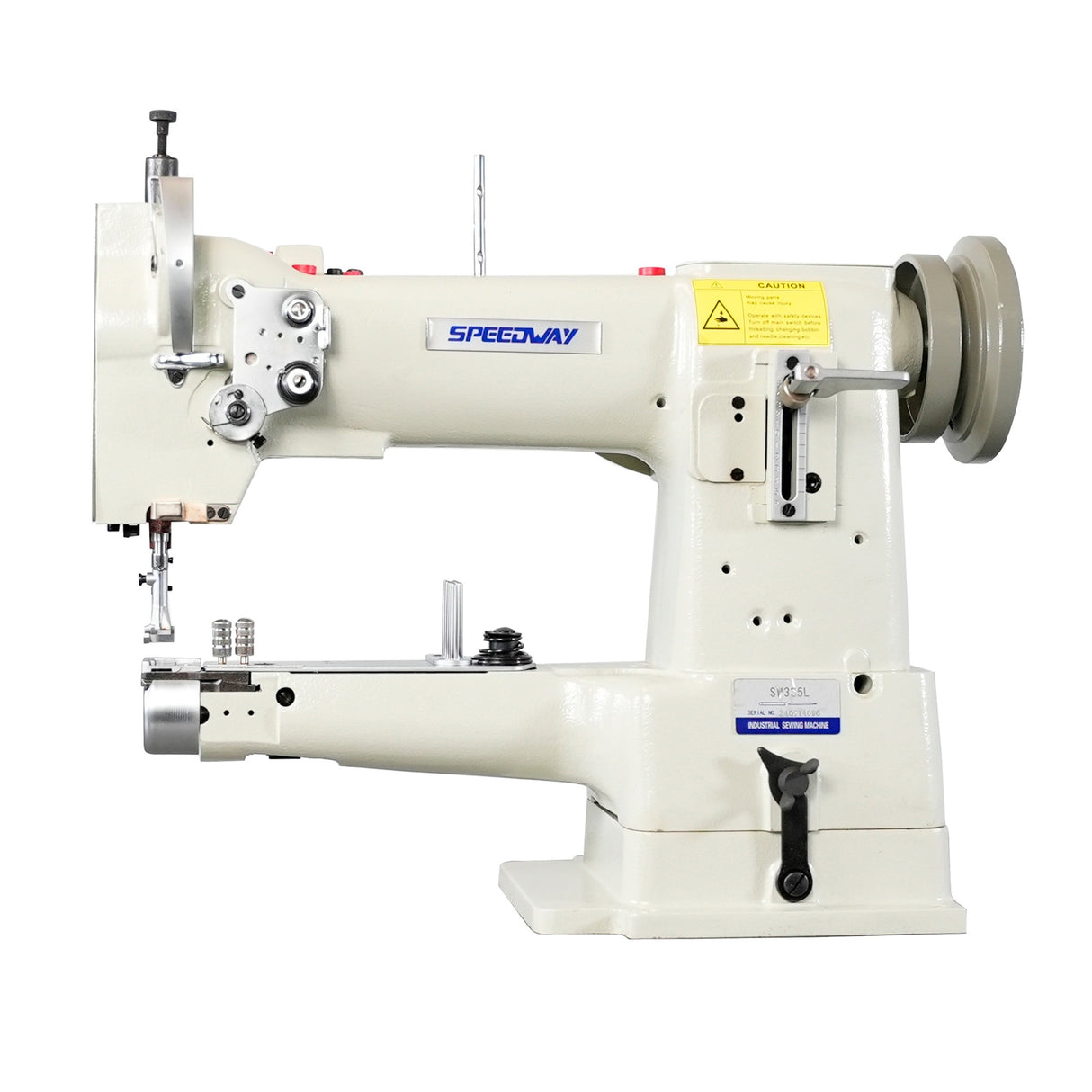

• Single needle cylinder-bed heavy-duty industrial sewing machine
• Unison feed system: needle, walking foot, and feed dog move together for powerful, even feeding

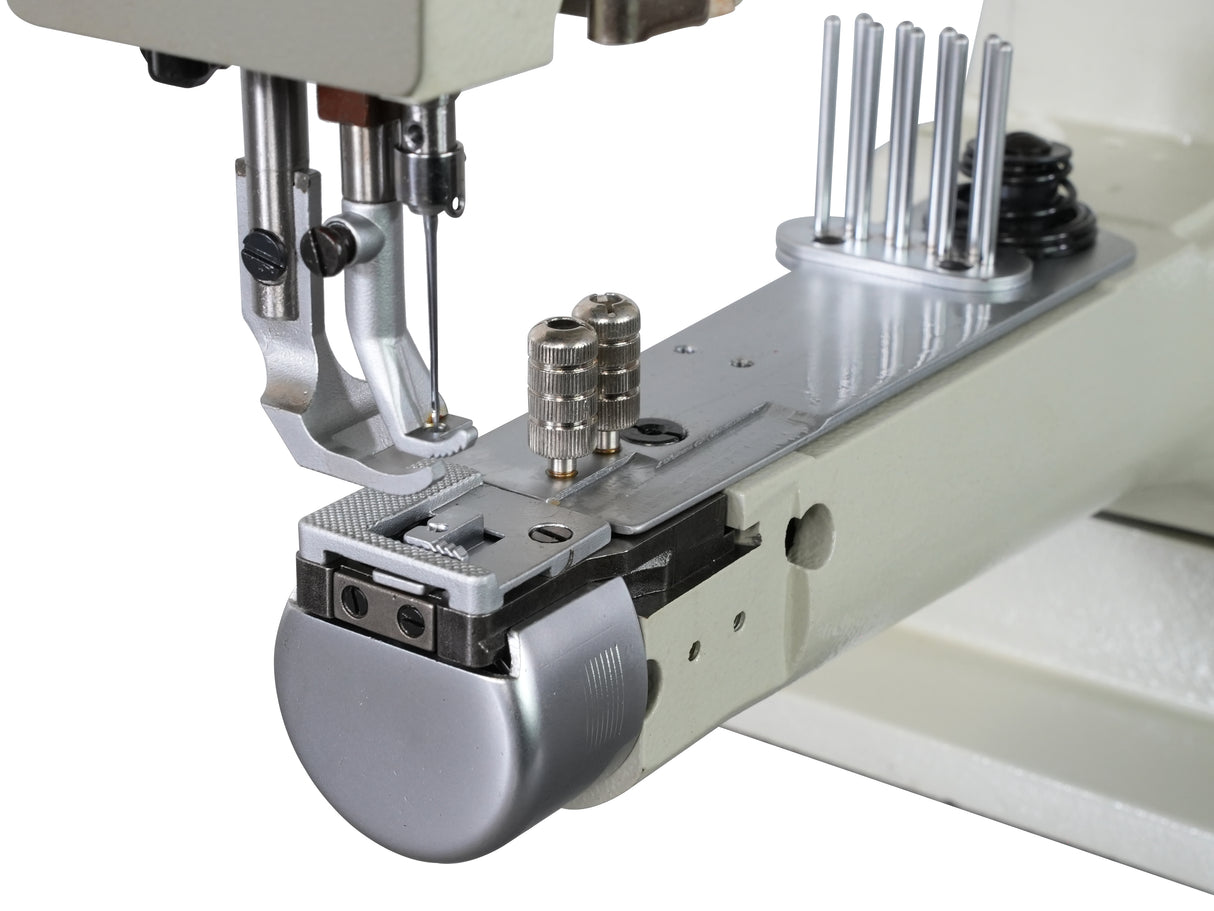

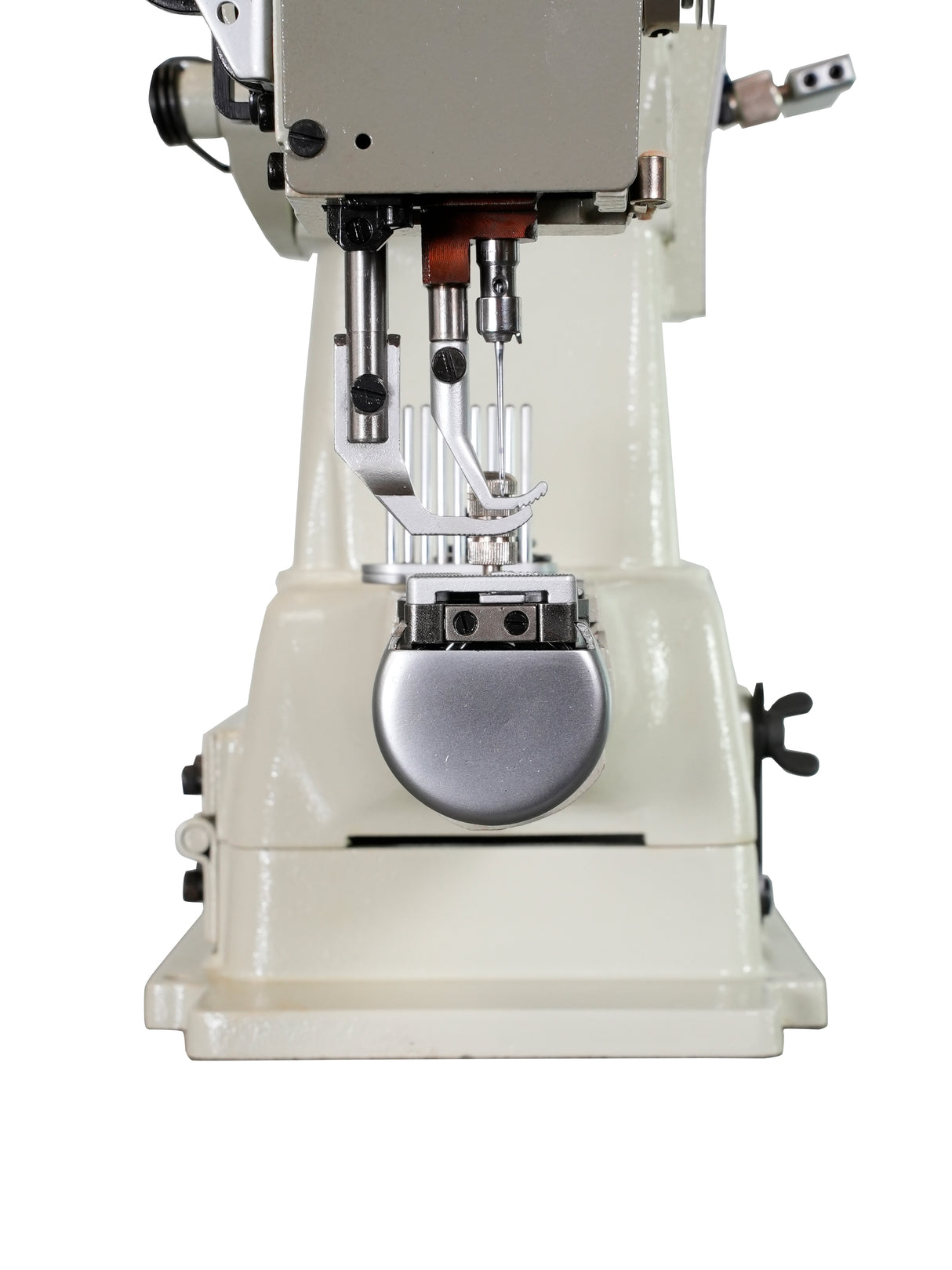

• Compact cylinder arm for superior access to 3D, tubular, and pre-assembled products

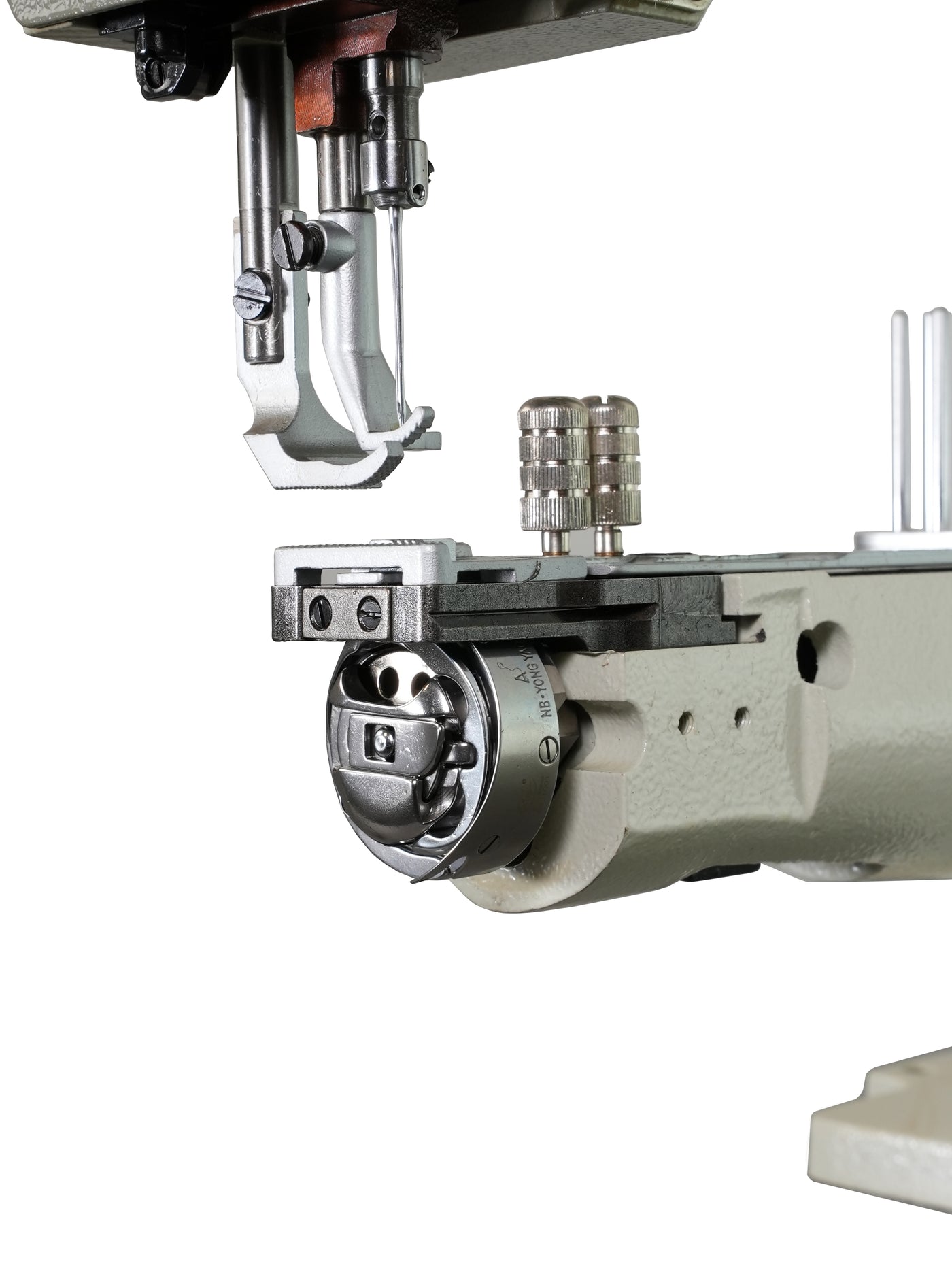

• Large vertical-axis hook for strong, stable lockstitch and heavier threads
• High top feed lift (approx. 7 mm) to climb over bulky seams
• High fabric clearance (approx. 15 mm) for loading thick workpieces
• Rugged, heavy-duty construction for long service life in professional environments
• Servo motor included for quiet, smooth and energy-efficient operation

Technical Specifications  (typical configuration)

• Model: SPEEDWAY SW-335L
• Machine Type: Single needle, cylinder-bed, heavy-duty unison feed walking foot
• Stitch Type: Lockstitch
• Feed System: Unison feed (needle, walking foot, feed dog)
• Hook Type: Large vertical-axis hook
• Top Feed Lift: approx. 7 mm
• Fabric Clearance: approx. 15 mm under the presser foot
• Material Range: Medium to heavy materials (leather, vinyl, canvas, upholstery, technical fabrics)
• Max Sewing Speed: typically up to 2,000–2,500 stitches per minute (depending on material and setup)
• Max Stitch Length: typically up to 6 mm
• Presser Foot Lift: hand and knee lift in the heavy-duty range (for bulky assemblies)
• Needle System: commonly DPx17 / 135×17 (size depending on material and thread)
• Lubrication: Central / Manual lubrication system
• Motor: Energy-saving servo motor, 110V (or regional voltage as specified)

(Exact speed, stitch length and needle sizes may vary depending on how the machine is set up for the buyer.)

What’s Included

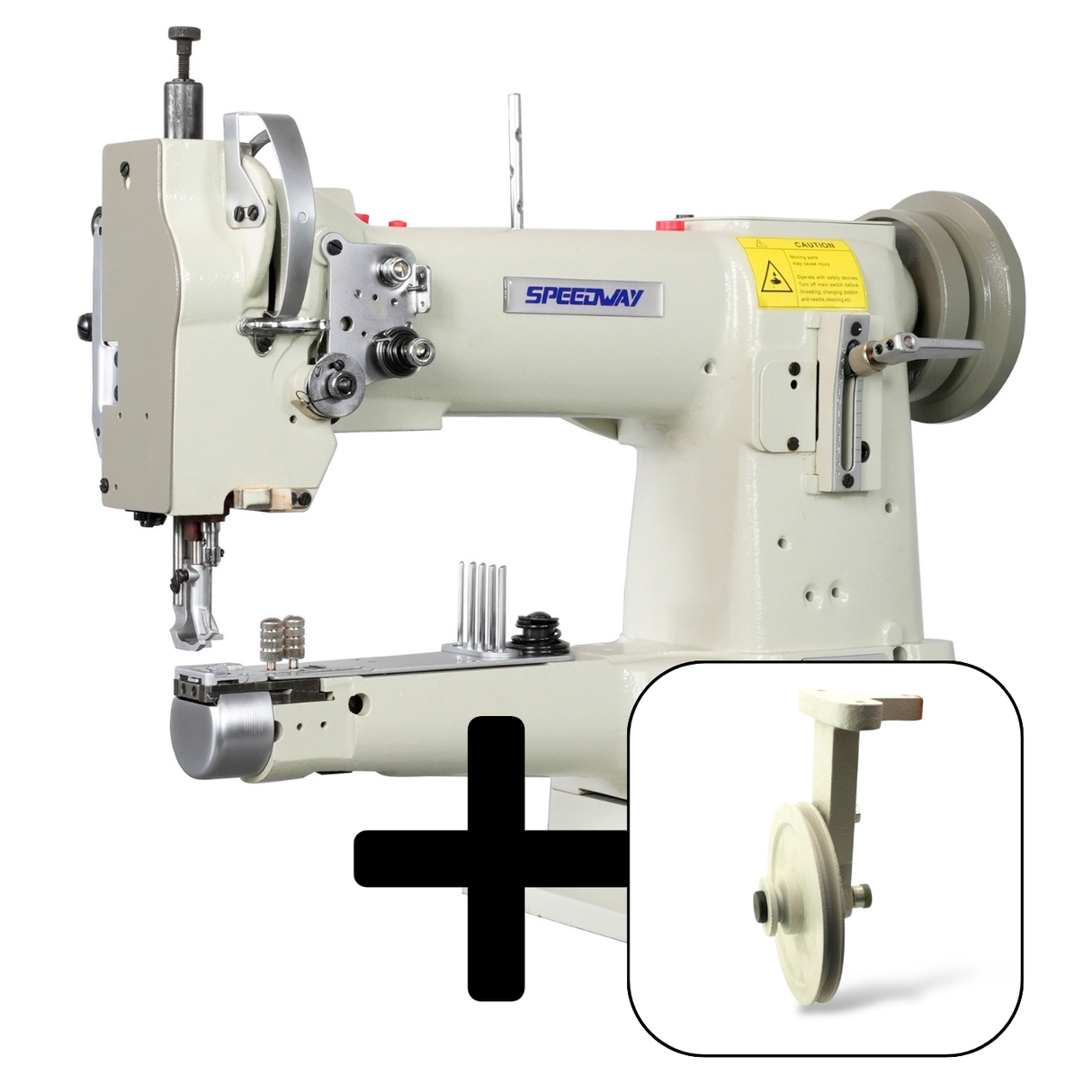

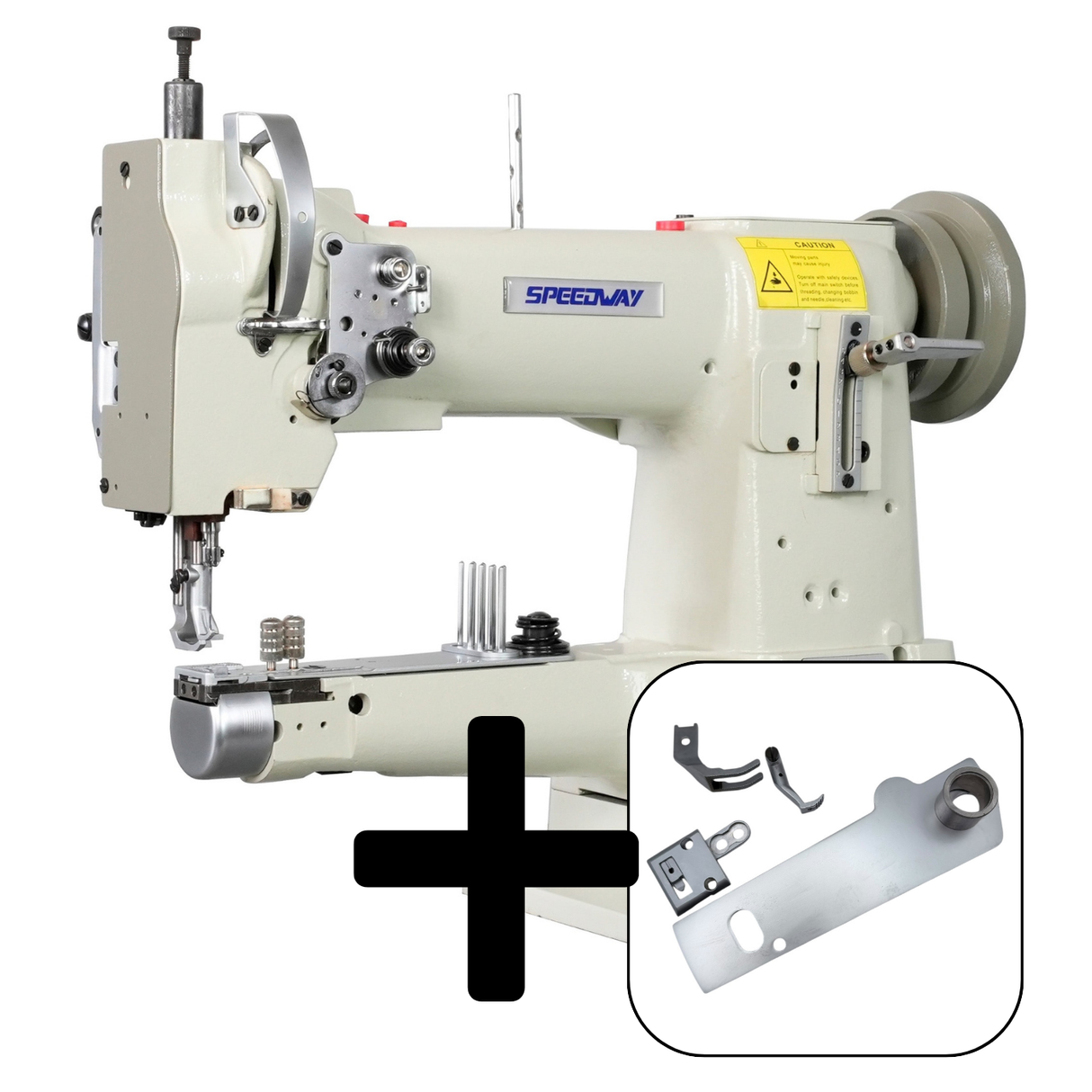

• SPEEDWAY SW-335L cylinder-bed sewing machine head
• Servo motor, mounted and wired

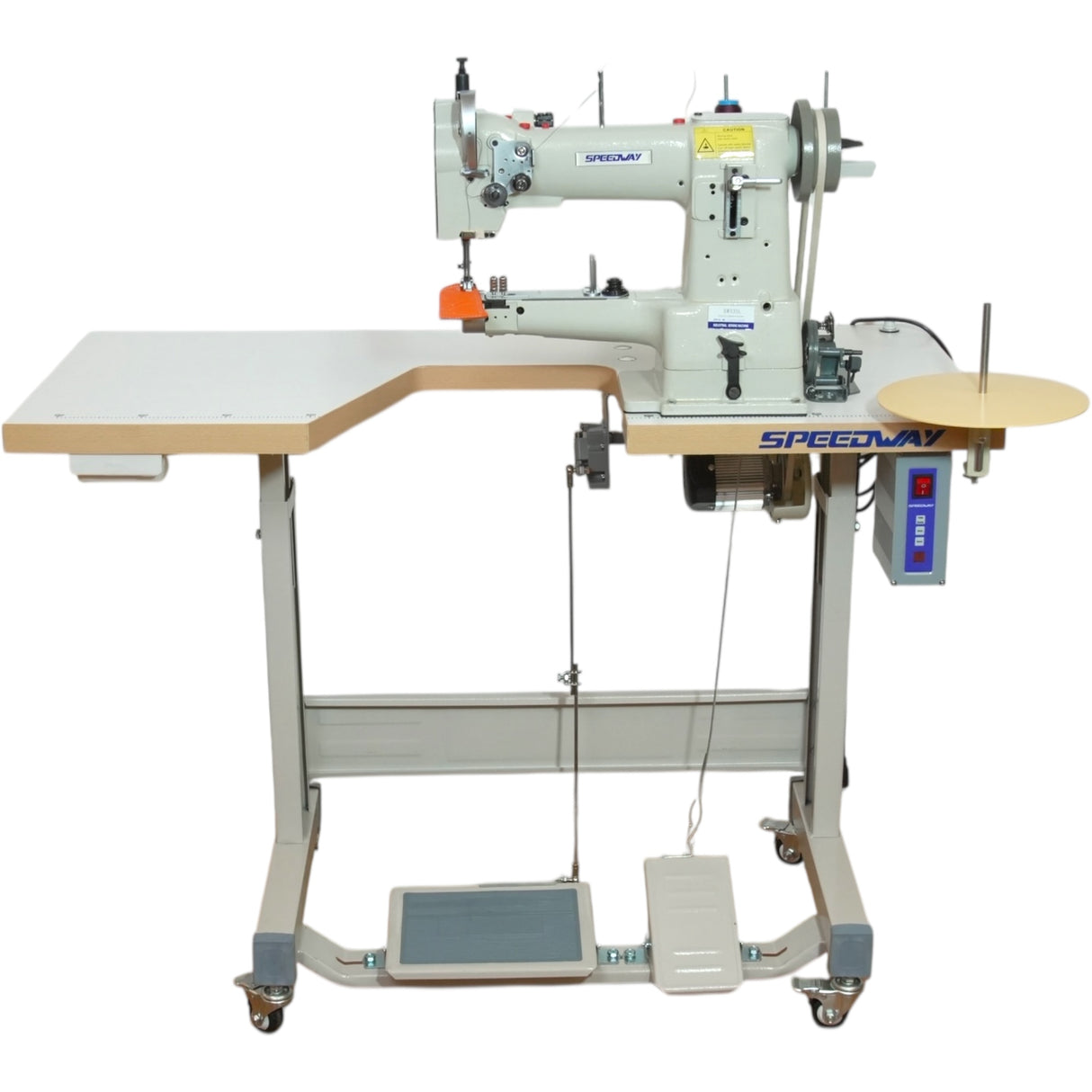

• Industrial table & stand, fully assembled
• Bobbin winder and thread stand

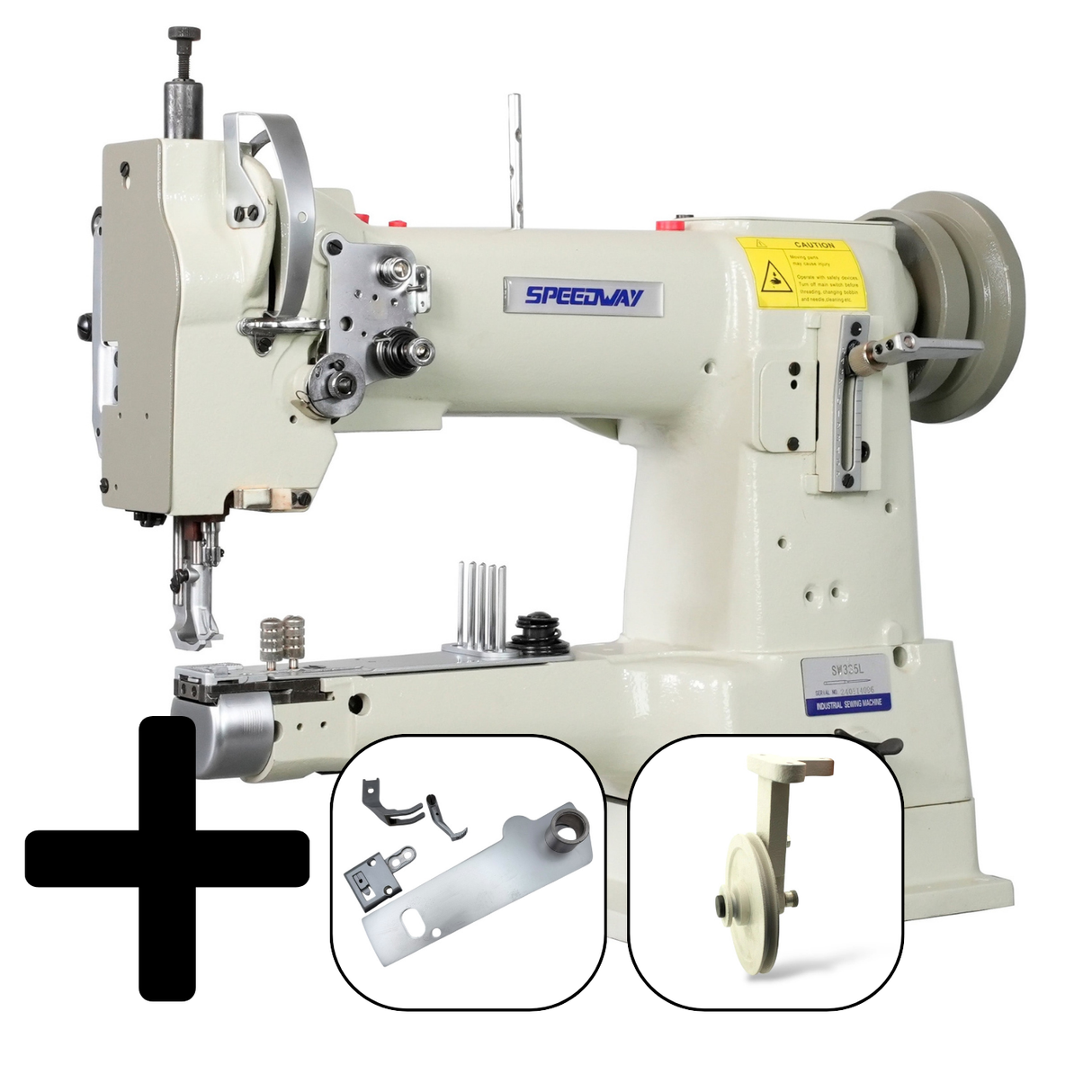

• Standard presser feet, needles, and basic accessory kit (may vary slightly by batch)
