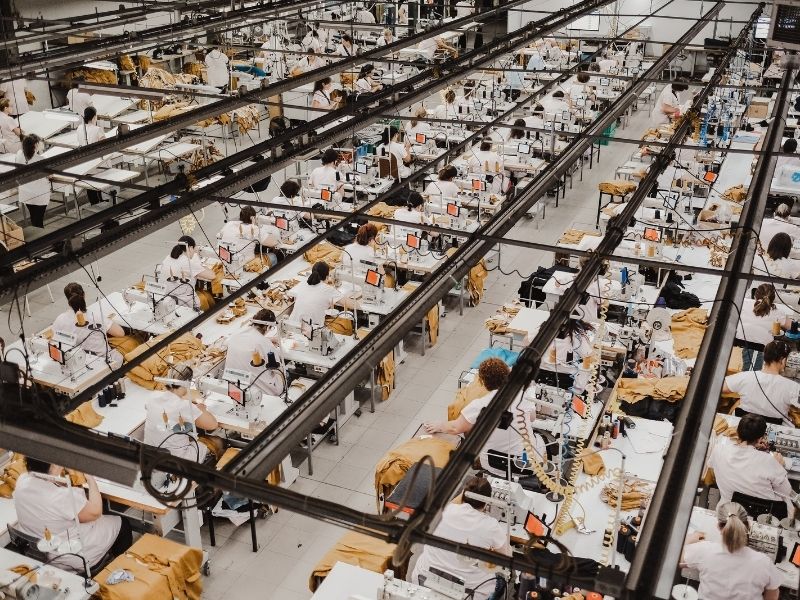

In a factory, the question is never "which machine is best." It is which machine for which operation, and how many of each. A line is a sequence of operations, and the machine list falls out of the operation breakdown — not the other way round.
This guide covers how to size that list, which specifications actually move output, and the models we stock for each position on the line.
Start from the operation breakdown
Take one garment and write down every seam in order, with a target time for each. A basic knit t-shirt is roughly: shoulder join, neck binding, sleeve attach, side seam and sleeve closing, sleeve hem, bottom hem, label. That is an overlock, a coverstitch, a second overlock, a second coverstitch, and a lockstitch — five machine types before you have made one shirt.
Once you have that list you can size the line: number of machines per operation = (units per day × standard minutes for that operation) ÷ available operator minutes. Everything below is about picking the right machine for each slot.
The specifications that actually change output
Top speed matters least of the four things people compare.
1. Automation, per cycle
On a 20-second operation, a second saved per cycle is 5% of the line. That second comes from:
- Automatic thread trimmer (UBT / short thread trimming) — no scissors motion, and no long tail to clip in finishing.
- Automatic presser foot lifter — the knee stays free, pieces load faster.
- Automatic backtack and needle positioning — consistent locking without operator counting, needle always down for pivots.
- Programmable stitch count on tackers and pattern machines — the machine stops itself.
These features, not raw SPM, are why an automatic head outproduces a manual one on the same nominal speed rating.
2. Motor and drive — one clarification
Direct drive is a servo motor mounted on the head rather than under the table. It is not an alternative to servo. The real comparison is:
- Clutch — legacy. The motor spins continuously whether or not you are sewing, drawing close to rated power all shift, and it is hard to control at low speed.
- Belt-driven servo — motor under the table, near-zero draw at rest, precise low-speed control. The economical upgrade.
- Direct-drive servo — motor integrated in the head. No belt to slip or replace, faster response, quieter, and it is what makes needle positioning and auto functions crisp.
Suppliers commonly quote energy savings "up to 70%" for servo over clutch. Treat that as a ceiling, not a promise: the saving comes from eliminating idle draw, so it scales with how much of the shift the machine spends stopped. In a line running at 80% machine utilisation the saving is real but far smaller than in a sample room.
3. Stitch class, matched to the seam
Get this wrong and you produce garments that fail, regardless of machine quality.
| Stitch class | What it is | Where it belongs |
|---|---|---|
| 301 | Lockstitch | Woven seams, topstitching, attachments. Minimal stretch. |
| 401 | 2-thread chainstitch | Long woven seams needing stretch and speed; component of the safety stitch. |
| 504 | 3-thread overedge | Edge finishing, rolled hems, light seaming. |
| 514 | 4-thread mock safety | The standard knit seam — seams and finishes in one pass. |
| 516 | 5-thread safety (401 + 504) | Woven assembly, jeans, workwear. Strength plus a finished edge. |
| 600 family | Coverstitch / flatlock | Knit hems, neck bindings, elastic attaching. Stretches with the garment. |
Overlock model numbers usually encode this: a 737…-504 head is a 3-thread, a 747…-514 is a 4-thread, a 757…-516 is a 5-thread.
4. Needle system and material class
Lockstitch heads split by material weight, and the needle system follows: DB×1, Nm 70–110, for light and medium wovens; 134 / 134LR, Nm 100–130, for heavy work; 135×17, Nm 100–180, on walking foot and compound feed machines. Overlocks generally run DC×27 / B27; coverstitch machines run UY128GAS. Standardising the needle systems across a line is a real cost saving on the parts shelf.
Lockstitch positions
The workhorse of any woven line. What to specify depends on the operation:
- General seaming, light to medium. Jack F6 (DB×1 #11–#18, drop feed, 5,000 SPM, automatic lubrication) or Siruba DL720-M1. Add a trimmer for anything with more than a handful of seam ends per piece: Jack A2C-C, Juki DDL-8700 (5,500 SPM).
- Fully automatic with material adaptation. Speedway AI4 (electronic tension, automatic trimmer, 5,500 SPM, DB×1 #11–#18) and Jack A5E-B with A.M.H material recognition. Worth the premium where a line changes fabric weight between styles.
- Heavy weight. Juki DDL-9000C-SSH — digital head for heavy materials, 4,500 sti/min up to 4 mm stitch (4,000 above that), needle DB×1 / DP×5 in #20–#23, with an AK-154 auto foot lifter. Or the more economical Juki DDL-8100eH with a large-capacity bobbin and 7 mm stitch.
- Stepper-motor / fully automatic value option. Siruba DL7200C-BM1-16Q.
- Parallel rows. A double-needle lockstitch such as the Jack JK-58420B for waistbands, jeans topstitching and yokes. Note that this means two parallel rows of the same stitch — it is not the same thing as a multi-needle embroidery machine.
Overlock positions
For knits, the overlock is the line, not an accessory.
- Speedway SW6-4D — 2-needle 4-thread mock safety (ISO 514), 6,500 sti/min, DC×27 #11–#14, differential feed 0.7–2.0, 6 mm overedge width. The default knit seaming machine.
- Speedway SW6-5D — 2-needle 5-thread true safety stitch (401 + 504), 6,500 sti/min, 6.4 mm needle gauge. Wovens, denim and workwear.
- Speedway SW6-3D — 3-thread, for edge finishing and light seams; the -32R version is the narrow rolled-hem head for lingerie and scarves.
- Juki MO-6714DA and Siruba 757H-516M2-35 where a longer-established parts chain matters.
Specify the differential feed range and the overedge width per operation, not just the thread count. And budget for a submerged table and waste extraction — every overlock produces trim, and a vacuum head like the Speedway SW 933-38-ED3 keeps it off the floor.
Coverstitch positions
Knit hems, neckbands and elastic. Bed type is the decision:
- Flatbed for open, flat work: Juki MF-7523U11 (3-needle, UY128GAS #9–#18), Speedway SW 562/01CB (5,500 SPM, direct drive), Singer 523D-364.
- Cylinder bed for tubular work — sleeve hems and cuffs sewn closed: Kansai Special NR-9803GA (1/4" gauge).
Finishing, reinforcement and cutting
- Bar-tacking — belt loops, fly ends, pocket corners. Electronic tackers let you change pattern and size on a panel: Jack JK-T1900GH-DII. Mechanical 1850-class heads remain the cost-effective option at fixed patterns: Siruba PK522-42M (DP×5 #10–#16, 18 × 3 mm sewing area).
- Heavy or multi-layer components — bags, straps, upholstered panels — need compound (unison) feed, where needle, top foot and bottom feed dog all move together. A walking foot alone is not the same mechanism. See Speedway SW 2810D-7 (2,200 SPM, DP×17 #20–#23, 9 mm stitch) or the heavy-duty range.
- Cutting room — a straight-blade cutter such as the Speedway CZD-3 or Jack JK-T3 for spreads, and a bias strip cutter for binding production.
Three things that cost factories more than machine choice
- No spare parts on the shelf. For every machine type on the line, stock hooks or loopers, bobbin cases, feed dogs, needle plates, knives and belts. A $40 looper stops a $2,000 machine for a week if it has to be ordered.
- No maintenance schedule. Daily lint removal from the hook area and an oil-level check; weekly lubrication per the manual and a needle-condition check; quarterly oil change and hook timing verification. Skipping this shows up as thread breaks and skipped stitches that get blamed on the operator.
- Mismatched needle and thread. The needle must be sized to the thread as well as the cloth. A thread too thick for the eye abrades and breaks at speed; a needle too coarse for the fabric leaves visible holes. Standardise per operation and write it on the machine.
Buying at line quantity
If you are equipping or re-equipping a line rather than replacing one head, talk to us before you build the order. Quantities change the conversation on pricing, freight consolidation, spare-part packages and delivery scheduling — and it is easier to standardise needle systems and parts across the line at the quoting stage than after installation.
